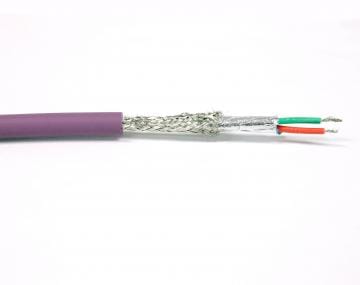

HY-TREX® Profibus Cable is a communication cable used to operate sensors and actuators through a centralized controller in factory automation systems. Capable of running faster communication systems and is designed with finely stranded tinned copper conductors that resist corrosion, improve flexibility and help reduce conductor fatigue and breakage in flexing applications.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Specially Compounded Solid Polyethylene Insulation System

Provides excellent dielectric and insulation properties.

65% Coverage Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction

Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”.

Specially Compounded Purple TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Specsheets

Product Overview

Video

HY-TREX® Wire and Cable

Resource-Color Code

HY-TREX® Profibus Cable

Ratings / Characteristics

  • IEC 61158-2: Profibus DP

  • IEC 61784: Industrial Communication Network Standard

  • UL 758: AWM Style 20207

  • 600 V

  • Max Conductor Temperature 80°C

  • Bend Radius (Static): 6x Cable O.D.

  • AWM Style 20207

  • Bend Radius (Dynamic): 8x Cable O.D. 

  • Impedance: 150 +/- 15 Ohms Differential 78.8 Ohm Single Ended

  • Capacitance: 9.15 pF/Ft. Mutual 16.5 pF/Ft. Single-Ended

  • Velocity of Propagation: 66%

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

Part Numbers

Part No. Conductor Size (AWG) Stranding NOM O.D.
(in.)		 WEIGHT
(LBS/1000')		 Overall Shield
PB100-022-1STP-SB 22 AWG 19x34 0.301 46 Overall Shield
