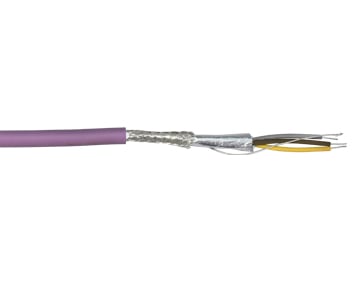

HY-TREX® RS-485 Communication Cable

Designed to meet both TIA RS-485 standards, and Modbus cable standards, HY-TREX® RS-485 Communication cable is an ideal choice for RS-485/Modbus RTU communication systems. The use of very fine stranding extends cable life and improves cable performance in dynamic flexing applications. One-pair and two-pair configurations are available.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Conductors

Tinned copper, 24 AWG, 19x36 stranding.

Insulation

Polyethylene (PE).

Insulation Color Code

Pair 1: Yellow & Brown Common: Grey.
Pair 2: White & Blue.

Shielding

Aluminum/Mylar Foil Shield + Overall tinned copper braid shield, 90% minimum coverage.

Jacketing

Extruded TPE jacket, color violet.

Twisted Pairs

Quantity one (1) or two (2) twisted pair with a common wire.

Resources

Specsheets

Product Overview

Catalog

HY-TREX Product Catalog

Video

HY-TREX® Wire and Cable

Ratings / Characteristics

  • UL 13: Power Limited Circuit Cables, Type CL2

  • UL 444: Communication Cables, Type CM

  • UL 758: AWM Style 2464

  • IMPEDANCE: 120 +/- 12 Ohms

  • CAPACITANCE: 12.2 pF/Ft. Cond-Cond

  • VELOCITY OF PROPAGATION: 66%

  • 300 V

  • OPERATING TEMPERATURE: -25°C to 80°C

  • MINIMUM BEND RADIUS: One Pair: 2.8 inch Two Pair: 3.2 inch

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Stranding NOM O.D.
(in.)		 WEIGHT
(LBS/1000')		 Shielding Type
RS400-024-1UTP-SFB 24 AWG/1-Pair 1 19x36 0.349 55 Overall Shield
RS400-024-2UTP-SFB 24 AWG/2-Pair 2 19x36 0.396 81 Overall Shield

Related Products

kord-gard-mesh-cord-grip_1

Kord-Gard Aluminum Mesh Strain Relief
Kord_Gardwofunl

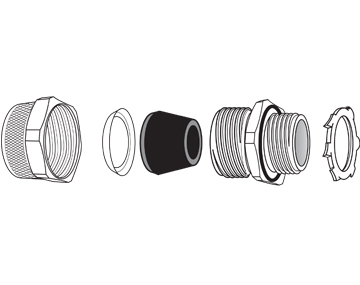

Grip-Seals Aluminum Cable Glands
