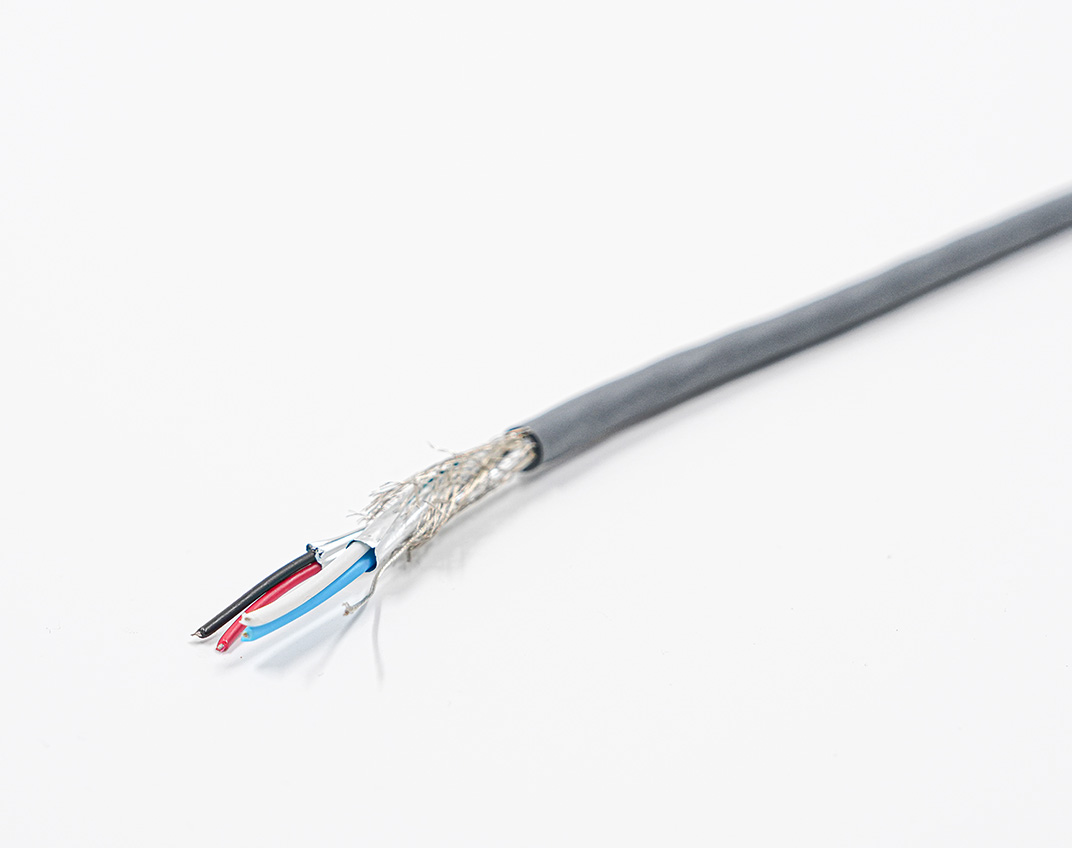

Trex-Onics® DeviceNetTM Flex-Net High Performance Cable 3QV_Web

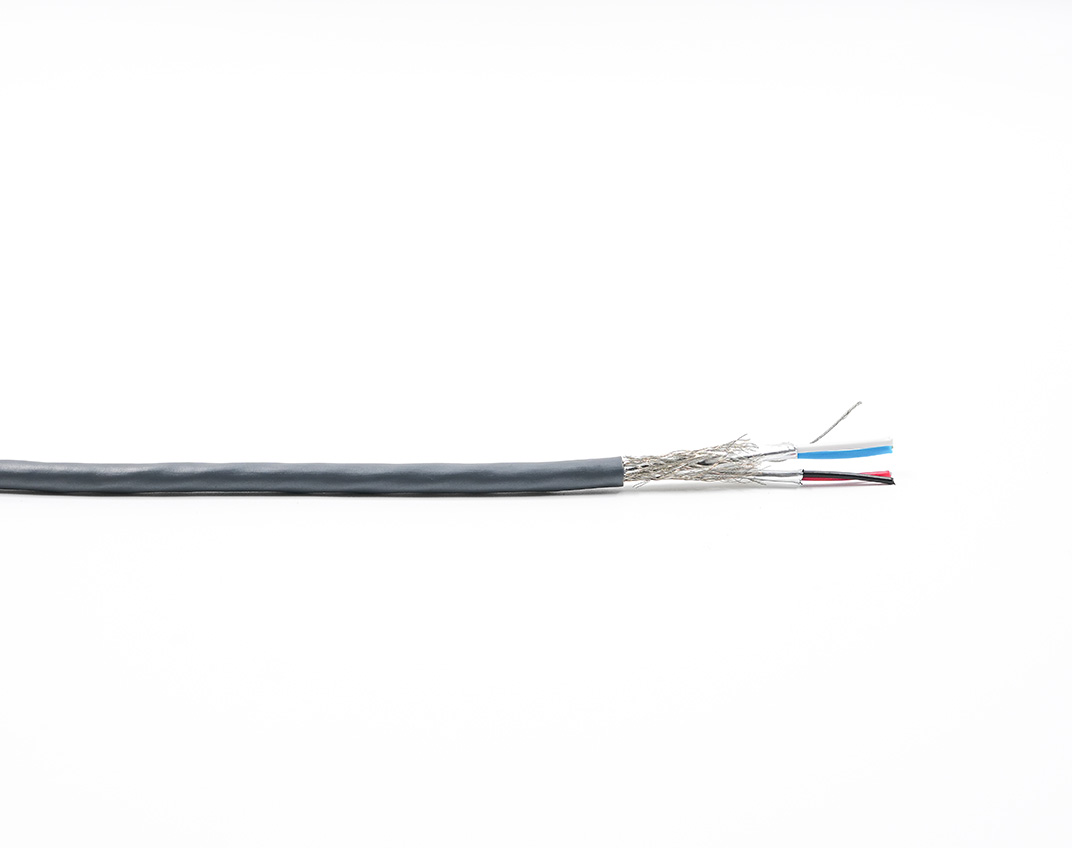

Trex-Onics® DeviceNetTM Flex-Net High Performance Cable Side_Web

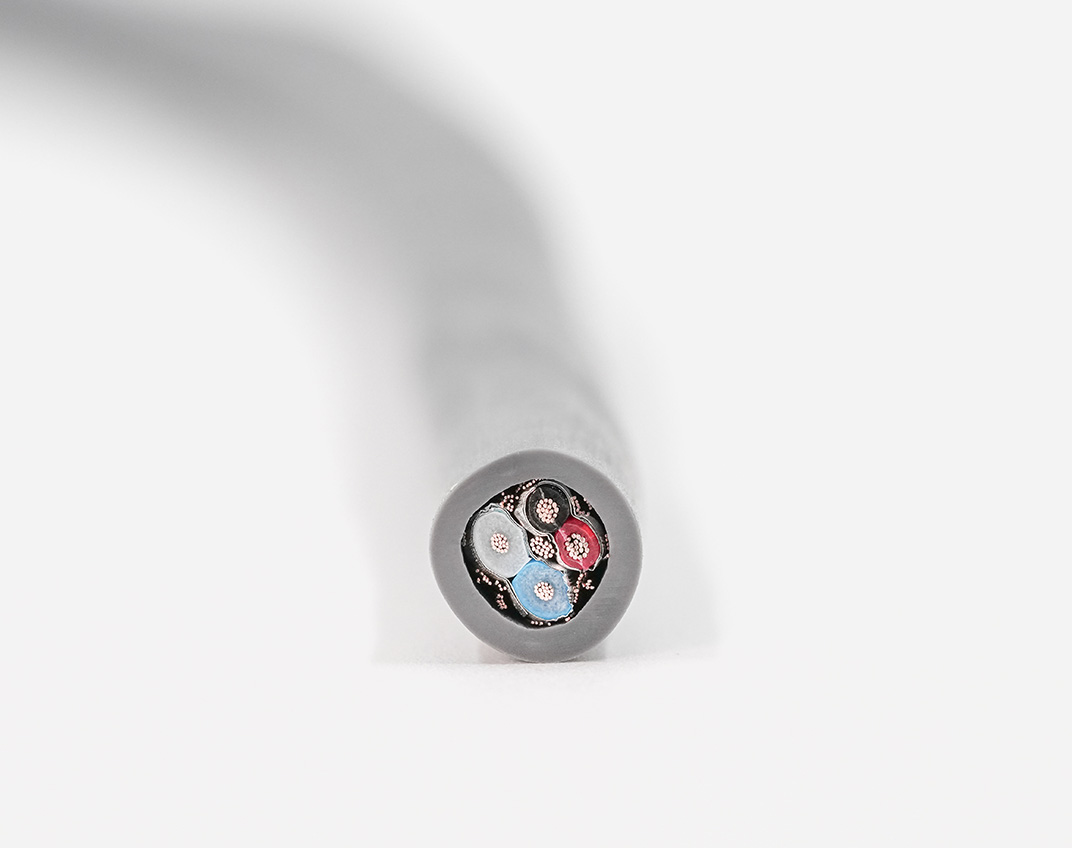

Trex-Onics® DeviceNetTM Flex-Net High Performance Cable Macro_Web

Trex-Onics® DeviceNet™ Flex-Net High Performance Cable

Trex-Onics® DeviceNet™ Flex-Net High Performance Cable is designed to meet the electrical requirements identified by the Open DeviceNet Association (ODVA) and is available in a Thick or Thin Trunk Cable design.

This data cable features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. It has a heavy-duty polyurethane jacket that provides protection from environmental abuse and offers resistance to cutting, abrasion, oil and chemicals.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Heavy-Duty 65% Coverage Tinned Copper Braid Shield

Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage." Designed for superior performance in dynamic applications.

Specially Compounded TPU Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, UV exposure, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Electrically Tested

Meets performance requirements as specified by ODVA™.

Resources

Specsheets

Product Overview

Resource-Color Code

Trex-Onics® DeviceNet™ Flex-Net High Performance Cable

Ratings / Characteristics

  • RoHS Compliant

  • ODVA Conformity

  • 300 V

  • Max Conductor Temperature 70ºC

  • Cold Temperature Rating -40°C

  • UV Resistant

  • Bend Radius (Static): 6x Cable O.D. 

  • Bend Radius (Dynamic): 8x Cable O.D. 

  • Capacitance Cond-Cond: 14 pF/ft. @ 1MHz (nominal)

  • Capacitance Cond-Shield: 24pF/ft. @ 1MHz (nominal)

  • Impedance: 120 Ohms +/- 10% @ 1MHz (nominal)

  • Velocity of Propagation: 66% (nominal)

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Communication Conductor Size Counductor Pole Count Nominal O.D. Inches Wt. Per 1000' LBS Thickness Shielding Type
60009 15/1 PR 18/1 PR 2 0.433 110.9 Thick Overall Shielded, Individually Shielded Pairs
60010 22/1 PR 24/1 PR 2 0.271 37.6 Thin Overall Shielded, Individually Shielded Pairs
