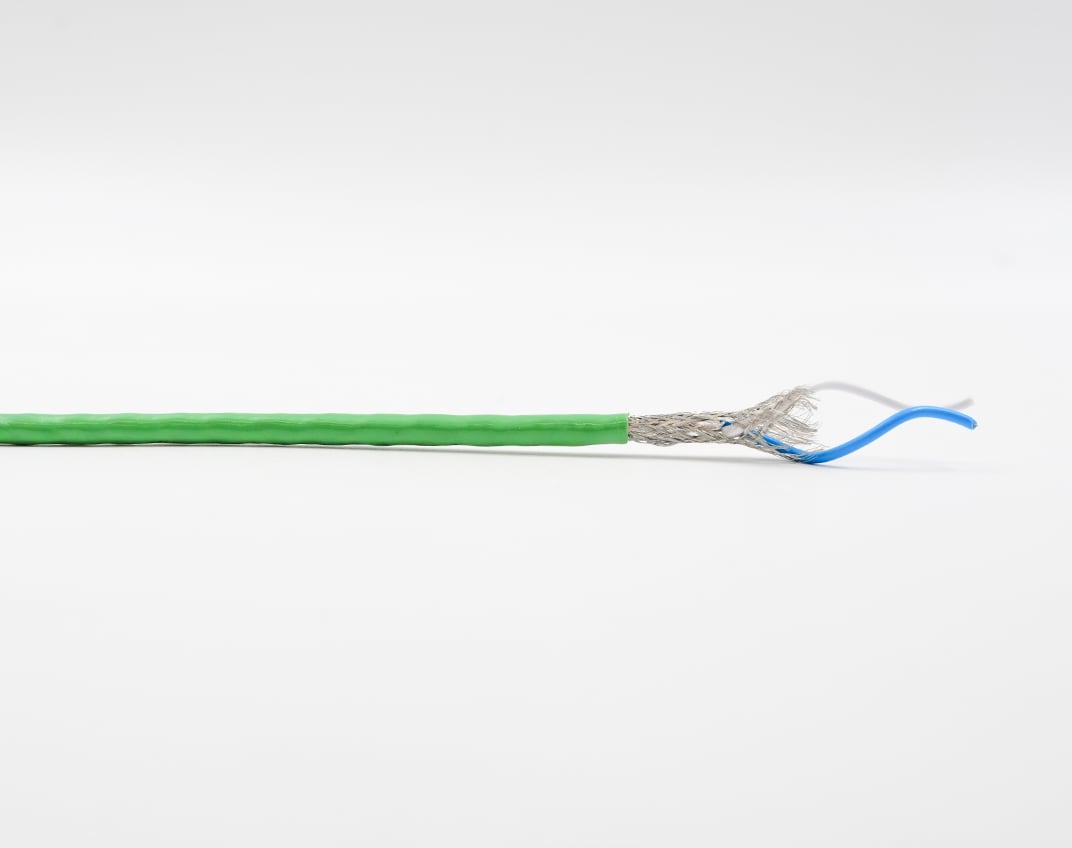

Trex-Onics® High Flex Single Pair Ethernet Cable Side_Web

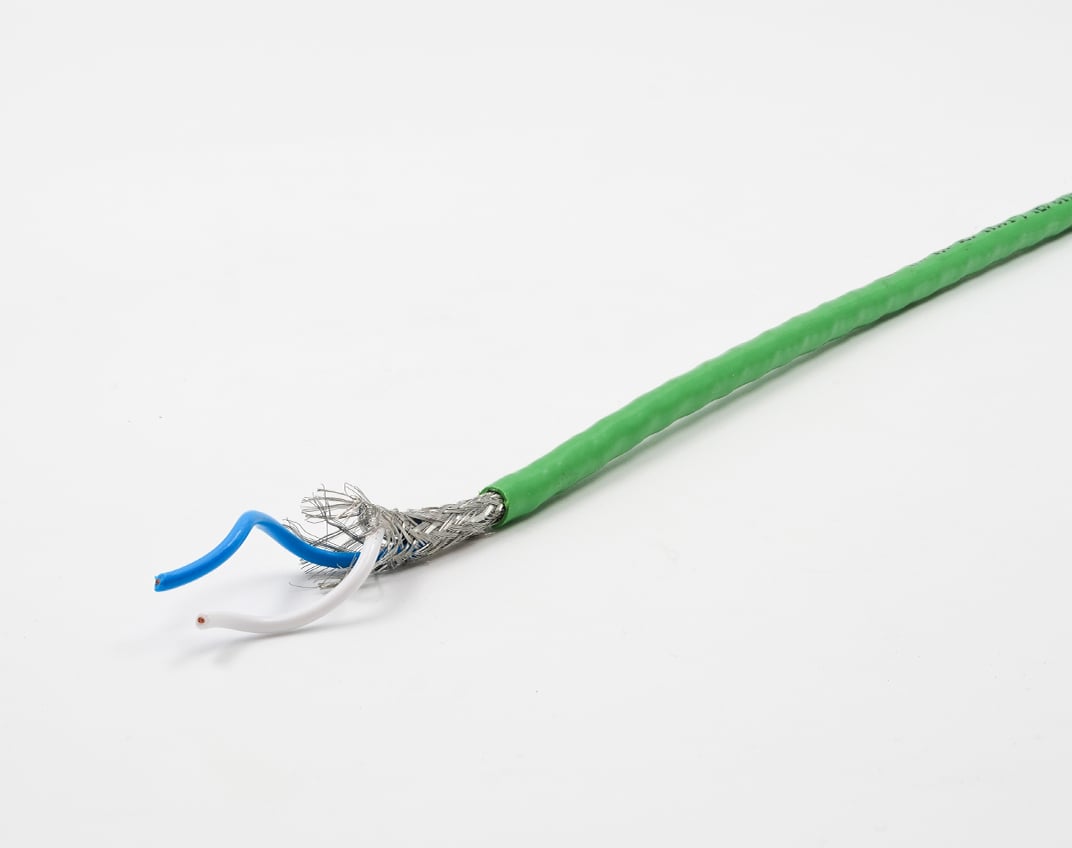

Trex-Onics® High Flex Single Pair Ethernet Cable 3QV_Web

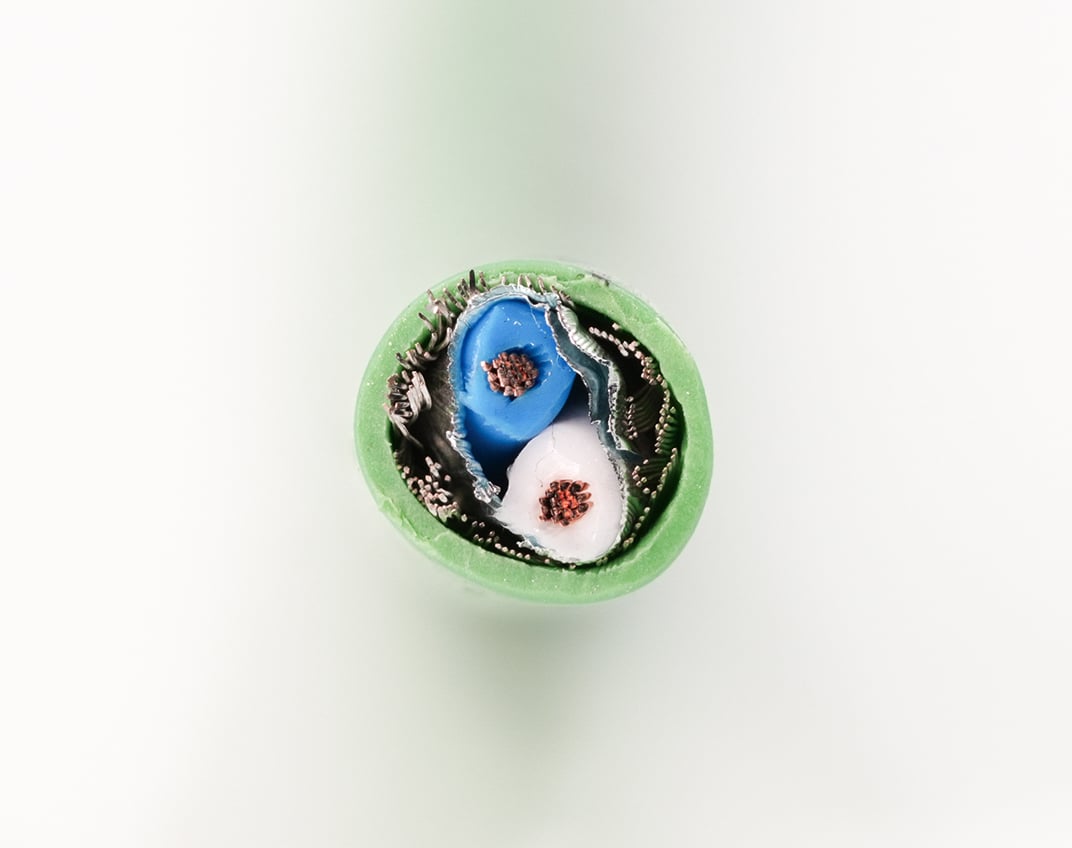

Trex-Onics® High Flex Single Pair Ethernet Cable Front_Web

Trex-Onics® High Flex Single Pair Ethernet Cable

Trex-Onics® High Flex Single Pair Ethernet Cable is engineered for continuous motion and demanding flex applications, delivering dependable connectivity over distances up to 40 meters. Its durable construction resists mechanical stress, making it ideal for cable carriers, robotics, and dynamic automation environments.

This ethernet cable features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. The halogen-free, flame-retardant polyurethane jacket provides protection from environmental abuse and offers resistance to cutting, abrasion, oil and chemicals.

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Specially Compounded XLPE Insulation

Provides excellent dielectric and insulation properties.

Ultra-Shield Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction

Provides 100% protection against EM and RF interference.

Specially Compounded Halogen-Free and Flame-Retardant Polyurethane Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Resource-Color Code

Trex-Onics® High Flex Single Pair Ethernet Cable Color Code

Ratings / Characteristics

  • RoHS Compliant

  • 600V

  • Cold Temperature Rating -40°C

  • IEC 61156

  • IEC 61156-12

  • ISO/IEC 11801-1

  • IEC 60754-1/2

  • IEC 61034-1/2

  • Meets data rates of IEEE 802.3bp / 1000BASE-T1

  • IEEE 802.3bu (PoDL, max of 50 watts)

  • UV Resistant

  • Oil Resistant

  • Halogen-Free Flame-Retardant

  • Impedance: 100 Ω ± 15 Ω

  • Frequency Bandwidth: 1.25 GHz

  • Data Rate (40 mts): 1 Gbps

  • Max Run Distance: Up to 40 Meters (131 Feet)

  • Bend Radius (Static): 6x cable OD

  • Bend Radius (Dynamic): 8x cable OD

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

chemicals-icon

Chemicals

Part Numbers

Part Number Conductor Size Conductor Count AWG Stranding Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Shielding Type
60071 22AWG 2 19 x 34AWG 0.24 27 Overall Shield
