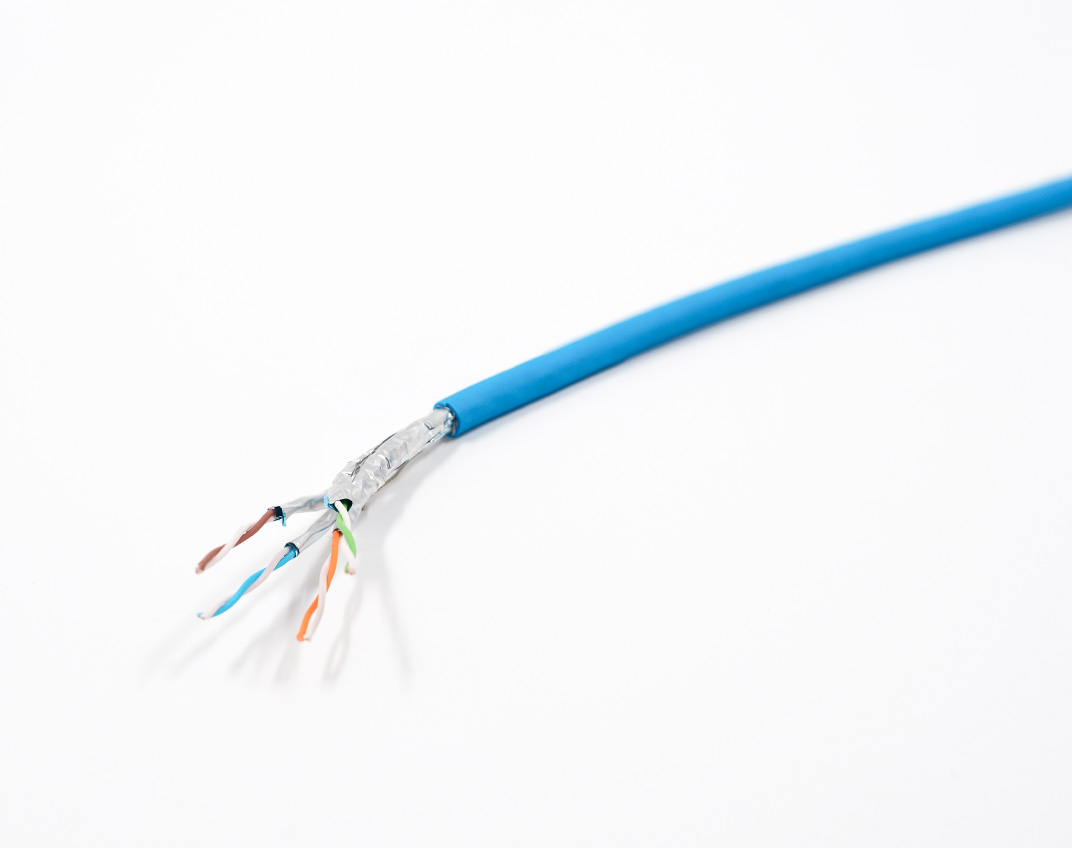

Trex-Onics® Industrial Ethernet CAT7A Cable 3QV_Web
Trex-Onics® Industrial Ethernet CAT7A Cable Side_Web

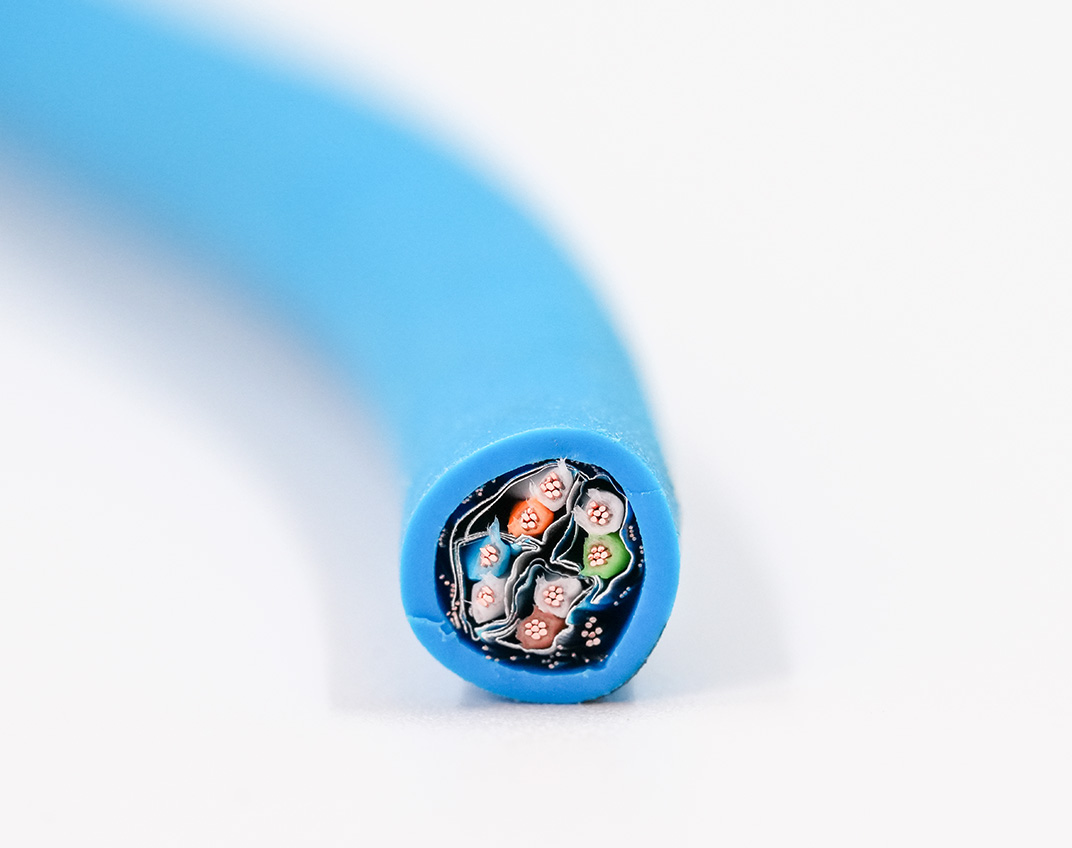

Trex-Onics® Industrial Ethernet CAT7A Cable Macro_Web

Trex-Onics® Industrial Ethernet CAT7A Cable

Trex-Onics® Industrial Ethernet CAT7A Cable is designed with finely stranded conductors that provide high flexibility and longer flex-life.

This ethernet cable features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. The jacket is a halogen-free, flame-retardant material that provides protection from environmental abuse and offers resistance to cutting, abrasion, oil and chemicals.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Polyolefin (PO) Insulation System

Provides excellent dielectric and insulation properties.

Ultra-Shield Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction

Provides 100% protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”.

Combination of Cellular Insulation and Shielded Pairs

Provides superior electrical performance to meet CAT7A and Ethernet/IP requirements.

Halogen-Free and Flame-Retardant Polyurethane Jacket

Provides protection from environmental abuse and offers resistance to UV light, cutting, abrasion, oil and chemicals.

Backward Compatibility

Fully interchangeable with CAT5E, CAT6 and CAT6A cables.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Ethernet Cable Assemblies

CustomCable

30805 Installation Instructions

Resource-Color Code

Trex-Onics® Industrial Ethernet CAT7A Cable

Ratings / Characteristics

  • ANSI TIA/EIA 568-B

  • IEC 60332-1

  • ISO/IEC 11801

  • IEC 61156-6

  • RoHS Compliant 2002/95/EC

  • 600 V

  • Max Conductor Temperature 70°C

  • Cold Temperature Rating -40°C

  • Abrasion Resistant

  • Frequency Range up to 1000 MHz

  • Halogen-Free Flame Retardent

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Description Conductor Size (AWG) Conductor/Pole Count NOM. INSUL. WALL
INCHES		 NOMINAL O.D.
INCHES		 JACKET WALL
INCHES		 WT. PER 1000'
lbs		 Shielding Type
60067 26 AWG (7 x 0.0063") 26 AWG 4 0.01 0.26 0.039 51 Overall Shielding
30808 RJ45 for 40G Bit Ethernet

Related Products

tpc-ethernet-cable-assemblies

Ethernet Cable Assemblies
tpc-ethernet-cable-assemblies

Field Installable RJ45 Connectors
eithernet-cat-6a-cable

Trex-Onics Cat6A Patch Cable
trex-onics-shielded-horizontal-cat6

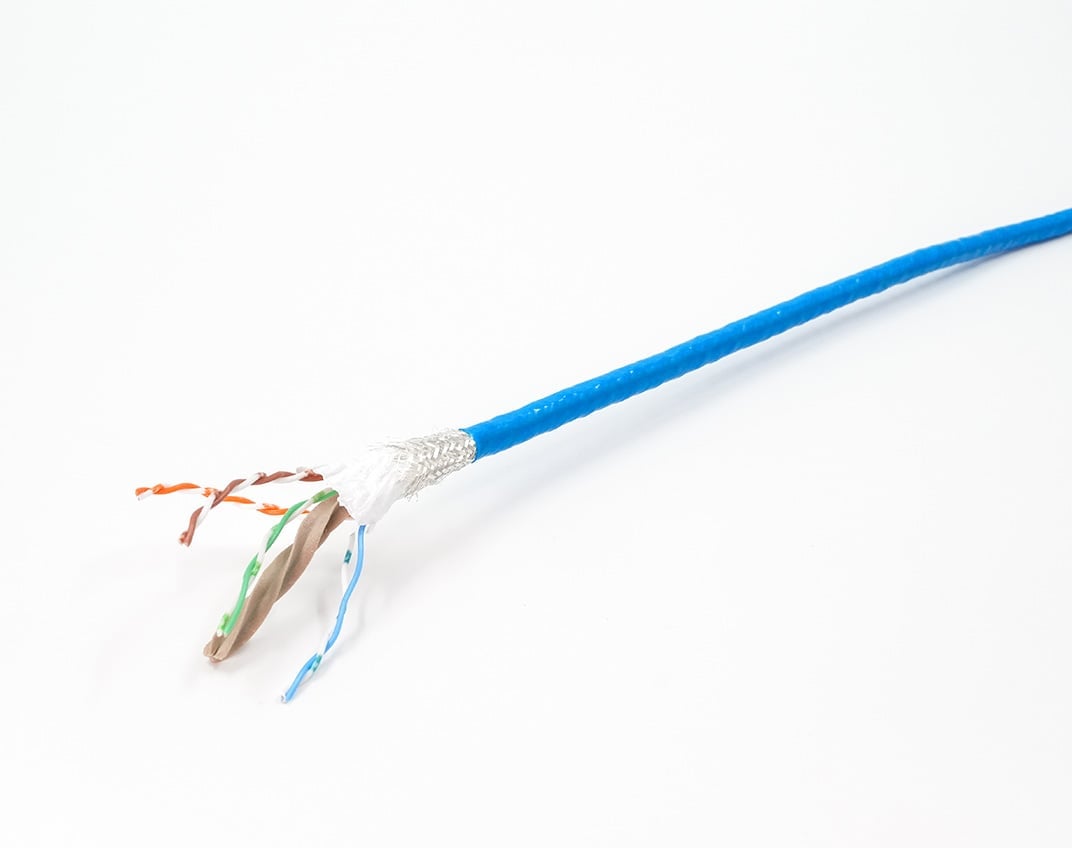

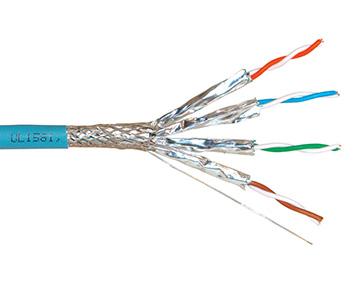

Trex-Onics Cat6 Horizontal Cable
