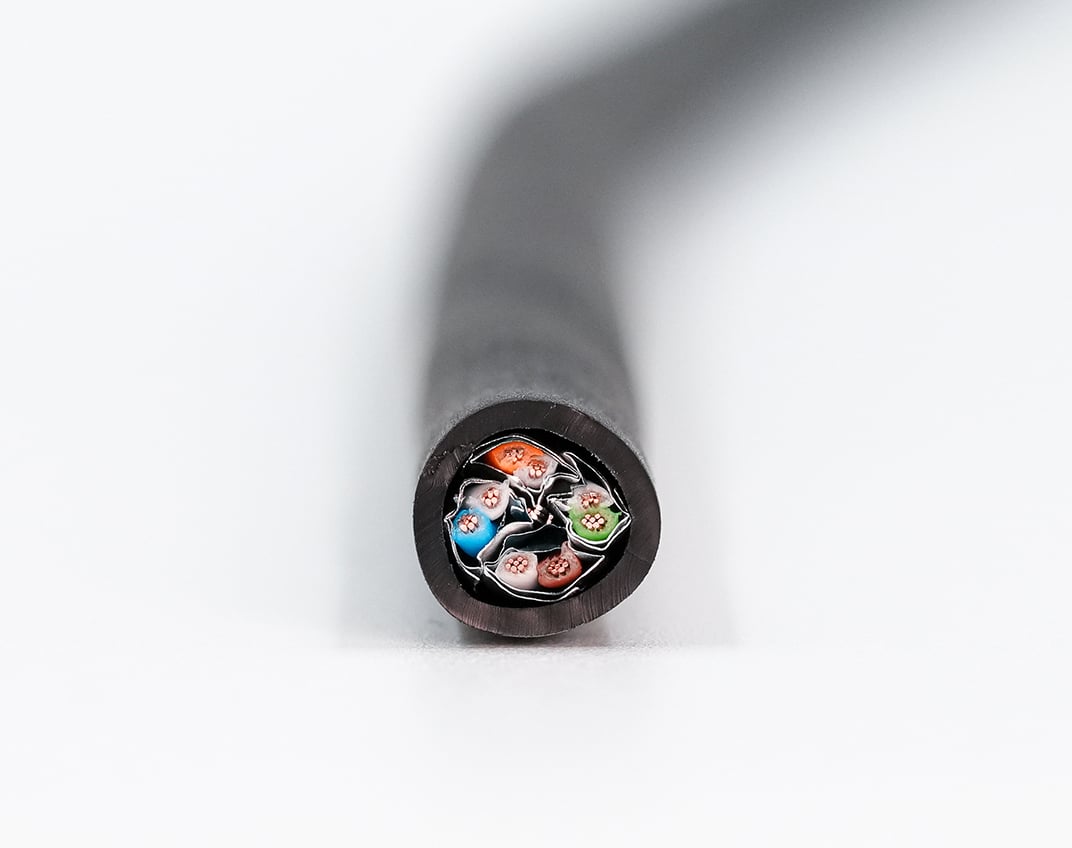

Trex-Onics® Industrial Ethernet CAT6A Cable Macro_Web

Trex-Onics® Industrial Ethernet CAT6A Cable

Trex-Onics® Industrial Ethernet CAT6A Cable is designed with finely stranded conductors that provide high flexibility and longer flex-life.

This ethernet cable features a halogen-free and flame-retardant jacket that provides protection from environmental abuse and offers resistance to UV light, cutting, abrasion, oil and chemicals. Our combination of cellular insulation and shielded pairs provides superior performance to meet or exceed CAT6A and Ethernet/IP requirements.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Polyolefin (PO) Insulation System

Provides excellent dielectric and insulation properties.

Aluminum/Polyester Foil Shield Construction

Placed around each pair reduces radiated and conducted electrical noise interference.

Combination of Cellular Insulation and Shielded Pairs

Provides superior electrical performance to meet CAT6A and Ethernet/IP requirements.

Halogen-Free and Flame-Retardant Polyurethane Jacket

Provides protection from environmental abuse and offers resistance to UV light, cutting, abrasion, oil and chemicals.

Backward Compatibility

Fully interchangeable with CAT5E and CAT6 cables.

FLEX TESTED

Tested to over 6,000,000 cycles without electrical failure!

DRAIN WIRE

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Ethernet Cable Assemblies

CustomCable

30805 Installation Instructions

Resource-Color Code

Trex-Onics®Industrial Ethernet CAT6A Cable

Video

RJ45 Field Installable Connector Instructional Guide for Large Ethernet Cables

Ratings / Characteristics

  • RoHS Compliant

  • 300 V

  • IEC 60332-1

  • IEC 61156-6

  • ISO/IEC 11801

  • Max Conductor Temperature 65°C

  • Cold Temperature Rating -30°C

  • Halogen-Free Flame Retardant

  • Frequency Range up to 500 MHz

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

  • Max Run Distance: 30 Meters (98 Feet)

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. CONDUCTOR SIZE STRANDING NOM. INSUL. WALL
inches		 OVERALL SHIELD NOMINAL O.D.
inches		 JACKET WALL
inches		 WT. PER 1000'
lbs		 Shielding Type
60062 26 AWG (7 x 0.0063") 0.01 NO 0.275 0.039 29 Individually Shielded Pairs
