Trex-Onics® Shielded Horizontal CAT6 Cable

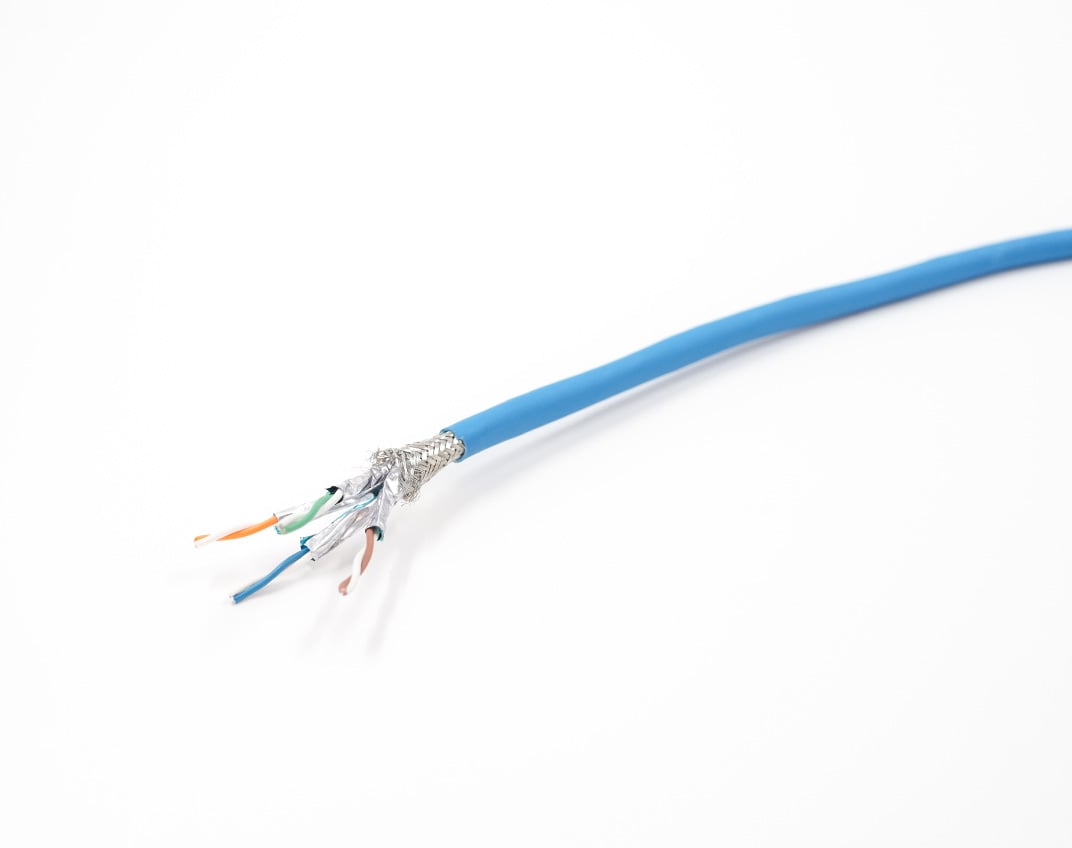

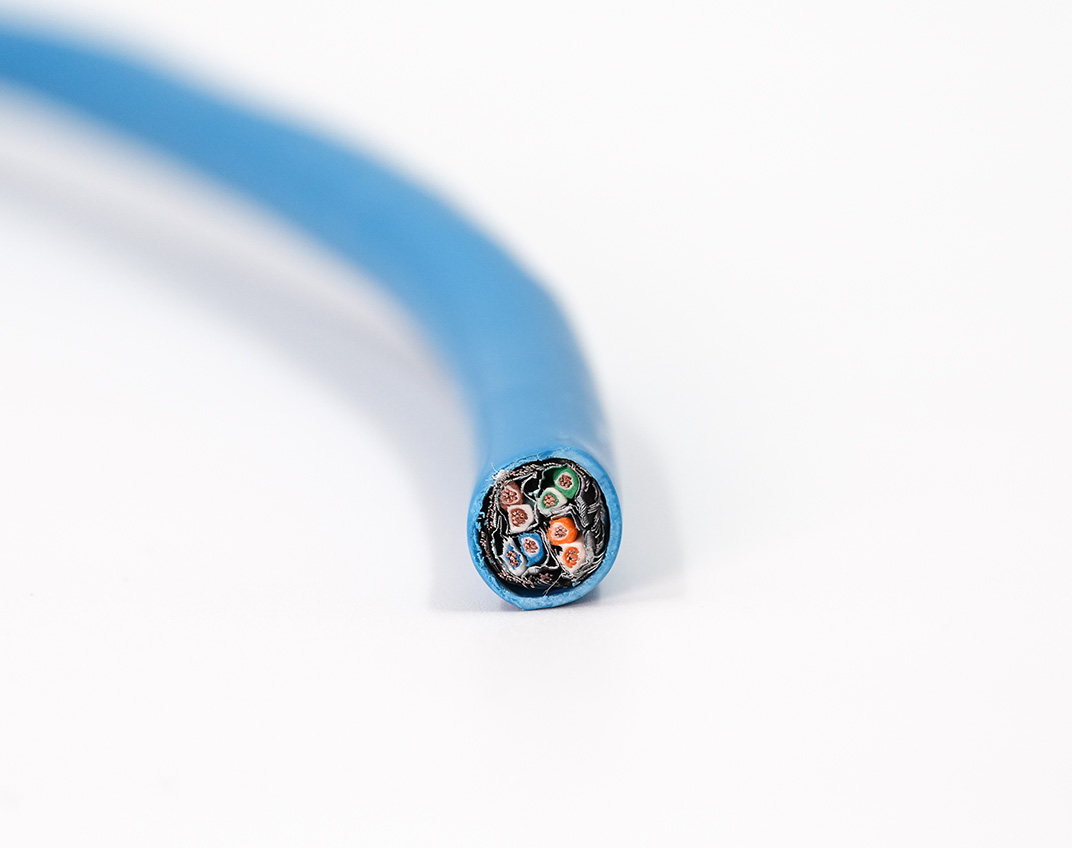

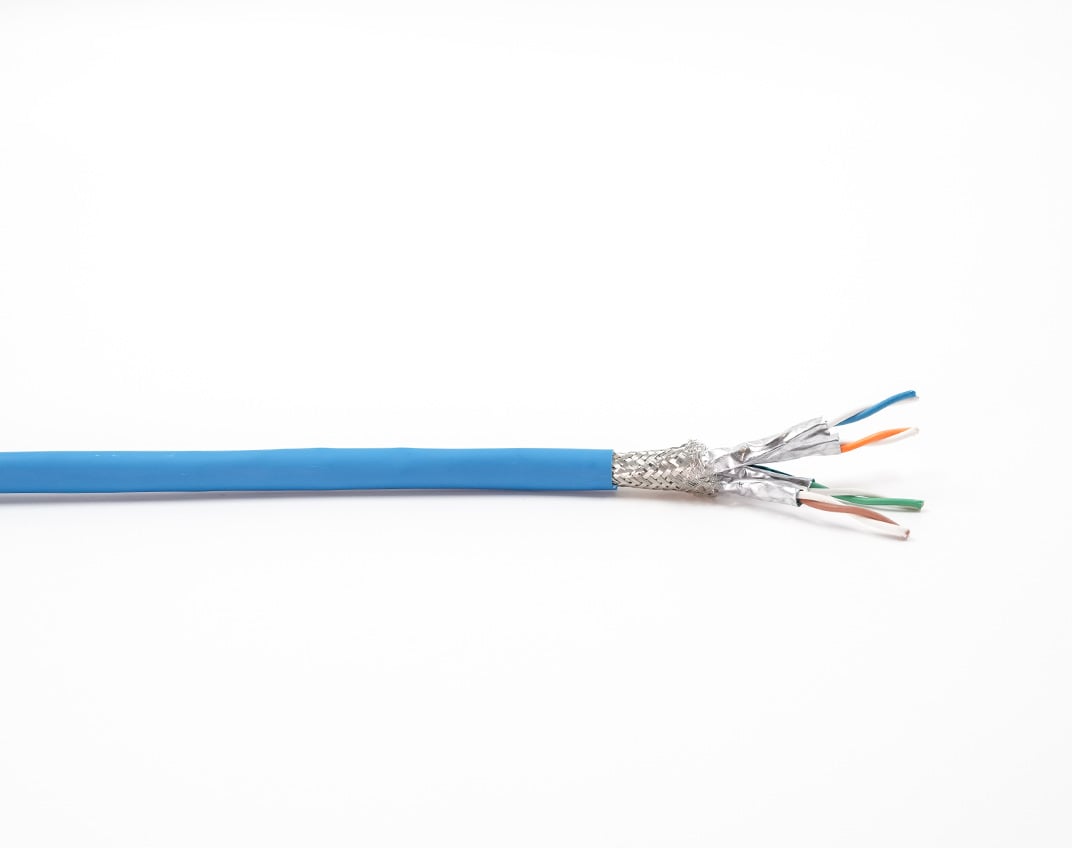

Trex-Onics® Shielded Horizontal CAT6 Cable is designed with finely stranded conductors that provide high flexibility and longer flex-life.

This ethernet cable features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. The jacket is a halogen-free, flame-retardant material that provides protection from environmental abuse and offers resistance to cutting, abrasion, oil and chemicals.

RoHS Compliant 2002/95/EC

Features

STRANDED BARE COPPER CONDUCTORS

Improve flexibility and offer longer flex life.

POLYOLEFIN (PO) INSULATION SYSTEM

Provides excellent dielectric and insulation properties.

ULTRA-SHIELD® CONFIGURATION AND ALUMINUM/POLYESTER FOIL SHIELD CONSTRUCTION

Placed around each pair reduces radiated and conducted electrical noise interference.

HALOGEN-FREE AND FLAME RETARDANT POLYURETHANE JACKET

Provides protection from environmental abuse and offers resistance to UV light, cutting, abrasion, oil and chemicals.

COMBINATION OF CELLULAR INSULATION AND SHIELDED PAIRS

Provides superior electrical performance to meet CAT7A and Ethernet/IP requirements.

BACKWARD COMPATIBILITY

Fully interchangeable with CAT5E, CAT6 and CAT6A cables.

BRAIDED SHIELD WITH DRAIN WIRE

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Ethernet Cable Assemblies

CustomCable

30805 Installation Instructions

Ratings / Characteristics

  • FT-1 Flame Rating

  • UV Resistant

  • ANSI TIA/EIA 568-B

  • RoHS Compliant

  • TIA/EIA 568-C-2

  • Max Conductor Temperature 80°C

  • Cold Temperature Rating -30°C

  • Halogen-Free Flame Retardent

  • IEEE 802.3bt

  • Frequency Range up to 250 MHz

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Description Conductor Size (AWG) Conductor/Pole Count STRANDING NOMINAL O.D.
inches
WT. PER 1000'
lbs
Shielding Type
60066 22 AWG 22 AWG 4 7 x 30 0.37 78 Overall Shielded, Individually Shielded Pairs
30805 RJ45 Connector for Large Diameter Cables

Request a Quote
