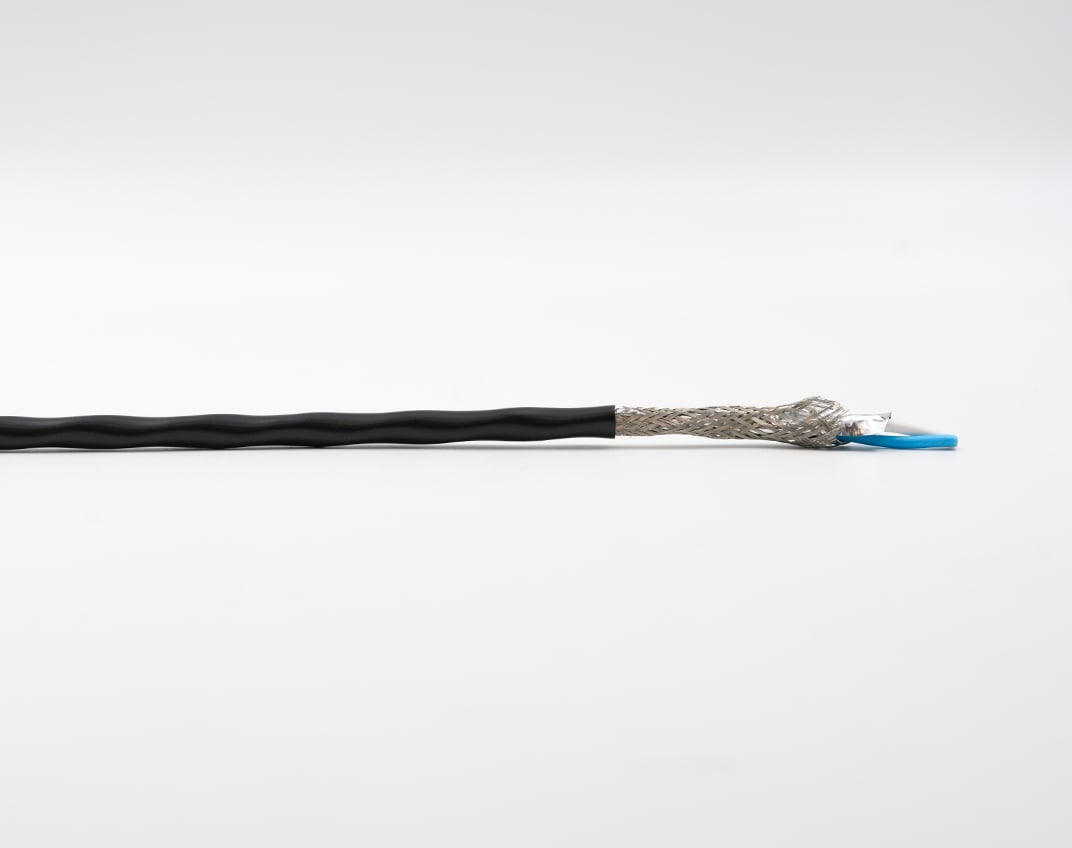

Trex-Onics® Industrial Single Pair Ethernet Cable Side_Web

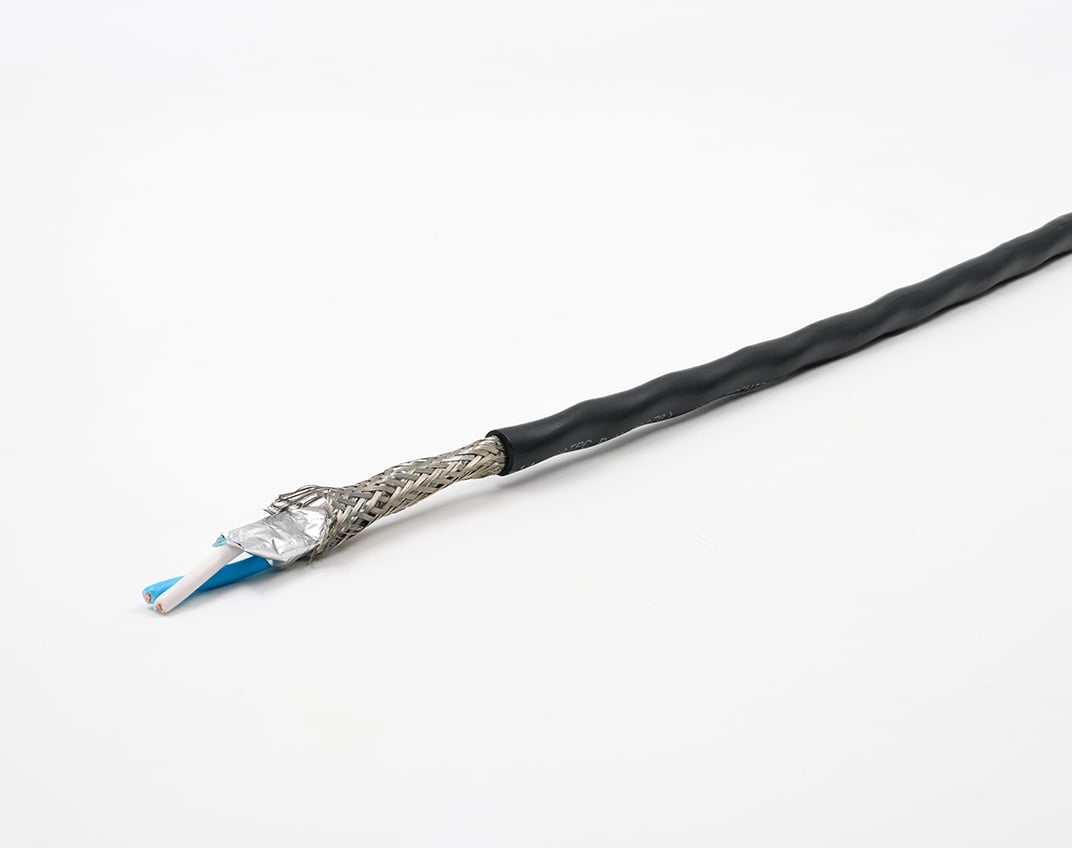

Trex-Onics® Industrial Single Pair Ethernet Cable 3QV_Web

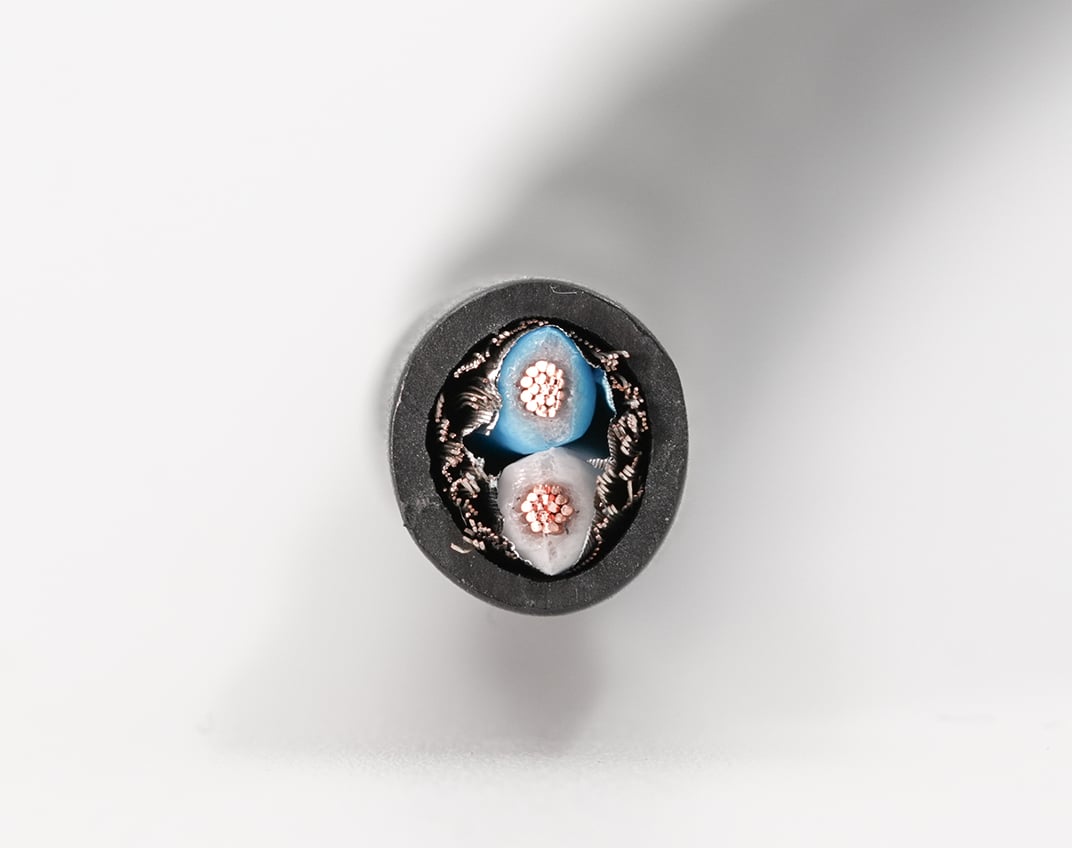

Trex-Onics® Industrial Single Pair Ethernet Cable Front_Web

Trex-Onics® Industrial Single Pair Ethernet Cable

Trex-Onics® Industrial Single Pair Ethernet Cable is built for the extreme demands of industrial environments, delivering reliable 1000-meter connectivity for both indoor and outdoor applications. Engineered to provide the durability and performance needed for critical automation systems.

This ethernet cable features Ultra-Shield construction, which includes a heavy-duty combination of tinned copper braid, foil shield, and tinned drain wire providing 100% protection from electromagnetic and radio frequency interference. The halogen-free, flame-retardant polyurethane jacket provides protection from environmental abuse and resists cutting, abrasion, oil and chemicals.

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Specially Compounded Cellular Polyethylene Insulation System

Provides excellent dielectric and insulation properties.

Ultra-Shield Tinned Copper Braid Shield Plus Aluminum/Polyester Foil Shield Construction

Provides 100% protection against EM and RF interference.

Specially Compounded Halogen-Free And Flame-Retardant Polyurethane Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Resource-Color Code

Trex-Onics® Industrial Single Pair Ethernet Cable Color Code

Ratings / Characteristics

  • RoHS Compliant

  • 110V

  • Max Conductor Temperature 90°C

  • Cold Temperature Rating -40°C

  • IEC 61156

  • IEC 61156-14

  • ISO/IEC 11801-1

  • IEC 60754-1/2

  • IEC 61034-1/2

  • Meets data rates of IEEE 802.3cg / 10BASE-T1L

  • IEEE 802.3bu (PoDL, max of 50 watts)

  • UV Resistant

  • Oil Resistant

  • Halogen-Free Flame-Retardant

  • Impedance: 100 Ω ± 15 Ω

  • Frequency Bandwidth: 20 MHz

  • Data Rate (1000 mts): 16 Mbps

  • Max Run Distance: Up to 1000 Meters (3280 Feet)

  • Bend Radius (Static): 6x cable OD

  • Bend Radius (Dynamic): 8x cable OD

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

chemicals-icon

Chemicals

Part Numbers

Part Number Conductor Size Conductor Count AWG Stranding Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Shielding Type
60070 18AWG 2 19 x 30AWG 0.307 44 Overall Shield
