ATPC Medium Voltage Cables

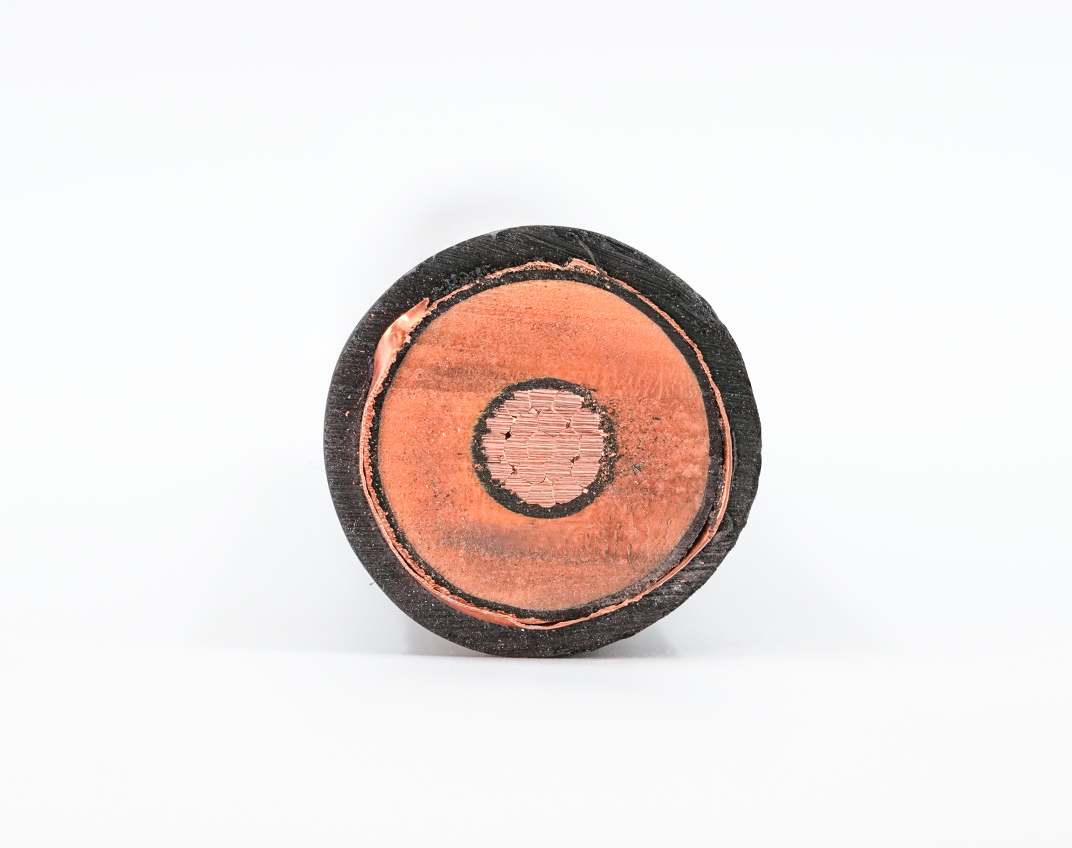

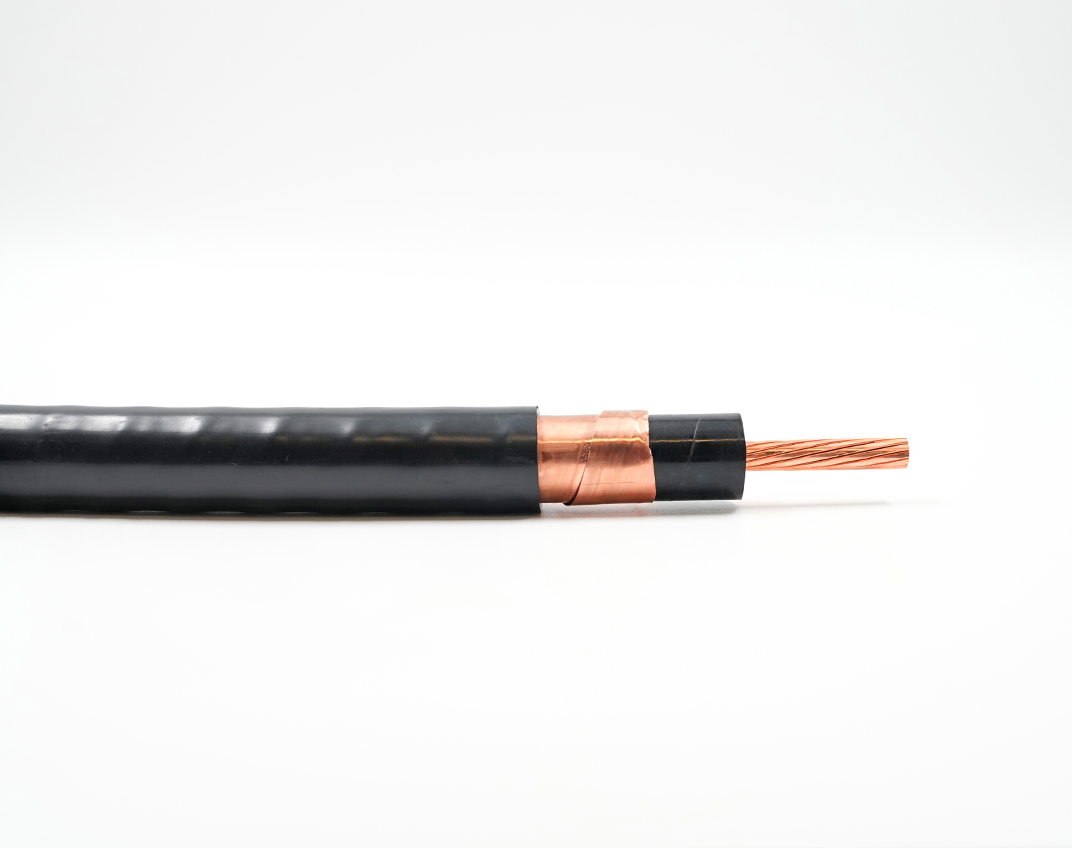

Our Type MV cables are designed to meet UL Standard 1072 and are available in single-conductor medium voltage options ranging from 5kV to 35kV and conductor sizes from 1/0 AWG up to 1000 kcmil. The standard construction consists of a copper conductor, TR-XLPE insulation with 100% or 133% Insulation Levels, copper tape or 1/3 copper concentric neutral shield, and a PVC jacket. Available options include aluminum conductors or EPR insulation. Please consult with an ATPC Sales Representative to learn more.

Features

SOFT DRAWN COMPRESSED COPPER

Class B per ASTM B3 & ASTM B8

COPPER SHIELD

Semi-conductive layer

TR-XLPE

100% or 133% Insulation Level with semi-conductor insulation shield

INSULATION SHIELD

Copper tape or 1/3 Concentric Neutral

PVC JACKET

Offers first-line defense against tearing, abrasion, impact, oil and most chemicals

Resources

Specsheets

Product Overview

ProductFamilyBrochures

Medium Voltage Power Solutions

TestingReport

Medium Voltage Cable Assembly Testing Report

Medium Voltage Solutions

Medium Voltage Solutions

Video

TPC Medium Voltage & Temporary Power Solutions

Medium Voltage Cable - Storage and Deployment Trailer Video

Medium Voltage Cable - Storage and Deployment Trailer

Ratings / Characteristics

  • UL Listed

  • 5kV up to 35kV

  • Type MV-90 & MV-105

  • 100% and 133% Insulation Level

  • Sunlight Resistant

  • For use in Direct Burial applications when installed in accordance with NEC Article 315.36

  • Oil Resistant I

  • Cold Temperature Rating -40°C

Applications

abrasions-icon

Abrasion

cold-icon

Cold Temperature

impact-icon

Impact

Part Numbers

Part Number Voltage Configuration (AWG/Cond) Insulation Level Ampacity Shielding Type
MV105S-5-010-133-CTP 5kV 1/0 AWG/1 133% 290 Copper tape
MV105S-5-020-133-CTP 5kV 2/0 AWG/1 133% 330 Copper tape
MV105S-5-030-133-CTP 5kV 3/0 AWG/1 133% 385 Copper tape
MV105S-5-040-133-CTP 5kV 4/0 AWG/1 133% 445 Copper tape
MV105S-5-250-133-CTP 5kV 250 kcmil/1 133% 495 Copper tape
MV105S-5-350-133-CTP 5kV 350 kcmil/1 133% 615 Copper tape
MV105S-5-500-133-CTP 5kV 500 kcmil/1 133% 775 Copper tape
MV105S-5-750-133-CTP 5kV 750 kcmil/1 133% 1000 Copper tape
MV105S-5-1000-133-CTP 5kV 1000 kcmil/1 133% 1200 Copper tape
MV105S-5-1500-133-CTP 5kV 1500 kcmil/1 133% 1525 Copper tape
MV105S-15-010-133-CTP 15kV 1/0 AWG/1 133% 290 Copper tape
MV105S-15-020-133-CTP 15kV 2/0 AWG/1 133% 335 Copper tape
MV105S-15-030-133-CTP 15kV 3/0 AWG/1 133% 385 Copper tape
MV105S-15-040-133-CTP 15kV 4/0 AWG/1 133% 445 Copper tape
MV105S-15-250-133-CTP 15kV 250 kcmil/1 133% 495 Copper tape
MV105S-15-350-133-CTP 15kV 350 kcmil/1 133% 610 Copper tape
MV105S-15-500-133-CTP 15kV 500 kcmil/1 133% 765 Copper tape
MV105S-15-750-133-CTP 15kV 750 kcmil/1 133% 990 Copper tape
MV105S-15-1000-133-CTP 15kV 1000 kcmil/1 133% 1185 Copper tape
MV105S-15-1500-133-CTP 15kV 1500 kcmil/1 133% 1500 Copper tape
MV105S-25-010-133-CTP 25kV 1/0 AWG/1 133% 290 Copper tape
MV105S-25-020-133-CTP 25kV 2/0 AWG/1 133% 330 Copper tape
MV105S-25-030-133-CTP 25kV 3/0 AWG/1 133% 380 Copper tape
MV105S-25-040-133-CTP 25kV 4/0 AWG/1 133% 445 Copper tape
MV105S-25-250-133-CTP 25kV 250 kcmil/1 133% 490 Copper tape
MV105S-25-350-133-CTP 25kV 350 kcmil/1 133% 605 Copper tape
MV105S-25-500-133-CTP 25kV 500 kcmil/1 133% 755 Copper tape
MV105S-25-750-133-CTP 25kV 750 kcmil/1 133% 970 Copper tape
MV105S-25-1000-133-CTP 25kV 1000 kcmil/1 133% 1160 Copper tape
MV105S-1521500-133-CTP 25kV 1500 kcmil/1 133% 1465 Copper tape
MV105S-35-010-133-CTP 35kV 1/0 AWG/1 133% 290 Copper tape
MV105S-35-020-133-CTP 35kV 2/0 AWG/1 133% 330 Copper tape
MV105S-35-030-133-CTP 35kV 3/0 AWG/1 133% 380 Copper tape
MV105S-35-040-133-CTP 35kV 4/0 AWG/1 133% 445 Copper tape
MV105S-35-250-133-CTP 35kV 250 kcmil/1 133% 490 Copper tape
MV105S-35-350-133-CTP 35kV 350 kcmil/1 133% 605 Copper tape
MV105S-35-500-133-CTP 35kV 500 kcmil/1 133% 755 Copper tape
MV105S-35-750-133-CTP 35kV 750 kcmil/1 133% 970 Copper tape
MV105S-35-1000-133-CTP 35kV 1000 kcmil/1 133% 1160 Copper tape
MV105S-35-1500-133-CTP 35kV 1500 kcmil/1 133% 1465 Copper tape
