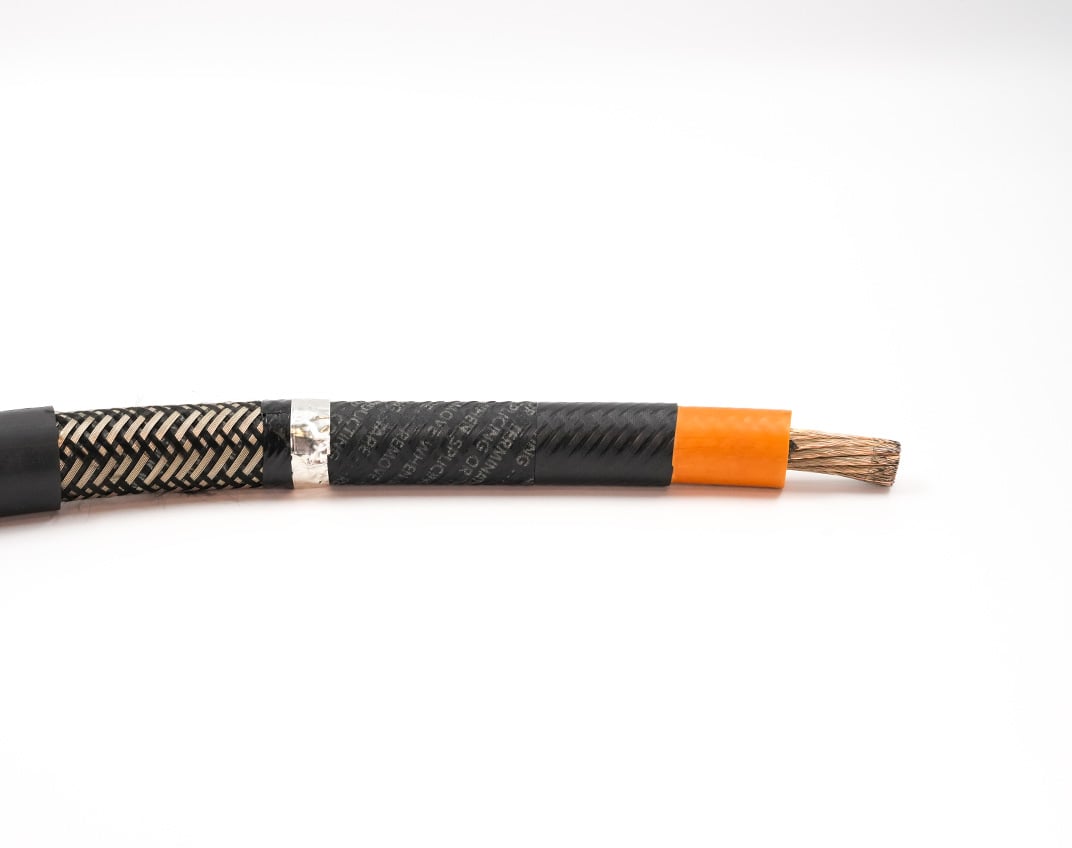

Super-Trex® Type MV-105 Cable Side_Web

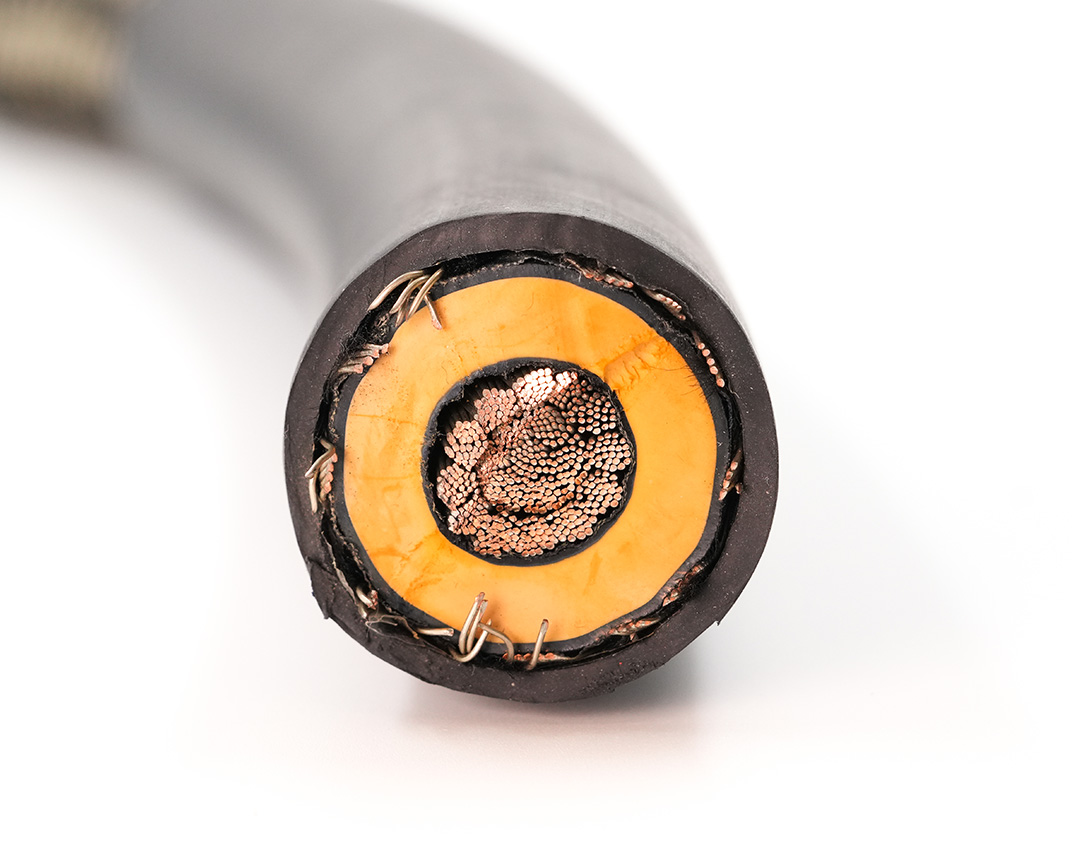

Super-Trex® Type MV-105 Cable Macro_Web

Super-Trex® Type MV-105 Medium Voltage Cable

Super-Trex® Type MV-105 Medium Voltage is a single-conductor medium voltage cable for applications up to 15kV. This cable is ideal for where tight spaces, a small bend radius or a difficult installation is encountered.

This power cable features a braid insulation shield and fine conductor stranding that significantly improves cable flexibility, allowing installers/end-users to easily bend and maneuver the cable into tight spaces by hand.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Conductor

High-Flex, rope bunched compressed tin coated copper for extended life in harsh environments.

Conductor Shield

Combination of semi-conducting tape and extruded semi-conductive TSE

Insulation

105°C EPR insulation provides protection from moisture and heat.

Insulation Shield

Combination of an extruded semi-conductive layer, semi-conductive tape and flexible composite braid shield of tinned copper/nylon.

Jacket

A flame retardant, oil and sunlight-resistant TSE jacket provides excellent protection in harsh industrial environments. Excellent all-weather performance and flexibility.

Resources

Specsheets

Product Overview

ProductFamilyBrochures

Medium Voltage Power Solutions

TestingReport

Medium Voltage Cable Assembly Testing Report

Medium Voltage Solutions

Medium Voltage Solutions

Video

TPC Medium Voltage & Temporary Power Solutions

Medium Voltage Cable - Storage and Deployment Trailer Video

Medium Voltage Cable - Storage and Deployment Trailer

Resource-Color Code

Super-Trex® Type MV-105 Cable

Ratings / Characteristics

  • UL Listed

  • Cable Tray Use ( Sizes 1/0 AWG and larger)

  • Type MV-105

  • 5kV and 15kV voltage rating

  • FT-4 Flame Rating

  • IEEE 1202 Flame Rating

  • Sunlight Resistant

  • For use in Direct Burial applications when installed in accordance to NEC Article 300.50

  • Flame -40°C Cold Bend

  • Max Conductor Temperature 105°C

  • Oil Resistant I/II

Applications

abrasions-icon

Abrasion

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. VOLTAGE/ JACKET COLOR CABLE SIZE Conductor/Pole Count CONDUCTOR STRANDING INSULATION LEVEL AMPACITY NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 Shielding Type
790101 5kV BLACK 1/0 AWG 1 266 133% 290 0.945 709 Overall Shield
790104 5kV BLACK 4/0 AWG 1 532 133% 445 1.115 1109 Overall Shield
790106 5kV BLACK 350 kcmil 1 888 133% 615 1.3 1653 Overall Shield
790211 15kV BLACK 1/0 AWG 1 266 133% 290 1.221 940 Overall Shield
790214 15kV BLACK 4/0 AWG 1 532 133% 445 1.385 1402 Overall Shield
790216 15kV BLACK 350 kcmil 1 888 133% 610 1.575 1998 Overall Shield
790217 15kV BLACK 500 kcmil 1 1221 133% 765 1.755 2622 Overall Shield

Related Products

MV-105

Super-Trex Type SH Power Cable

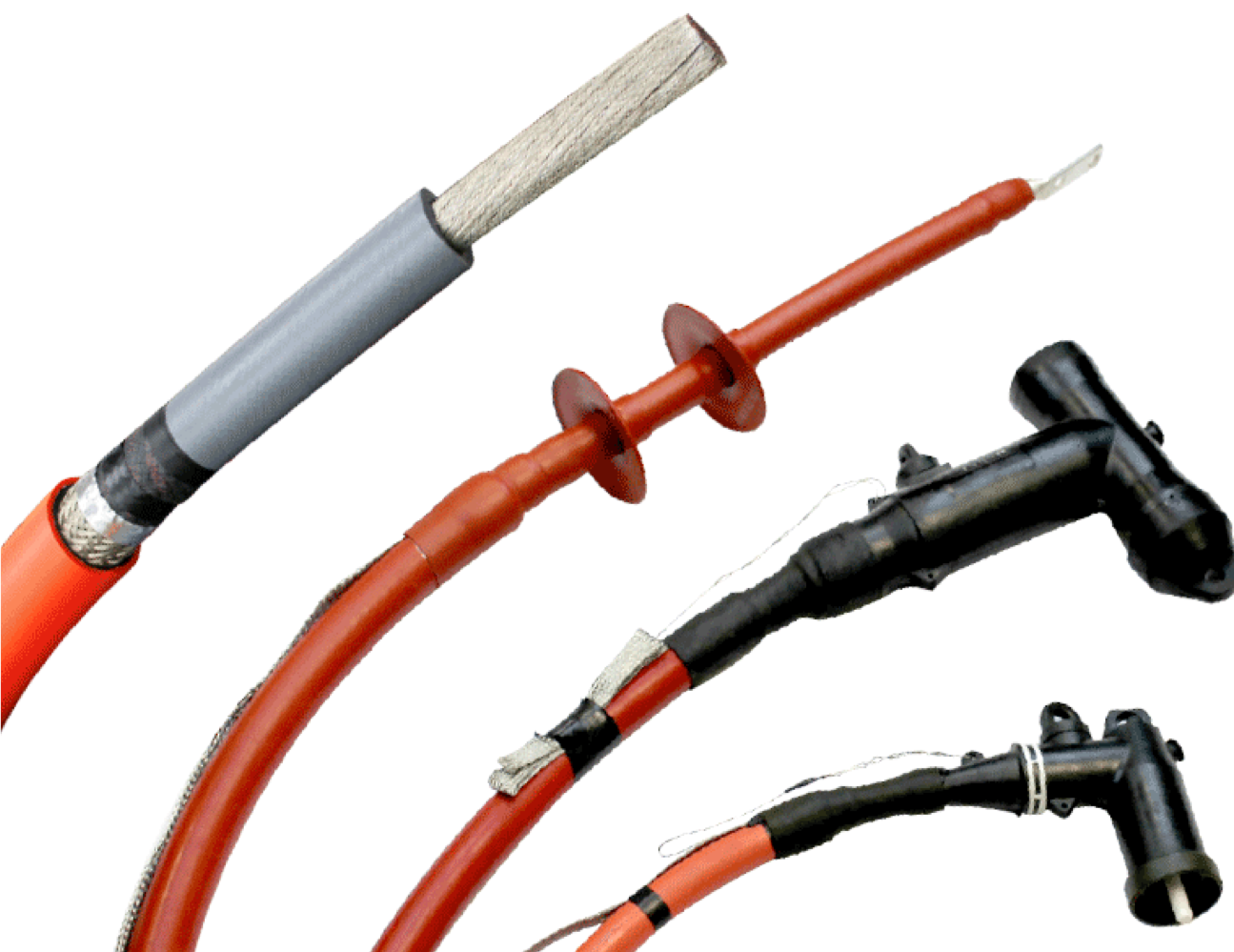

MV cables-1

Medium Voltage Assemblies

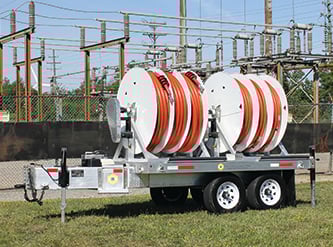

custom-storage-open-utility-trailer
