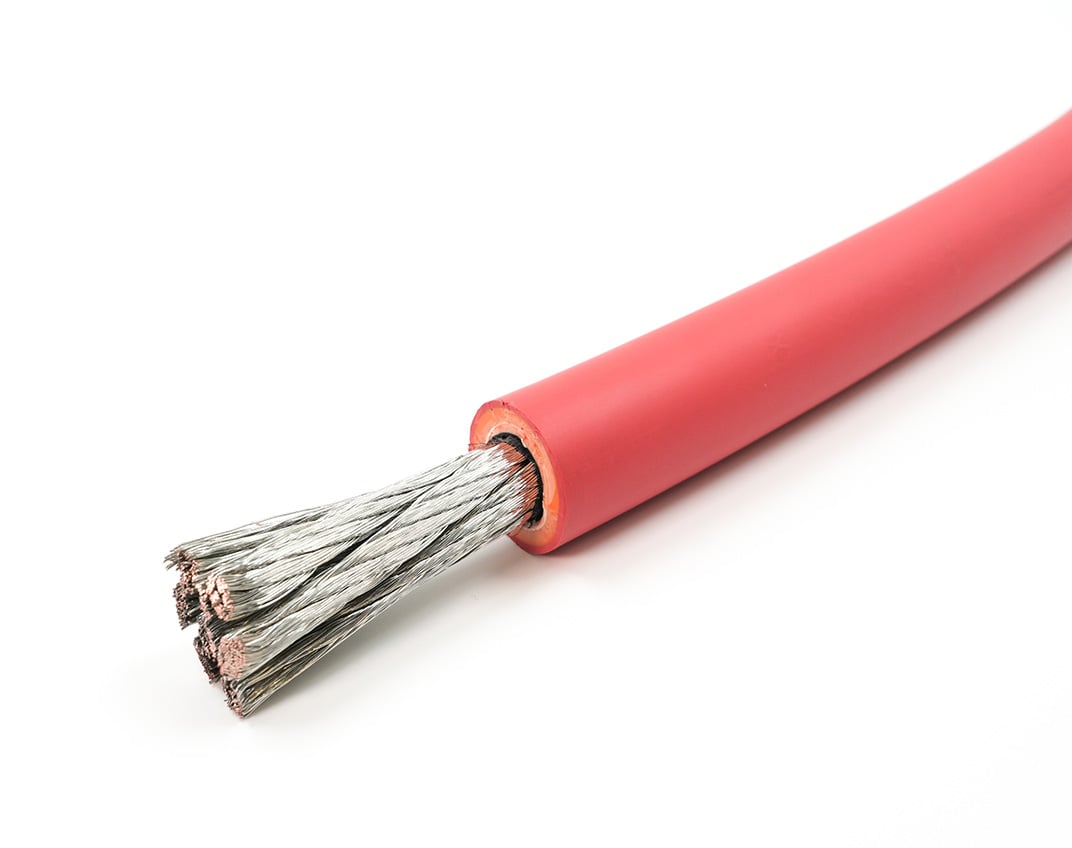

Super-Trex® Unshielded Jumper Cable 3QV_Web

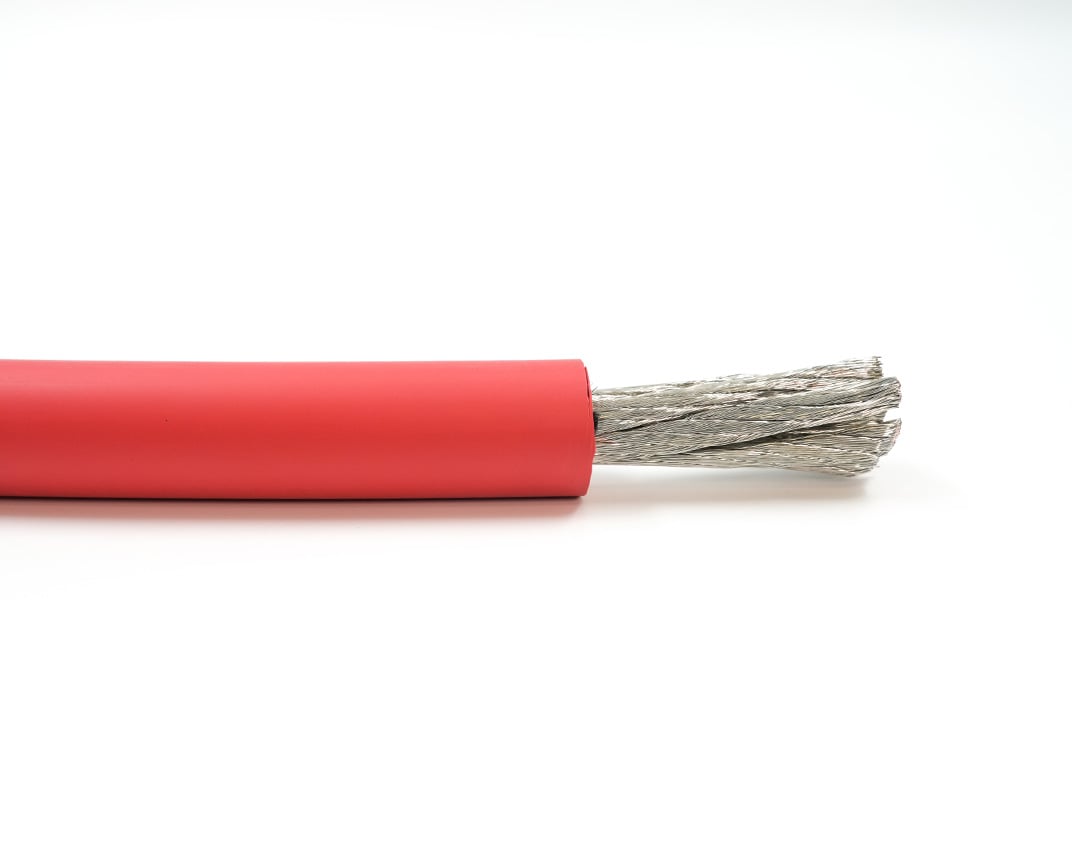

Super-Trex® Unshielded Jumper Cable Side_Web

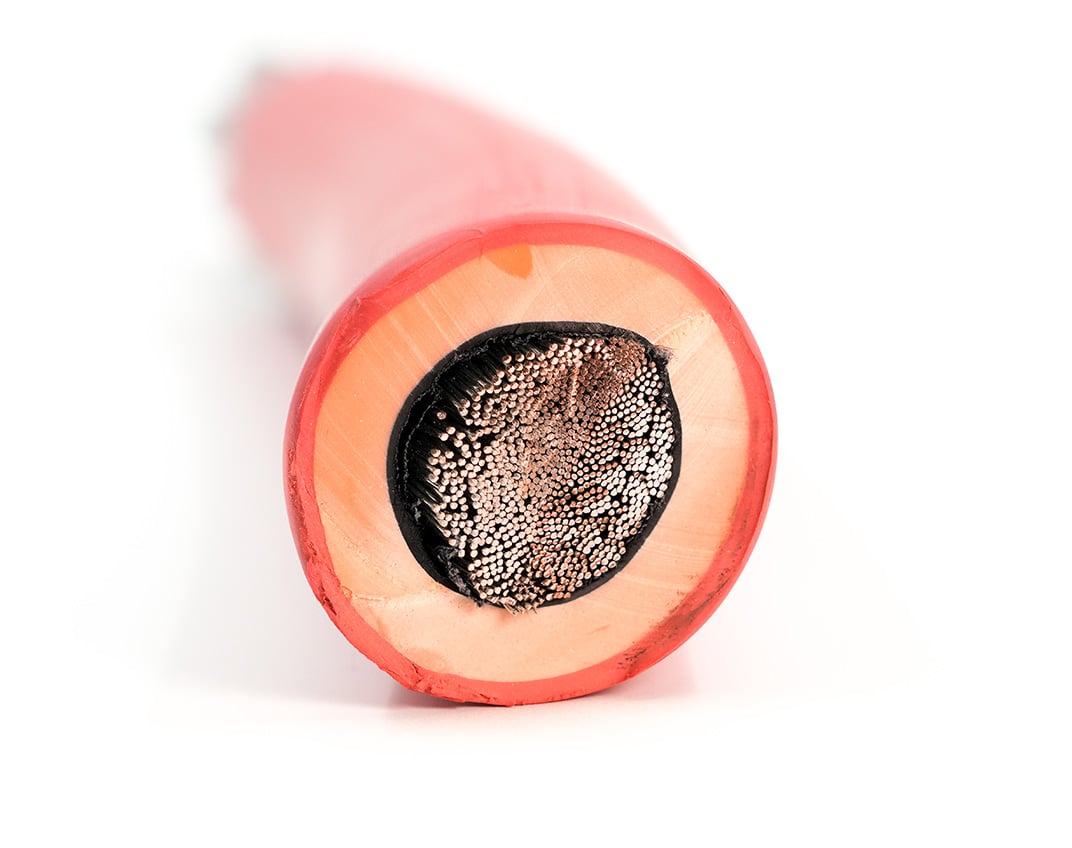

Super-Trex® Unshielded Jumper Cable Macro_Web

Super-Trex® Unshielded Medium Voltage Jumper Cable

Super-Trex® Unshielded Jumper Cable is a high-flex medium voltage single-conductor cable designed for temporary use. It is an ideal choice for industrial applications where an unshielded medium voltage cable is suitable. This includes temporary by-passing of damaged sections of power cable, or in areas such as switchgear enclosures or transformer vaults.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

EXTRA FLEXIBLE TINNED COPPER CONDUCTORS

Extends the flex life of this cable in abusive applications. Tinned copper resists corrosion.

SEMI-CONDUCTIVE TAPE

Placed directly over the tinned copper conductor the semi-conductive tape prevents the insulation compound from bonding to the conductor, this makes the product easier to strip and terminate.

EPR INSULATION

Heat resistant, 90°C EPR Insulation provides excellent dielectric properties and resists moisture and ozone

RED TSE JACKET

Rated to 90°C and provides excellent protection from abrasion, tearing, impact and most chemicals.

Resources

Specsheets

Product Overview

ProductFamilyBrochures

Medium Voltage Power Solutions

TestingReport

Medium Voltage Cable Assembly Testing Report

Medium Voltage Solutions

Medium Voltage Solutions

Medium Voltage Cable - Storage and Deployment Trailer Video

Medium Voltage Deployment Trailer

Resource-Color Code

Super-Trex® Unshielded Jumper Cable

Ratings / Characteristics

  • 15kV

  • Max Conductor Temperature 90°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count CONDUCTOR STRANDING AMPACITY JACKET THICKNESS
inches		 INSULATION THICKNESS
inches		 NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 Shielding Type
78006 6 AWG 1 133 110 0.065 0.21 0.82 360 No Shielding
78004 4 AWG 1 259 150 0.065 0.21 0.88 449 No Shielding
78002 2 AWG 1 259 195 0.065 0.21 0.94 563 No Shielding
78010 1/0 AWG 1 266 260 0.065 0.21 1.05 742 No Shielding
78020 2/0 AWG 1 323 300 0.065 0.21 1.08 869 No Shielding
78040 4/0 AWG 1 532 400 0.065 0.21 1.22 1181 No Shielding
78350 350 kcmil 1 888 550 0.065 0.21 1.34 1692 No Shielding
78500 500 kcmil 1 1221 685 0.065 0.21 1.46 2192 No Shielding

Related Products

Super-Trex® Type SH Power Cable

Super-Trex® Type SH Power Cable
YandB-tape

Vulko-Wrap Yellow and Black
tpc-medium-voltage-assemblies-1

Medium Voltage Assemblies
custom-storage-open-utility-trailer

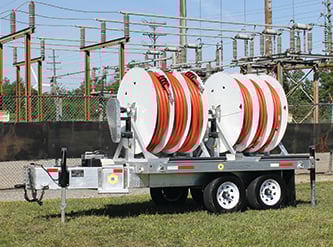

Custom Storage / Open Utility Trailer
