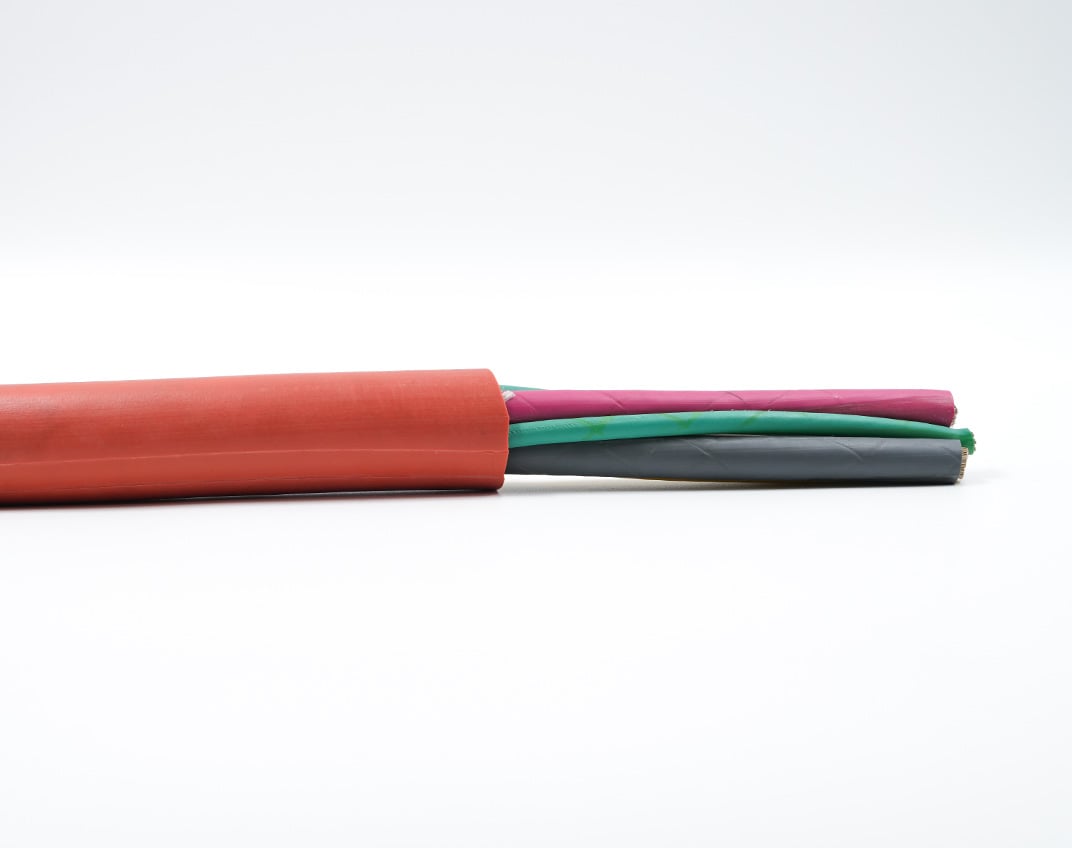

Super-Trex Type G-GC Cables Side_Web

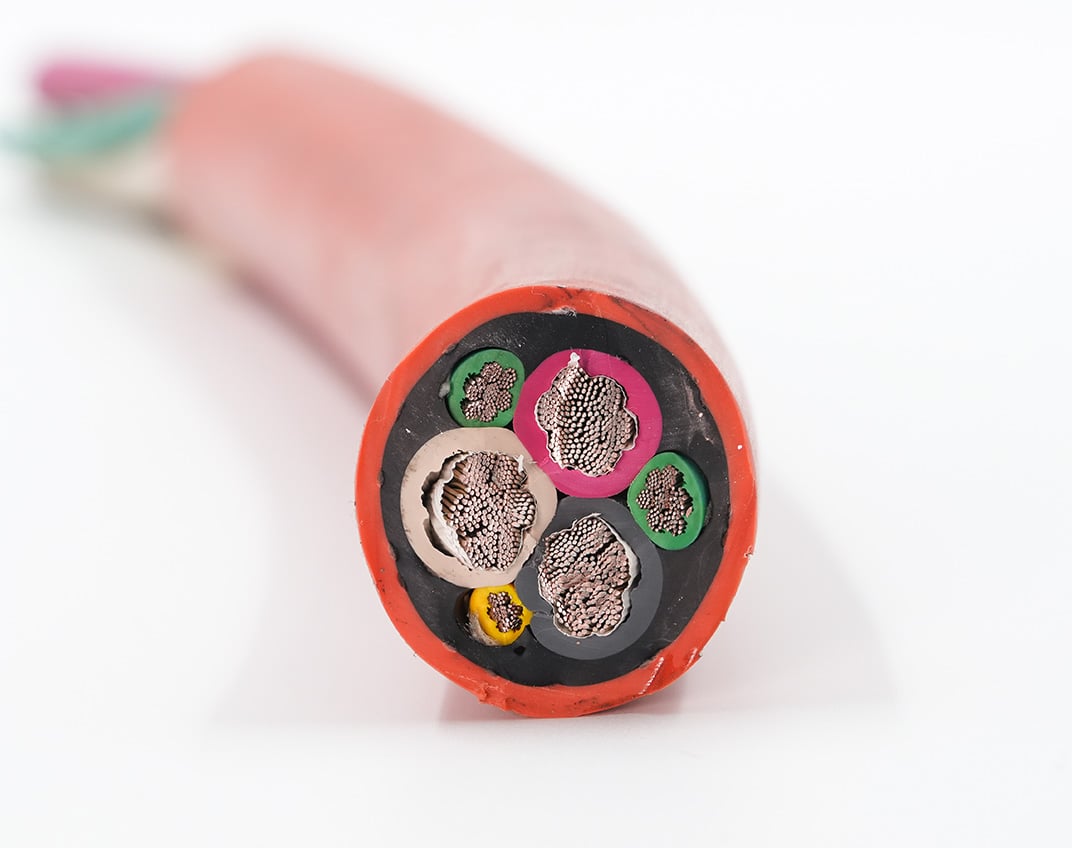

Super-Trex Type G-GC Cables Macro_Web

Super-Trex® Type G-GC Cables

Super-Trex® Type G-GC Cables are ideal for mining applications where exposure to extensive abrasion, impact, vibration, tension and cut-through are common causes for cable failure. Designed for use in applications such as loaders, drills, conveyors, pumps, and jumbos, TPC's G-GC mining grade cable will withstand the harsh mining environment.

This mining cable features an extra heavy-duty reinforced jacket that provides excellent protection against impact, abrasion and cut-through.

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Ethylene Propylene Rubber (EPR) Insulation System

Provides excellent dielectric strength. Resists the effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Provides protection from moisture and heat

Specially Compounded Extra Heavy-Duty Reinforced TSE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Specsheets

Product Overview

Resource-Color Code

Super-Trex® Type G-GC Cable

Mining

Mining Solutions Market Brochure

Ratings / Characteristics

  • MSHA Approved

  • 2,000V

  • Meets ICEA S-75-381

  • Cold Temperature rating -40°C

Applications

abrasions-icon

Abrasion

impact-icon

Impact

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

VOLTS PART NO.
(Black Jacket)
PART NO.
(Orange Jacket & Insulated Grounds)
Conductor Size (AWG) Conductor/Pole Count NO. of STRANDS
Power Conductors
INSULATION THICKNESS
POWER CONDUCTORS
NO. OF STRANDS
GROUNDING CONDUCTORS
NOMINAL OUTSIDE DIMENSION WEIGHT PER
1000LBS
AWG SIZE
Grounding Conductors
Ampacity
40°C AMBIENT TEMP
Shielding Type
2000 301800 301800O-IG 8 AWG 3 133 60 49 0.99 670 10 59 No Shielding
2000 301600 301600O-IG 6 AWG 3 133 60 49 1.05 802 10 79 No Shielding
2000 301400 301400O-IG 4 AWG 3 259 60 133 1.19 1111 8 104 No Shielding
2000 301200 301200O-IG 2 AWG 3 259 60 133 1.33 1529 7 138 No Shielding
2000 301100 301100O-IG 1 AWG 3 259 80 133 1.51 1886 6 161 No Shielding
2000 301010 301010O-IG 1/0 AWG 3 266 80 133 1.63 2325 5 186 No Shielding
2000 301020 301020O-IG 2/0 AWG 3 342 80 259 1.73 2789 4 215 No Shielding
2000 301040 301040O-IG 4/0 AWG 3 532 80 259 2.01 4027 2 287 No Shielding
2000 301250 301250O-IG 250 kcmil 3 627 95 259 2.35 5092 1 320 No Shielding
2000 301350 301350O-IG 350 kcmil 3 888 95 266 2.64 6688 Jan-00 394 No Shielding
2000 301500 301500O-IG 500 kcmil 3 1221 95 418 3.03 8877 Mar-00 487 No Shielding
