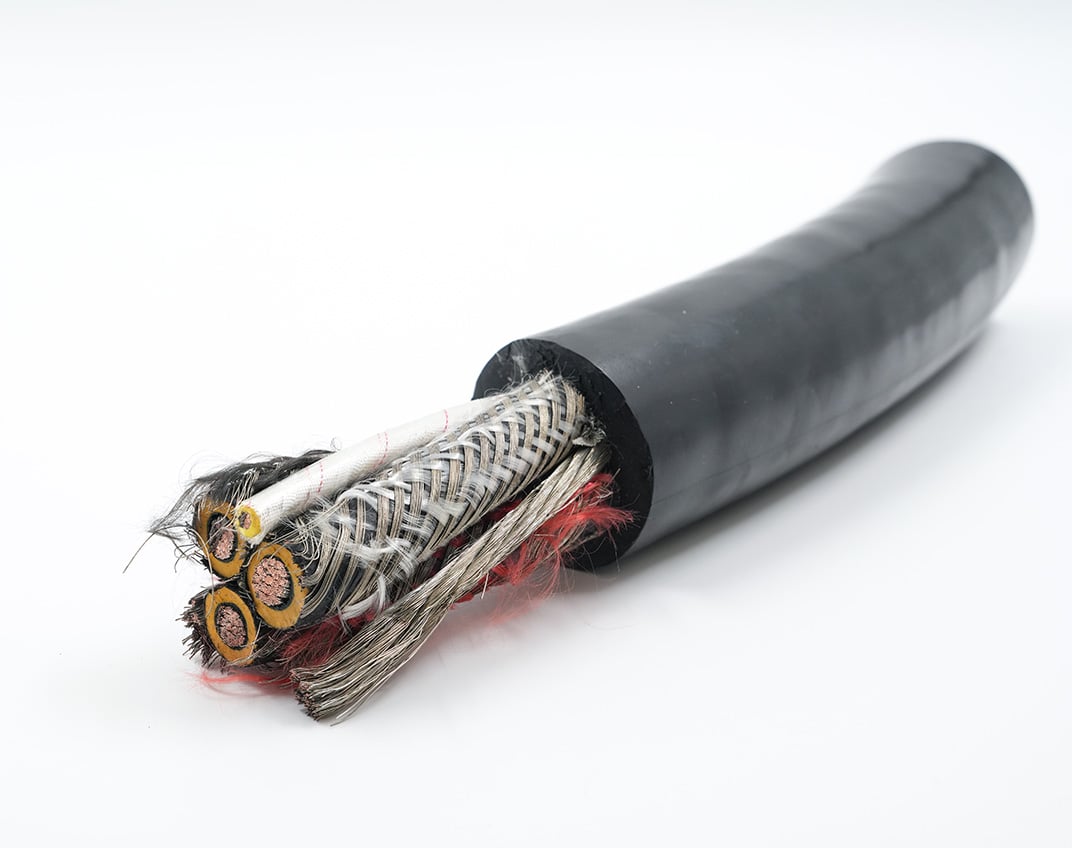

Super-Trex® Type SHD-GC Cable 3QV_Web

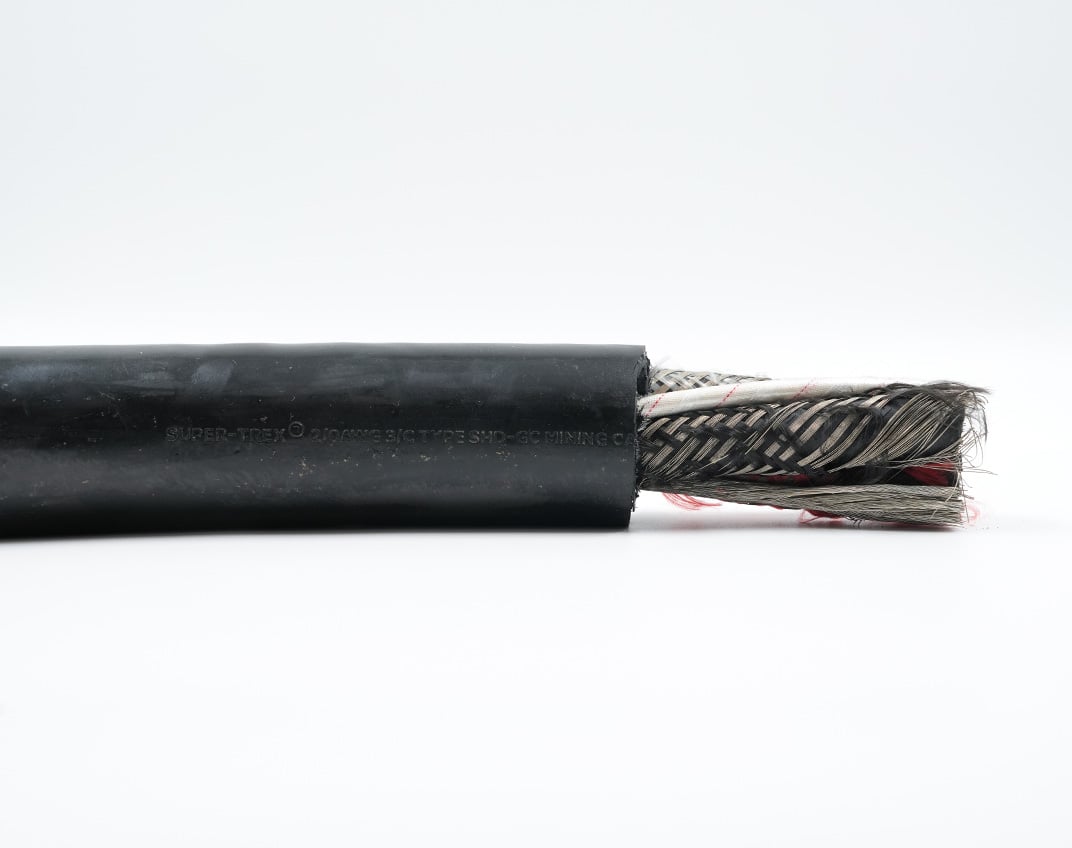

Super-Trex® Type SHD-GC Cable Side_Web

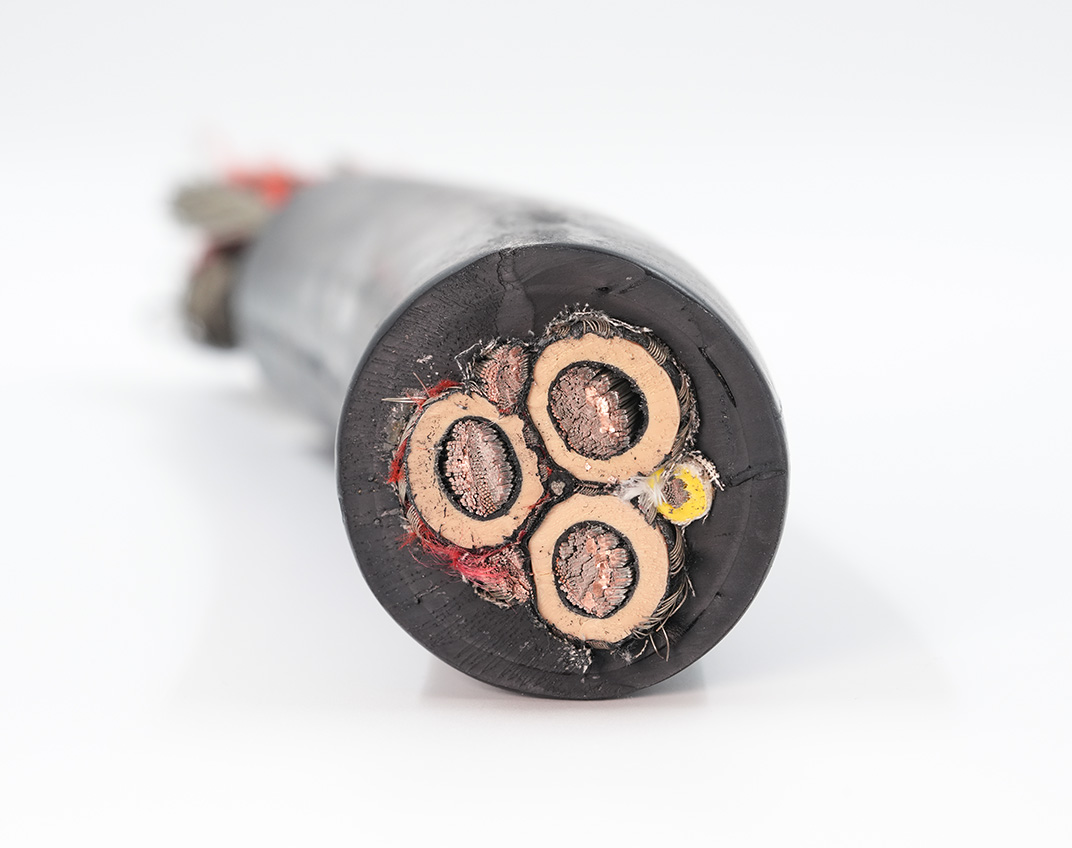

Super-Trex® Type SHD-GC Cable Macro_Web

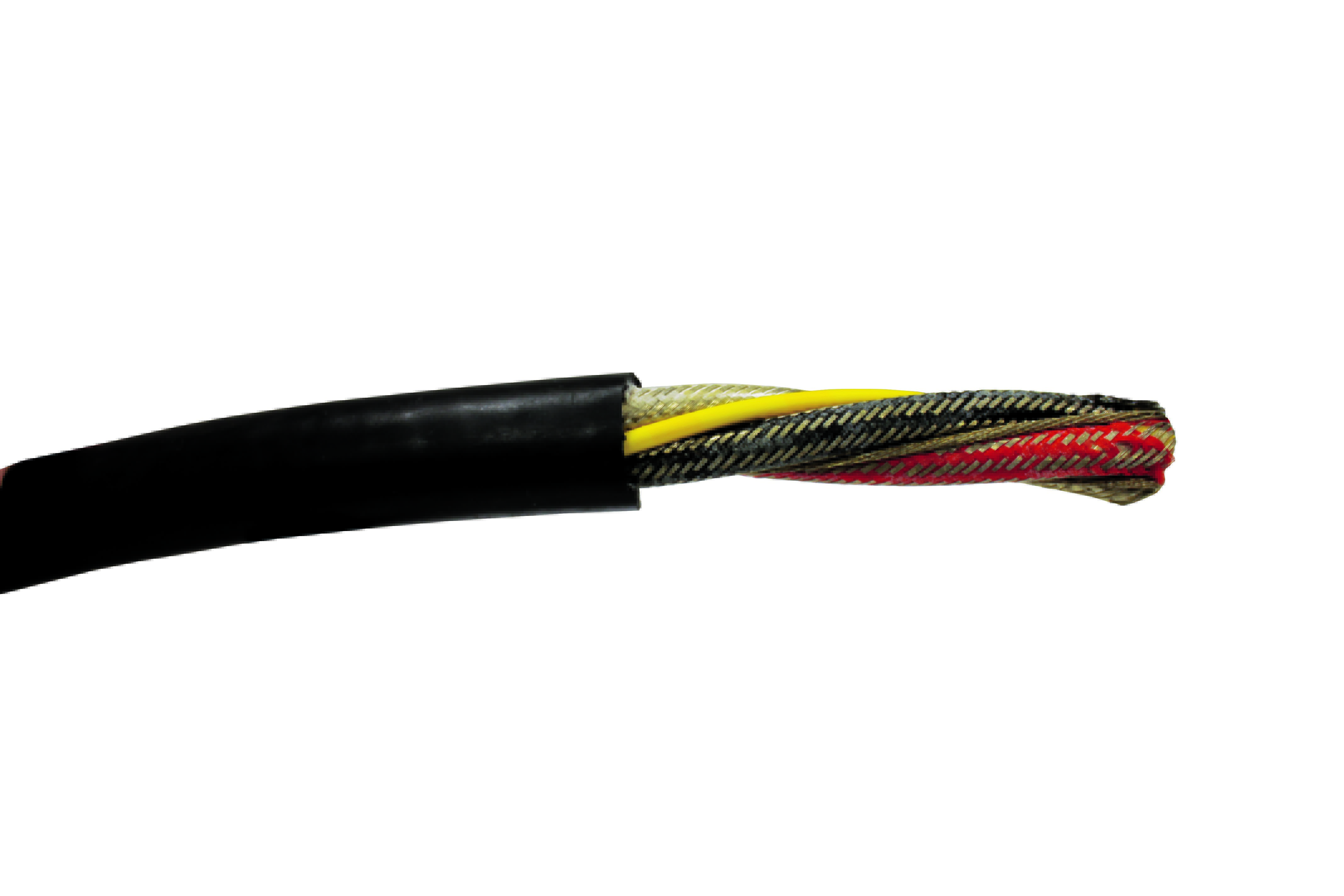

Super-Trex® Type SHD-GC Cable

Super-Trex Type SHD-GC Cables are ideal for mining applications where exposure to extensive abrasion, impact, vibration, tension and cut-through are common causes for cable failure. Designed for use in applications such as loaders, drills, conveyors, pumps, and jumbos, TPC's G-GC mining grade cable will withstand the harsh mining environment.

This mining cable features an extra heavy-duty reinforced jacket that provides excellent protection against impact, abrasion and cut-through. Type SHD-GC cables are shielded medium voltage cables.

Request a Quote Download Spec Sheet

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Ethylene Propylene Rubber (EPR) Insulation

Provides excellent dielectric strength. Resists the effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Provides protection from moisture and heat.

Extra Heavy-Duty Reinforced Jacket

Provides excellent protection against impact, abrasion and cut-through.

Product Overview

View Spec Sheet

Resource-Color Code

Super-Trex® Type SHD-GC Cable

MSHA Approved
ASTM B-33
ICEA S-75-381
Max Conductor Temperature 90°C
Cold Temp Rating -40º
Meets ICEA S-75-381
Bend Radius (Static): 6x Cable O.D.
Bend Radius (Dynamic): 8x Cable O.D.

Abrasion

Impact

Flexing

Tension

VOLTS	PART NO.	Conductor Size	Conductor/Pole Count	NO. of STRANDS Power Conductors	INSULATION THICKNESS POWER CONDUCTORS	AWG SIZE Grounding Conductors	NO. of STRANDS Grounding Conductors	Jacket Thickness	NOMINAL OUTSIDE DIMENSION	WEIGHT PER 1000LBS	AMPACITY 40°C AMBIENT TEMP
2000	302600	6 AWG	3	133	70	10	49	155	1.26	1076	93
2000	302400	4 AWG	3	259	70	8	133	155	1.26	1308	122
2000	302200	2 AWG	3	259	70	6	133	170	1.55	1874	159
2000	302100	1 AWG	3	259	80	5	133	190	1.71	2340	184
2000	302010	1/0 AWG	3	266	80	4	259	190	1.81	2694	211
2000	302020	2/0 AWG	3	342	80	3	259	205	1.94	3301	243
2000	302030	3/0 AWG	3	418	80	2	259	205	2.07	3890	279
2000	302040	4/0 AWG	3	532	80	1	259	220	2.24	4701	321
2000	302250	250 kcmil	3	627	95	1/0	266	220	2.44	5637	355
2000	302350	350 kcmil	3	888	95	2/0	342	235	2.73	7194	435
2000	302500	500 kcmil	3	1221	95	4/0	532	265	3.1	9611	536
5000	305600	6 AWG	3	133	110	10	49	185	1.51	1543	93
5000	305400	4 AWG	3	259	110	8	133	185	1.6	1849	122
5000	305200	2 AWG	3	259	110	6	133	205	1.79	2358	159
5000	305100	1 AWG	3	259	110	5	133	205	1.88	2430	184
5000	305010	1/0 AWG	3	266	110	4	259	220	1.98	3176	211
5000	305020	2/0 AWG	3	342	110	3	259	220	2.12	3689	243
5000	305030	3/0 AWG	3	418	110	2	259	235	2.26	4320	279
5000	305040	4/0 AWG	3	532	110	1	259	235	2.51	4699	321
5000	305250	250 kcmil	3	627	120	1/0	266	250	2.57	5825	355
5000	305350	350 kcmil	3	888	120	2/0	342	265	2.83	7414	435
5000	305500	500 kcmil	3	1221	120	4/0	532	280	3.18	9602	536
8000	308400	4 AWG	3	259	150	8	133	205	1.93	2152	122
8000	308200	2 AWG	3	259	150	6	133	220	2.02	2767	159
8000	308100	1 AWG	3	259	150	5	133	220	2.1	3131	184
8000	308010	1/0 AWG	3	266	150	4	259	220	2.21	3646	211
8000	308020	2/0 AWG	3	342	150	3	259	235	2.34	4161	243
8000	308030	3/0 AWG	3	418	150	2	259	250	2.49	4912	279
8000	308040	4/0 AWG	3	532	150	1	259	250	2.63	5561	321
8000	308250	250 kcmil	3	627	150	1/0	266	250	2.75	6445	355
8000	308350	350 kcmil	3	888	150	2/0	342	280	3.05	8106	435
8000	308500	500 kcmil	3	1221	150	4/0	532	295	3.39	10590	536
15000	315200	2 AWG	3	259	210	6	133	235	2.31	2973	164
15000	315100	1 AWG	3	259	210	5	133	235	2.4	3832	187
15000	315010	1/0 AWG	3	266	210	4	259	250	2.52	4410	215
15000	315020	2/0 AWG	3	342	210	3	259	255	2.6	4830	246
15000	315030	3/0 AWG	3	418	210	2	259	265	2.79	5695	283
15000	315040	4/0 AWG	3	532	210	1	259	265	2.9	6381	325
15000	315250	250 kcmil	3	627	210	1/0	266	265	3.05	7260	359
15000	315350	350 kcmil	3	888	210	2/0	342	280	3.31	8861	437
15000	315500	500 kcmi	3	1221	210	4/0	532	280	3.72	11590	534
