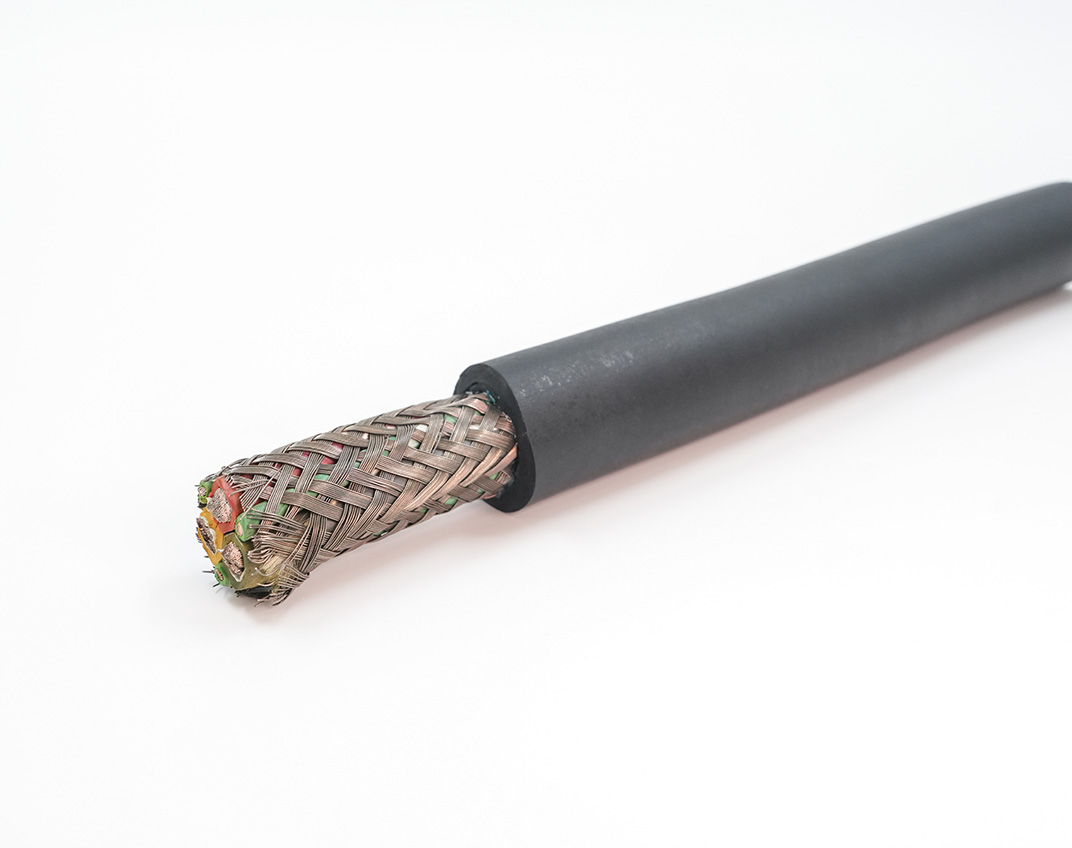

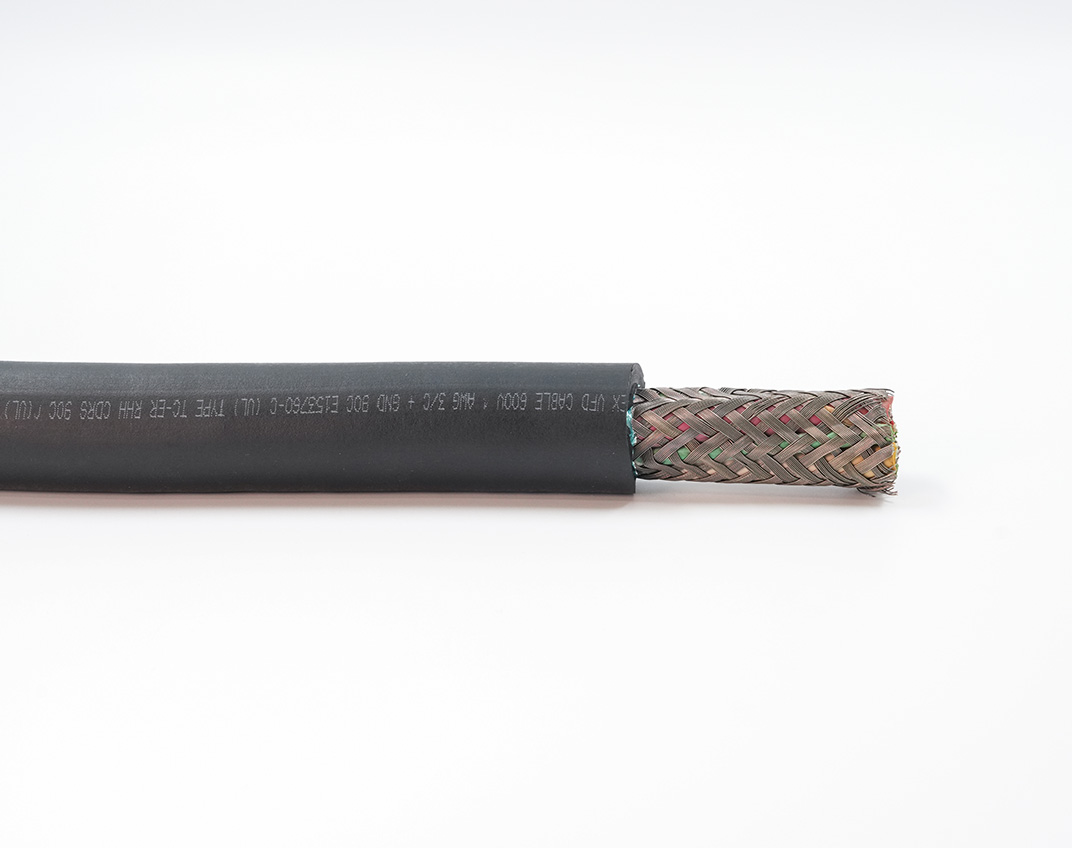

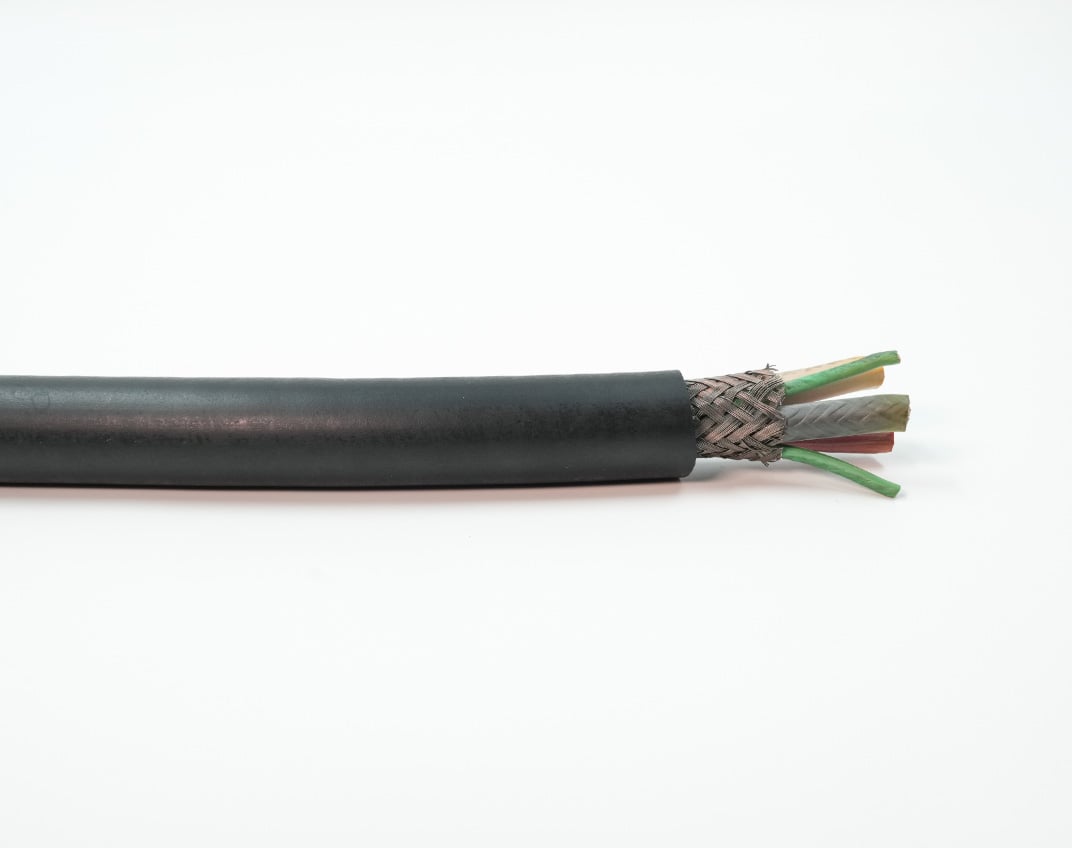

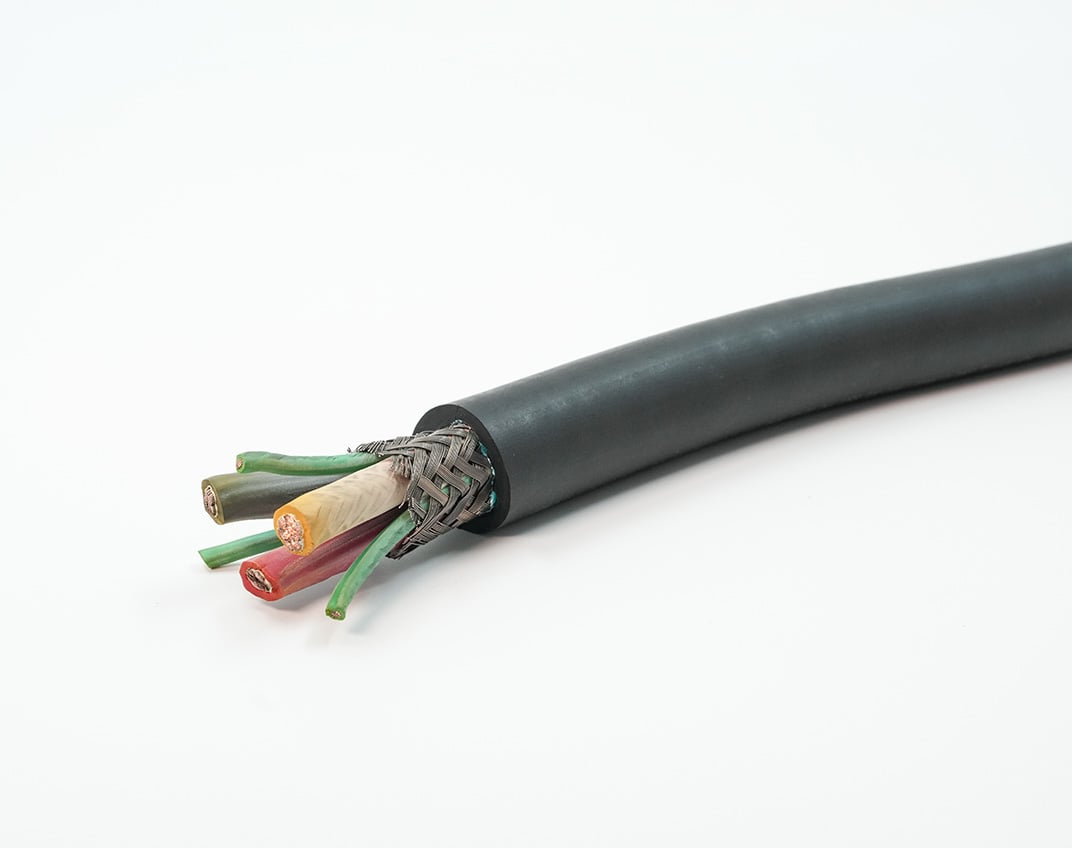

Super-Trex® VFD Shielded Cable

Super-Trex® VFD Shielded Cable is ideal for harsh environment VFD applications where a longer lasting cable is desired or where cable flexibility during use or installation is critical. Designed specifically for variable frequency drives and to withstand the harsh electrical environment of typical VFD systems

This motion control cable is constructed with both a foil and braid shield and will withstand corona voltages up to 2,000 volts. Symmetrical ground wires are used to reduce the effect of common-mode-voltage noise. It features a heavy-duty thermoset jacket that provides excellent protection against abrasion, impact, oil, chemicals, heat, and flame.

Features

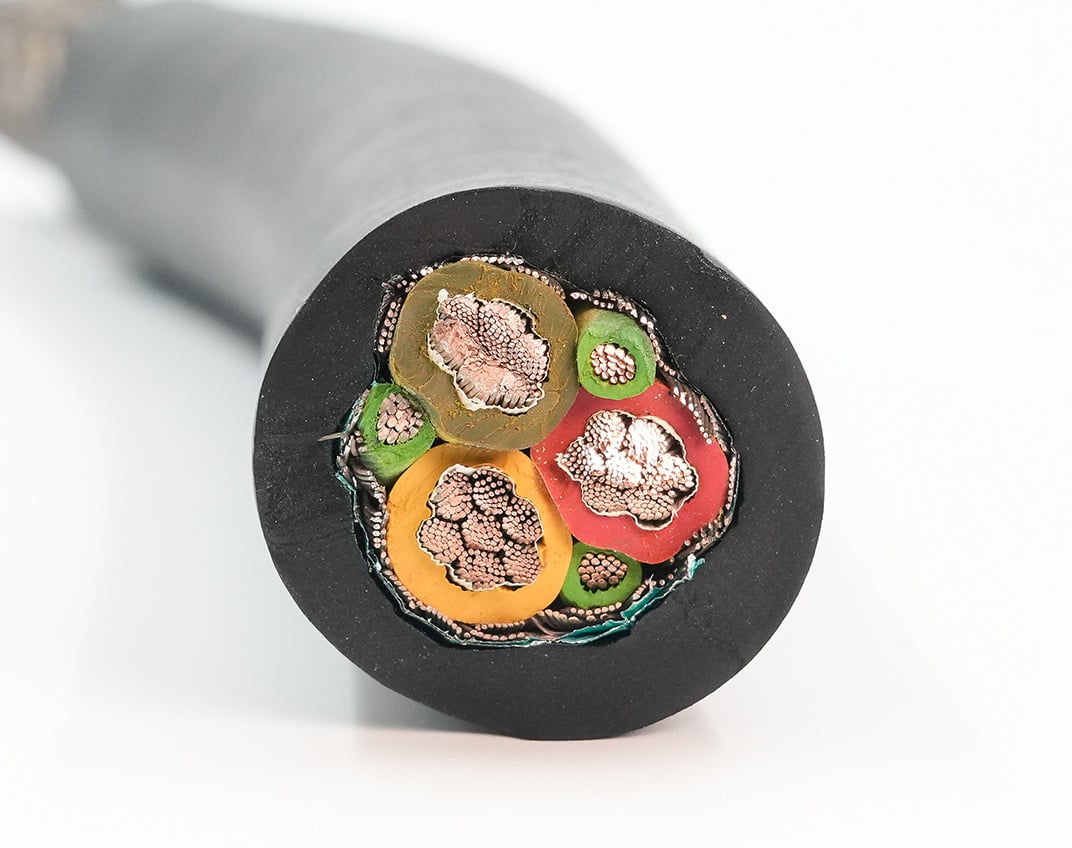

Three Insulated Symmetrical Grounds

Reduces overall cable O.D.

Ultra-Shield Construction

Combination of tinned copper braid and foil shield for maximum RF and EM protection.

Specially Compounded Super-Trex® TSE Jacket

Superior protection against oil, ozone, sunlight, UV, chemicals, heat, and flame. Excellent all weather flexibility.

Finely Stranded Copper Conductors

Improves flexibility and extends conductor life in dynamic applications.

TSE Insulation

Corona resistant insulation designed for VFD applications.

Resources

Specsheets

Product Overview

WhitePaper

VFD: Installing Cable that Powers and Protects

Resource-Color Code

Super-Trex® VFD Shielded Cable

Ratings / Characteristics

  • UL Listed

  • cUL

  • Type TC-ER

  • FT-4 Flame Rating

  • 600V TC-ER / 1000 V Type R90

  • Corona Resistant to 2,000 V

  • Max Conductor Temperature 90°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count POWER COND STRANDING GROUND SIZE COND/AWG1 AMPACITIES (IN FREE AIR) AMPACITIES (IN CABLE TRAY) AMPACITIES (IN CONDUIT) NOMINAL O.D.
inches
WT. PER 1000'
lbs
Shielding Type
89103 4 AWG 3 259 x 0.0127 3 x 12 AWG 114 95 89 1.19 1101 Overall Shield
89104 2 AWG 3 259 x 0.0160 3 x 10 AWG 152 130 119 1.34 1512 Overall Shield
89106 1/0 AWG 3 266 x 0.0199 3 x 10 AWG 205 170 163 1.61 2174 Overall Shield
89107 2/0 AWG 3 342 x 0.0199 3 x 10 AWG 237 195 186 1.7 2510 Overall Shield
89109 4/0 AWG 3 532 x 0.0199 3 x 8 AWG 316 260 253 1.99 3727 Overall Shield
89110 262 kcmil 3 646 x 0.0199 3 x 6 AWG 362 297 285 2.21 4581 Overall Shield
89111 373 kcmil 3 925 x 0.0199 3 x 6 AWG 449 363 357 2.45 5968 Overall Shield
89112 444 kcmil 3 1110 x 0.0199 3 x 6 AWG 497 402 395 2.6 6922 Overall Shield
89113 535 kcmil 3 1332 x 0.0199 3 x 6 AWG 555 445 441 2.85 8246 Overall Shield
