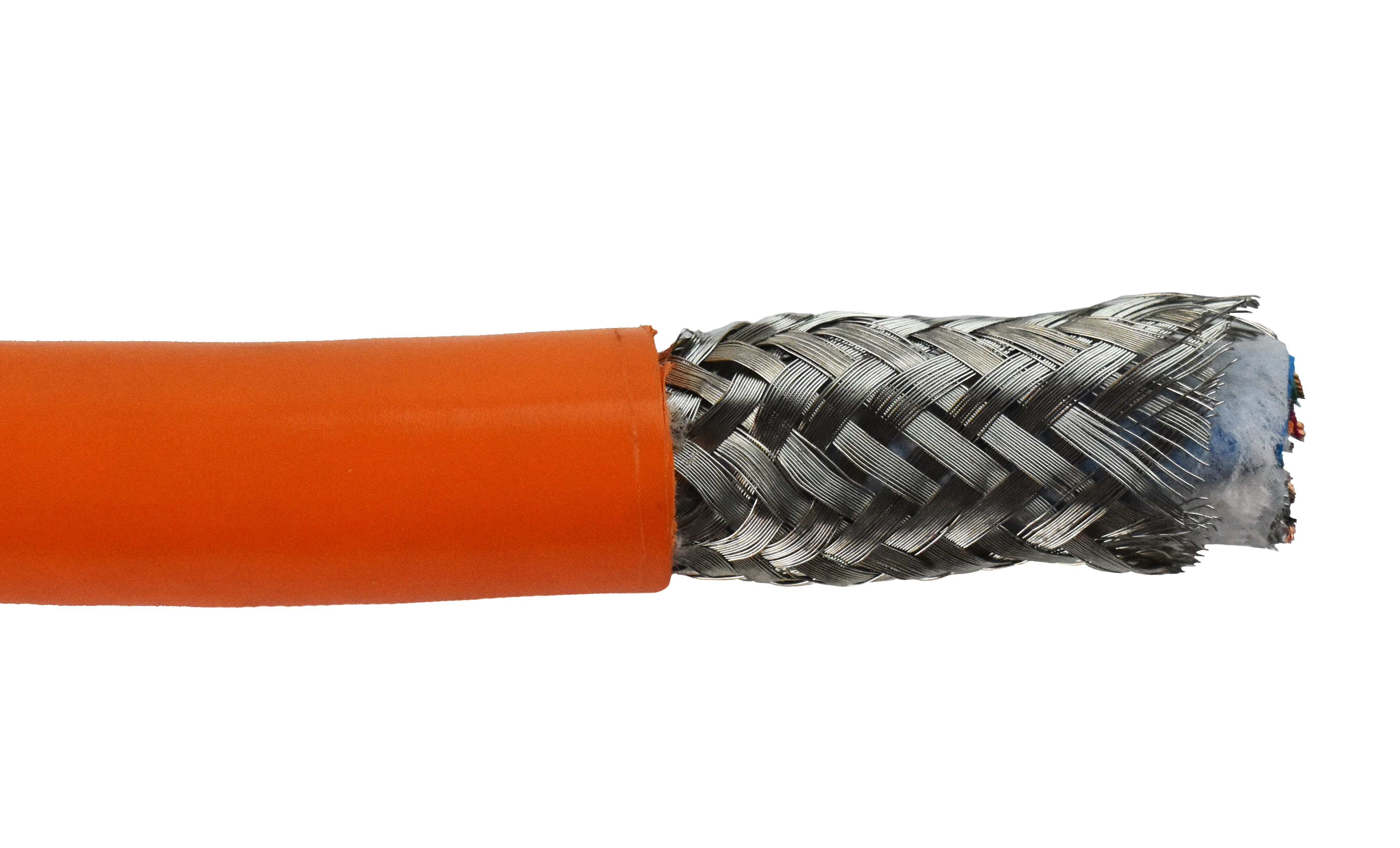

Trex-Onics® HighFlex Encoder Cable

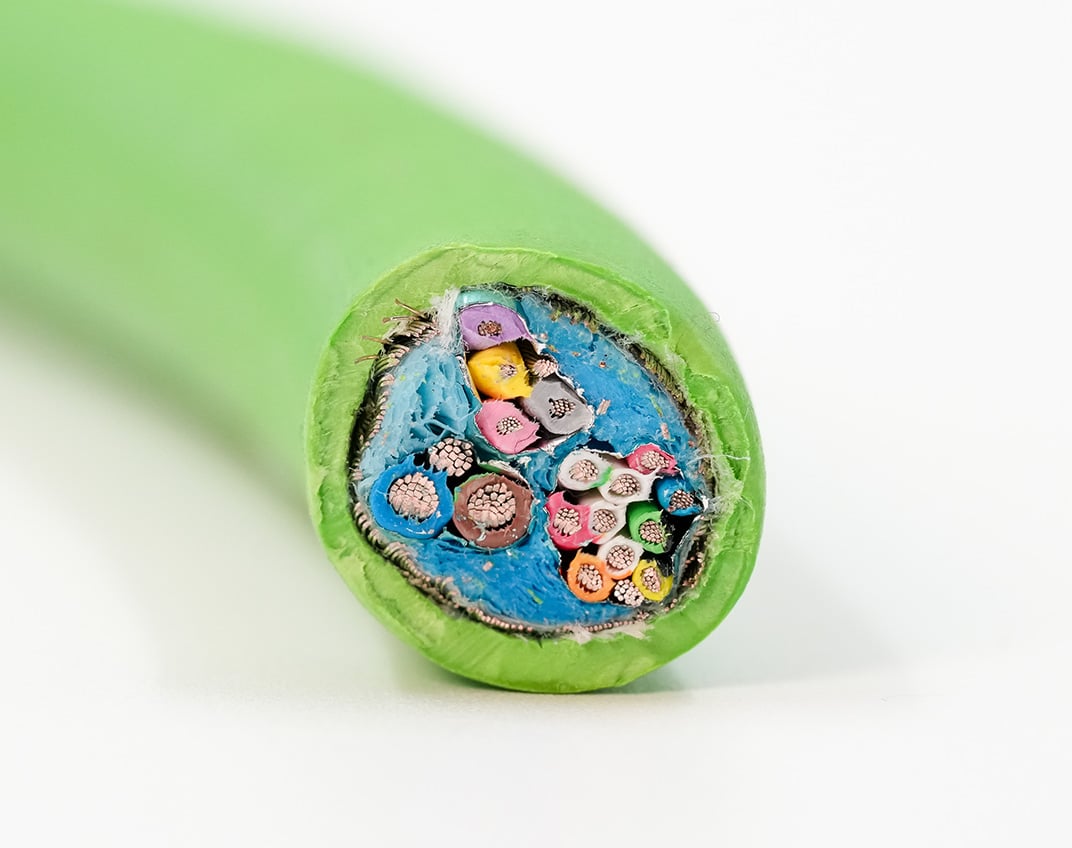

Trex-Onics® High-Flex Encoder Cable is built to withstand the harsh industrial environments in which many motors operate. This single-cable solution combines power conductors with signal pairs as well as the data element of dedicated encoder cables. The combination of multiple roles into a single-cable solution greatly simplifies inventory management, installation, and maintenance.

This composite cable features finely stranded tinned copper conductors that extend conductor life in dynamic applications. The oil-resistant insulation system offers high dielectric, tensile, and mechanical properties.

Features

Finely Stranded Tinned Copper Conductors

Improves flexibility and extends conductor life in dynamic applications. Conductors are alpha-numerically marked for ease of identification.

Fillers

Low friction, non-wicking fillers increase flexibility in dynamic applications.

Specially Compounded Trex-Onics® TPU Jacket

Superior first line of defense against oil, ozone, UV exposure, and most chemicals. Flame- and heat- resistant. All-weather flexibility.

Oil-Resistant Insulation System

Designed to provide a long flex-life for optimal drive performance.

Ultra-Shield Construction, Aluminum/Polyester Foil Shield and Tinned Drain Wire

100% shielding provides protection from EM and RF interference.

Signal Pairs

Aluminum/polyester shielded for maximum flex-life and signal integrity.

Heavy-Duty Tinned Copper Braid

A finely stranded braid provides superior mechanical strength.

Data Pairs

Low capacitance and aluminum/polyester shielded for maximum flex-life and signal integrity.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • 300 V

  • VW-1 Flame Rating

  • Max Conductor Temperature 90°C

  • UL Recognized in the U.S. & Canada

  • Cold Temperature Rating -40°C

  • RoHS-Compliant

  • AWM

  • MIL-STD-810G Antimicrobial

Applications

abrasions-icon

Abrasions

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. COMPOSITE CABLE Conductor Size (AWG) Conductor/Pole Count JACKET POWER DATA SIGNAL NOMINAL O.D
inches
WT. Per 1000'
lbs
Shielding Type
68916 16/1PR OSP + 24/2PR OSP + 22/5PR OSP 16 AWG, 22 AWG, 24 AWG 8 Green (RAL6018) 16 AWG 24 AWG 22 AWG 0.535" 145 LBS Overall Shielded, Individually Shielded Pairs
