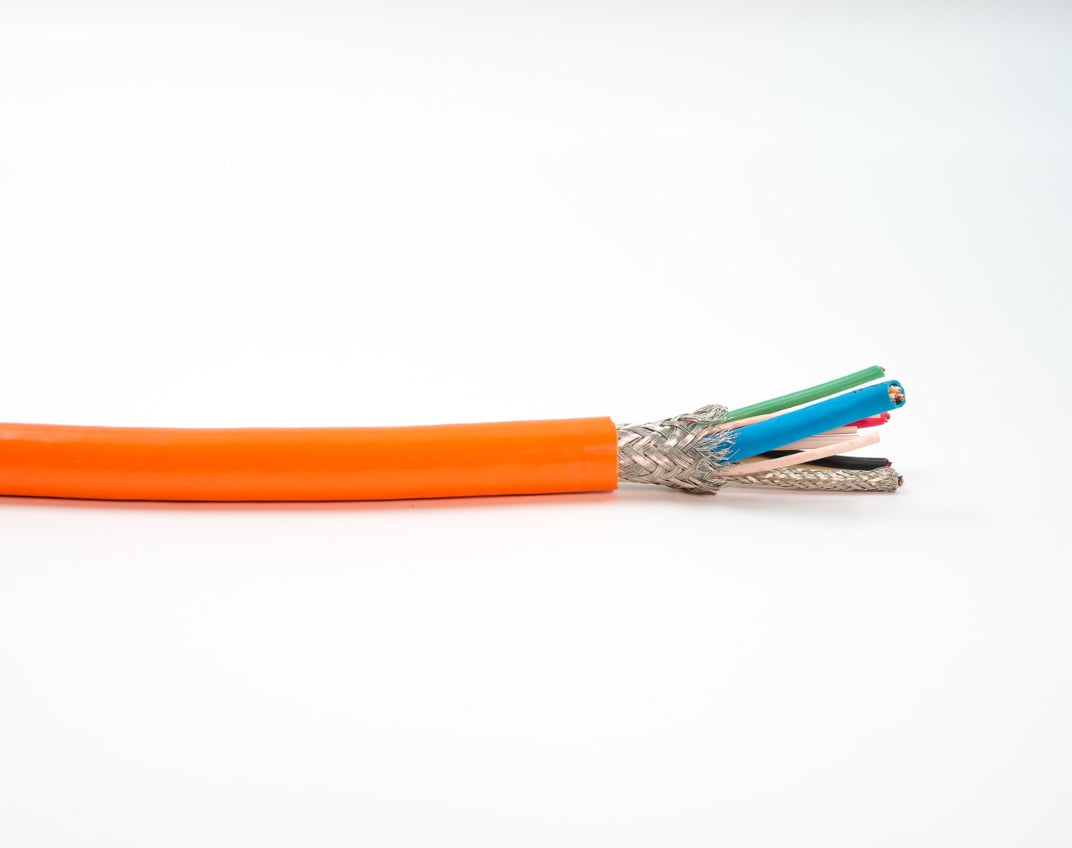

Trex-Onics® Hybrid Motor Cable Side_Web2
Trex-Onics® Hybrid Motor Cable Macro_Web

Trex-Onics® Hybrid Motor Cable

Trex-Onics® Hybrid Motor Cable is built to withstand the harsh industrial environments in which many motors operate. This single-cable solution combines traditional power and signal pair conductors with the data element of dedicated encoder cables. The convergence of multiple roles into a single-cable solution greatly simplifies inventory management, installation, and maintenance.

This composite cable features finely stranded tinned copper conductors that extend conductor life in dynamic applications. The oil-resistant insulation system offers high dielectric, tensile, and mechanical properties.

RoHS Compliant 2002/95/EC

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features & Benefits

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Oil Resistant Composite Insulation System

High dielectric, tensile and mechanical properties. Designed with a semi-conductive layer to protect against Corona discharge build-up from voltage spikes during operation. Prevents damage to motors and controllers.

Low-Friction, Non-Wicking Fillers

Increase flexibility and flex-life in dynamic applications.

Brake Pair Shielding

Braid shield for maximum flex-life and signal integrity. greater protection from impact.

Heavy-Duty 85% Coverage Tinned Copper Braid Shield

Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”. Designed for superior performance in dynamic applications.

Specially Compounded TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Ethernet Backward Compatibility

Fully interchangeable with CAT6A and CAT5e shielded cables.

Hybrid M23 Connector Compatibility

Over molded capability in custom lengths – a single-connector and single-cable solution.

Resources

Specsheets

Product Overview

Resource-Color Code

Trex-Onics® Hybrid Motor Cable

ProductFamilyBrochures

Trex-Onics® Family of Electrical & Electronic Cable

Ratings / Performance Characteristics

  • RoHS Compliant

  • Max Conductor Temperature 70°C

  • Cold Temperature Rating -40°C

  • ANSI TIA/EIA 568-B

  • IEC 60332-1

  • ISO/IEC 11801

  • IEC 61156-6

  • 600 V

  • Frequency Range up to 1000 MHz

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count STRANDING AMPACITY SIGNAL PAIR ETHERNET NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 Shielding Type
62268 16 AWG 4 65 x 34 10 18AWG/pr CAT7a 0.614" 231 Overall Shielded, Individually Shielded Pairs
62262 12 AWG 4 165 x 34 20 18AWG/pr CAT7a 0.684" 360 Overall Shielded, Individually Shielded Pairs

Related Products

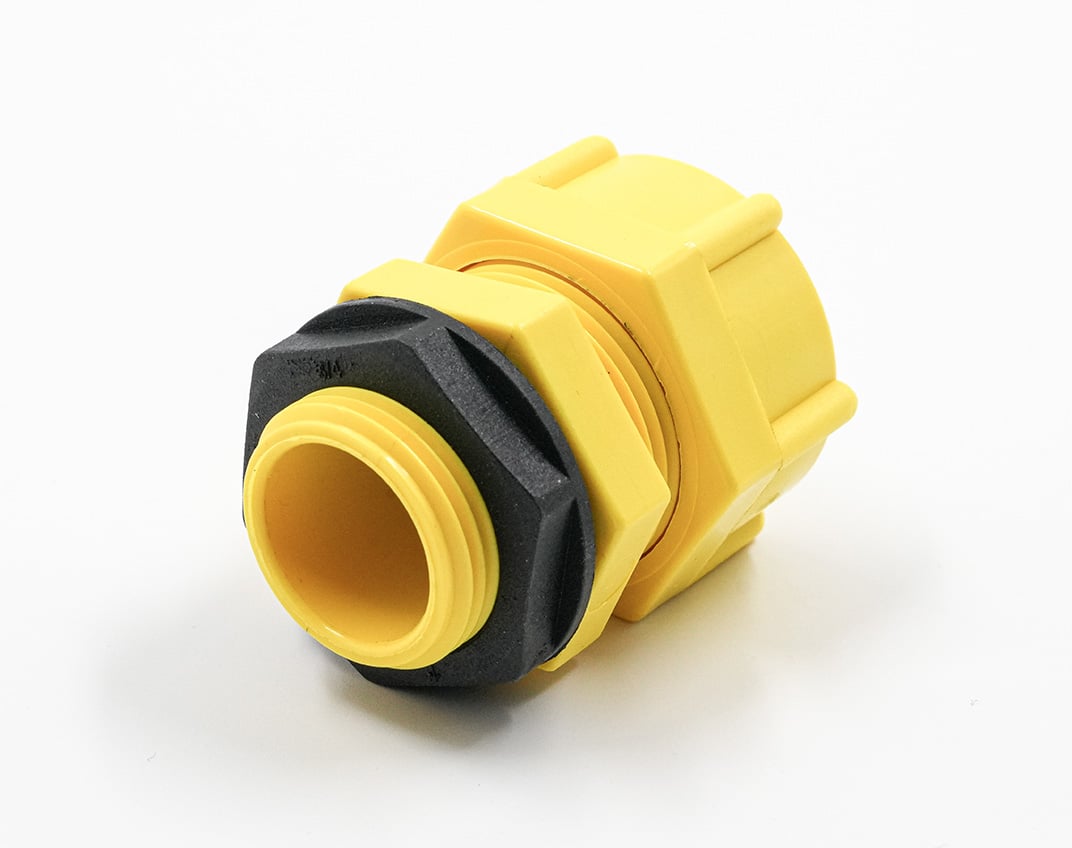

Grip-Seals® Nylon Cable Glands 3QV_Web

Cable Glands

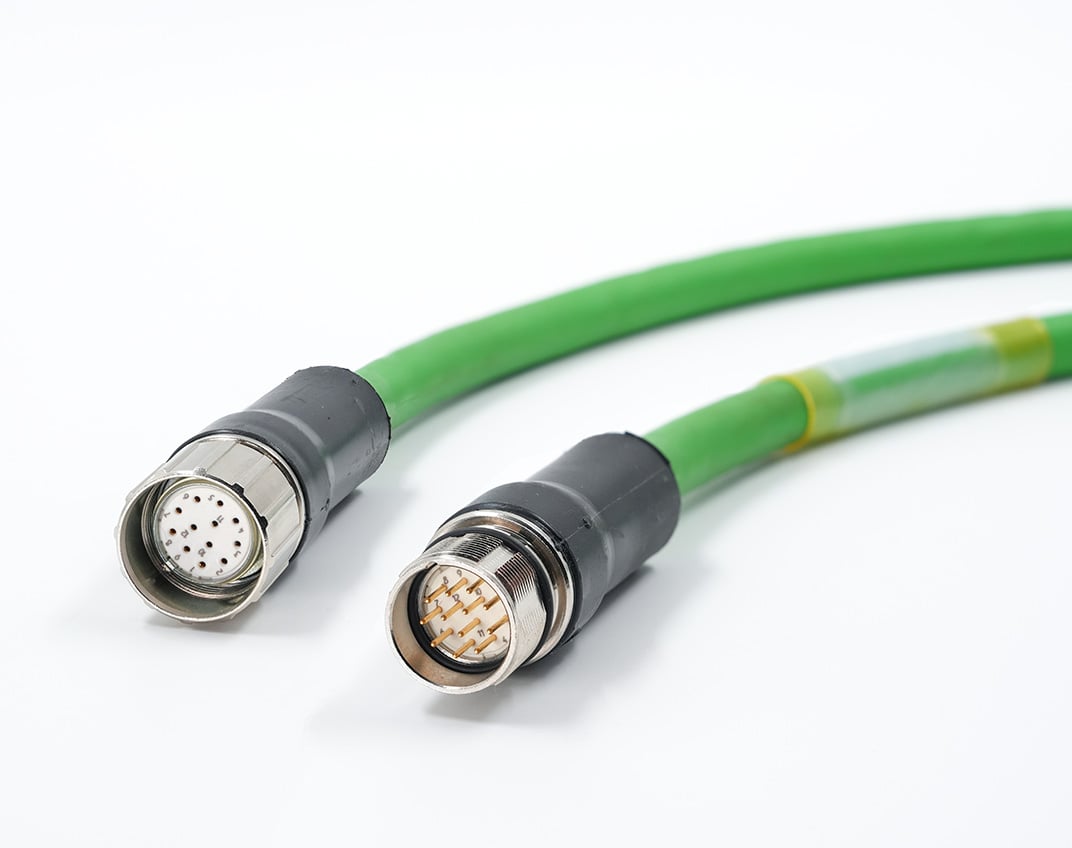

M23 Connector Assemblies 2_Web

M23 Connector Assemblies

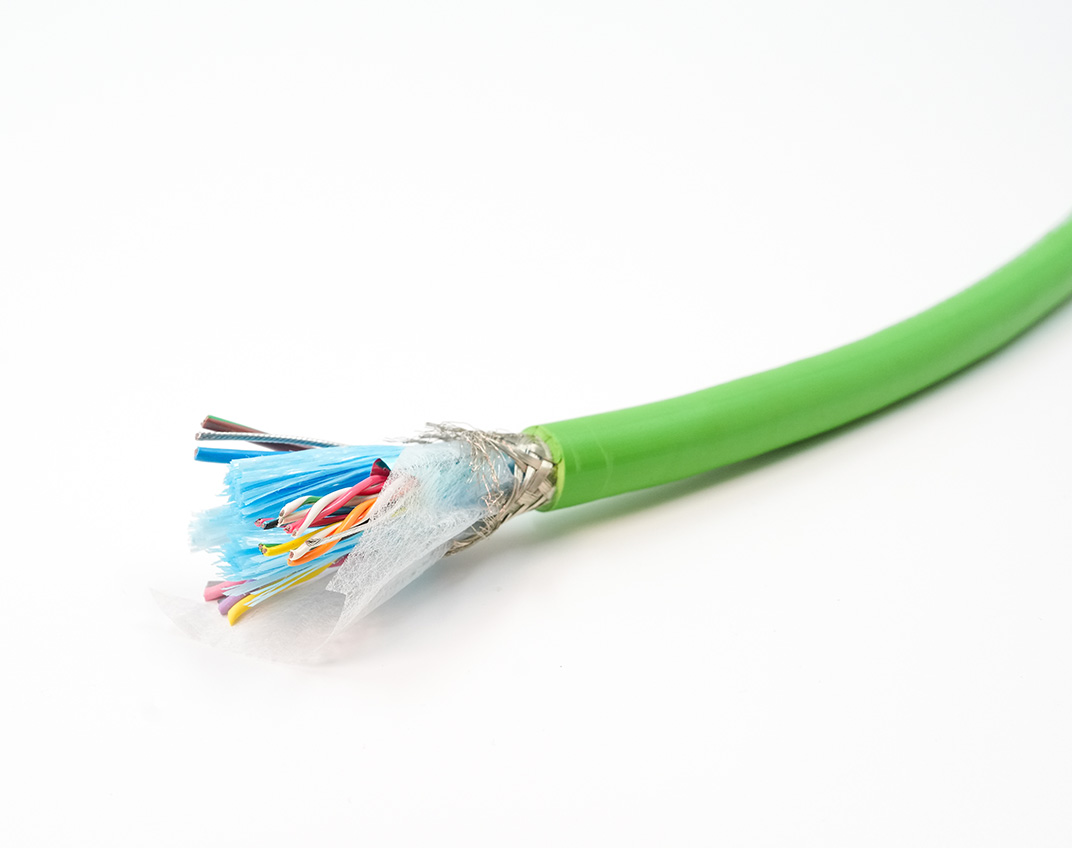

Trex-Onics® HighFlex Encoder Cable 3QV2_Web

Trex-Onics® HighFlex Encoder Cable

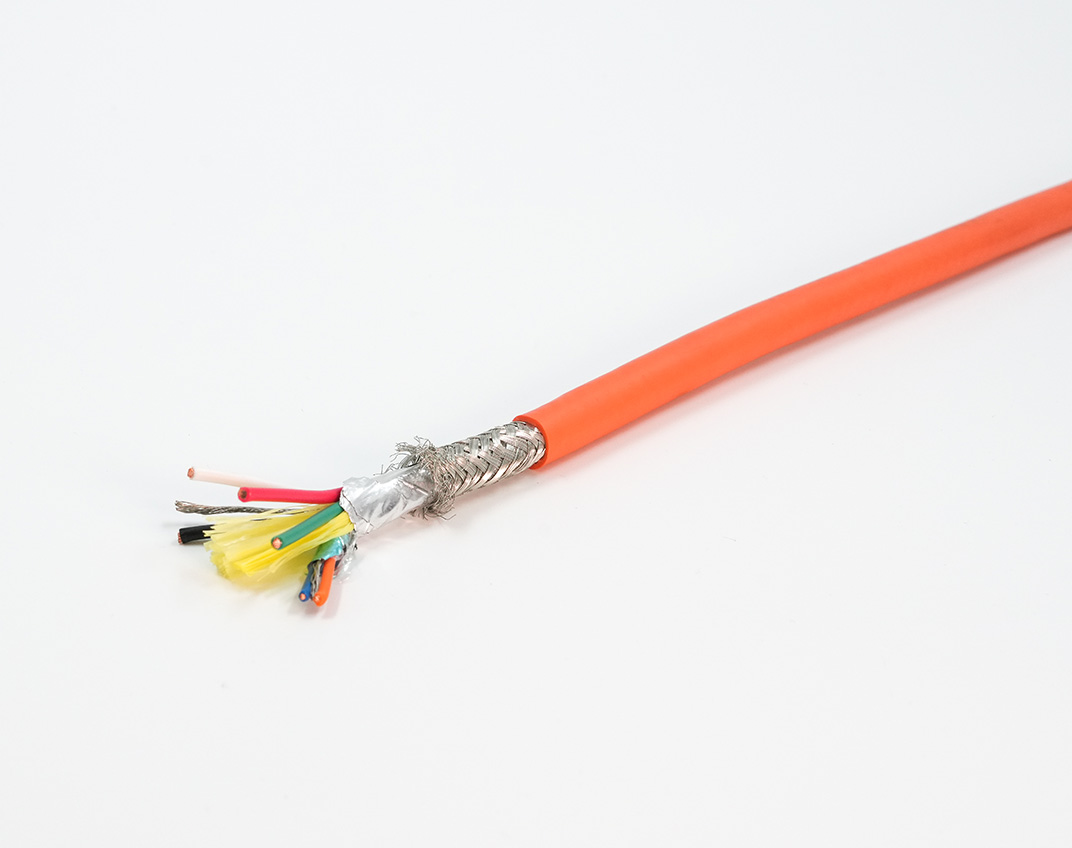

Trex-Onics® Servo-Motor Cable 3QV_Web
