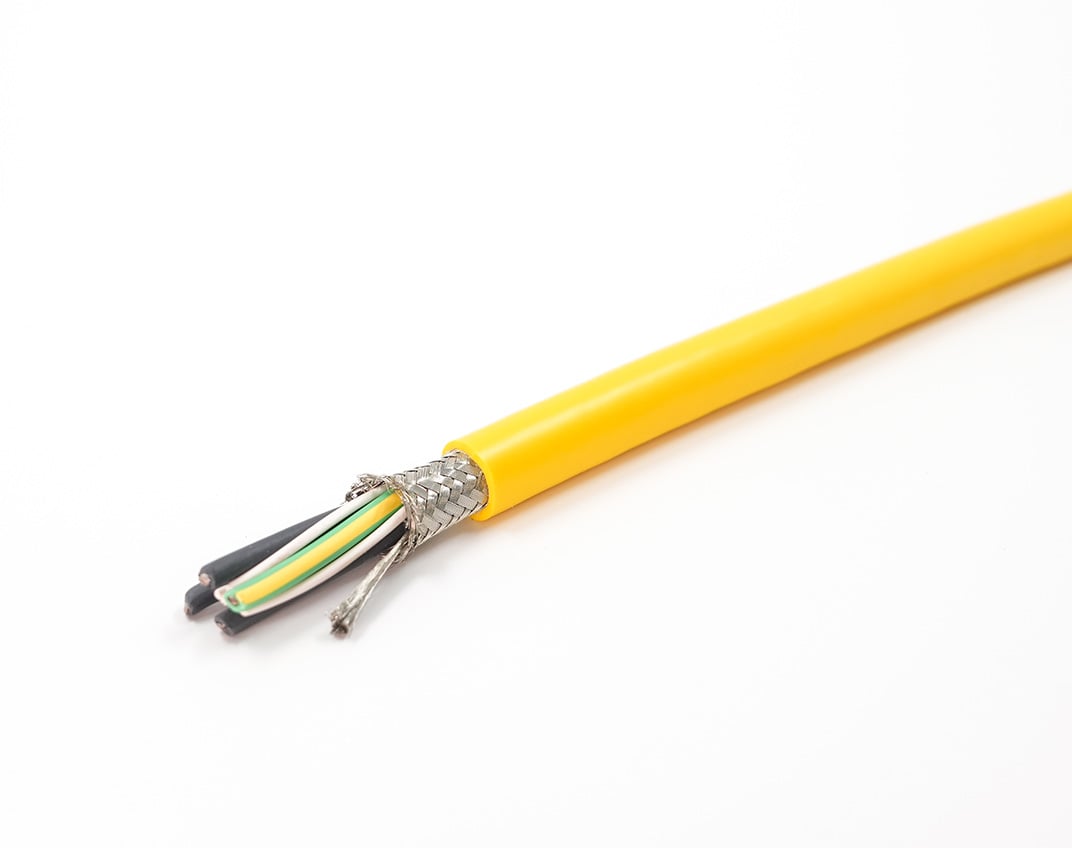

Trex-Onics® Low Capacitance VFD Shielded Power Cable Side_Web

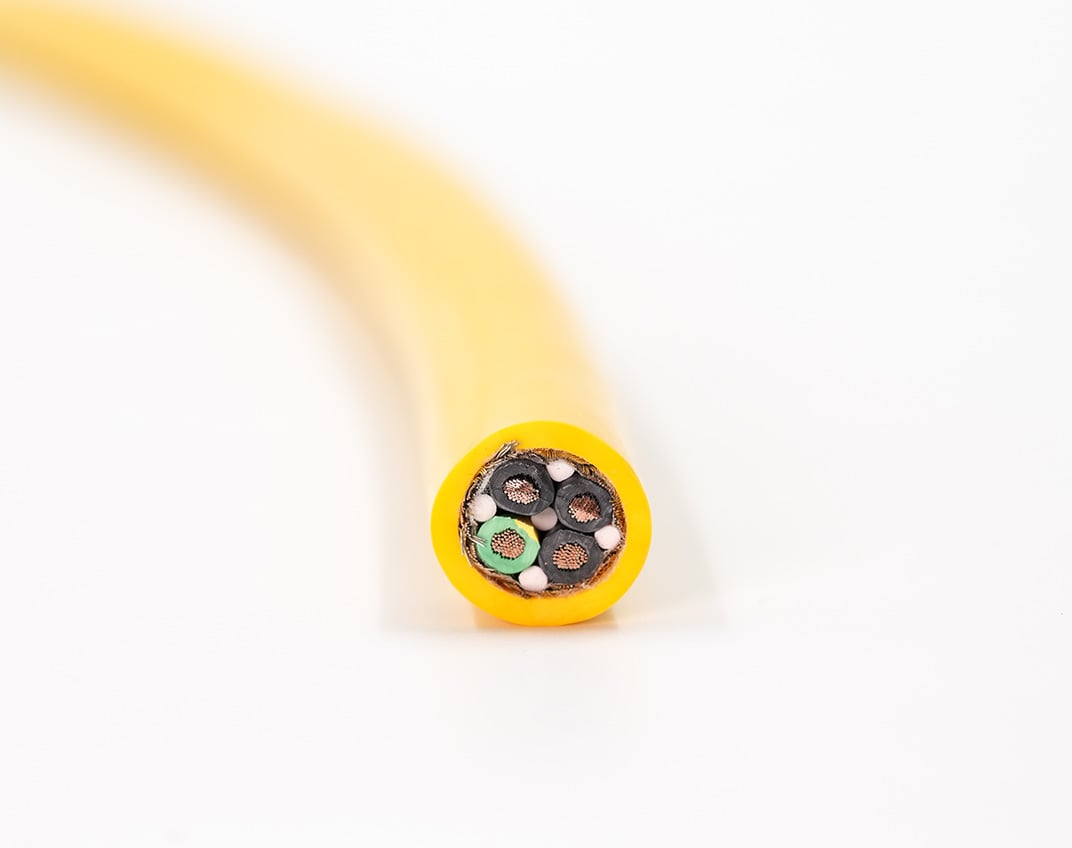

Trex-Onics® Low Capacitance VFD Shielded Power Cable Macro_Web

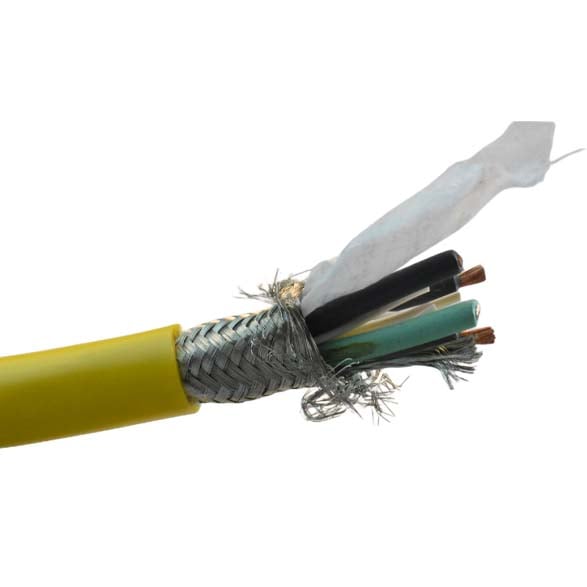

Trex-Onics® Low Capacitance VFD Shielded Power Cable

Trex-Onics® Low Capacitance VFD Shielded Power Cable is designed for superior performance. A heavy-duty tinned copper braid protects equipment and motors from damage caused by electrical noise and ‘stray voltage’. It also provides a shield against electromagnetic and radio frequency interference and a low impedance path to ground.

This power cable features finely stranded tinned copper conductors that extend conductor life in dynamic applications and are alpha-numerically marked for ease of identification. The oil-resistant insulation system offers high dielectric, tensile, and mechanical properties.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

XLPE Insulation System

High dielectric, tensile, and mechanical properties. Designed to support unique electrical requirements of VFD systems.

Low-Friction, Non-Wicking Fillers

Increase flexibility and flex-life in dynamic applications.

Heavy-Duty 95% Coverage Tinned Copper Braid Shield

Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage.” Designed for superior performance in dynamic applications.

Specially Compounded Security Yellow TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

OilGas

Case Study: Top Drive/Rig 286 Application in Oil Drilling

WhitePaper

VFD: Installing Cable that Powers and Protects

Resource-Color Code

Trex-Onics® Low Capacitance VFD Shielded Power Cable

Ratings / Characteristics

  • UL Listed

  • CSA

  • RoHS Compliant

  • Type TC-ER - 600V

  • 1000V (CSA)  

  • Max Conductor Temperature 90°C  

  • Cold Temperature Rating -20°C

  • Type TC-ER

  • FT4 Flame Rating

  • Suitable for Class I, II, Division 2***  

  • Sunlight Resistant 

  • Oil Resistant

  • Corona Resistant to 2000V 

  • Bend Radius (Static): 6x Cable O.D. 

  • Bend Radius (Dynamic): 8x Cable O.D. 

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count STRANDING AMPACITY WT. PER 1000'
lbs		 NOMINAL O.D.
inches		 DRAIN WIRE AWG Shielding Type
60040LC 16 AWG 4 26 x 30 18 145 0.563 18 Overall Shield
60041LC 14 AWG 4 41 x 30 25 158 0.588 16 Overall Shield
60042LC 12 AWG 4 65 x 30 30 247 0.656 14 Overall Shield
60043LC 10 AWG 4 105 x 30 40 308 0.71 14 Overall Shield
60044LC 8 AWG 4 168 x 30 55 528 0.926 14 Overall Shield
60045LC 6 AWG 4 266 x 30 75 753 1.02 14 Overall Shield
60046LC 4 AWG 4 413 x 30 95 1083 1.2 14 Overall Shield
