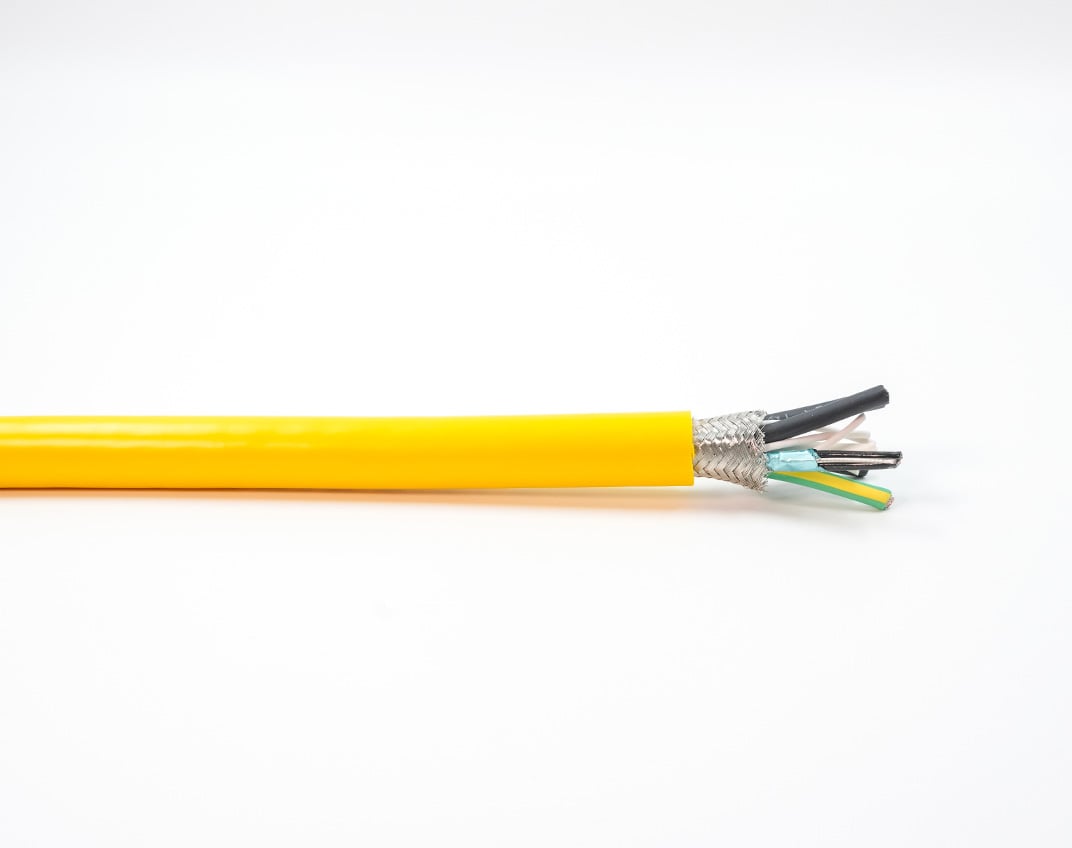

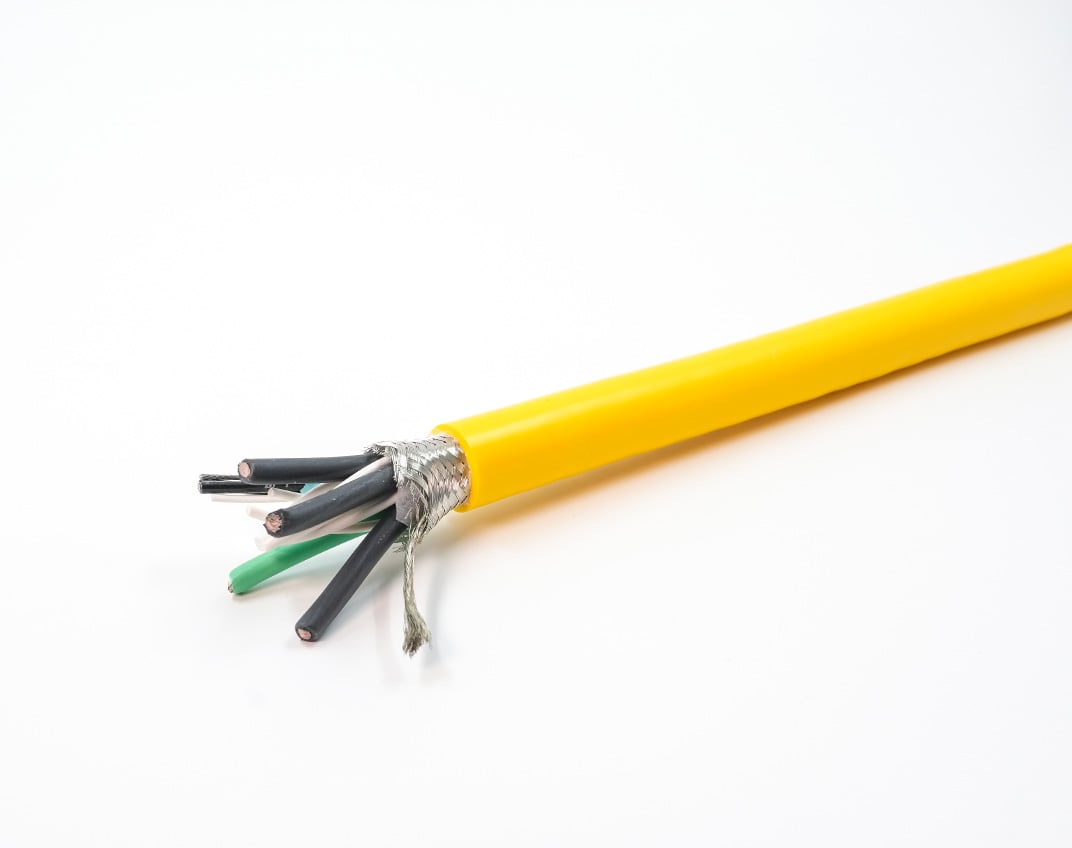

Trex-Onics® Low Capacitance Shielded Power Cable with Brake and Signal Pairs

Trex-Onics® Low Capacitance Shielded Power Cable with Brake and Signal Pairs is designed for superior performance. A heavy-duty tinned copper braid protects equipment and motors from damage caused by electrical noise and ‘stray voltage’. It also provides a shield against electromagnetic and radio frequency interference and a low impedance path to ground.

This power cable features finely stranded tinned copper conductors that extend conductor life in dynamic applications and are alpha-numerically marked for ease of identification. The oil-resistant insulation system offers high dielectric, tensile, and mechanical properties.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Improves flexibility and extends conductor life in dynamic applications. Conductors are alpha-numerically marked for ease of identification.

Brake and Signal Pairs

Aluminum/Mylar foil shielded pairs provide 100% shielding.

XLPE Insulation System

High dielectric, tensile and mechanical properties.

Heavy-Duty 95% Coverage of Tinned Copper Braid

Provides a shield against EM and RF noise and interference, and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage”. Designed for superior performance in moving applications.

Specially Compounded Security Yellow Trex-Onics® TPE Jacket

Superior first line defense against oil, ozone, UV exposure, as well as most chemicals. Flame and heat resistant.

Fillers

Low friction, non-wicking fillers provide increased flexibility in dynamic applications.

VFD cable completed over 4,000,000 cycles in cable carrier testing without failure.

Flat Braid Drain Wire

Resources

Specsheets

Product Overview

WhitePaper

VFD: Installing Cable that Powers and Protects

Ratings / Characteristics

  • UL Listed

  • CSA

  • CE

  • CSA – 1,000 V

  • Type TC-ER – 600 V

  • FT-4 Flame Rating

  • Suitable for Class I,II, Division 2

  • Sunlight Resistant

  • RoHS Compliant

  • Corona Resistant to 2,000 V

  • Maximum Conductor Temperature 90°C

  • Cold Temperature Rating-40°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Single Pair Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count POWER CONDUCTOR (STRANDING) POWER CONDUCTOR (AMPACITY) POWER CONDUCTOR (OVERALL DRAIN) BRAKE & SIGNAL PAIRS (AWG/NO. PAIRS) BRAKE & SIGNAL PAIRS (STRANDING) BRAKE & SIGNAL PAIRS (DRAIN WIRES) JACKET THICKNESS
inches		 Shielding Type Nominal O.D. (IN) Weight (lbs) Per 1000'
60021LC 14 AWG 4 41 x 30 25 16 16/1 65 x 34 18 0.07 Overall Shield 0.685 215
60023LC 12 AWG 4 65 x 30 30 14 16/1 65 x 34 18 0.07 Overall Shield 0.708 310
60025LC 10 AWG 4 105 x 30 40 14 16/1 65 x 34 18 0.07 Overall Shield 0.800 420
60026LC 8 AWG 4 168 x 30 55 14 16/1 65 x 34 18 0.09 Overall Shield 1.00 617
60027LC 6 AWG 4 266 x 30 75 14 16/1 65 x 34 18 0.09 Overall Shield 1.06 825

Two Pair Part Numbers

Part No. Conductor Size Conductor Pole Count POWER CONDUCTOR (STRANDING) POWER CONDUCTOR (AMPACITY) POWER CONDUCTOR (OVERALL DRAIN) BRAKE & SIGNAL PAIRS (AWG/NO. PAIRS) BRAKE & SIGNAL PAIRS (STRANDING) BRAKE & SIGNAL PAIRS (DRAIN WIRES) JACKET THICKNESS
inches		 Shielding Type Nominal O.D. (IN) Weight (lbs) Per 1000'
60028LC 14 AWG 4 41 x 30 25 16 16/2 65 x 34 18 0.07 Overall Shield 0.776 280
60029LC 12 AWG 4 65 x 30 30 14 16/2 65 x 34 18 0.07 Overall Shield 0.832 370
60030LC 10 AWG 4 105 x 30 40 14 16/2 65 x 34 18 0.07 Overall Shield 0.919 505
60031LC 8 AWG 4 168 x 30 55 14 16/2 65 x 34 18 0.09 Overall Shield 1.07 800
60032LC 6 AWG 4 266 x 30 75 14 16/2 65 x 34 18 0.09 Overall Shield 1.12 1175
