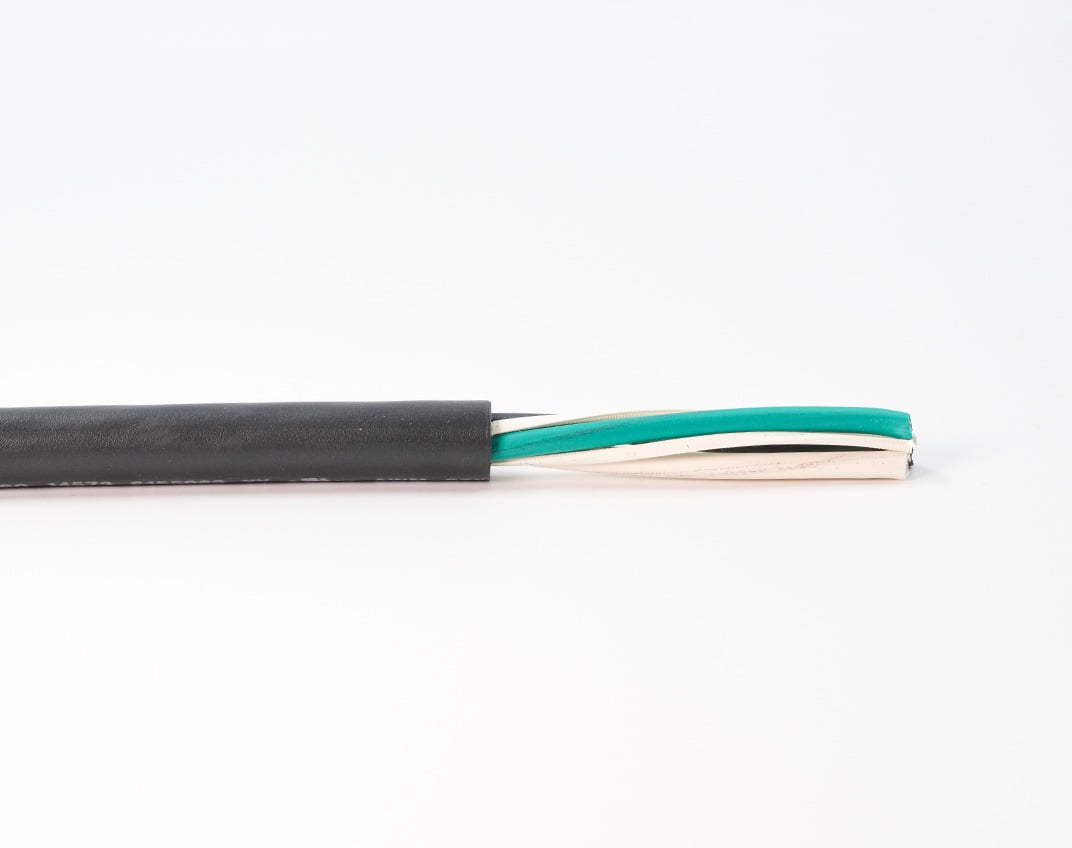

Super-Trex® Extreme Temperature Cable

Super-Trex® Extreme Temperature Cable is a portable cord/power cable that is ideally suited for extreme cold temperature applications. It is designed to operate in extreme temperatures ranging from -70°C to 150°C per ISO standards (UL/cUL 105°C)

This portable cord/power cable features a cross-linked jacket that offers excellent resistance to abrasion, oils and chemicals.

Features

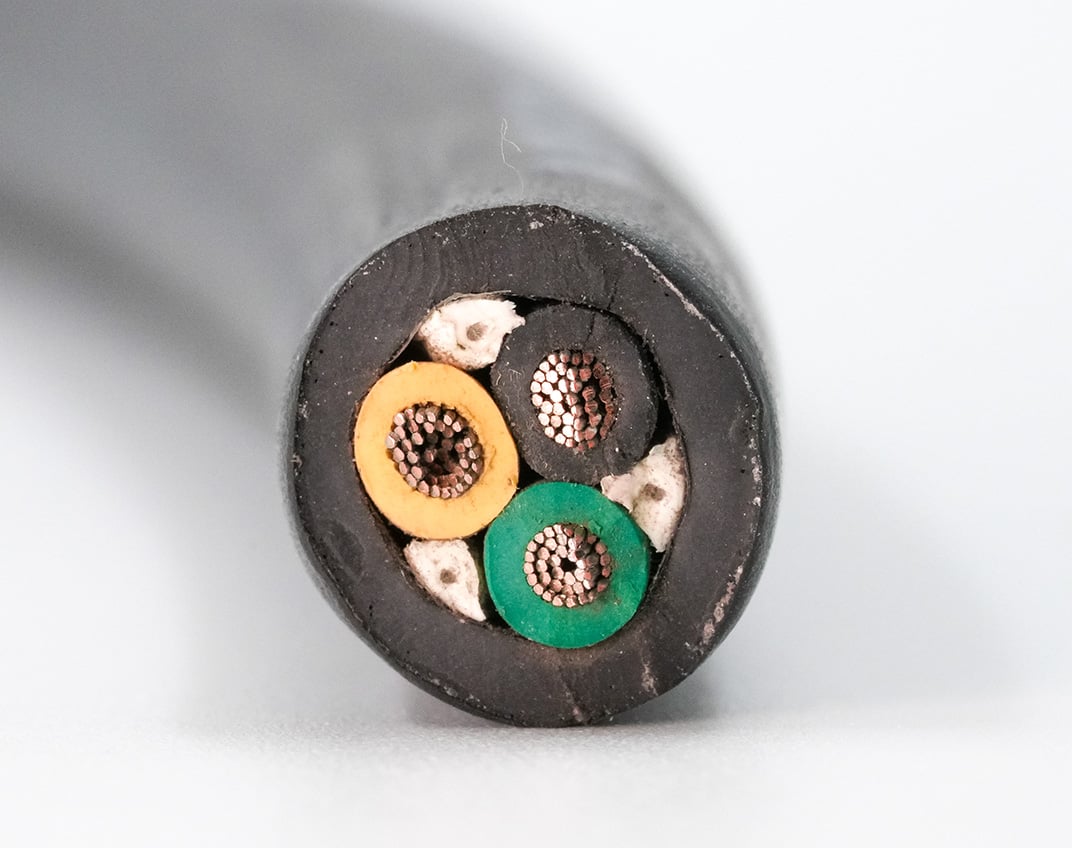

Stranded Tinned Copper Conductors

Resist corrosion, improve flexibility, and help reduce conductor fatigue and breakage in flexing applications.

Cross Linked Insulation On Individual Conductors

The temperature rating of the insulation is matched to the jacket to provide maximum protection in high and low temperature applications. The heavy-duty design provides extra cut through protection.

High Temperature Cross Linked TSE Jacket

The jacket protects the cable from high temperature operation and remains flexible at extreme cold temperatures. The heavy-duty jacket provides protection from cutting, abrasion, water, oils, chemicals and is UV resistant.

UL Recognized

Certified by UL to both Canadian and U.S. requirements.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Listed

  • cUL

  • FT-1 FlameRating

  • UV Resistant

  • RoHS Compliant

  • 1000 V

  • Max Conductor Temperature 150°C

  • Cold Temperature Rating -70°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

Extreme Temperature

Part Numbers

Part No. CABLE SIZE AWG/COND Cond. Stranding Ampacity Jacket Thickness
inches
Nominal O.D.
inches
WT. Per 1000’
lbs
87840 14/3 41/30 34 0.065 0.426 106
87841 14/4 41/30 34 0.065 0.46 130
87835 12/3 65/30 43 0.065 0.465 141
87836 12/4 65/30 43 0.065 0.503 172
87830 10/3 105/30 55 0.065 0.492 192
87831 10/4 105/30 55 0.065 0.536 238
87825 8/3 168/30 76 0.06 0.685 306
87826 8/4 168/30 76 0.08 0.79 482
