Super-Trex® SJOO Portable Cord 3QV_Web
Super-Trex® SJOO Portable Cord Side_Web
Super-Trex® SJOO Portable Cord Macro_Web

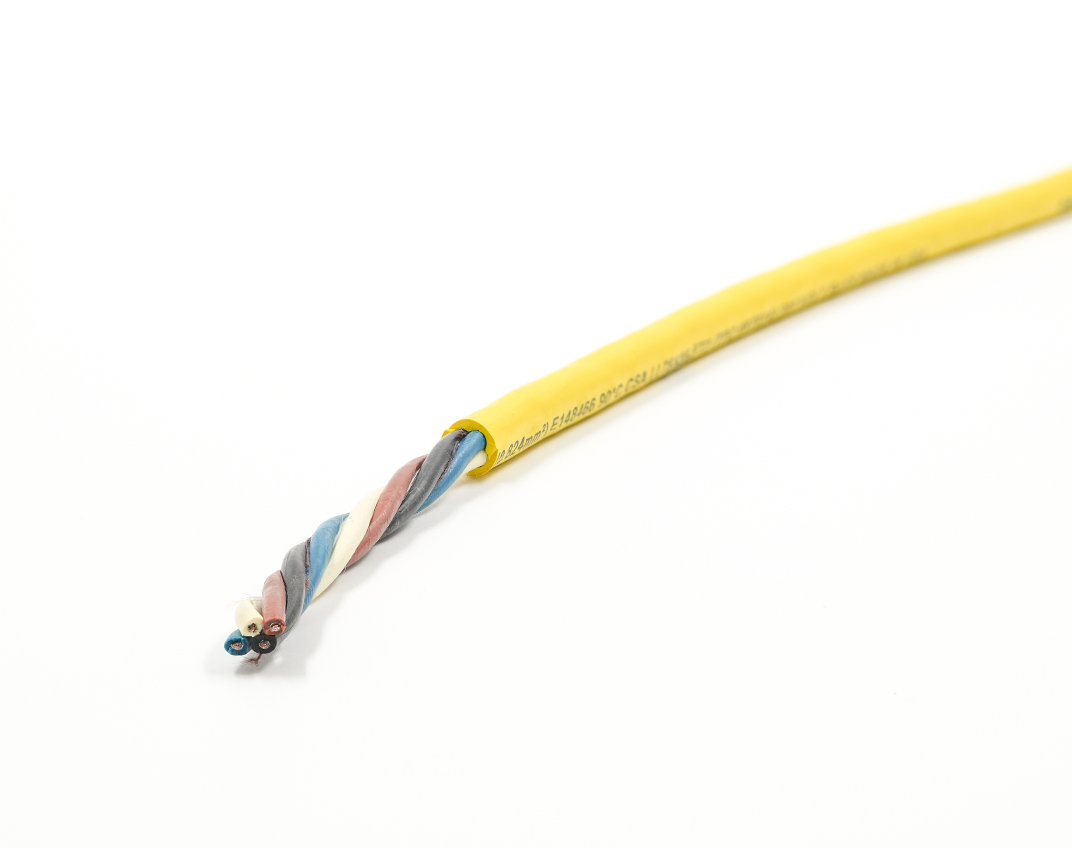

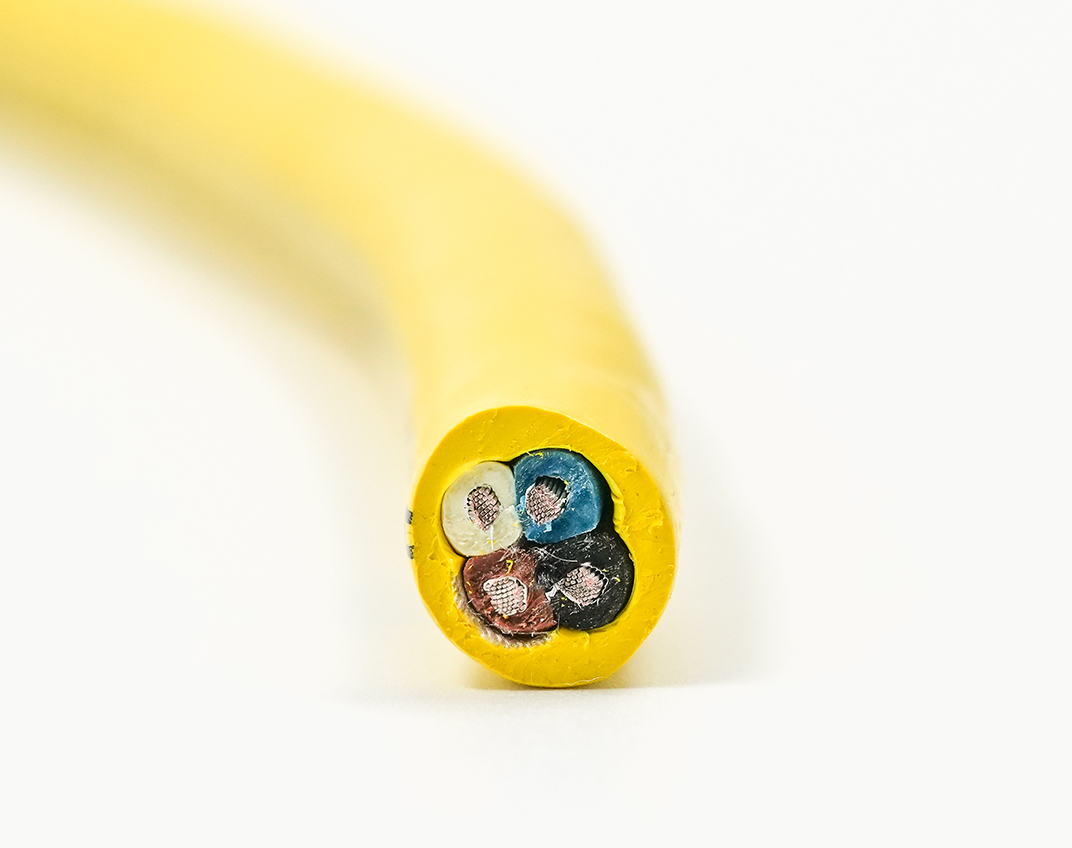

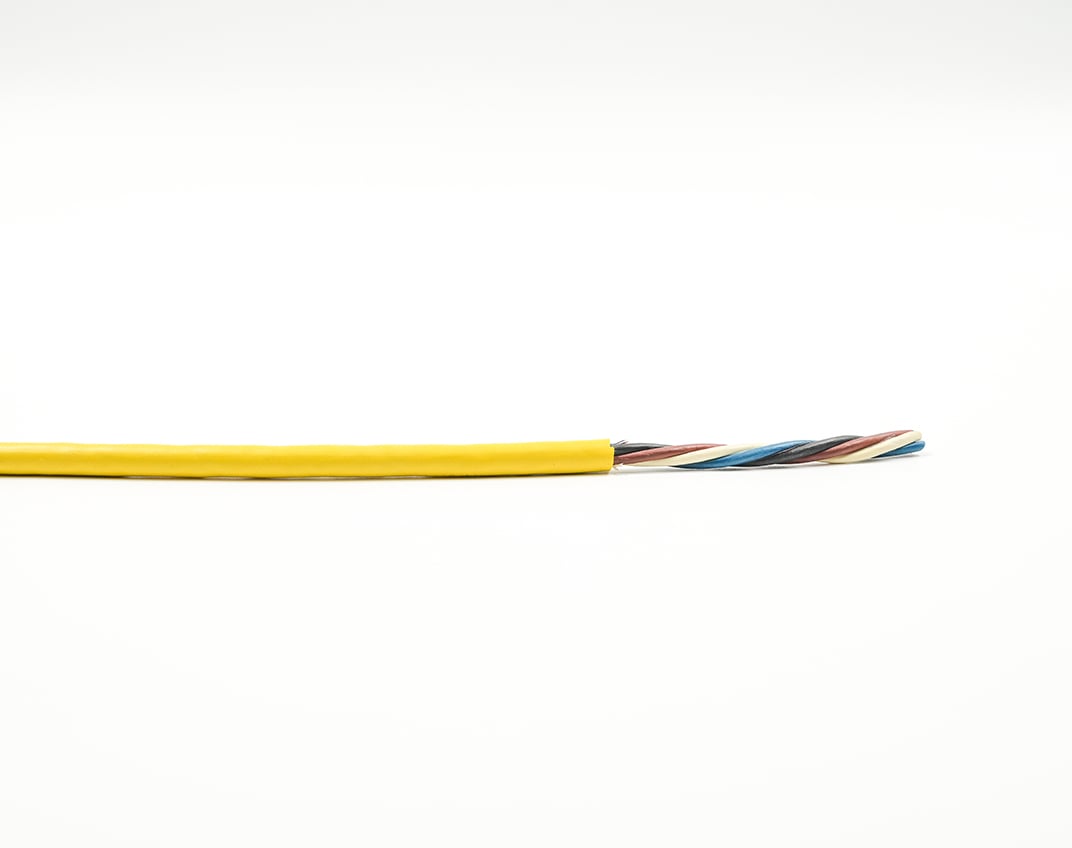

Super-Trex® SJOO Portable Cord

This SJOO portable cord features tinned, extra-flex stranded copper conductors. The security yellow TSE jacket provides excellent protection against pulling and twisting and allows for extreme all-weather flexibility. A superior first-line of defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Live-Flex & Fluid Resistant Thermoset Insulation with Separator

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Enhances tensile strength.

Specially Compounded Security Yellow TSE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Resource-Color Code

Color Code

Ratings / Characteristics

  • UL Listed

  • CSA

  • 300V

  • Max Conductor Temperature 90°C

  • Type SJOO

  • FT2 Flame Rating

  • UV Resistant

  • Oil Resistant 1

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

Part Numbers

part_num DC part_num AC Size AWG/ Cond Cond_Stranding Ampacity Insulation_Thickness Jacket_Thickness Nominal_OD WT_LBS per 1000' Shielding_Type
87013 87003 18/3 41 x 34 7 0.027 0.024 0.315 65 No Shielding
87014 87004 18/4 41 x 34 5.6 0.027 0.024 0.345 85 No Shielding
87015 87005 18/5 41 x 34 5.6 0.027 0.024 0.38 101 No Shielding
