Super-Trex® Triple-Gard™ Yellow Portable Cord

Super-Trex® Yellow Triple-Gard™ Portable Cord is highly flexible, rated for extra-hard usage and has excellent resistance to impact, cutting, abrasion, oils, and most industrial chemicals. These cables are ideal for applications where cable tension is a concern.

This portable cord features an integral fill, dual-layered, fiber-reinforced jacket for added protection against corkscrewing caused by twisting and pulling. A security yellow TSE jacket allows for extreme all-weather flexibility.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Tinned Conductors

Resists corrosion, easier to solder.

2 1/2 Times More Stranding

Improves flexibility. Reduces conductor fatigue and breakage

Third Layer: Specially Ribbed Oil Resistant Live-Flex Conductor Insulation

Resists effects of lubricating oils, coolants, cutting oils, acids and most chemicals. Superior Tensile Strength.

Second Layer: Rayon Reinforced Braid and Integral Fill Design

Provides added strength. Improves cable resistance to tearing, abrasion, twisting and pulling. Locks the conductors into the jacket. Helps prevent cork-screwing and premature conductor failure.

First Layer: Specially Compounded Yellow, Super-Trex® TSE Jacket

Superior first line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all weather flexibility.

Super-Trex® Triple-Gard™ Construction

Extends life in torque, tension and flexing applications.

Resources

Specsheets

Product Overview

GeneralManufacturing

Turn Roller Welding Applications

Ratings / Characteristics

  • UL Listed

  • CSA

  • Type SOOW

  • FT-1 FlameRating

  • Suitable forClass I, II, III, Division 1 & 2

  • UV Resistant

  • RoHS Compliant

  • 600 V

  • Max Conductor Temperature 105°C

  • Extra Hard Usage

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

tension-icon

Tension

Part Numbers

Part No. Cord Size AWG/COND Cond. Stranding Ampacity Insulation Thickness
inches		 Jacket Thickness
inches		 Nominal O.D.
inches		 WT. Per 1000’
lbs		 Min.Bend Radius
inches
85194 14/3 105 x 34 15 0.045 0.08 0.548 185 4.38
85199 14/4 105 x 34 15 0.045 0.08 0.59 245 4.72
85195 12/3 168 x 34 20 0.045 0.095 0.623 265 4.98
85200 12/4 168 x 34 20 0.045 0.095 0.675 320 5.4
85196 10/3 259 x 34 25 0.045 0.095 0.685 335 5.48
85201 10/4 259 x 34 25 0.045 0.095 0.745 400 5.96

Related Products

super-trex-ultra-gard-type-tc-er

Super-Trex Ultra-Gard
nylon-straight-grip

Cable Glands
extreme-temperature-cable_3

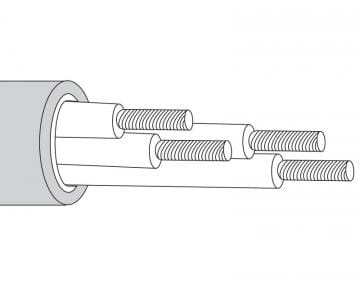

Super-Trex Extreme Temperature Cable
