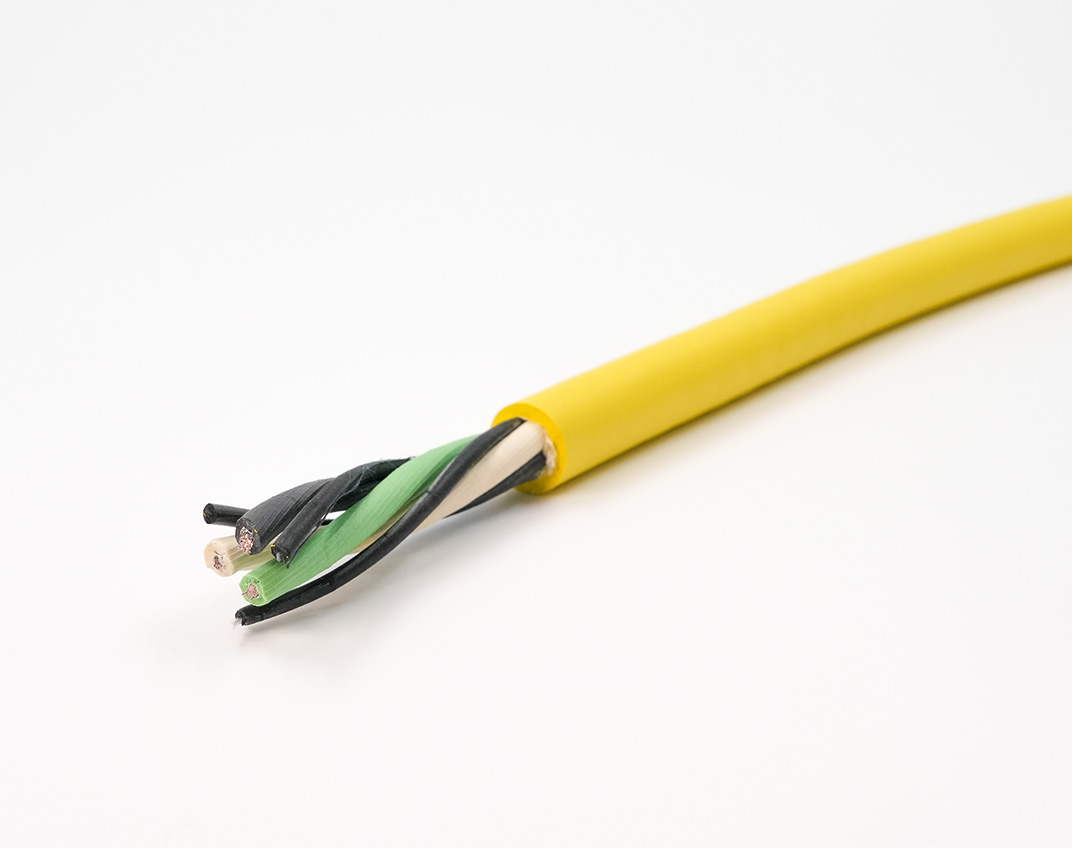

Super-Trex® Ultra-GardTM Portable Cord 3QV_Web
Super-Trex® Ultra-GardTM Portable Cord Side_Web

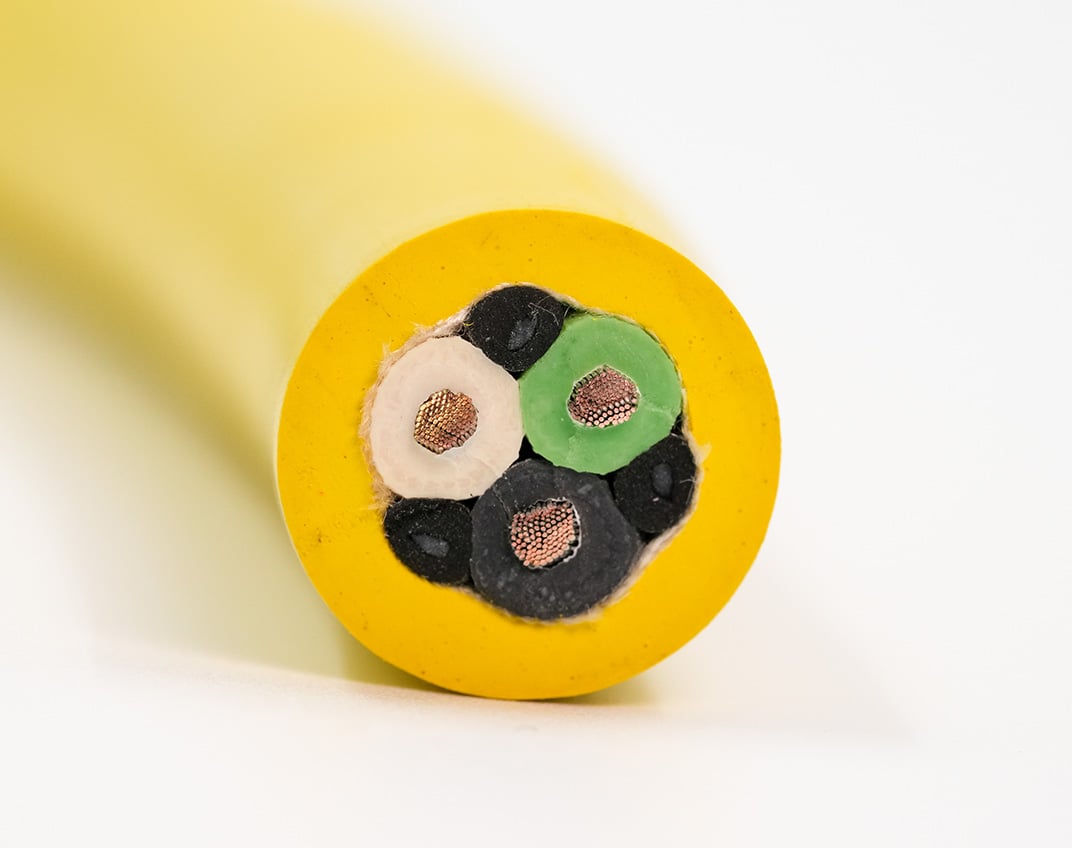

Super-Trex® Ultra-GardTM Portable Cord Macro_Web

Super-Trex® Ultra-Gard™ Portable Cord

Super-Trex® Ultra-Gard™ Portable Cord is highly flexible and is rated for usage in harsh industrial environments with excellent resistance to impact, cutting, abrasion, oils, and most industrial chemicals.

This SOOW portable cord features tinned, extra-flex stranded copper conductors and live-flex insulation with no-wick reinforced fillers and a 100% fabric serve. The security yellow TSE jacket provides excellent protection against pulling and twisting and allows for extreme all-weather flexibility.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Live-Flex & Fluid Resistant Thermoset Insulation with Separator

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Enhances tensile strength.

No-Wick RayonReinforced Synthetic Fillers

Adds tensile strength. Improves flexibility and won’t wick up liquids. Act like a shock absorber to reduce damage from impact.

100% Fabric Serve, Jacket Impregnated

Increases tear resistance, provides greater protection from impact.

Specially Compounded Security Yellow TSE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Specsheets

Product Overview

Video

Product Showcase - Super-Trex® Ultra-Gard™ Portable Cord

Video

Steel Coil vs. Super-Trex® Ultra-Gard™

FoodBev

Potato Chip Manufacturer Keeps their Spice Machine Moving

WhitePaper

Crush and Impact Testing

Resource-Color Code

Super-Trex® Ultra-Gard™ Portable Cord

Ratings / Characteristics

  • UL Listed

  • CSA

  • RoHS Compliant

  • MSHA Approved

  • 600 V

  • Max Conductor Temperature 90°C

  • Type SOOW

  • Type TC-ER (10,12,14 AWG Only)

  • CSA 22.2 No. 49

  • FT2 Flame Rating

  • FT-4 Flame Rating

  • Suitable for Class I, II, III, Division 1 & 2

  • UV Resistant

  • Extra Hard Usage

  • Oil Resistant

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

Part Numbers

Part No. (TC-ER*) Conductor Size Conductor Pole Count Cond. Stranding Ampacity Insulation Thickness
inches		 Jacket Thickness
inches		 Nominal O.D.
inches		 WT. Per 1000’
lbs		 Min.Bend Radius
inches		 Shielding Type
87192 18 AWG 3 41 x 34 7 0.03 0.06 0.38 80 3.1 No Shielding
87197 18 AWG 4 41 x 34 7 0.03 0.06 0.408 100 3.26 No Shielding
87191 16 AWG 2 65 x 34 13 0.03 0.06 0.388 85 3.2 No Shielding
87193 16 AWG 3 65 x 34 10 0.03 0.06 0.408 105 3.26 No Shielding
87198 16 AWG 4 65 x 34 10 0.03 0.06 0.435 120 3.48 No Shielding
87202 16 AWG 5 65 x 34 8 0.03 0.08 0.52 175 4.2 No Shielding
87206 16 AWG 6 65 x 34 8 0.03 0.08 0.56 210 4.5 No Shielding
87207 16 AWG 7 65 x 34 7 0.03 0.08 0.63 240 5.1 No Shielding
87208 16 AWG 8 65 x 34 7 0.03 0.08 0.64 275 5.12 No Shielding
87194TC 14 AWG 3 104 x 34 15 0.045 0.08 0.548 180 4.4 No Shielding
87199TC 14 AWG 4 104 x 34 15 0.045 0.08 0.59 210 4.72 No Shielding
87195TC 12 AWG 3 165 x 34 20 0.045 0.095 0.623 235 4.98 No Shielding
87200TC 12 AWG 4 165 x 34 20 0.045 0.095 0.675 290 5.4 No Shielding
87196TC 10 AWG 3 259 x 34 25 0.045 0.095 0.685 310 5.48 No Shielding
87201TC 10 AWG 4 259 x 34 25 0.045 0.95 0.738 385 5.9 No Shielding

Related Products

Super-Trex-Type-W-Yellow-Portable-Power-Automation-Cable-Cut End

Super-Trex Triple Gard Portable Cord
nylon-straight-grip

Cable Glands
quick-connect-cord-set_0

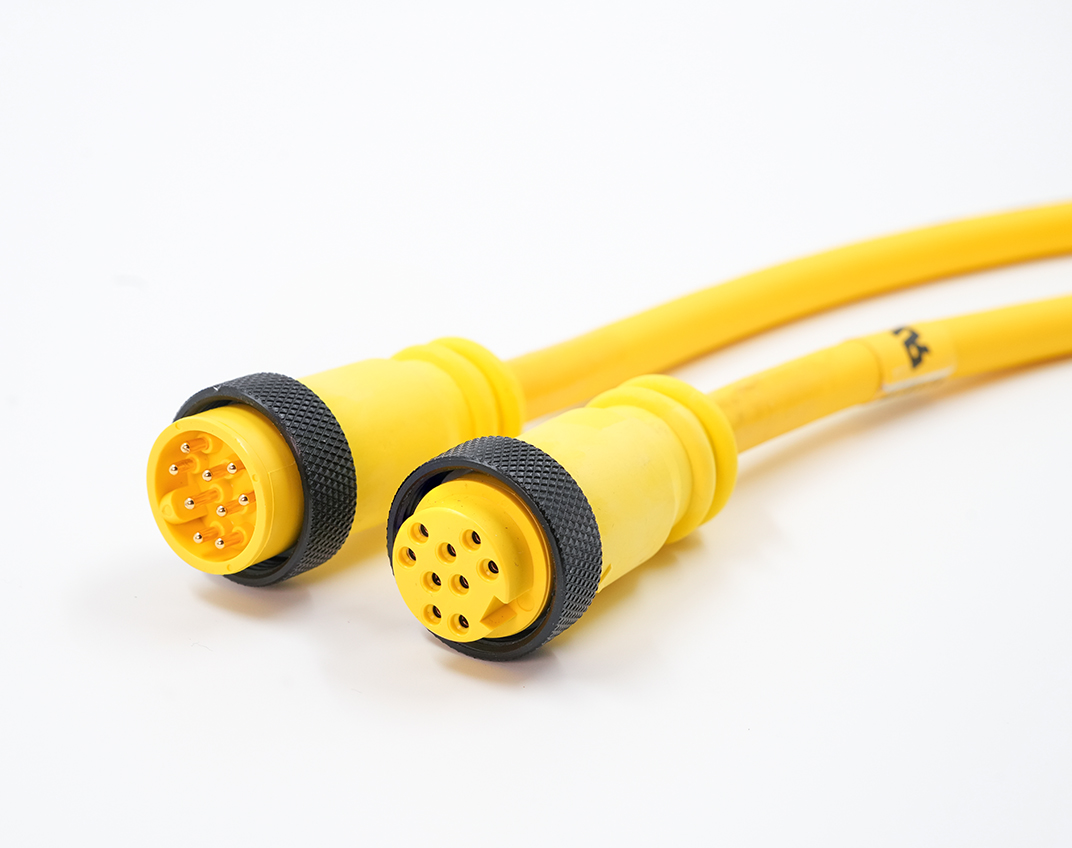

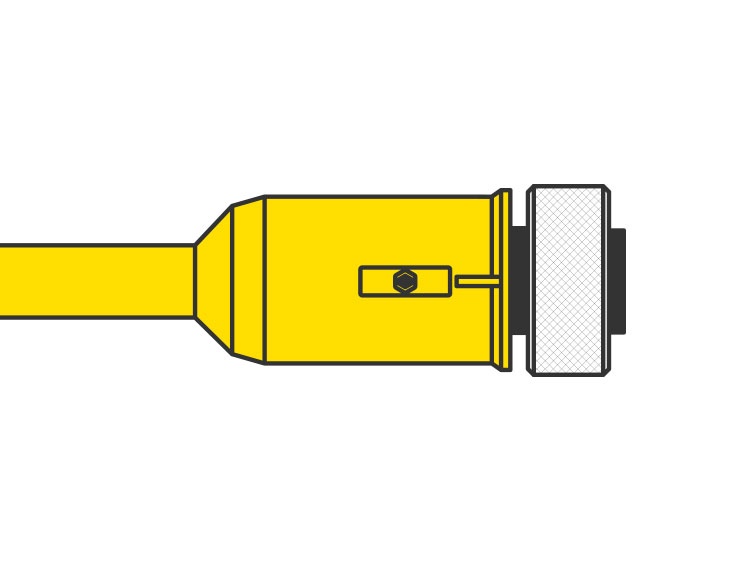

Mini Quick-Connects
extreme-temperature-cable_3

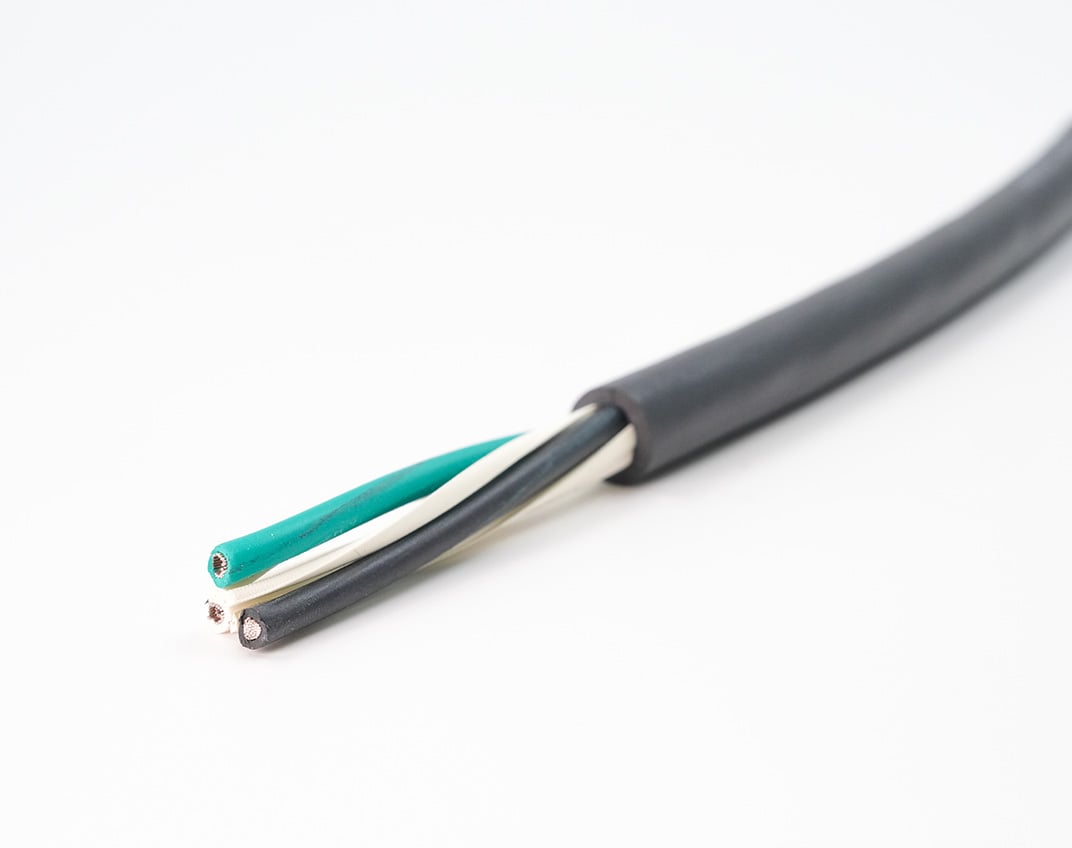

Super-Trex Extreme Temp Cable
molded-straight-blade-5-15-extension-cord-assembly

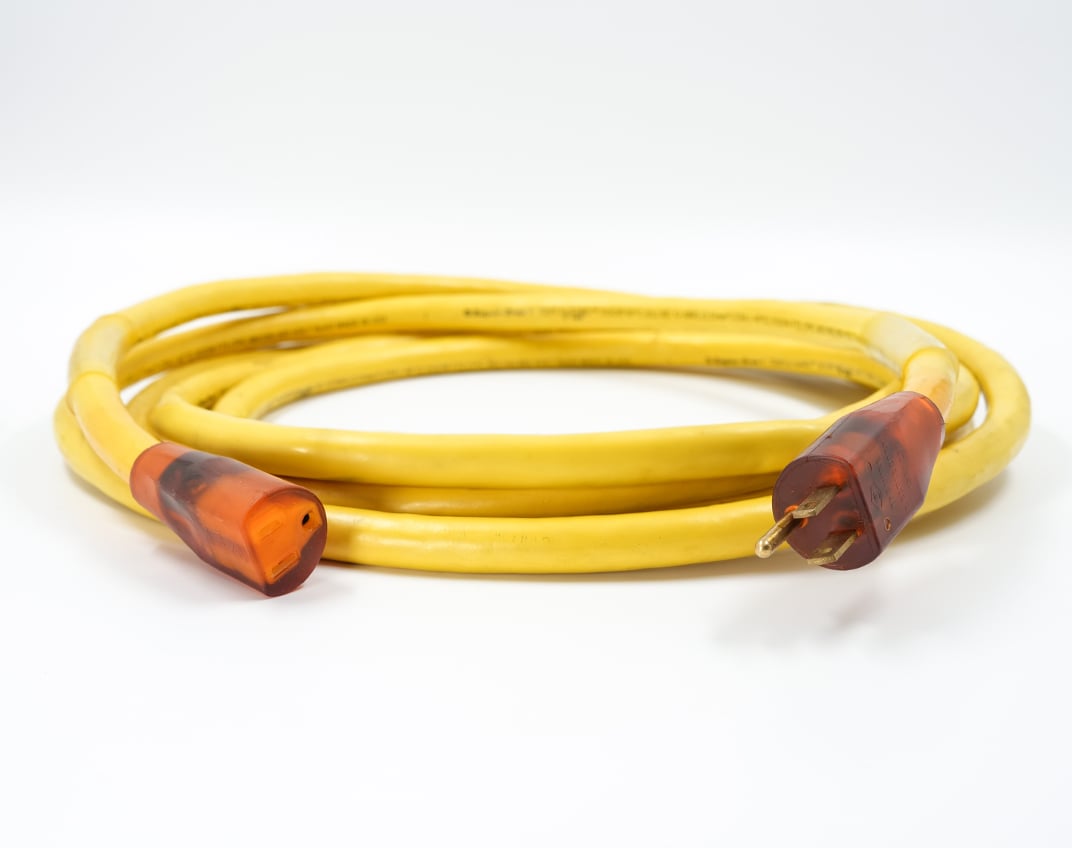

Extension Cords
