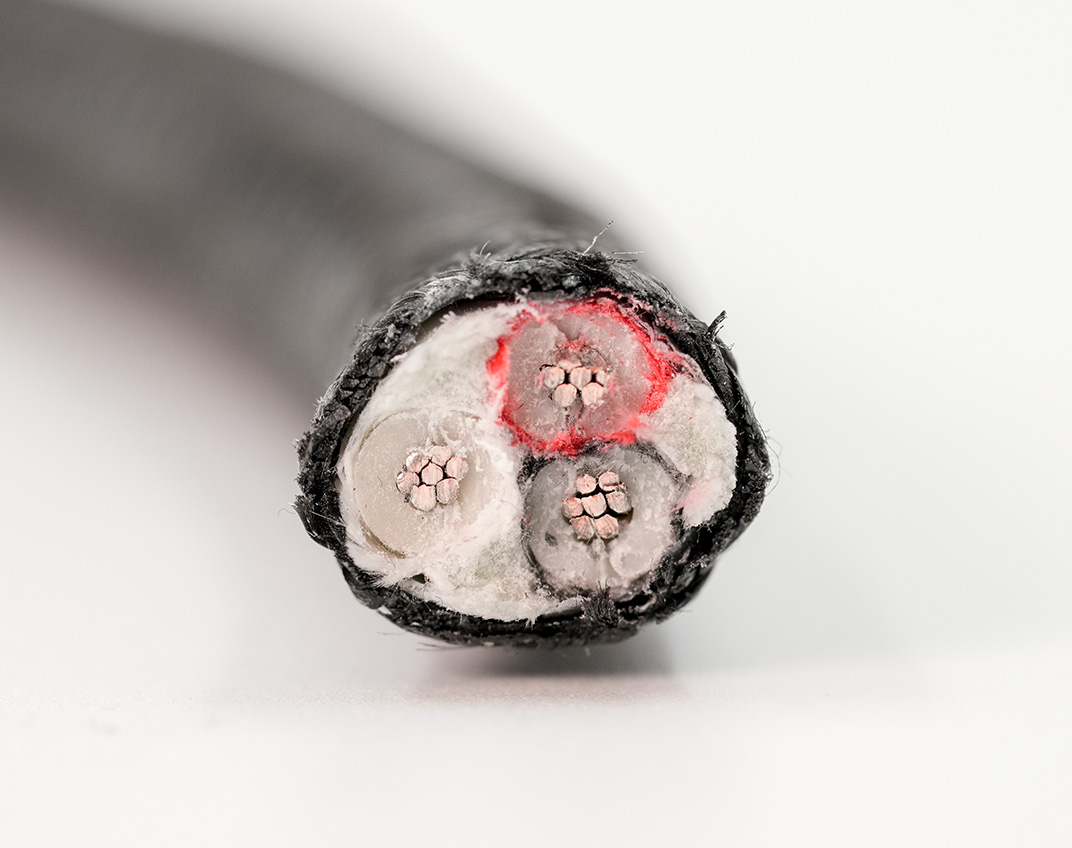

Thermo-Trex® 200-HD Multi-Conductor Cable Macro_Web

Thermo-Trex® 200-HD Multi-Conductor Cable

Thermo-Trex® 200-HD Multi-Conductor Cable is a high-temperature cable for power, instrumentation, and control applications that can withstand a maximum conductor temperature of 200°C / 392°F.

This flexible multi-conductor cable features finely stranded tinned copper conductors with a woven, braided, heat-resistant jacket coated with a moisture-resistant finish for tensile strength and protection against abrasion.

Features

Tinned Copper Conductors

Tinned conductors resist corrosion and are easier to solder.

Silicone Rubber & Fiberglass Yarn Insulation

Silicone rubber insulation covered by color-coded braided fiberglass yarn impregnated with a saturant to minimize fraying.

TFE Wrap

Improves performance in flexing applications and provides an additional thermal barrier to extend product life in extreme temperature environments.

Specially Designed High Temp Jacket

Braided high-temp-resistant PET industrial yarn jacket saturated with moisture-resistant finishing compounds to provide added abrasion resistance.

Optional Stainless Steel Overbraid

Provides enhanced protection against abrasion and other environmental abuses.

Resources

Resource-Color Code

Thermo-Trex® 200-HD Multi-Conductor Cable

Ratings / Characteristics

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 200°C

  • Cold Temperature Rating -60°C

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

heat-icon

High Temperature

flexing-icon

Flexing

tension-icon

Tension

cold-icon

Cold Temperature

Part Numbers

Part No. Conductor Size Conductor/Pole Count CONDUCTOR STRANDING SILICONE THICKNESS
inches
AMPACITY JACKET BRAID THICKNESS
inches
NOMINAL O.D.
inches
WT. PER 1000'
lbs
Shielding Type
44053 16 AWG 4 7/19 0.03 29 0.01 0.348 90 No Shielding
44054 16 AWG 7 7/19 0.03 15 0.01 0.428 132 No Shielding
44056 14 AWG 3 7/22 0.045 36 0.01 0.41 97 No Shielding
44057 14 AWG 4 7/22 0.045 36 0.01 0.454 126 No Shielding
44059 14 AWG 7 7/22 0.045 29 0.01 0.563 231 No Shielding
44060 14 AWG 9 7/22 0.045 25 0.01 0.681 289 No Shielding
44061 14 AWG 12 7/22 0.045 18 0.01 0.768 377 No Shielding
44064 12 AWG 4 19/25 0.045 45 0.01 0.496 167 No Shielding
44066 12 AWG 7 19/25 0.045 36 0.01 0.615 297 No Shielding
44067 12 AWG 9 19/25 0.045 32 0.01 0.746 381 No Shielding
44068 12 AWG 12 19/25 0.045 23 0.01 0.84 499 No Shielding
44071 10 AWG 4 19/23 0.045 60 0.01 0.554 249 No Shielding
44073 10 AWG 7 19/23 0.045 48 0.01 0.686 409 No Shielding
44075 10 AWG 12 19/23 0.045 30 0.01 0.94 687 No Shielding
44078 8 AWG 4 61/.0167 0.06 83 0.01 0.721 401 No Shielding
44081 6 AWG 4 84/.0177 0.06 110 0.01 0.887 579 No Shielding
44084 4 AWG 4 133/.0169 0.06 125 0.01 0.969 762 No Shielding
44087 2 AWG 4 259/.0160 0.06 171 0.01 1.116 1,104 No Shielding
