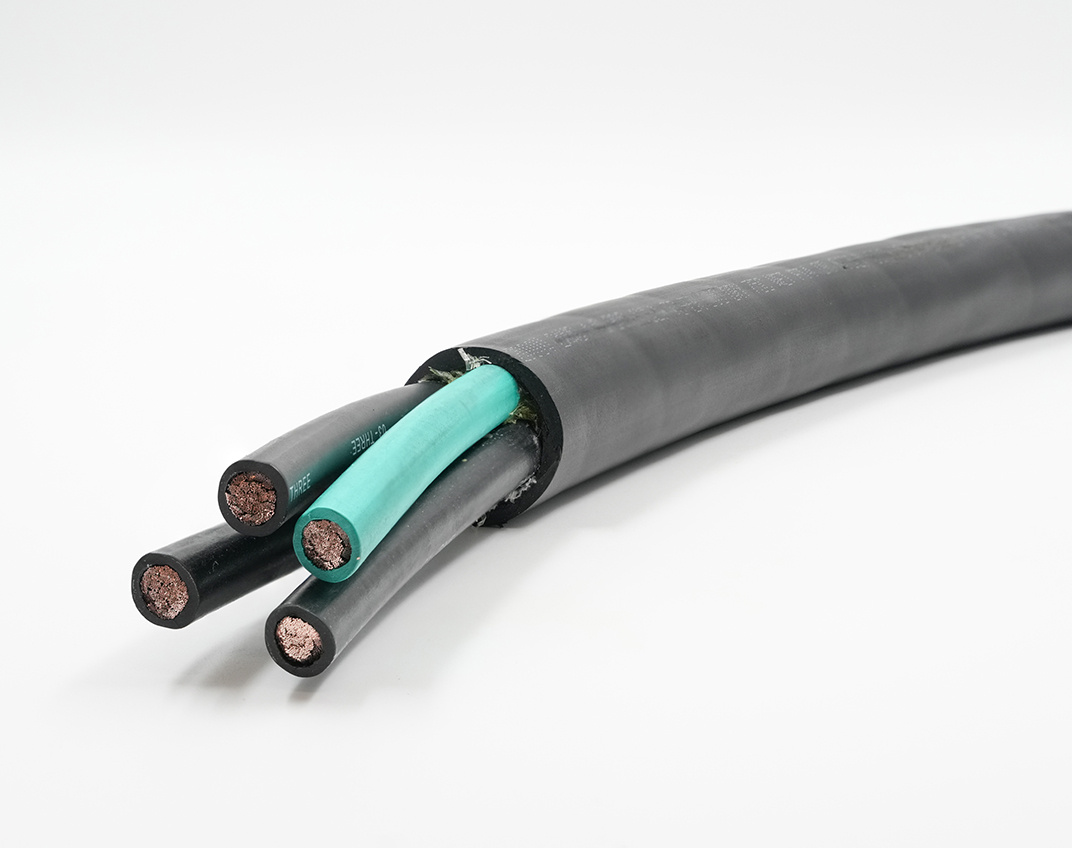

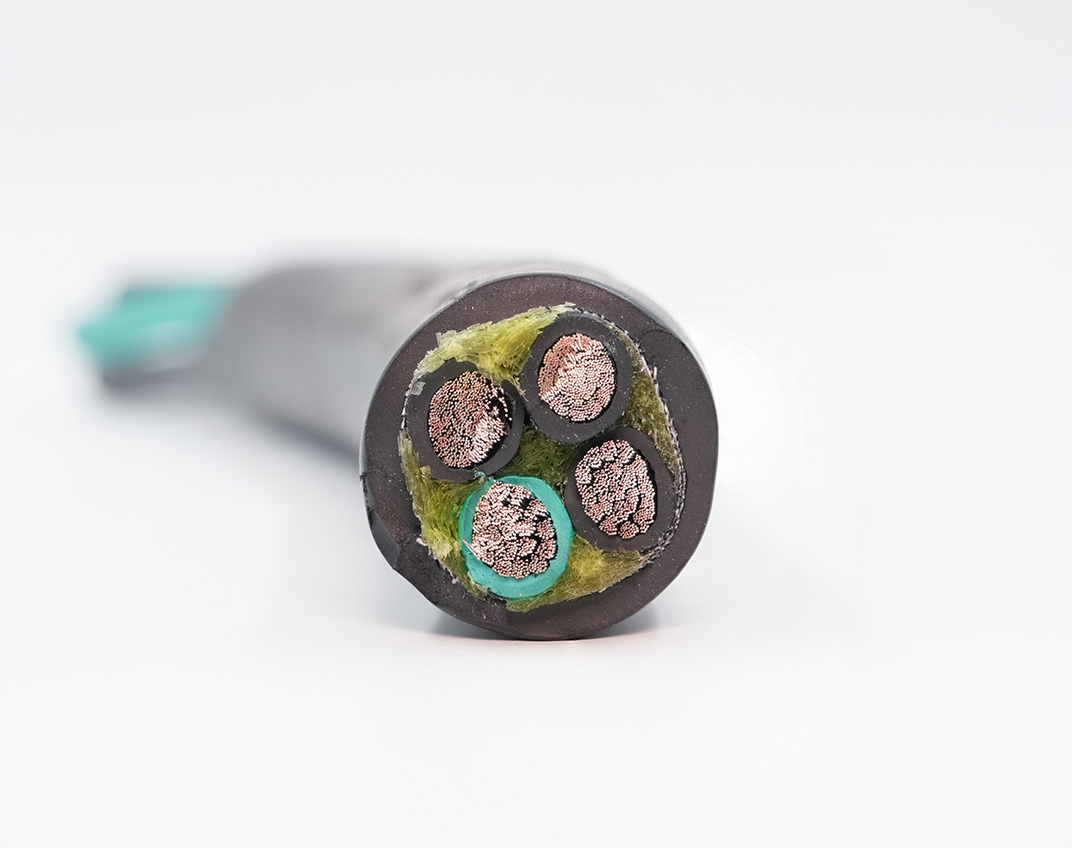

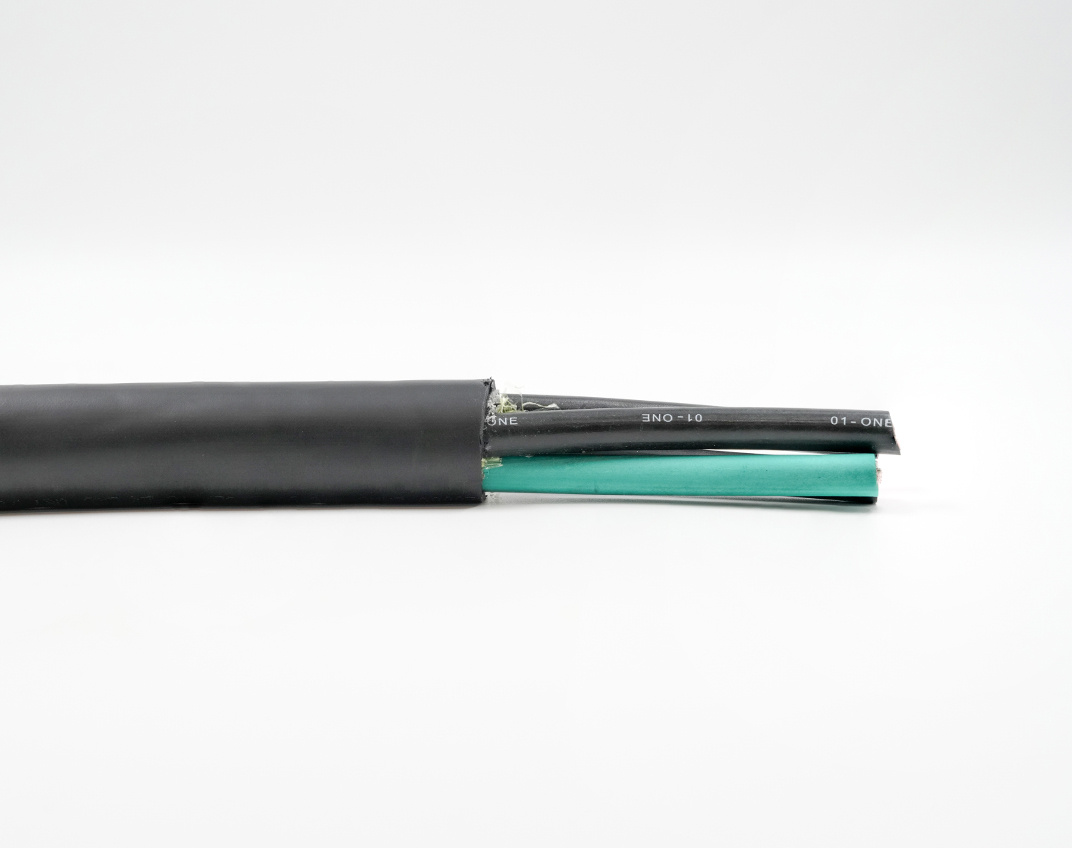

Hy-Trex® 2kV Power Cable

The Hy-Trex® 2kV Power Cable is a highly flexible cable ideal for supplying power to equipment and machines, designed for longevity during continuous flexing, twisting, and torsion.

The jacket provides resistance to abrasion and oils and protection from UV light.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Specially Compounded TSE Insulation

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

Fabric Separator

Allows for easy stripping of the cable jacket.

Specially Compounded Black TSE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Specsheets

Product Overview

Video

Hy-Trex® Wire and Cables

Resource-Color Code

Hy-Trex® Power Cable

Ratings / Characteristics

  • UL Listed

  • cUL Listed

  • 2000V

  • Max Conductor Temperature 90C Dry / 75C Wet

  • Type TC-ER

  • CIC-TC per CSA 22.2 No. 239

  • FT4 Flame Rating

  • Suitable for Class I, II, III, Division 2 ***

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

  • Oil Resistant I

  • Cold Bend: -25°C

  • Cold Impact: -25°C

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

cold-icon

Cold Temperature

impact-icon

Impact

Part Numbers

Part Number Configuration (AWG/Conductor Count) Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
61644 4 AWG/4-cond 95 1.13 1060 55012, 55013
61623 2 AWG/3-cond 130 1.15 1172 55013
61624 2 AWG/4-cond 130 1.275 1486 55013, 55014

Related Products

Grip-Seals® Nylon Cable Glands 3QV_Web

Grip-Seals® Nylon Cable Glands
Kord-Gard® Aluminum Mesh Strain Relief 3QV 2_Web

Kord-Gard® Aluminum Mesh Strain Relief
Trex-Onics® Reduced Diameter Power Cable 3QV_Web

Trex-Onics Reduced Diameter Power Cable
Super-Trex® Ultra-GardTM Portable Cord 3QV_Web

Super-Trex Ultra-Gard Portable Cord

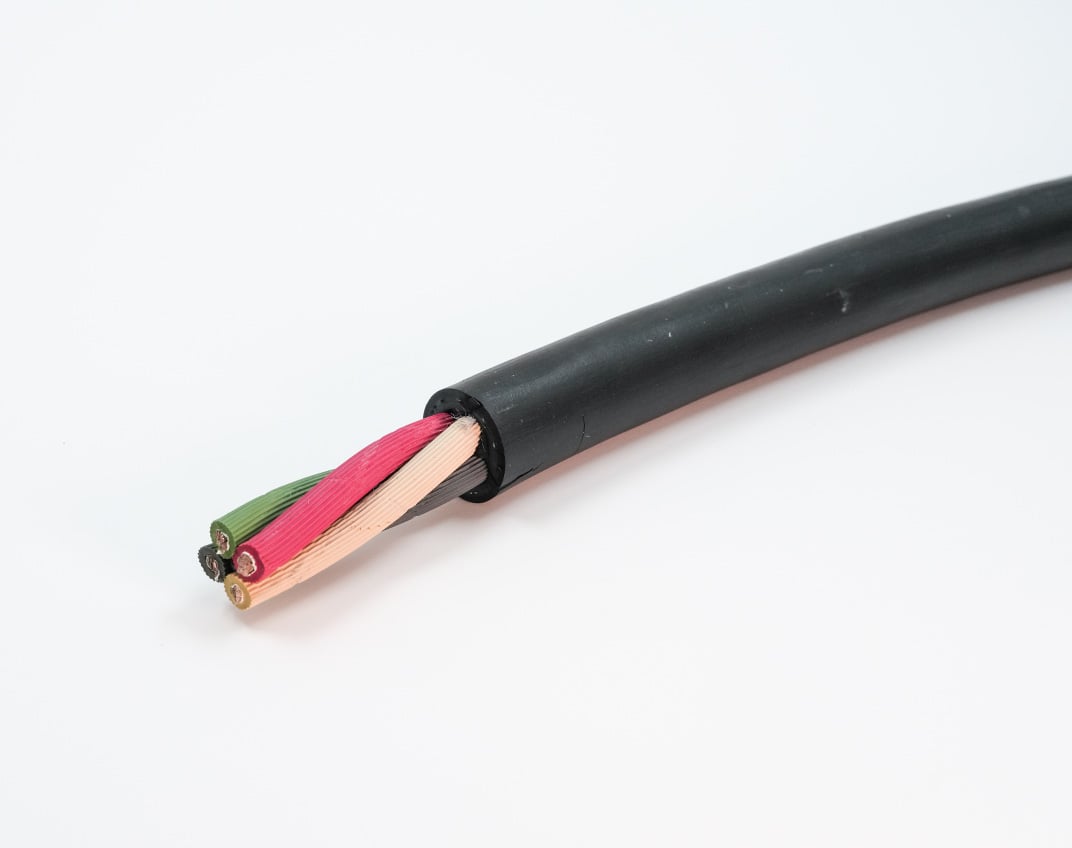

Super-Trex® Type W Black Portable Power and Automation Cable 3QV_Web
