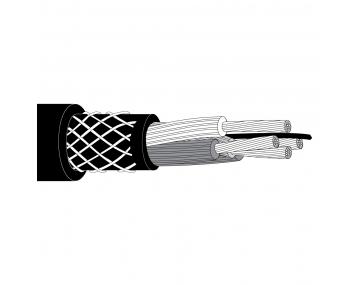

Hy-Trex® MP500 Power Cable

The Hy-Trex® Power Cable is a highly flexible cable ideal for supplying power to OEM equipment and machines, designed for longevity during continuous flexing, twisting, and torsion.

The jacket provides resistance to abrasion and oils and protection from UV light. This flexible power cable is available in both shielded and unshielded configurations and is easy to install.

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Specially Compounded TPE Insulation

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

Fabric Separator

Allows for easy stripping of the cable jacket.

Specially Compounded Black TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

IndustrialAutomation

HY-TREX Catalog

Video

Hy-Trex® Wire and Cables

Resource-Color Code

Hy-Trex® Power Cable

Ratings / Characteristics

  • UL Listed

  • UL Recognized

  • cUL Listed

  • 1000V WTTC

  • Type TC-ER

  • Type WTTC

  • Type MTW

  • AWM Style 20886

  • CIC-TC per CSA 22.2 No. 239

  • FT4 Flame Rating

  • Suitable for Class I, II, III, Division 2***

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

  • Oil Resistant I

  • Cold Bend: -25°C

  • Cold Impact: -25°C

Applications

flexing-icon

Flexing

cold-icon

Cold Temperature

tension-icon

Tension

abrasions-icon

Abrasion

Part Numbers - Shielded

Part No. Conductor Size (AWG) Conductor/Pole Count Cond Size Equiv
(mm2)
Stranding NOM O.D.
(in.)
WEIGHT
(LBS/1000')
BEND RADIUS
(in.)
Gland
P/N
Shielding Type
MP500-018-3C-GY-S 18 AWG 3 0.75 19/30 0.327 91 2.7 55002 Shielded
MP500-018-4C-GY-S 18 AWG 4 0.75 19/30 0.35 106 2.8 55002 Shielded
MP500-018-5C-GY-S 18 AWG 5 0.75 19/30 0.378 121 3.1 55002 Shielded
MP500-016-3C-GY-S 16 AWG 3 1.5 26/30 0.354 107 2.9 55002 Shielded
MP500-016-4C-GY-S 16 AWG 4 1.5 26/30 0.382 126 3.1 55002 Shielded
MP500-016-5C-GY-S 16 AWG 5 1.5 26/30 0.409 145 3.3 55002 Shielded
MP500-014-3C-GY-S 14 AWG 3 2.5 41/30 0.386 135 3.1 55002 Shielded
MP500-014-4C-GY-S 14 AWG 4 2.5 41/30 0.417 159 3.4 55002 Shielded
MP500-014-5C-GY-S 14 AWG 5 2.5 41/30 0.453 185 3.7 55004 Shielded
MP500-012-3C-GY-S 12 AWG 3 4 65/30 0.433 177 3.5 55004 Shielded
MP500-012-4C-GY-S 12 AWG 4 4 65/30 0.472 211 3.8 55004 Shielded
MP500-012-5C-GY-S 12 AWG 5 4 65/30 0.512 247 4.1 55005 Shielded
MP500-010-3C-GY-S 10 AWG 3 6 105/30 0.508 248 4.1 55005 Shielded
MP500-010-4C-GY-S 10 AWG 4 6 105/30 0.583 317 4.7 55005 Shielded
MP500-010-5C-GY-S 10 AWG 5 6 105/30 0.634 375 5.1 55006 Shielded
MP500-008-3C-GY-S 8 AWG 3 10 168/30 0.72 440 5.8 55008 Shielded
MP500-008-4C-GY-S 8 AWG 4 10 168/30 0.787 536 6.3 55008 Shielded
MP500-008-5C-GY-S 8 AWG 5 10 168/30 0.898 669 7.2 55009 Shielded
MP500-006-3C-GY-S 6 AWG 3 16 266/30 0.791 572 6.4 55008 Shielded
MP500-006-4C-GY-S 6 AWG 4 16 266/30 0.906 741 7.3 55009 Shielded
MP500-006-5C-GY-S 6 AWG 5 16 266/30 0.988 879 8 55010 Shielded
MP500-004-3C-GY-S 4 AWG 3 25 420/30 1 882 8 55010 Shielded
MP500-004-4C-GY-S 4 AWG 4 25 420/30 1.094 1089 8.8 55010/55011 Shielded
MP500-004-5C-GY-S 4 AWG 5 25 420/30 1.201 1300 9.7 55010/55011 Shielded
MP500-002-3C-GY-S 2 AWG 3 35 665/30 1.165 1247 9.4 55010/55011 Shielded
MP500-002-4C-GY-S 2 AWG 4 35 665/30 1.28 1554 10.3 55012/55014 Shielded
MP500-002-5C-GY-S 2 AWG 5 35 665/30 1.406 1867 11.3 55014 Shielded
MP500-001-3C-GY-S 1 AWG 3 50 798/30 1.299 1507 10.4 55013/55014 Shielded
MP500-001-4C-GY-S 1 AWG 4 50 798/30 1.429 1881 11.5 55014 Shielded
MP500-001-5C-GY-S 1 AWG 5 50 798/30 1.571 2263 12.6 55014/55015 Shielded
MP500-1OT-3C-GY-S 1/0 AWG 3 55 1045/30 1.339 1791 10.8 55013/55014 Shielded
MP500-1OT-4C-GY-S 1/0 AWG 4 55 1045/30 1.476 2244 11.9 55014/55015 Shielded
MP500-1OT-5C-GY-S 1/0 AWG 5 55 1045/30 1.622 2705 13 55014/55015 Shielded
MP500-2OT-3C-GY-S 2/0 AWG 3 70 1330/30 1.508 2246 12.1 55014/55015 Shielded
MP500-2OT-4C-GY-S 2/0 AWG 4 70 1330/30 1.724 2928 13.8 55015/55016 Shielded
MP500-2OT-5C-GY-S 2/0 AWG 5 70 1330/30 1.894 3525 15.2 55015/55016 Shielded
MP500-3OT-3C-GY-S 3/0 AWG 3 95 1691/30 1.559 2602 12.5 55014/55015 Shielded
MP500-3OT-4C-GY-S 3/0 AWG 4 95 1691/30 1.783 3398 14.3 55015/55016 Shielded
MP500-3OT-5C-GY-S 3/0 AWG 5 95 1691/30 1.957 4106 15.7 55015/55016/55017 Shielded
MP500-4OT-3C-GY-S 4/0 AWG 3 120 2160/30 1.843 3426 14.8 55015/55016 Shielded
MP500-4OT-4C-GY-S 4/0 AWG 4 120 2160/30 2.031 4323 16.3 55016/55017 Shielded
MP500-4OT-5C-GY-S 4/0 AWG 5 120 2160/30 2.236 5233 17.9 55015/55016/55017 Shielded

Part Numbers - Unshielded

Part No. Legacy Part No. Conductor Size (AWG) Conductor/Pole Count Cond size equiv (mm2) Stranding NOM O.D.
(in.)
WEIGHT
(LBS/1000')
BEND RADIUS
(in.)
Gland
P/N
Shielding Type
MP500-018-3C-GY-U 18 AWG 3 0.75 19/30 0.311 57 2.5 55001 Unshielded
MP500-018-4C-GY-U 18 AWG 4 0.75 19/30 0.331 68 2.7 55002 Unshielded
MP500-018-5C-GY-U 18 AWG 5 0.75 19/30 0.358 85 2.9 55002 Unshielded
MP500-016-3C-GY-U 76193 16 AWG 3 1.5 26/30 0.339 69 2.8 55002 Unshielded
MP500-016-4C-GY-U 76198 16 AWG 4 1.5 26/30 0.365 85 3 55002 Unshielded
MP500-016-5C-GY-U 76202 16 AWG 5 1.5 26/30 0.386 102 3.1 55002 Unshielded
MP500-014-3C-GY-U 14 AWG 3 2.5 41/30 0.384 88 3.1 55002 Unshielded
MP500-014-4C-GY-U 76199 14 AWG 4 2.5 41/30 0.394 109 3.2 55002 Unshielded
MP500-014-5C-GY-U 76195 14 AWG 5 2.5 41/30 0.43 132 3.5 55004 Unshielded
MP500-012-3C-GY-U 76303 12 AWG 3 4 65/30 0.411 118 3.3 55004 Unshielded
MP500-012-4C-GY-U 76200 12 AWG 4 4 65/30 0.452 149 3.7 55004 Unshielded
MP500-012-5C-GY-U 77205 12 AWG 5 4 65/30 0.5 182 4 55005 Unshielded
MP500-010-3C-GY-U 76203 10 AWG 3 6 105/30 0.492 175 4.5 55005 Unshielded
MP500-010-4C-GY-U 76201 10 AWG 4 6 105/30 0.576 243 4.7 55005 Unshielded
MP500-010-5C-GY-U 76205 10 AWG 5 6 105/30 0.619 304 5 55005 Unshielded
MP500-008-3C-GY-U 8 AWG 3 10 168/30 0.686 340 5.5 55007 Unshielded
MP500-008-4C-GY-U 61804 8 AWG 4 10 168/30 0.756 433 6.1 55007 Unshielded
MP500-008-5C-GY-U 61805 8 AWG 5 10 168/30 0.824 530 6.6 55008 Unshielded
MP500-006-3C-GY-U 6 AWG 3 16 266/30 0.78 460 6.3 55008 Unshielded
MP500-006-4C-GY-U 61806 6 AWG 4 16 266/30 0.9 618 7.2 55009 Unshielded
MP500-006-5C-GY-U 6 AWG 5 16 266/30 0.961 753 7.7 55009 Unshielded
MP500-004-3C-GY-U 61807 4 AWG 3 25 420/30 1 743 8 55010 Unshielded
MP500-004-4C-GY-U 61808 4 AWG 4 25 420/30 1.06 935 8.5 55010 Unshielded
MP500-004-5C-GY-U 61809 4 AWG 5 25 420/30 1.18 1149 9.5 55011 Unshielded
MP500-002-3C-GY-U 61803 2 AWG 3 35 665/30 1.14 1040 9.2 55011 Unshielded
MP500-002-4C-GY-U 61810 2 AWG 4 35 665/30 1.25 1366 10 55011 Unshielded
MP500-002-5C-GY-U 2 AWG 5 35 665/30 1.39 1706 11.2 55014 Unshielded
MP500-001-3C-GY-U 1 AWG 3 50 798/30 1.272 1317 10.2 55013/55014 Unshielded
MP500-001-4C-GY-U 1 AWG 4 50 798/30 1.406 1645 11.3 55014 Unshielded
MP500-001-5C-GY-U 1 AWG 5 50 798/30 1.555 2087 12.5 55014 Unshielded
MP500-1OT-3C-GY-U 1/0 3 55 1045/30 1.307 1546 10.5 55014 Unshielded
MP500-1OT-4C-GY-U 1/0 4 55 1045/30 1.449 2021 11.6 55014 Unshielded
MP500-1OT-5C-GY-U 1/0 5 55 1045/30 1.598 2465 12.8 55015 Unshielded
MP500-2OT-3C-GY-U 2/0 3 70 1330/30 1.48 2003 11.9 55014 Unshielded
MP500-2OT-4C-GY-U 2/0 4 70 1330/30 1.638 2546 13.2 55015 Unshielded
MP500-2OT-5C-GY-U 2/0 5 70 1330/30 1.87 3250 15 55016 Unshielded
MP500-3OT-3C-GY-U 3/0 3 95 1691/30 1.535 2329 12.3 55014 Unshielded
MP500-3OT-4C-GY-U 3/0 4 95 1691/30 1.748 3091 14 55015 Unshielded
MP500-3OT-5C-GY-U 3/0 5 95 1691/30 1.933 3824 15.5 55016 Unshielded
MP500-4OT-3C-GY-U 4/0 3 120 2160/30 1.815 3100 14.6 55015/55016 Unshielded
MP500-4OT-4C-GY-U 4/0 4 120 2160/30 1.992 3960 16 55016 Unshielded
MP500-4OT-5C-GY-U 4/0 5 120 2160/30 2.209 4922 17.7 55017 Unshielded
61373-2 - 373 kcmil/3 + 2 AWG 4885 Unshielded
