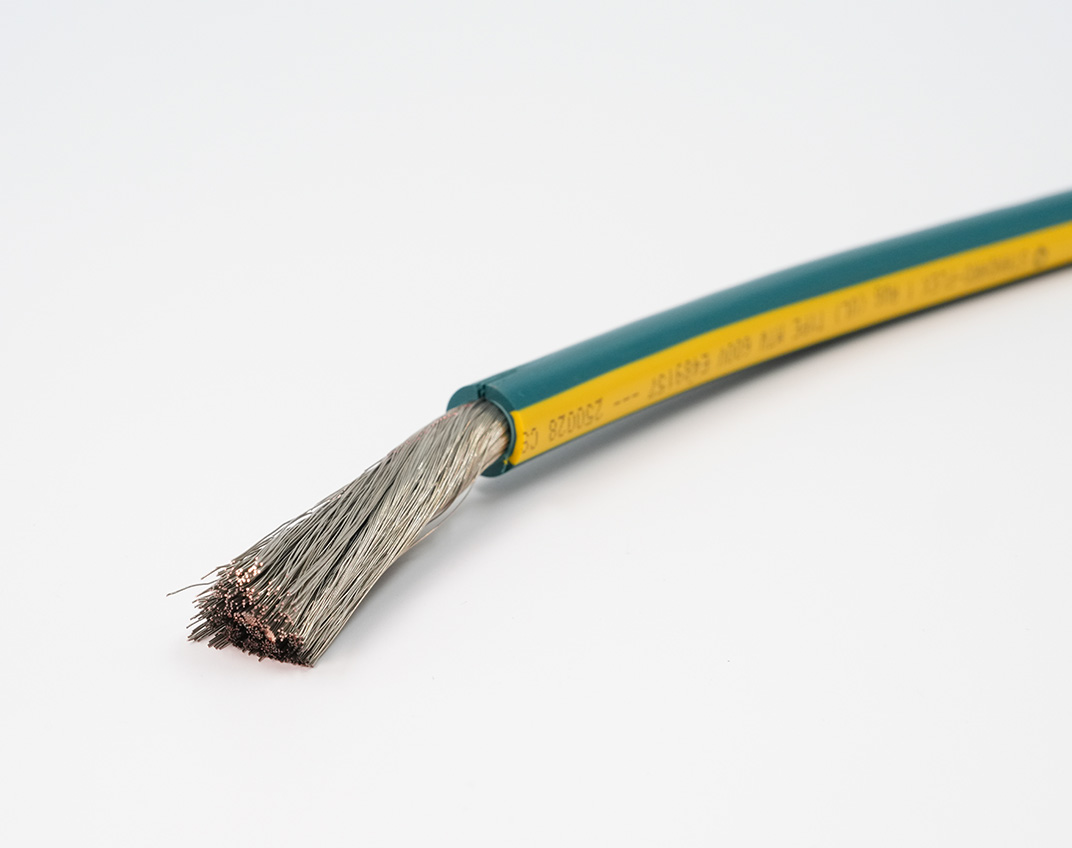

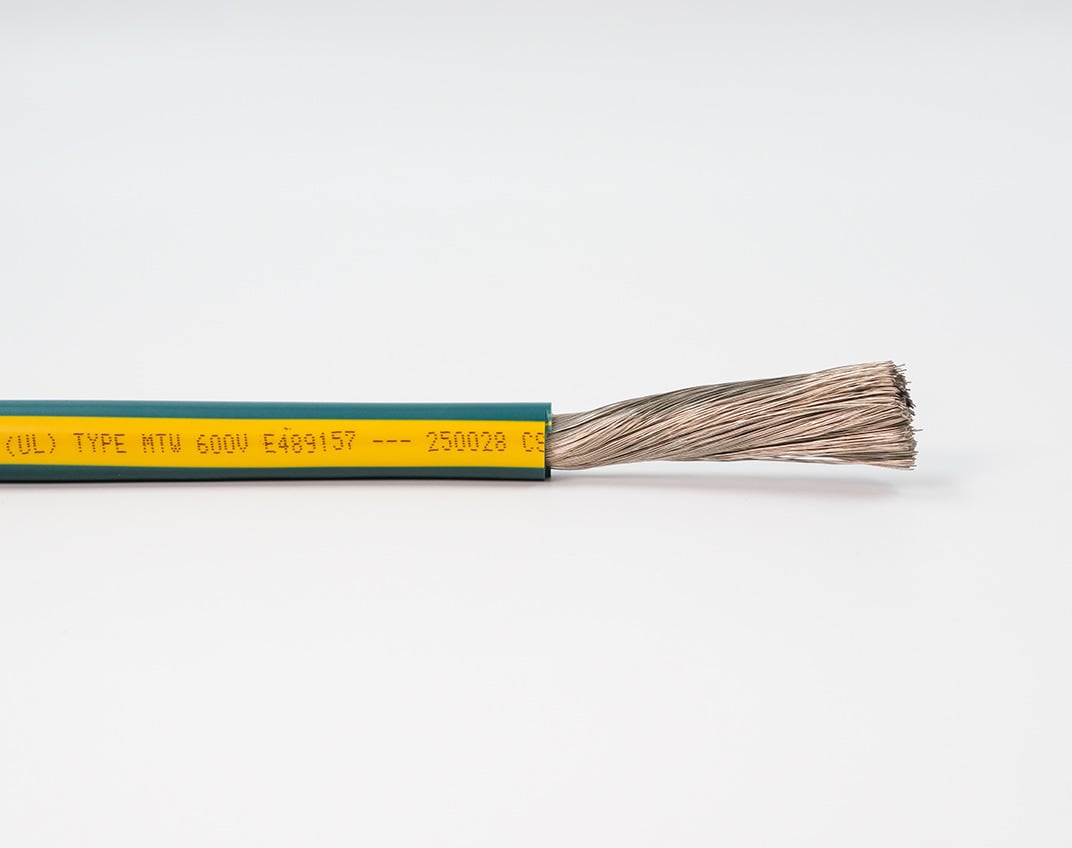

Hy-Trex® MTW/TEW Ground Wire

Hy-Trex® MTW/TEW Ground Wire is the ideal solution for machine and equipment grounding, protecting against moisture, oils, and contaminants to provide a safe conducting path to ground electrical currents in cases of electrical short circuits or other hazardous conditions. Tinned copper conductors with high strand counts allow this flexible ground wire to be easily installed wherever needed.

Features

Class K, 30 AWG Tinned Copper Stranding

Improved flexibility.

Durable PVC JacketProvides protection against abrasion, impact and fluids.

Provides protection against abrasion, impact and fluids.

Resources

Specsheets

Product Overview

IndustrialAutomation

HY-TREX Catalog

Ratings / Characteristics

  • 600 Volts

  • FT1 Flame

  • 105°C Max Conductor Temp

  • Type MTW per UL 1015

  • Type TEW per CSA C22.2 No. 127-18

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Cond Size Equiv
(MM2)
Stranding NOM O.D.
(in.)
WEIGHT
(LBS/1000')
BEND RADIUS
(in.)
Shielding Type
37310 10 AWG 1 6 105/30 0.189 42 1.6 No Shielding
37318 8 AWG 1 10 168/30 0.259 71 2.1 No Shielding
37316 6 AWG 1 16 266/30 0.314 113 2.6 No Shielding
37314 4 AWG 1 25 413/30 0.366 167 3 No Shielding
37312 2 AWG 1 35 665/30 0.429 252 3.5 No Shielding
37311 1 AWG 1 50 836/30 0.516 330 4.2 No Shielding
37301 1/0 AWG 1 55 1045/30 0.56 403 4.5 No Shielding
37302 2/0 AWG 1 70 1330/30 0.605 500 4.9 No Shielding
37303 3/0 AWG 1 95 1672/30 0.65 610 5.2 No Shielding
37304 4/0 AWG 1 120 2109/30 0.715 753 5.8 No Shielding
