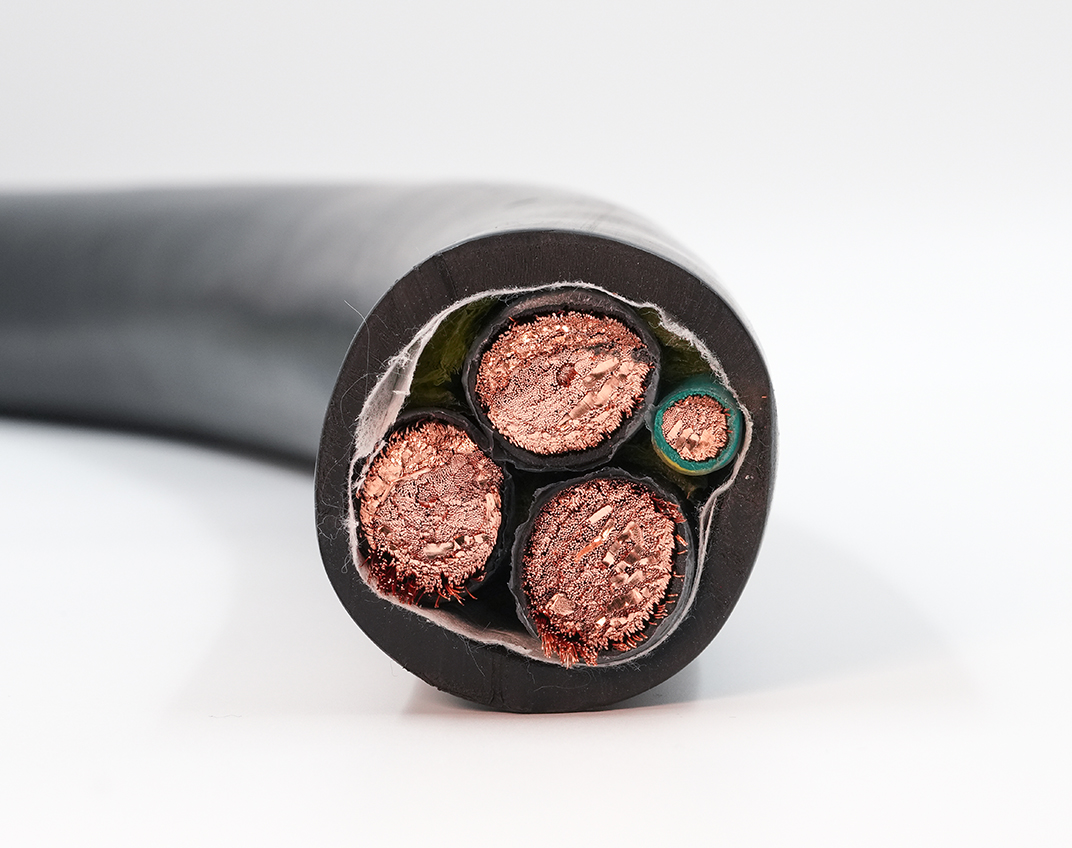

    Hy-Trex® Power Cable Macro_Web-1

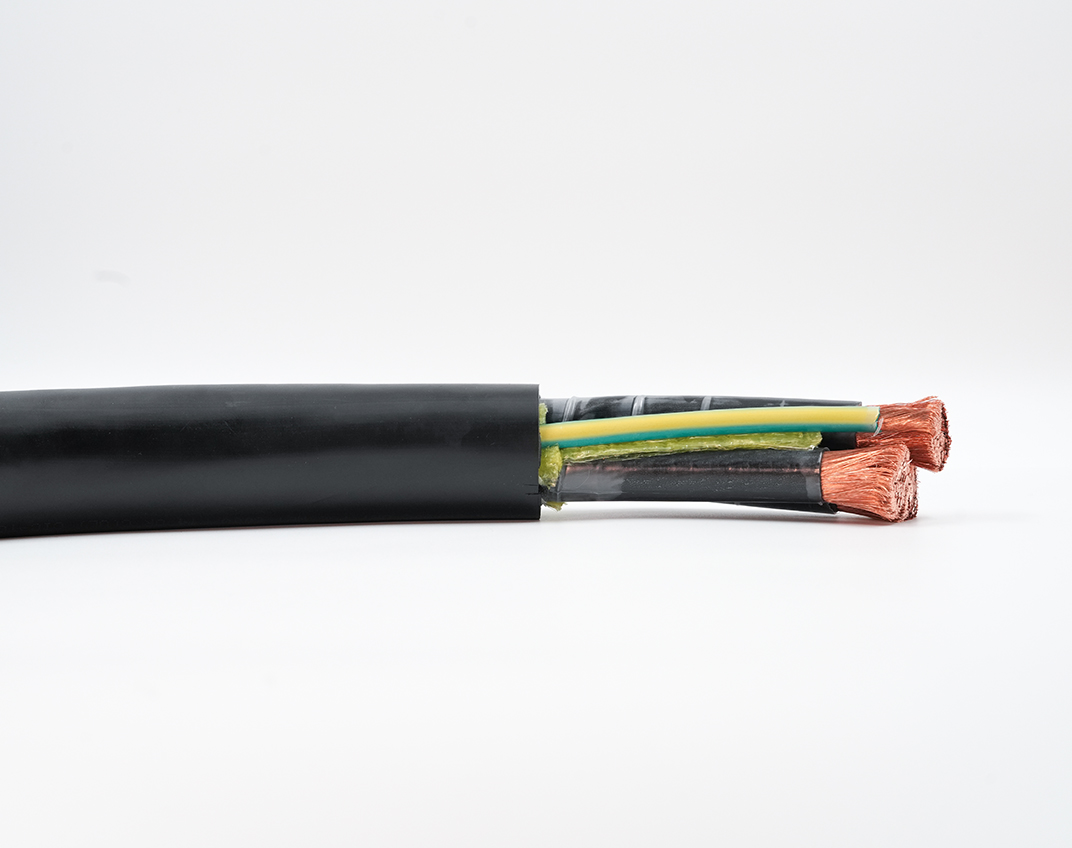

    Hy-Trex® Power Cable Side_Web-1

    Hy-Trex® Power Cable

    The Hy-Trex® Power Cable is a highly flexible cable ideal for supplying power to OEM equipment and machines, designed for longevity during continuous flexing, twisting, and torsion. The jacket provides resistance to abrasion and oils and protection from UV light. This flexible power cable is available in both shielded and unshielded configurations and is easy to install.

    Request a Quote Download Spec Sheet
    Features
    Resources
    Ratings
    Applications
    Part Numbers
    Related Products

    Features

    Finely Stranded Copper Conductors

    Fine stranding improves flex-life and reduces conductor fatigue and breakage.

    Specially Compounded TPE Insulation

    Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

    Fabric Separator

    Allows for easy stripping of the cable jacket.

    Specially Compounded Black TPE Jacket

    Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

    Resources

    Specsheets

    Product Overview

    Video

    Hy-Trex® Wire and Cables

    Resource-Color Code

    Hy-Trex® Power Cable

    Ratings / Characteristics

    • UL Listed

    • UL Recognized

    • cUL Listed

    • 600V

    • 1000V WTTC

    • Max Conductor Temperature 90°C Dry/75°C Wet

    • Type TC-ER

    • Type WTTC

    • Type MTW

    • AWM Style 20886

    • CIC-TC per CSA 22.2 No. 239

    • FT4 Flame Rating

    • Suitable for Class I, II, III, Division 2***

    • Bend Radius (Static): 6x Cable O.D.

    • Bend Radius (Dynamic): 8x Cable O.D.

    • Oil Resistant I

    • Cold Bend: -25°C

    • Cold Impact: -25°C

    Applications

    flexing-icon

    Flexing

    abrasions-icon

    Abrasion

    cold-icon

    Cold Temperature

    impact-icon

    Impact

    Part Numbers - Shielded

    Part Number Configuration (AWG/Conductor Count) Ampacity Nominal O.D. (in.) Weight per 1,000 ft. (lbs.) Standard Cable Gland
    61373-2 373 kcmil/3 + 2 AWG/1 363 2.26 5206 55474/55437
