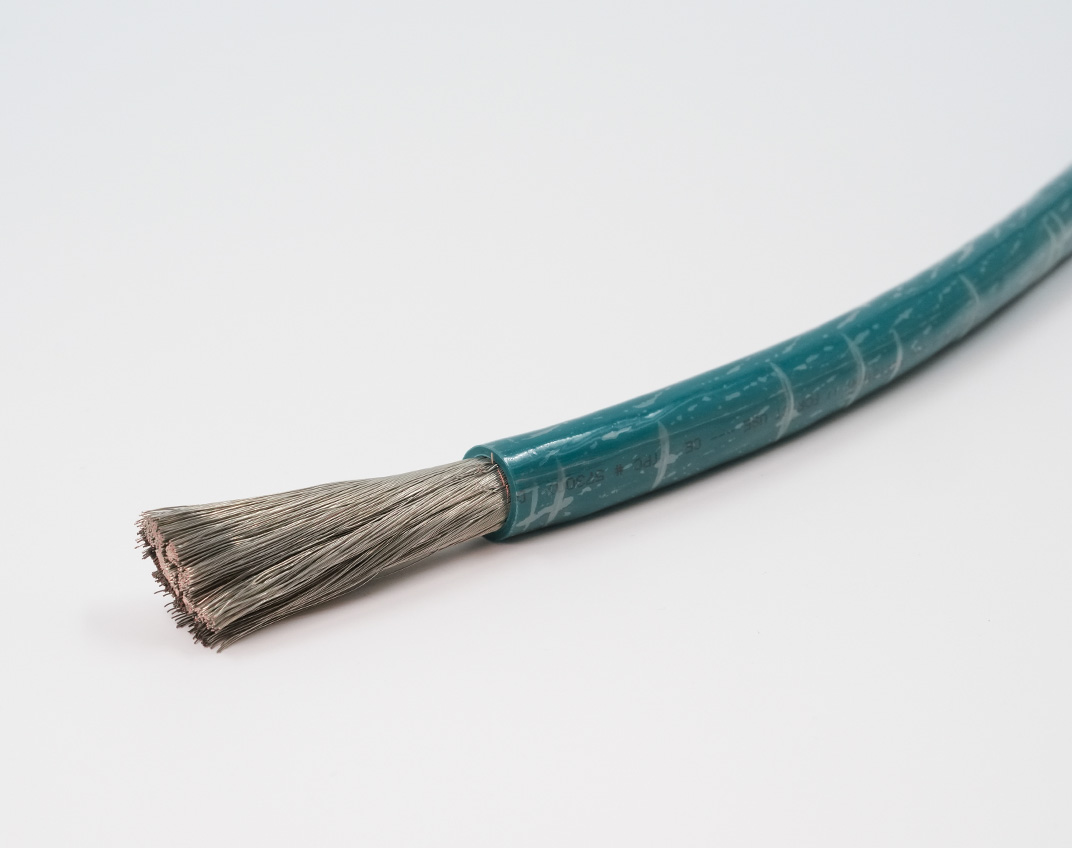

Hy-Trex® THHN_THWN Ground Wire 3QV_Web

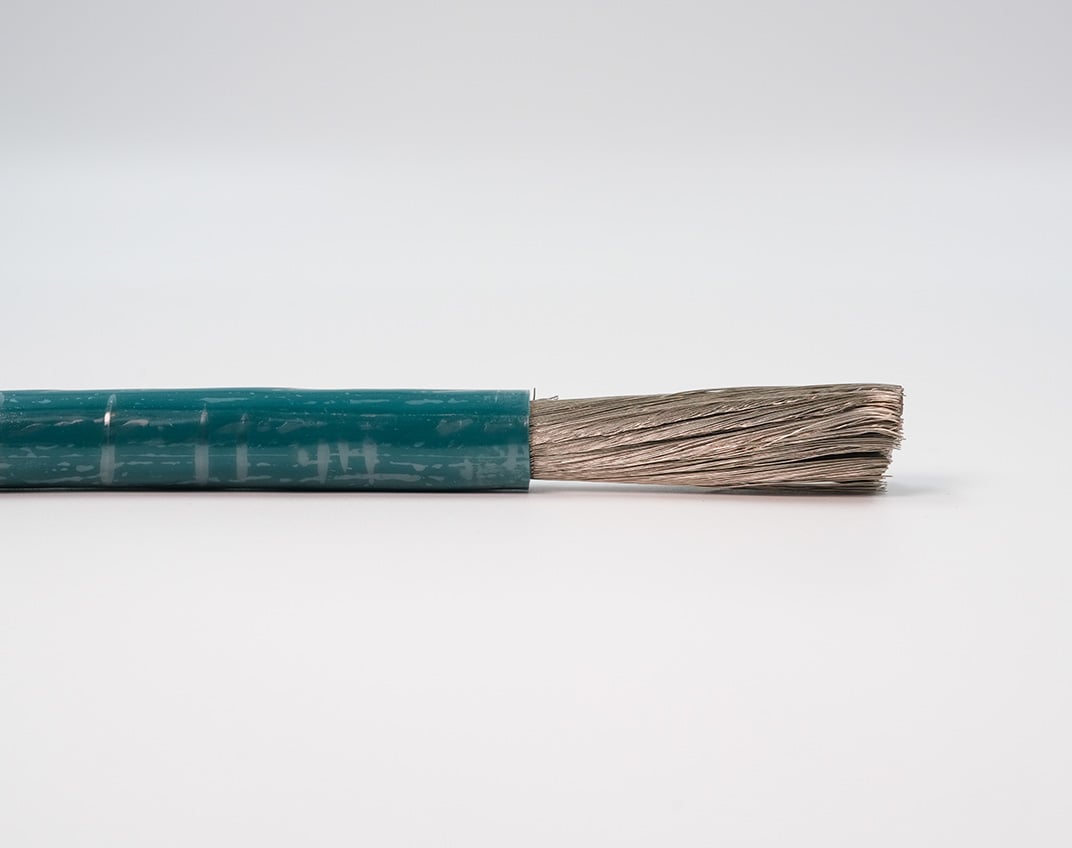

Hy-Trex® THHN_THWN Ground Wire Side_Web

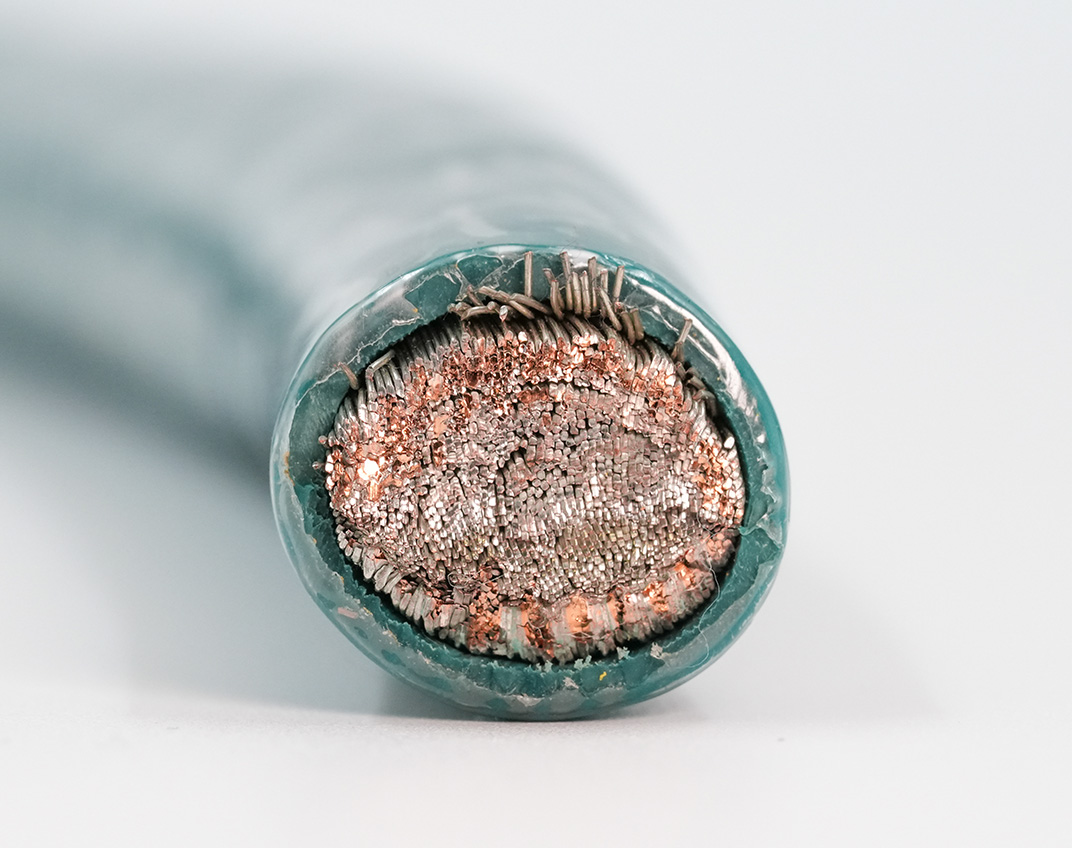

Hy-Trex® THHN_THWN Ground Wire Macro_Web

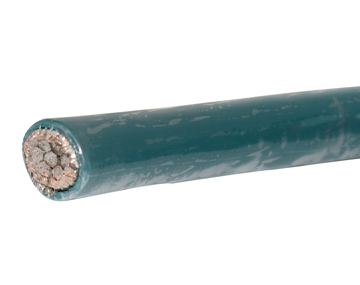

Hy-Trex® THHN/THWN Ground Wire

Hy-Trex® THHN/THWN Ground Wire is the ideal solution for machine and equipment grounding. This flexible THHN/THWN wire protects against moisture, oils and contaminants, providing a safe conducting path to ground electrical currents in cases of electrical short circuits or other hazardous conditions. Conductor sizes 4 AWG and larger are acceptable for use in cable trays.

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Durable PVC Jacket with Nylon Overcoat

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

IndustrialAutomation

HY-TREX Catalog

Video

Hy-Trex® Wire and Cables

Resource-Color Code

Hy-Trex® THHN/THWN Ground Wire

Ratings / Characteristics

  • UL Listed

  • 600V

  • Max Conductor Temperature 90°C

  • Type THHN/THWN

  • For CT Use, 4 AWG and Larger

  • VW-1 Flame Rating per UL 758

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Cond Size Equiv
(MM2)
Stranding NOM O.D.
(in.)
WEIGHT
(LBS/1000')
BEND RADIUS
(in.)
Shielding Type

57310

10 AWG 1 6 105/30 0.179 42 1.5 No Shielding
57318 8 AWG 1 10 168/30 0.241 67 2 No Shielding
57316 6 AWG 1 16 266/30 0.266 98 2.2 No Shielding
57314 4 AWG 1 25 413/30 0.338 158 2.8 No Shielding
57312 2 AWG 1 35 665/30 0.403 241 3.3 No Shielding
57311 1 AWG 1 50 836/30 0.465 312 3.8 No Shielding
57301 1/0 AWG 1 55 1045/30 0.51 384 4.1 No Shielding
57302 2/0 AWG 1 70 1330/30 0.555 482 4.5 No Shielding
57300 3/0 AWG 1 95 1672/30 0.6 581 4.8 No Shielding
57304 4/0 AWG 1 120 2109/30 0.665 739 5.4 No Shielding
