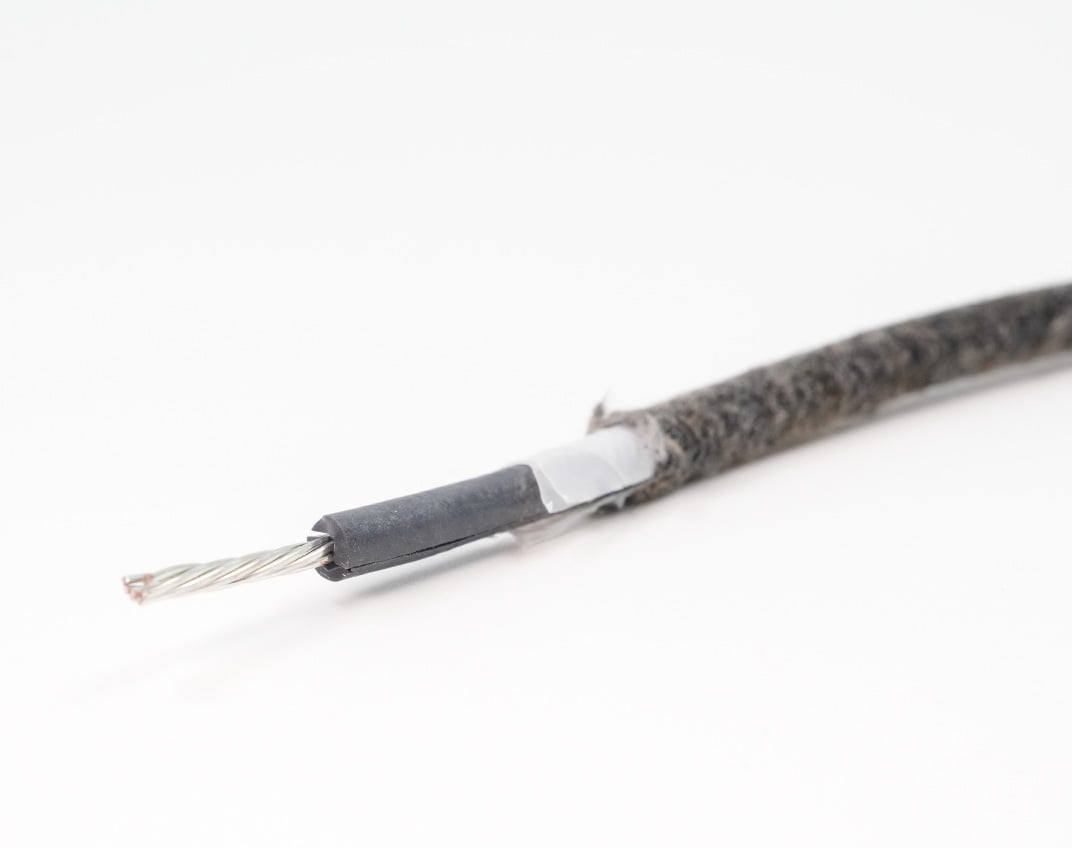

Thermo-Trex® 500-K Single-Conductor Cable 3QV_Web
Thermo-Trex® 500-K Single-Conductor Cable Side_Web

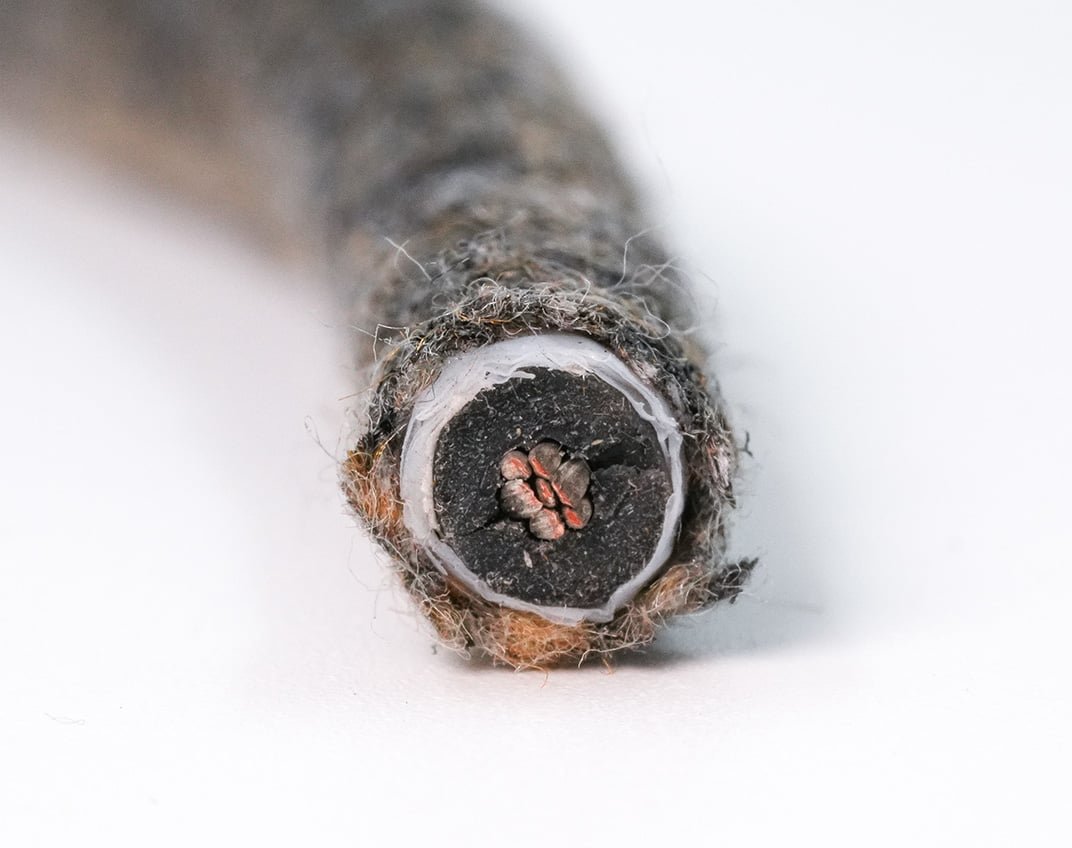

Thermo-Trex® 500-K Single-Conductor Cable Macro_Web

Thermo-Trex® 500-K Single-Conductor Cable

Thermo-Trex® 500-K Single Conductor is a high-temperature resistant cable for power and control applications that can withstand a maximum conductor temperature of 200°C / 392°F.

This single conductor power, control, and instrumentation cable features stranded, tinned copper conductors and a specially woven aramid fiber braid jacket impregnated with heat and moisture-resistant finishing compounds, providing tensile strength and added protection against abrasion.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Tinned Copper Conductors

Tinned conductors resist corrosion and are easier to solder.

Silicone Rubber Insulation

Provides resistance to heat, moisture, and chemicals.

TFE Wrap

Improves performance in flexing applications and provides an additional thermal barrier to extend product life in extreme temperature environments.

Aramid Fiber Braid Jacket

Heat and moisture resistant Aramid fiber braid jacket provides added protection against abrasion.

Optional Stainless Steel Overbraid

Provides enhanced protection against abrasion and other environmental abuses.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Recognized

  • RoHS Compliant

  • 600 V

  • Max Conductor Temperature 200°C

Applications

abrasions-icon

Abrasion

heat-icon

Extreme Temperature

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Cond. Stranding SILICONE THICKNESS
inches		 AMPACITY ARAMID BRAID THICKNESS
inches		 NOMINAL O.D.
inches		 WT. Per 1000’ Ft.
lbs		 Shielding Type
44002 16 AWG 1 7/24 0.045 37 0.025 0.2 24 No Shielding
44003 14 AWG 1 7/22 0.045 51 0.025 0.22 30 No Shielding
44004 12 AWG 1 19/25 0.045 66 0.025 0.24 40 No Shielding
44005 10 AWG 1 19/23 0.045 90 0.025 0.27 50 No Shielding
44006 8 AWG 1 54/25 0.06 125 0.04 0.375 90 No Shielding
44007 6 AWG 1 84/25 0.06 167 0.04 0.415 125 No Shielding
44008 4 AWG 1 133/25 0.06 226 0.04 0.475 185 No Shielding
44009 2 AWG 1 133/23 0.06 305 0.04 0.54 270 No Shielding
44010 1 AWG 1 259/25 0.08 362 0.04 0.625 360 No Shielding
44011 1/0 AWG 1 259/24 0.08 422 0.04 0.67 435 No Shielding
44012 2/0 AWG 1 259/23 0.08 492 0.04 0.725 530 No Shielding
44013 3/0 AWG 1 259/22 0.08 574 0.04 0.785 650 No Shielding
44014 4/0 AWG 1 259/21 0.08 671 0.04 0.85 810 No Shielding
44015 250 kcmil 1 427/22 0.1 756 0.04 0.945 960 No Shielding
44016 350 kcmil 1 427/21 0.1 947 0.04 1.06 1310 No Shielding
44017 500 kcmil 1 427/19 0.1 1202 0.04 1.215 1830 No Shielding
