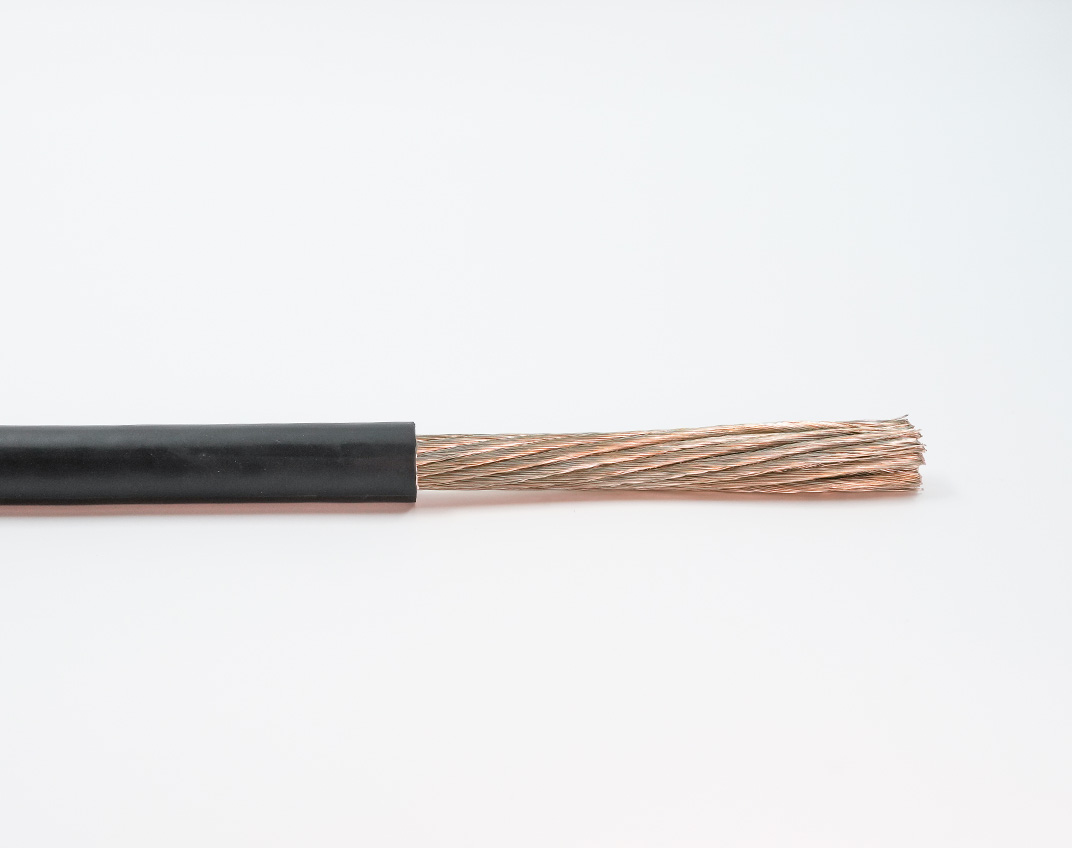

Super-Trex® Single Conductor Power Cable Side_Web

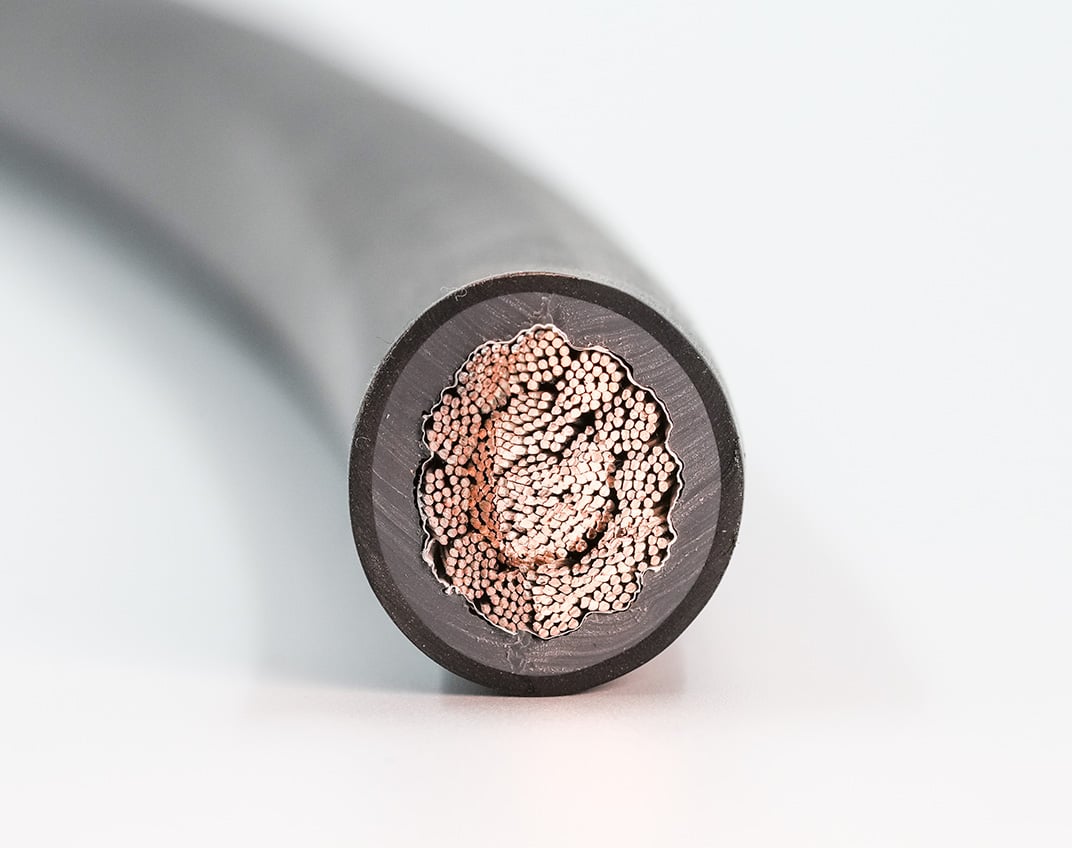

Super-Trex® Single Conductor Power Cable Macro_Web

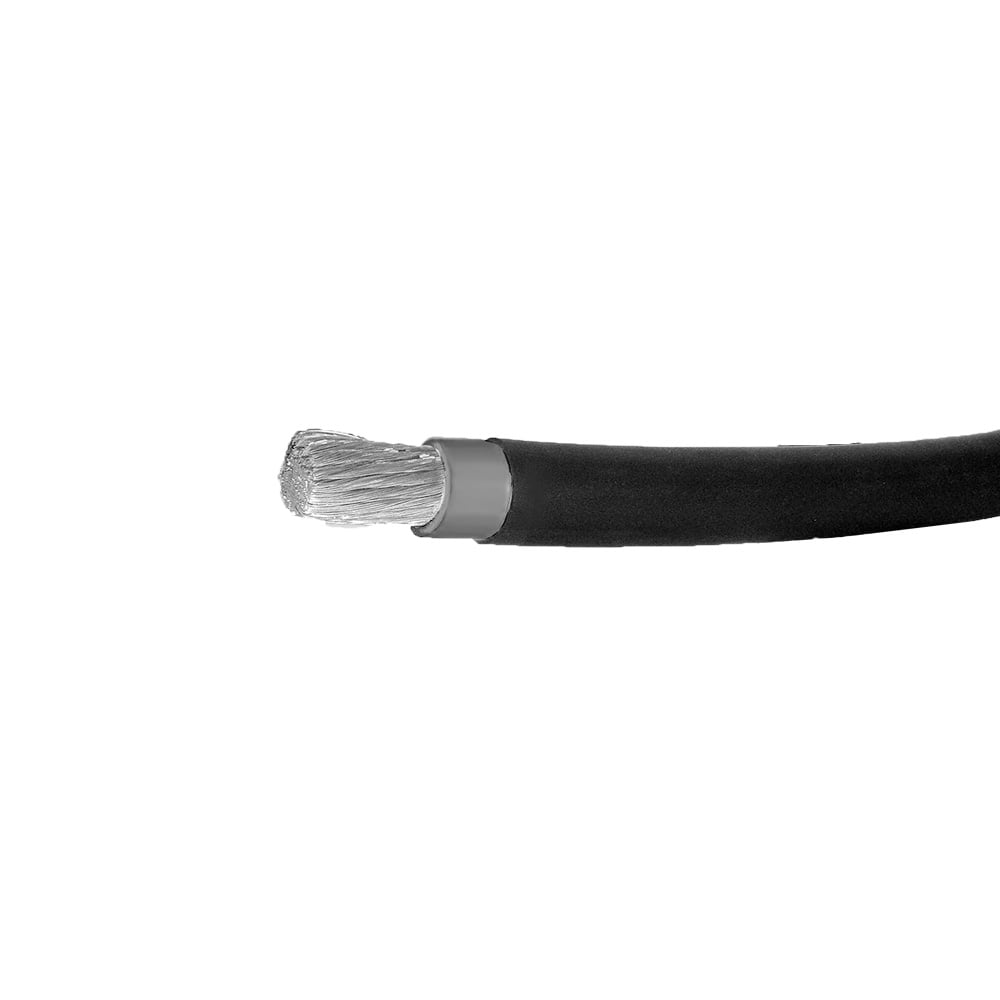

Super-Trex® Single Conductor Power Cable

Super-Trex® Single Conductor Power Cable is a flexible, easy-to-install single conductor cable of Type RHH/RHW-2 and Type CT ideal for tray cable use.

This single conductor cable features a two-layer design of insulation and jacket, providing excellent protection against abrasion, impact, oils and most industrial chemicals. Cable design meets low smoke requirements of UL1685.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Mylar Separator

Allows for easy stripping of the cable jacket.

EPR Moisture and Heat Resistant Thermoset Insulation

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Provides protection from moisture and heat.

Specially Compounded Black TSE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Listed

  • Meets Smoke Release Test – UL 1685

  • For CT Use

  • Type RHH/RHW-2

  • FT-4 Flame Rating

  • IEEE 1202 Flame Rating

  • VW-1 Flame Rating

  • Sunlight Resistant

  • RoHS Compliant

  • 2,000 V

  • Max Conductor Temperature 90°C

  • -40°C Cold Bend Test

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count MIN. WIRES PER COND AMPACITY (90°C) INSULATION THICKNESS
inches		 JACKET THICKNESS
inches		 NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 MIN. BEND RADIUS
inches		 Shielding Type
76014 14 AWG 1 19 35 0.045 0.015 0.214 31 1.8 No Shielding
76012 12 AWG 1 19 40 0.045 0.015 0.233 41 1.9 No Shielding
76001 10 AWG 1 37 55 0.045 0.015 0.257 58 2.1 No Shielding
76008 8 AWG 1 37 80 0.055 0.03 0.337 95 2.7 No Shielding
76006 6 AWG 1 61 105 0.055 0.03 0.365 124 3 No Shielding
76004 4 AWG 1 133 140 0.055 0.03 0.46 203 3.7 No Shielding
76002 2 AWG 1 259 190 0.055 0.03 0.534 284 4.3 No Shielding
76010 1/0 AWG 1 266 260 0.065 0.045 0.668 489 5.4 No Shielding
76020 2/0 AWG 1 323 300 0.065 0.045 0.69 562 5.6 No Shielding
76030 3/0 AWG 1 418 350 0.065 0.045 0.77 757 6.2 No Shielding
76040 4/0 AWG 1 532 405 0.065 0.052 0.82 894 6.6 No Shielding
76262 262 kcmil 1 646 467 0.075 0.052 0.96 1091 7.7 No Shielding
76313 313 kcmil 1 777 522 0.075 0.052 1.01 1245 8.1 No Shielding
76373 373 kcmil 1 925 591 0.075 0.052 1.07 1486 8.6 No Shielding
76444 444 kcmil 1 1110 652 0.075 0.052 1.14 1749 9.2 No Shielding
76323 535 kcmil 1 1332 728 0.09 0.052 1.28 2099 10.1 No Shielding
76646 646 kcmil 1 1591 815 0.09 0.052 1.36 2464 10.9 No Shielding
76777 777 kcmil 1 1924 904 0.09 0.052 1.44 2899 11.6 No Shielding
