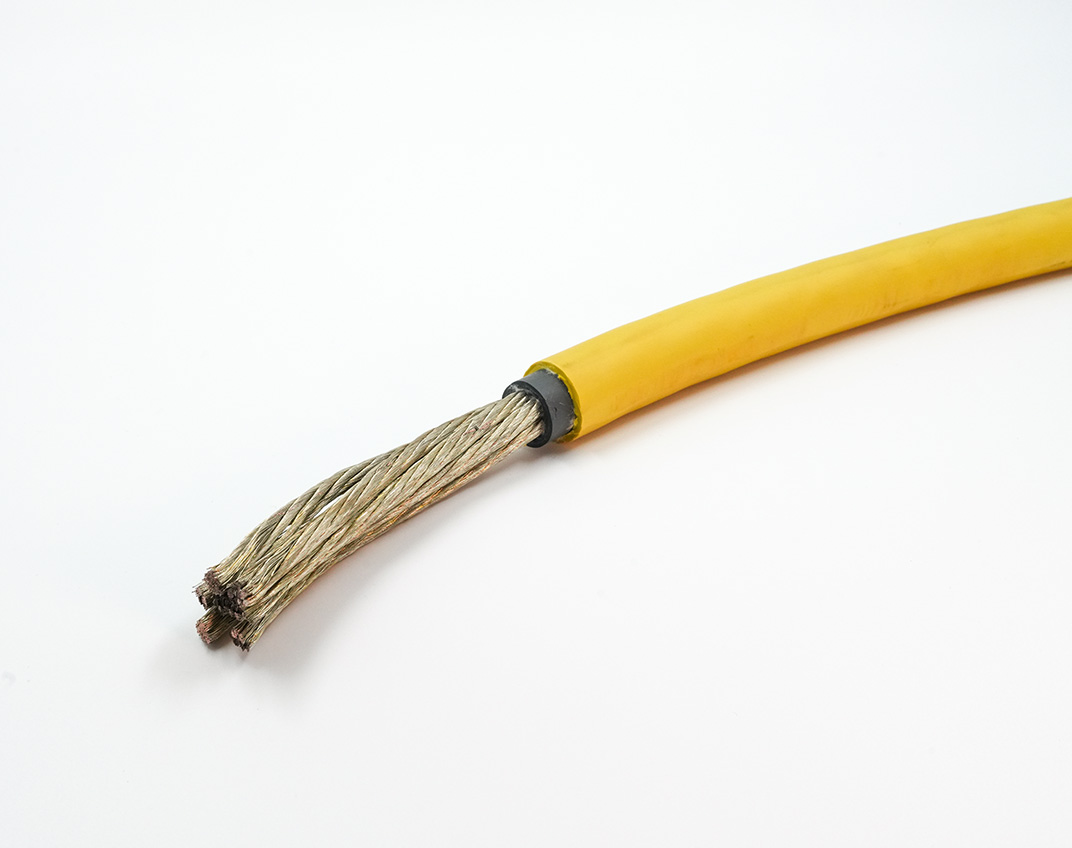

Super-Trex® Type W - RHH_RHW-2 Single Conductor Power Cable 3QVV_Web

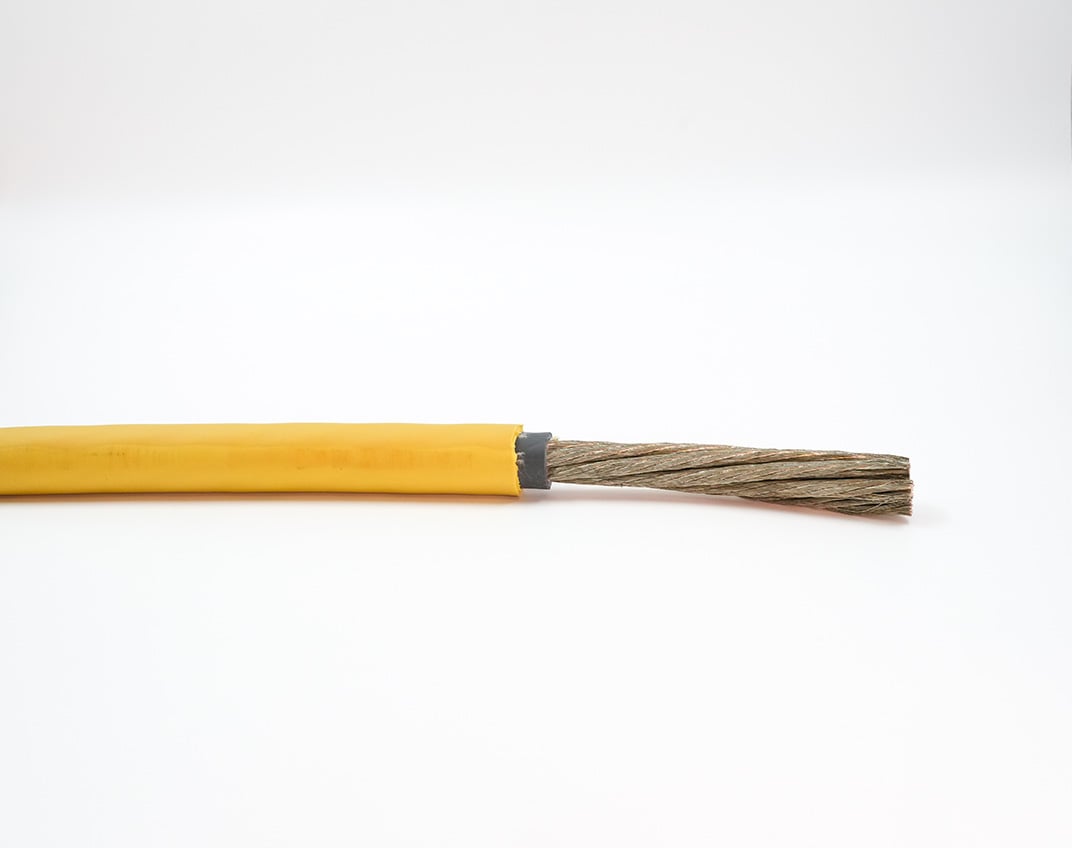

Super-Trex® Type W - RHH_RHW-2 Single Conductor Power Cable Side_Web

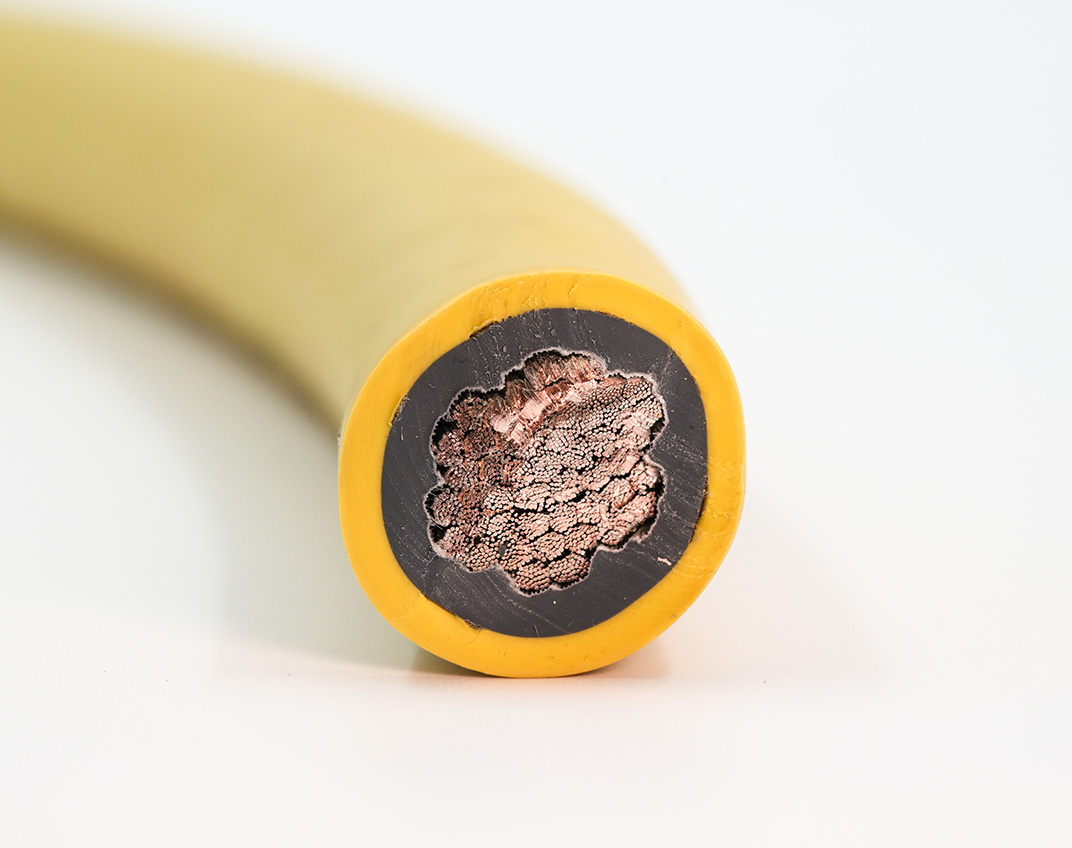

Super-Trex® Type W - RHH_RHW-2 Single Conductor Power Cable Macro_Web

Super-Trex® Type W – RHH/RHW-2 Single Conductor Power Cable

Super-Trex® Type W - RHH/RHW-2 Single Conductor Power Cable features a high strand count and our live-flex insulation to provide superior cable flexibility and ease of installation. 

The security yellow TSE jacket provides excellent protection against pulling and twisting and allows for extreme all-weather usage.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely stranded tinned copper conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Mylar separator

Allows for easy stripping of the cable jacket.

Live-flex & fluid resistant thermoset insulation with separator

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Enhances tensile strength.

Specially compounded security yellow TSE jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • UL Listed

  • RoHS Compliant

  • Type W - 2000V

  • Type RHH/RHW-2 - 2000V

  • Max Conductor Temperature 90°C 

  • Suitable for Class I, II, III, Division 1 & 2*** 

  • UV Resistant 

  • Extra Hard Usage 

  • Cold Bend: -40°C

  • Bend Radius (Static): 6x Cable O.D. 

  • Bend Radius (Dynamic): 8x Cable O.D. 

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

impact-icon

Impact

tension-icon

Tension

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Cond. Stranding INSULATION THICKNESS
inches		 JACKET THICKNESS
inches		 NOM. O.D.
inches		 NOM. WT. PER 1000'
lbs		 MIN. BEND RADIUS
lbs		 AMPACITY Shielding Type
86324E 2 AWG 1 665 x 30 0.06 0.095 0.647 365 5.2 190 No Shielding
86325E 2/0 WG 1 1323 x 30 0.08 0.095 0.861 688 6.9 300 No Shielding
86326E 4/0 AWG 1 2107 x 30 0.08 0.095 0.988 1002 8 405 No Shielding
86319E 250 kcmil 1 2499 x 30 0.095 0.095 1.082 1162 8.7 455 No Shielding
86321E 350 kcmil 1 3458 x 30 0.095 0.095 1.217 1522 9.8 570 No Shielding
86323E 500 kcmil 1 5054 x 30 0.095 0.095 1.386 2131 11.1 700 No Shielding

Related Products

Grip-Seals® Aluminum Cable Glands for Flat Festoon Cable 3QV_Web

Cable Glands
Super-Trex® Type W Black Portable Power and Automation Cable 3QV_Web

Super-Trex Type W Portable Power & Automation Cable

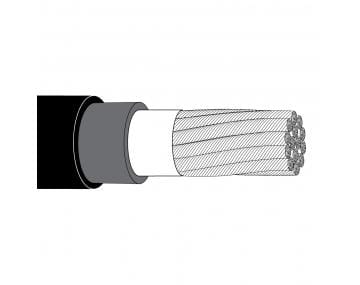

Super-Trex® Single Conductor Power Cable 3QV_Web

Super-Trex Single Conductor Power Cable

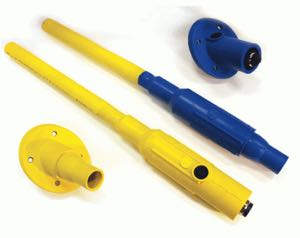

Power Assemblies 9_Web
