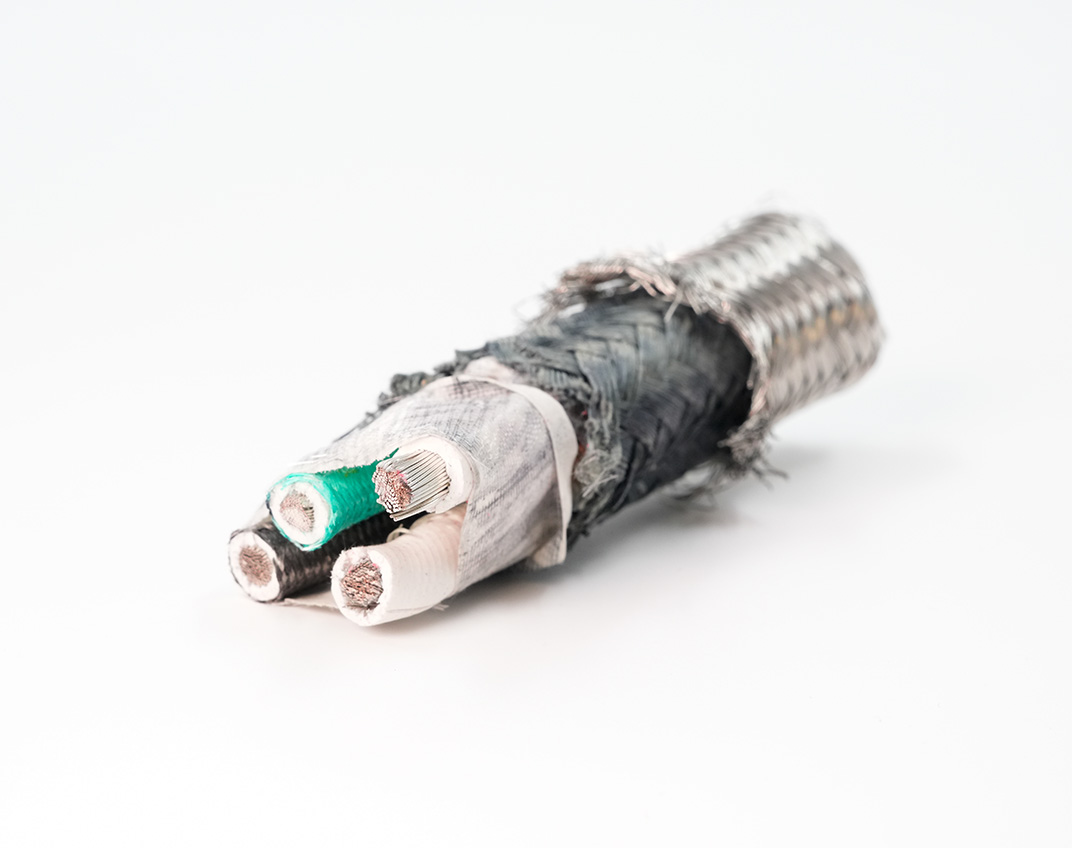

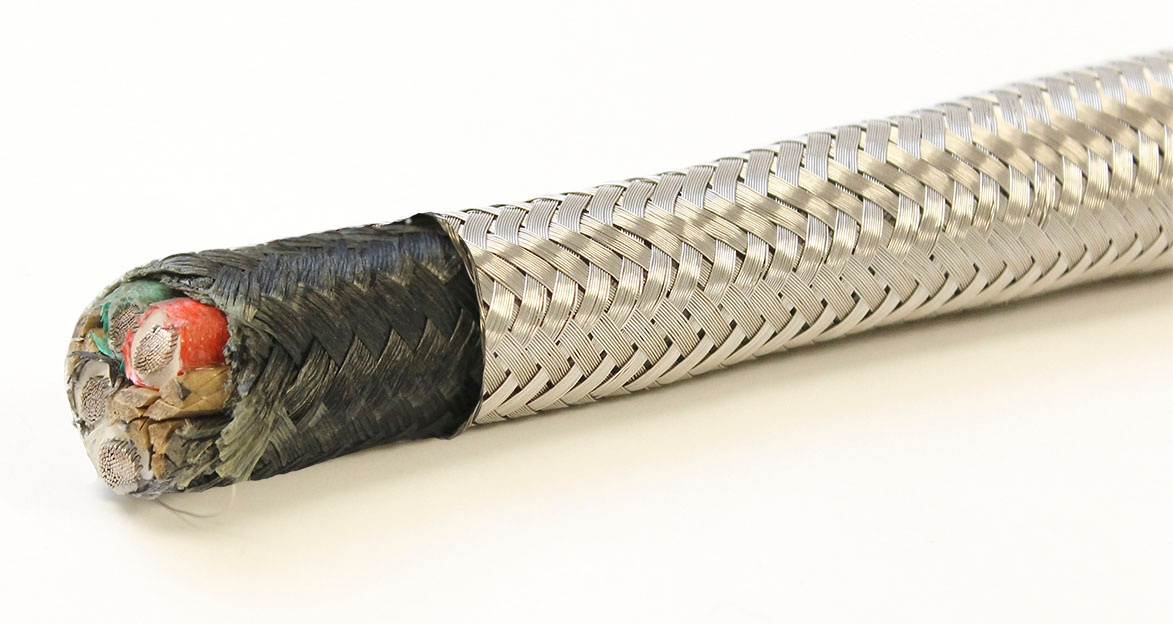

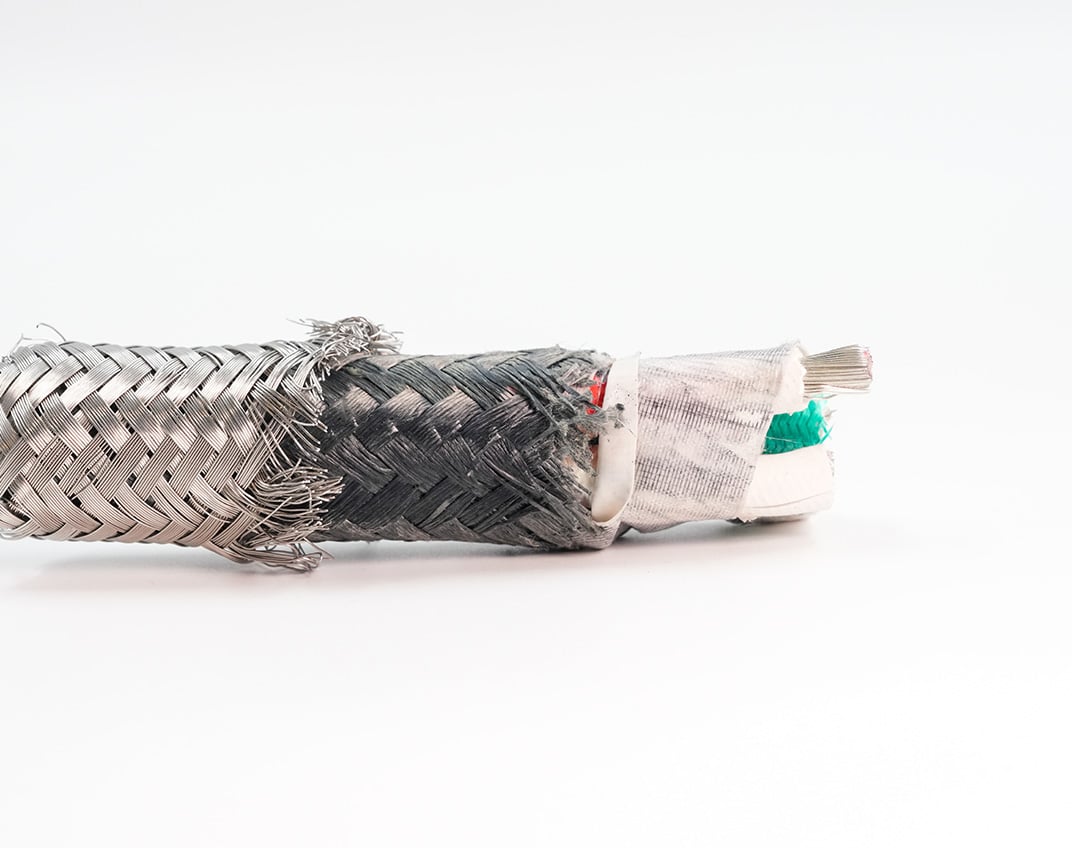

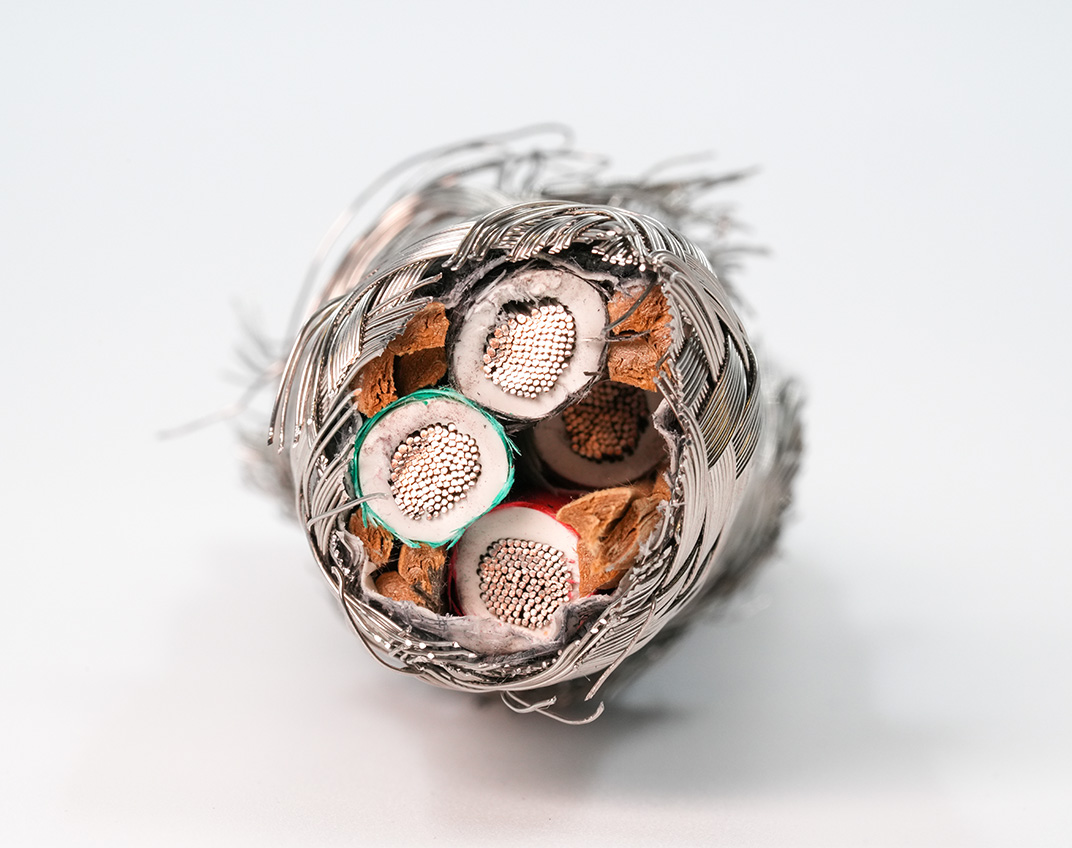

Thermo-Trex® Soaking Pit Cable

Thermo-Trex® Soaking Pit Cable is a heat-resistant cable for power applications that can withstand a maximum conductor temperature of 200°C / 392°F.

With its braided stainless steel outer jacket, this multi-conductor power cable is suited for environments where hot material contact, molten splash, and extreme mechanical abuse are common.

Request a Quote Download Spec Sheet

TINNED COPPER CONDUCTORS

Tinned conductors resist corrosion and are easier to solder.

SILICONE RUBBER INSULATION

Provides resistance to heat, moisture, and chemicals.

FIBERGLASS BRAID OVER EACH CONDUCTOR

Provides abrasion and heat resistance as well as conductor identification.

NON-FLAMMABLE FIBERGLASS WRAP TAPE

Improves performance in flexing and overhead applications and provides an additional layer of moisture and thermal resistance in extreme temperatures.

BRAIDED ARAMID K-FIBER INNER JACKET

Provides moisture, flame, heat, and abrasion resistance.

BRAIDED STAINLESS STEEL OUTER JACKET

95% coverage for the best protection against abrasion and mechanical abuse.
