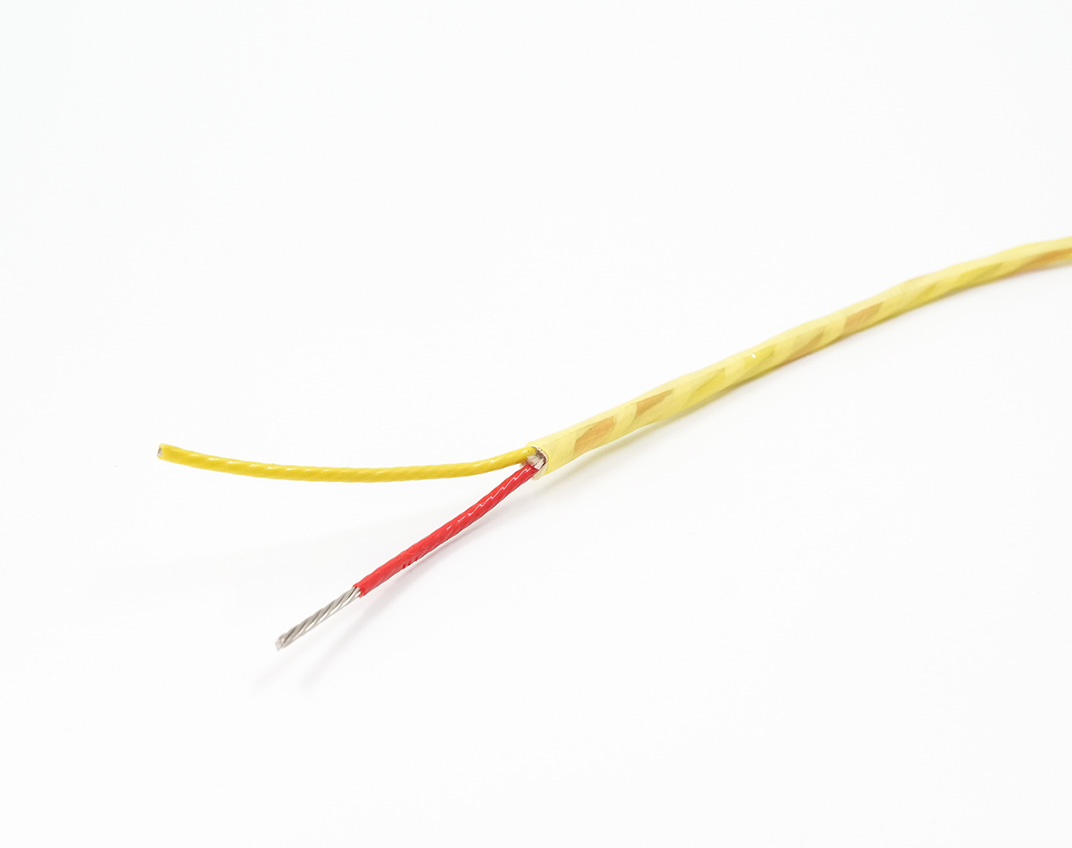

Thermo-Trex® Thermocouple Extension Wire 1 3QV_Web

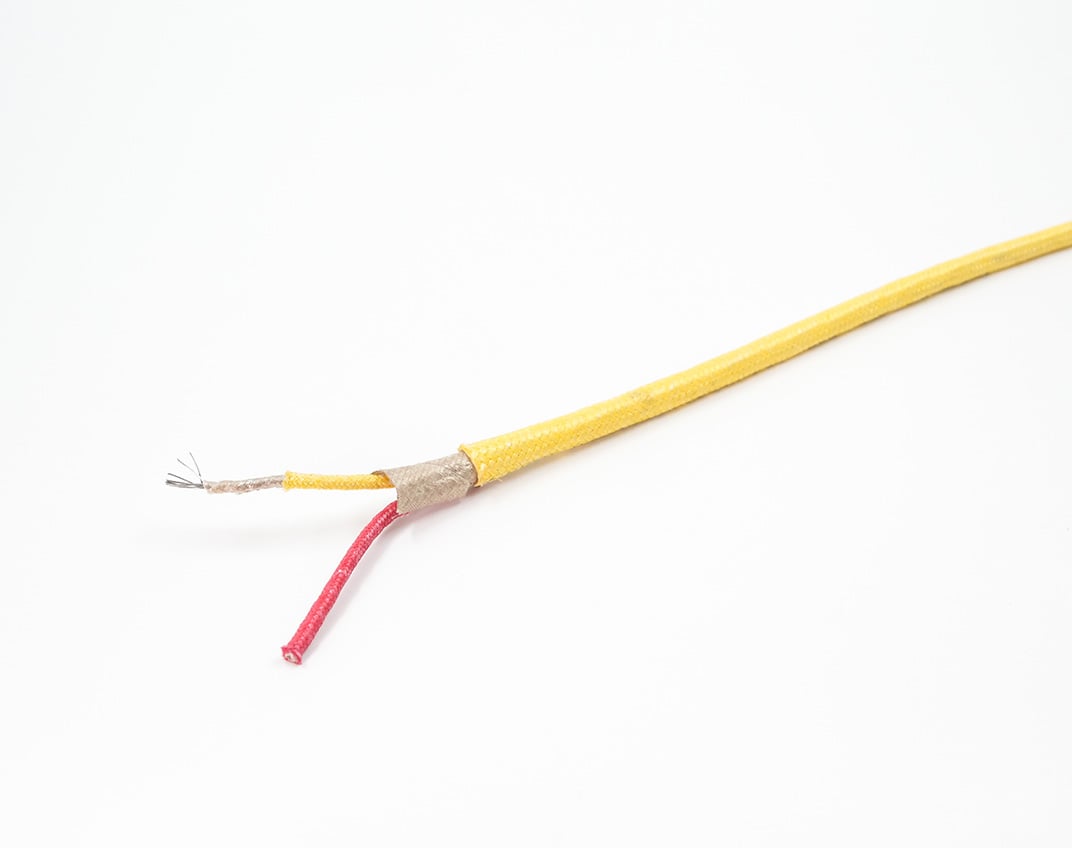

Thermo-Trex® Thermocouple Extension Wire 2 3QV_Web

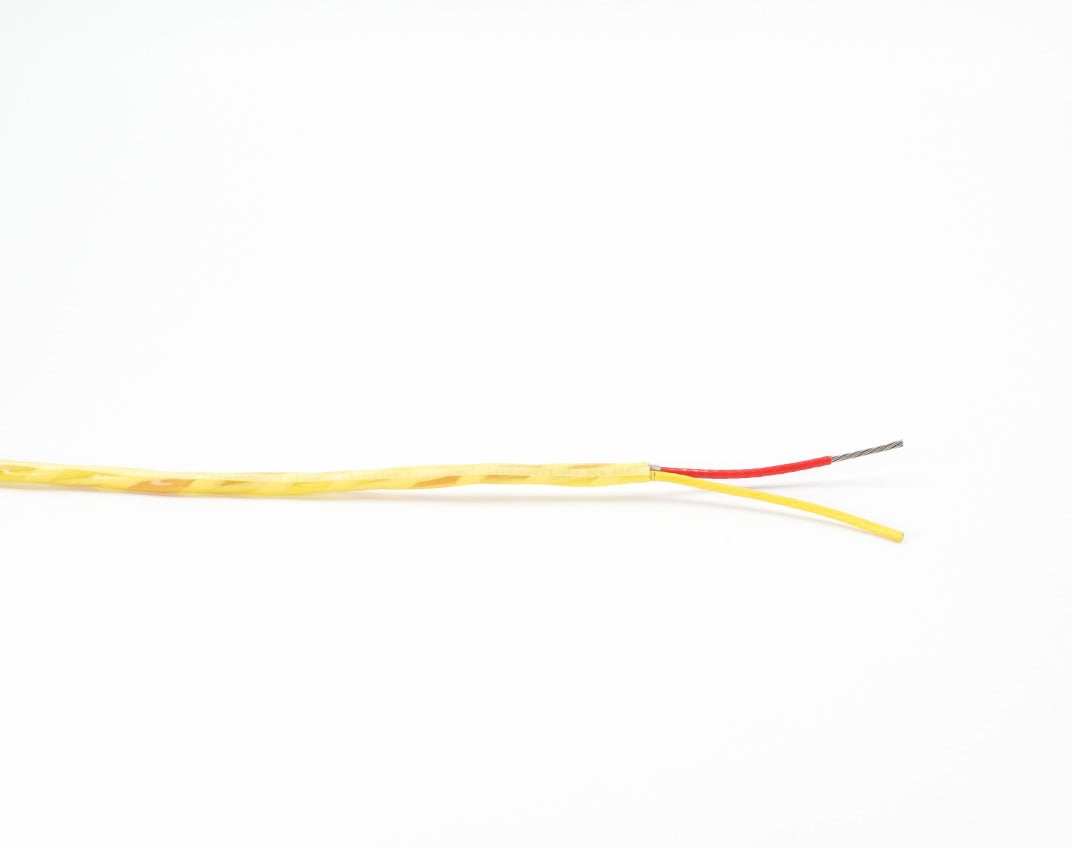

Thermo-Trex® Thermocouple Extension Wire 1 Side_Web

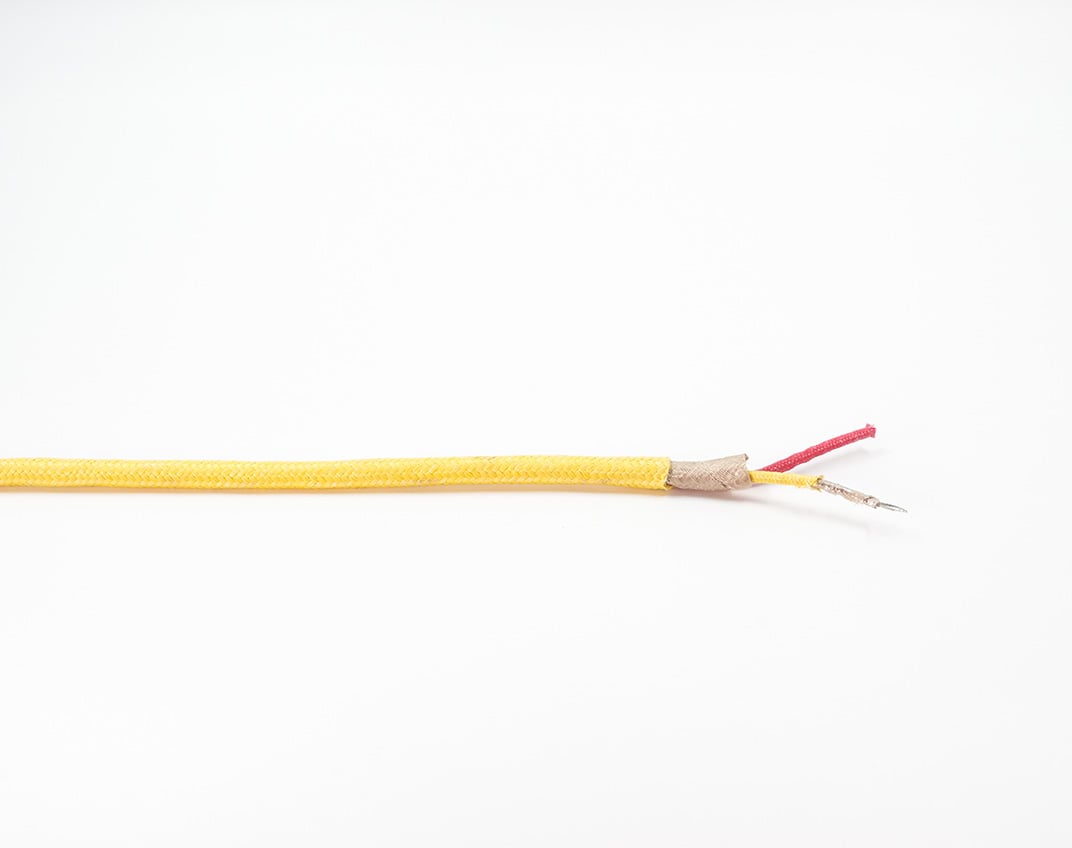

Thermo-Trex® Thermocouple Extension Wire 2 Side_Web

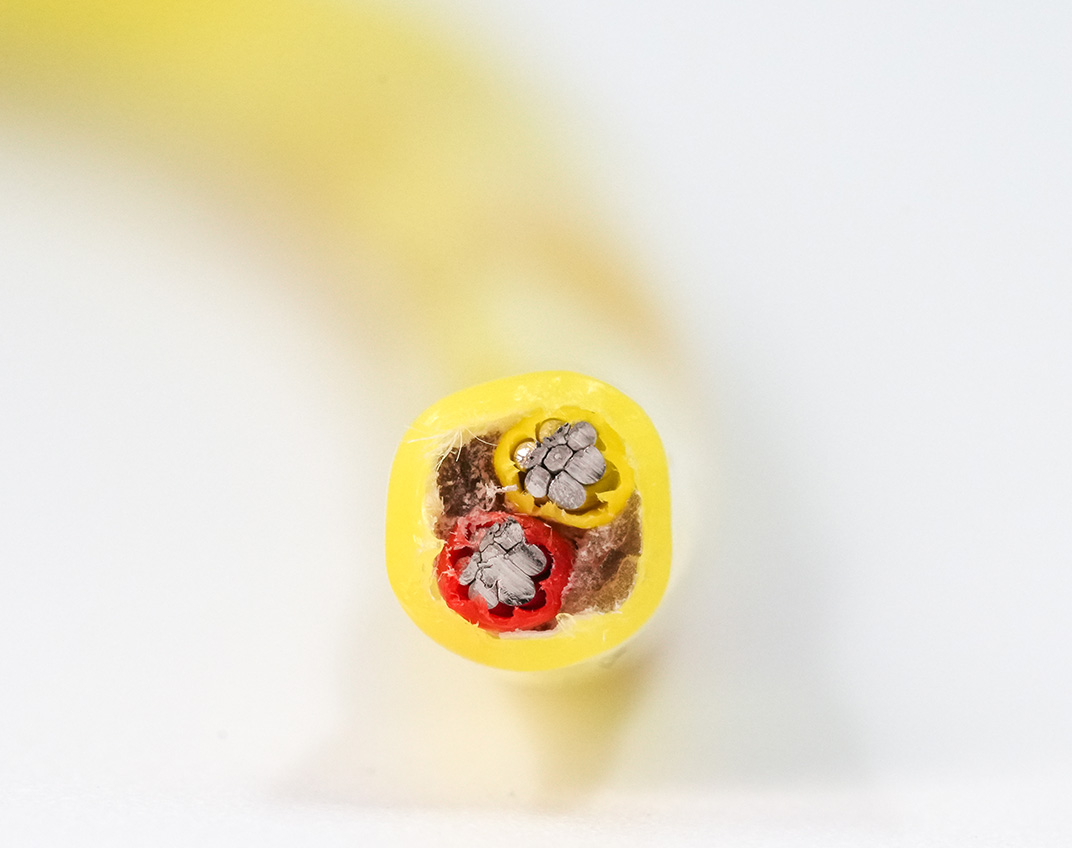

Thermo-Trex® Thermocouple Extension Wire 1 Macro_Web

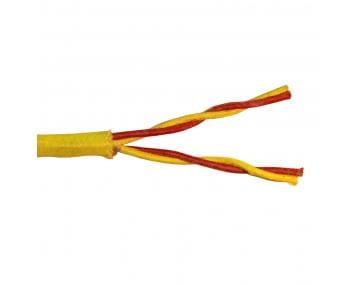

Thermo-Trex® Thermocouple Extension Wire

Thermo-Trex® Thermocouple Extension Wire is used to carry the signal from the thermocouple sensor to the monitoring device. It is available in types JX, KX, and RSX with heat resistance in 250°C and 530°C ambient temperatures and in chemically resistant and extreme heat resistant jackets.



Features

SPECIALTY CONDUCTOR MATERIALS TO MATCH THERMOCOUPLE REQUIREMENTS

Type JX uses Iron (+) & Constantan (-). Type KX uses Chromel (+) & Alumel (-). Type RSX uses Copper (+) & Copper Alloy (-).

CONDUCTORS ARE COLOR CODED PER ANSI STANDARD IDENTIFICATION

Provides fast identification of conductors. Easy to read and simplifies installation. Excellent heat resistance.

250°C PRODUCTS FEATURE SPECIALLY COMPOUNDED PFA JACKET

Ideal for environments where harsh chemicals are present. Superior resistance to oils, acids, solvents, and chemicals. Excellent defense against cutting and abrasion.

450°C AND 530°C PRODUCTS FEATURE SPECIALLY DESIGNED FIBERGLASS BRAID JACKET

Braided fiberglass jacket impregnated with high-temp finishing compounds to prevent fraying. Provides first line defense against abrasion and high heat.

Resources

Specsheets

Product Overview

Resource-Color Code

Thermo-Trex® Thermocouple Extension Wire

Ratings / Characteristics

  • RoHS Compliant

  • PFA Jacket provides Excellent Chemical Resistance

  • PFA Jacket: Bend Radius (Static): 12x Cable O.D., Bend Radius (Dynamic): 15x Cable O.D.

  • Fiberglass Braid Jacket provides Excellent Heat Resistance

  • Fiberglass Jacket: Bend Radius (Static) 6x Cable O.D., Bend Radius (Dynamic): 8x Cable O.D.  

Applications

heat-icon

High Temperature

chemicals-icon

Chemicals

abrasions-icon

Abrasion

flexing-icon

Flexing

Part Numbers

TYPE JX
(Part No.)
TYPE JX
(CABLE O.D. inches)
TYPE KX
(PART NO.)
TYPE KX
(CABLE O.D. inches)
TYPE RSX
(PART NO.)
TYPE RSX
(CABLE O.D. inches)
Conductor Size (AWG) No. of Pairs Conductor/Pole Count COND. STRAND. JACKET Weight (lbs)
per 1000
Ambient Temp Rating Shielding Type
46500 0.165 46530 0.165 - - 22 AWG 1 PR 1 7/30 PUR 21 105°C (220°F) No Shielding
46501 0.227 46531 0.227 - - 22 AWG 2 PR 2 7/30 PUR 31 105°C (220°F) No Shielding
46502 0.2 46532 0.2 46602 0.2 18 AWG 1 PR 1 7/26 PUR 33 105°C (220°F) No Shielding
46503 0.285 46533 0.285 - - 18 AWG 2 PR 2 7/26 PUR 51 105°C (220°F) No Shielding
46504 0.22 46534 0.22 - - 16 AWG 1 PR 1 7/24 PUR 41 105°C (220°F) No Shielding
46505 0.32 46535 0.32 - - 16 AWG 2 PR 2 7/24 PUR 62 105°C (220°F) No Shielding
46506 0.13 46536 0.13 - - 22 AWG 1 PR 1 7/30 FEP 15 200°C (390°F) No Shielding
46507 0.195 46537 0.195 - - 22 AWG 2 PR 2 7/30 FEP 21 200°C (390°F) No Shielding
46508 0.17 46538 0.17 - - 18 AWG 1 PR 1 7/26 FEP 26 200°C (390°F) No Shielding
46509 0.255 46539 0.255 - - 18 AWG 2 PR 2 7/26 FEP 39 200°C (390°F) No Shielding
46510 0.196 46540 0.196 - - 16 AWG 1 PR 1 7/24 FEP 34 200°C (390°F) No Shielding
46511 0.29 46541 0.29 - - 16 AWG 2 PR 2 7/24 FEP 54 200°C (390°F) No Shielding
46512 0.13 46542 0.13 - - 22 AWG 1 PR 1 7/30 PFA 16 250°C (482°F) No Shielding
46513 0.195 46543 0.195 - - 22 AWG 2 PR 2 7/30 PFA 21 250°C (482°F) No Shielding
46514 0.17 46544 0.17 46614 0.165 18 AWG 1 PR 1 7/26 PFA 27 250°C (482°F) No Shielding
46515 0.255 46545 0.255 - - 18 AWG 2 PR 2 7/26 PFA 40 250°C (482°F) No Shielding
46516 0.196 46546 0.196 - - 16 AWG 1 PR 1 7/24 PFA 35 250°C (482°F) No Shielding
46517 0.29 46547 0.29 - - 16 AWG 2 PR 2 7/24 PFA 54 250°C (482°F) No Shielding
46518 0.23 46548 0.23 - - 22 AWG 1 PR 1 7/30 TT2000 29.1 450°C (842°F) No Shielding
46519 0.344 46549 0.344 - - 22 AWG 2 PR 2 7/30 TT2000 54.4 450°C (842°F) No Shielding
46520 0.259 46550 0.259 - - 18 AWG 1 PR 1 7/26 TT2000 39.1 450°C (842°F) No Shielding
46521 0.389 46551 0.389 - - 18 AWG 2 PR 2 7/26 TT2000 75.9 450°C (842°F) No Shielding
46522 0.277 46552 0.277 46622 0.277 16 AWG 1 PR 1 7/24 TT2000 47.4 450°C (842°F) No Shielding
46523 0.422 46553 0.422 - - 16 AWG 2 PR 2 7/24 TT2000 89.8 450°C (842°F) No Shielding
46524 0.273 46554 0.273 - - 22 AWG 1 PR 1 7/30 TT2800 38.2 530°C (986°F) No Shielding
46525 0.417 46555 0.417 - - 22 AWG 2 PR 2 7/30 TT2800 76.5 530°C (986°F) No Shielding
46526 0.31 46556 0.31 - - 18 AWG 1 PR 1 7/26 TT2800 51.4 530°C (986°F) No Shielding
46527 0.46 46557 0.46 - - 18 AWG 2 PR 2 7/26 TT2800 100.7 530°C (986°F) No Shielding
46528 0.34 46558 0.34 - - 16 AWG 1 PR 1 7/24 TT2800 59.1 530°C (986°F) No Shielding
46529 0.5 46559 0.5 - - 16 AWG 2 PR 2 7/24 TT2800 116.4 530°C (986°F) No Shielding
