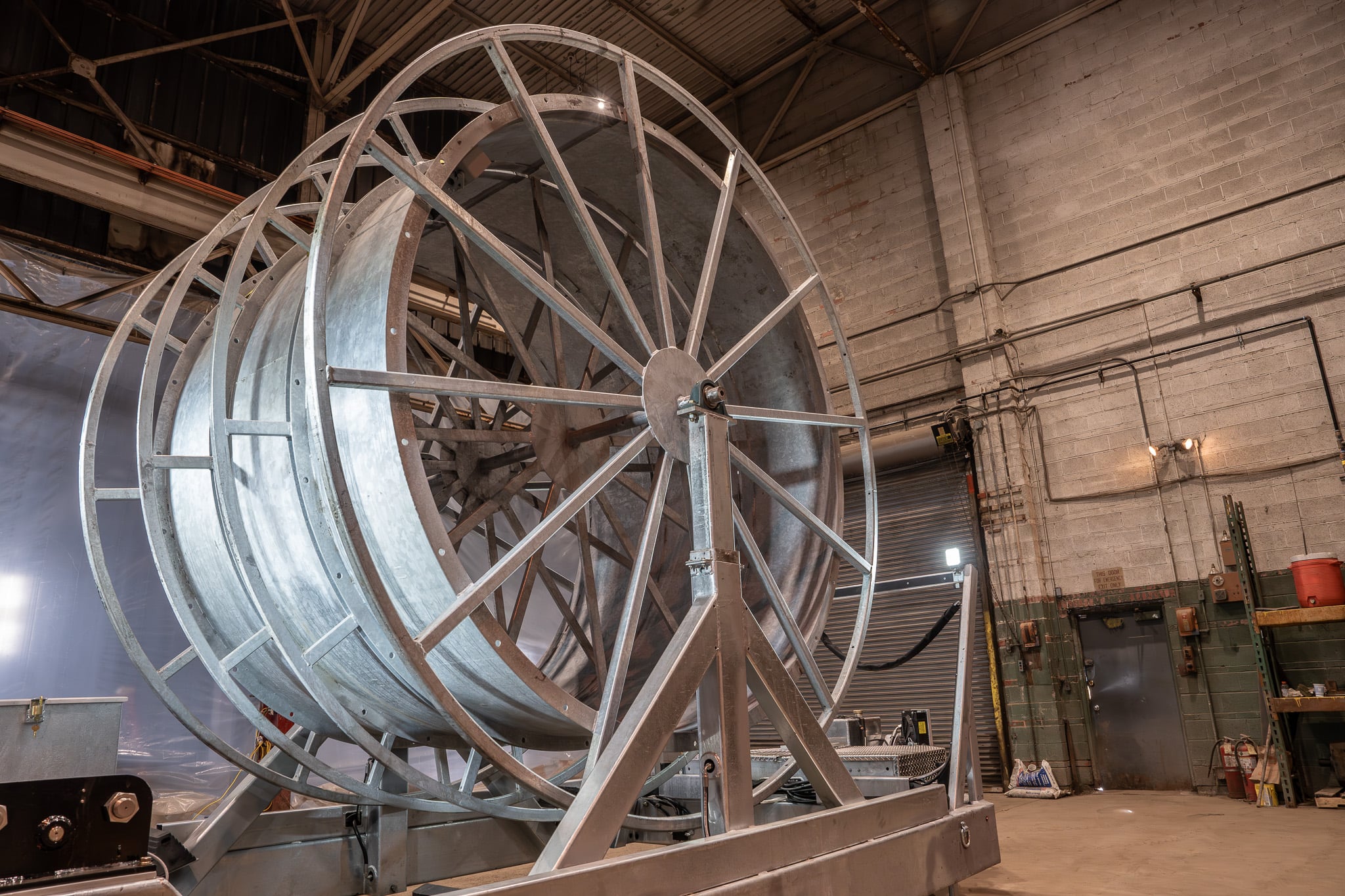

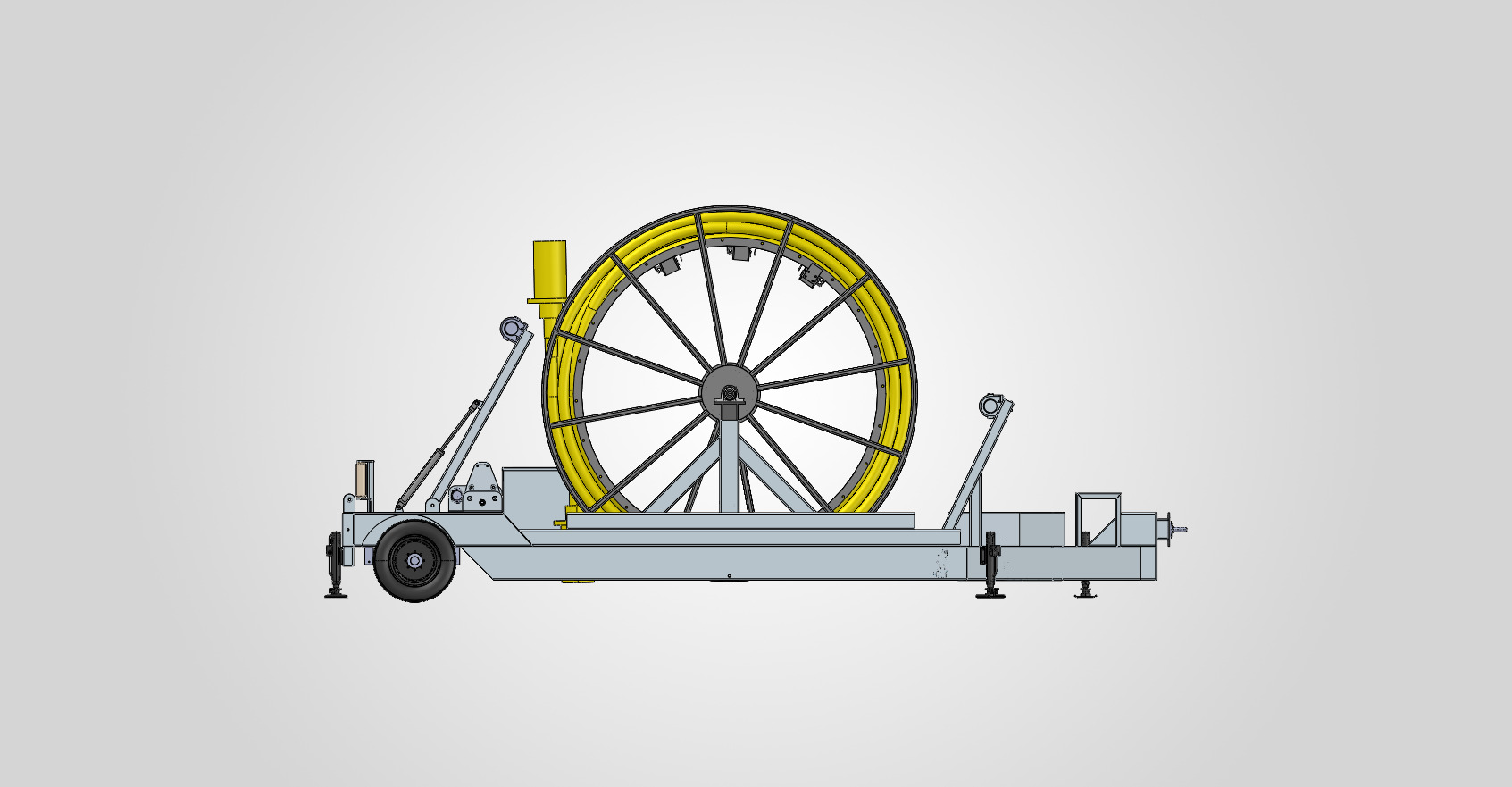

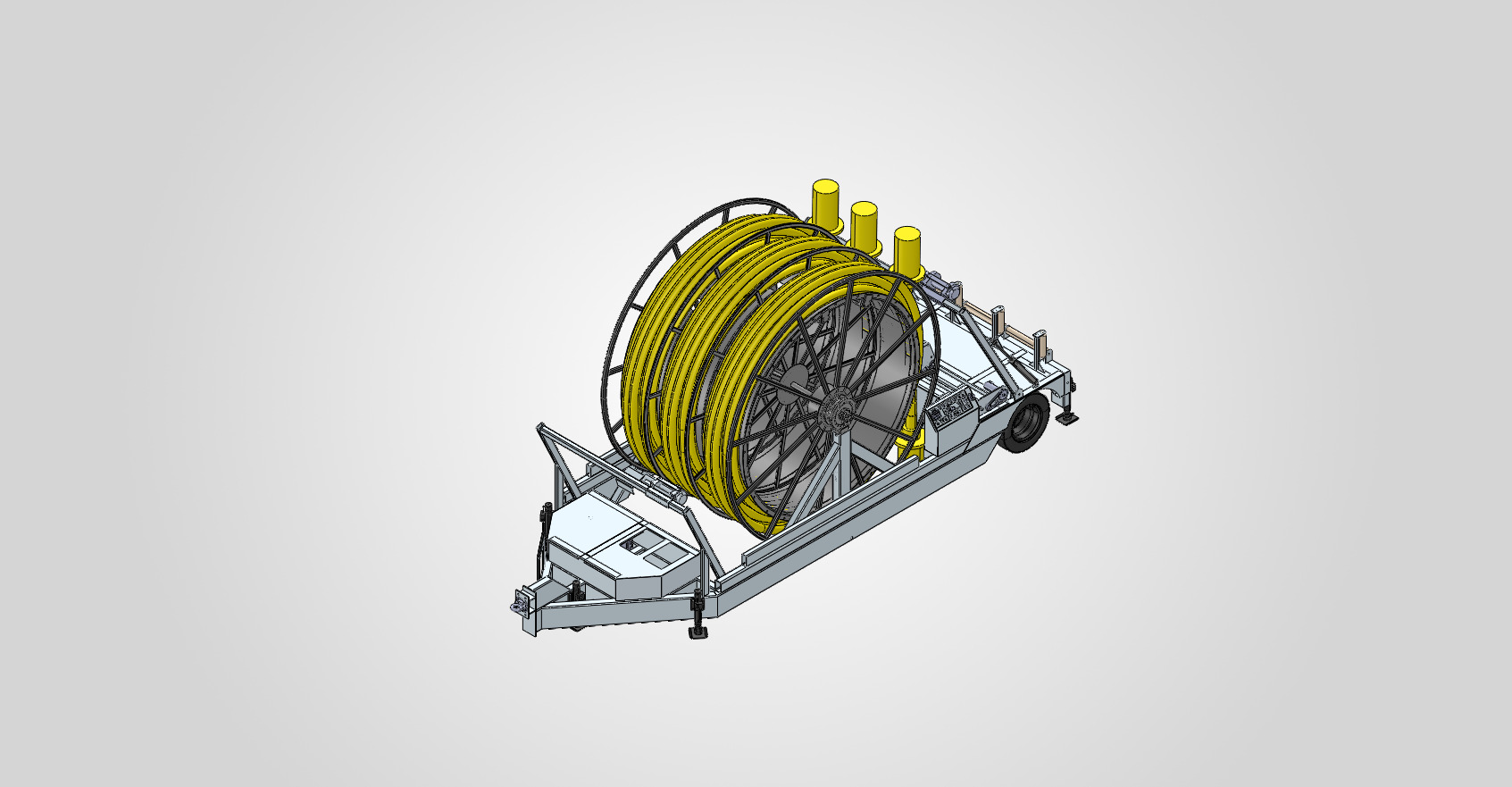

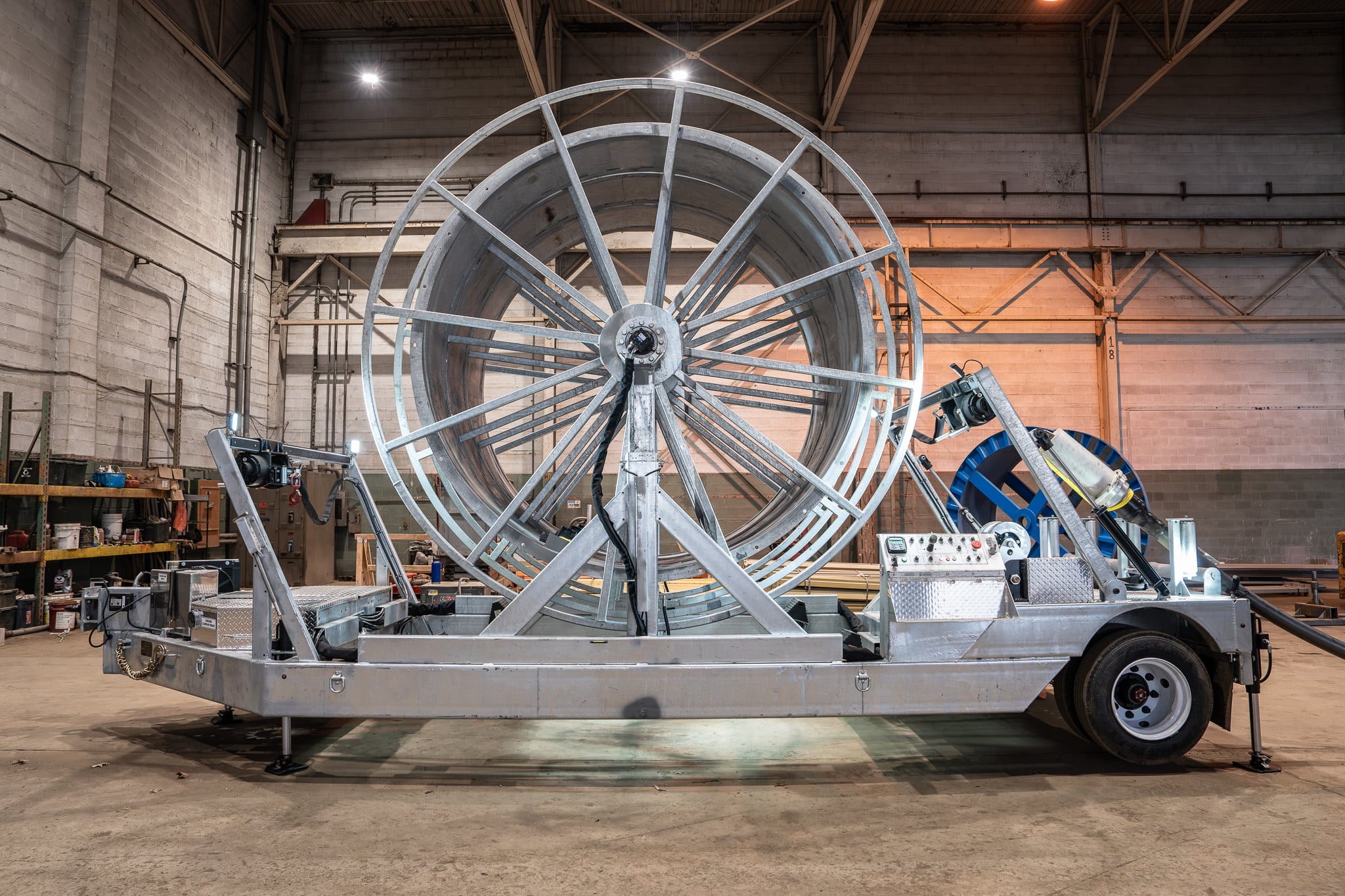

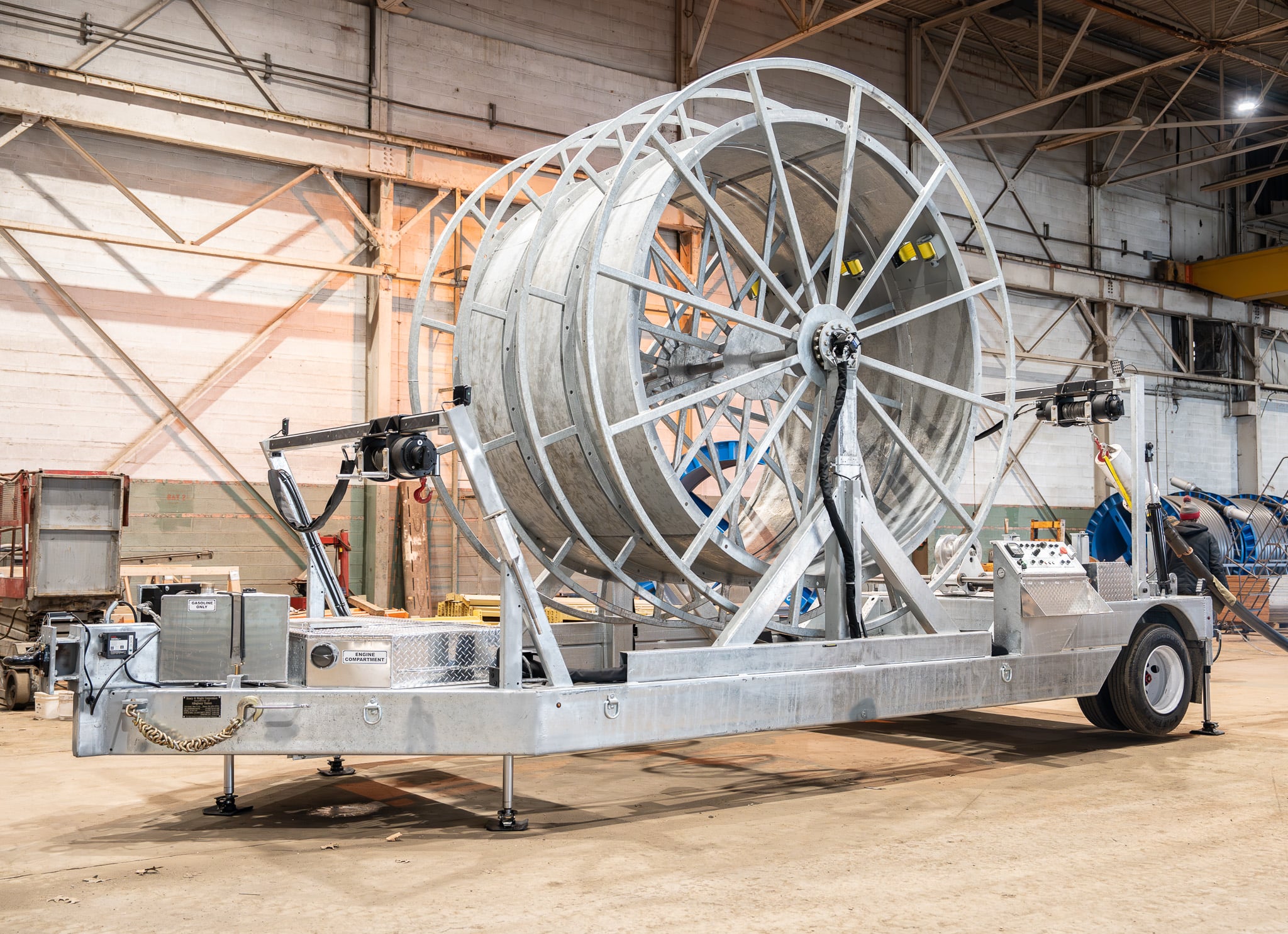

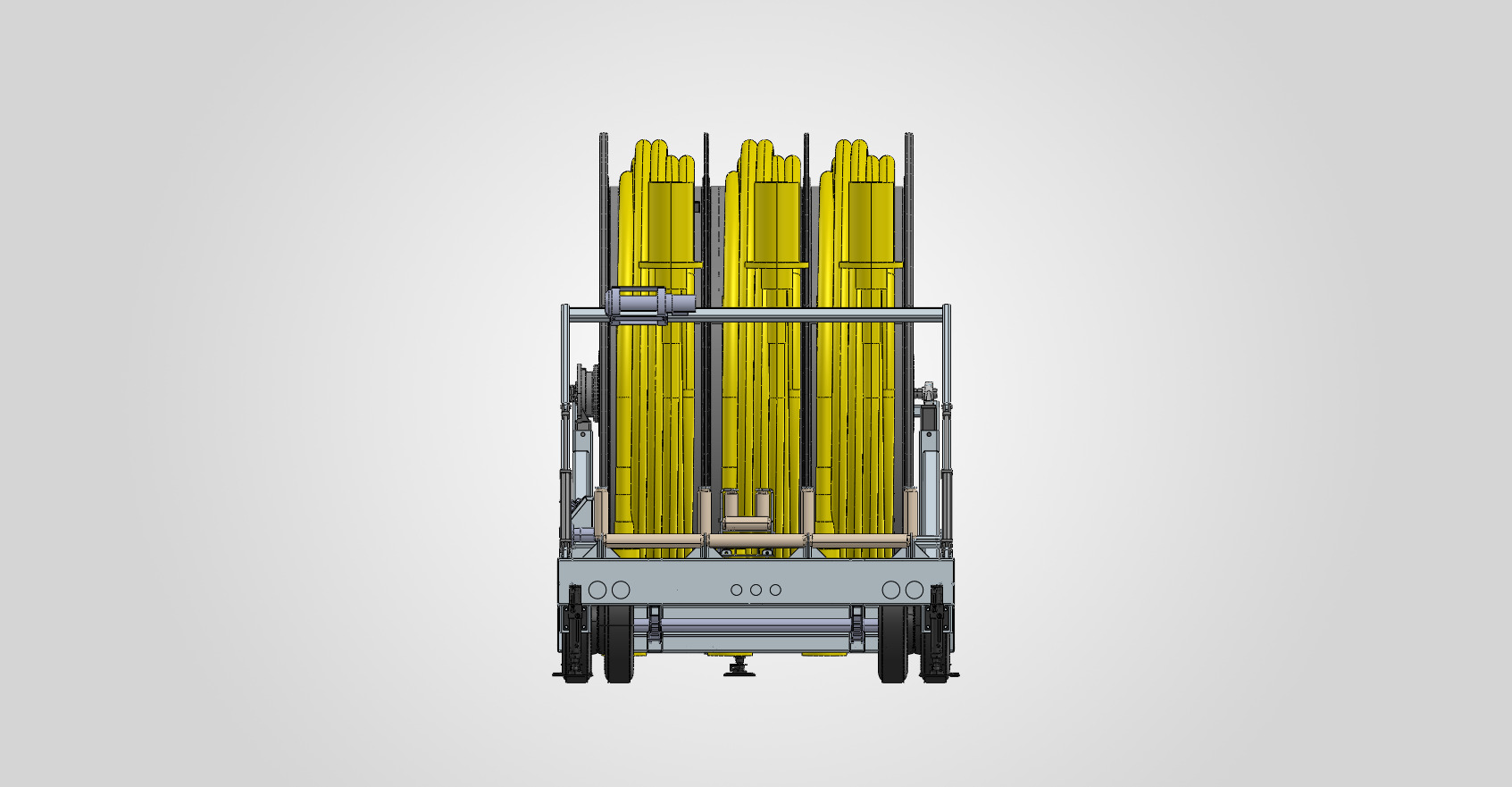

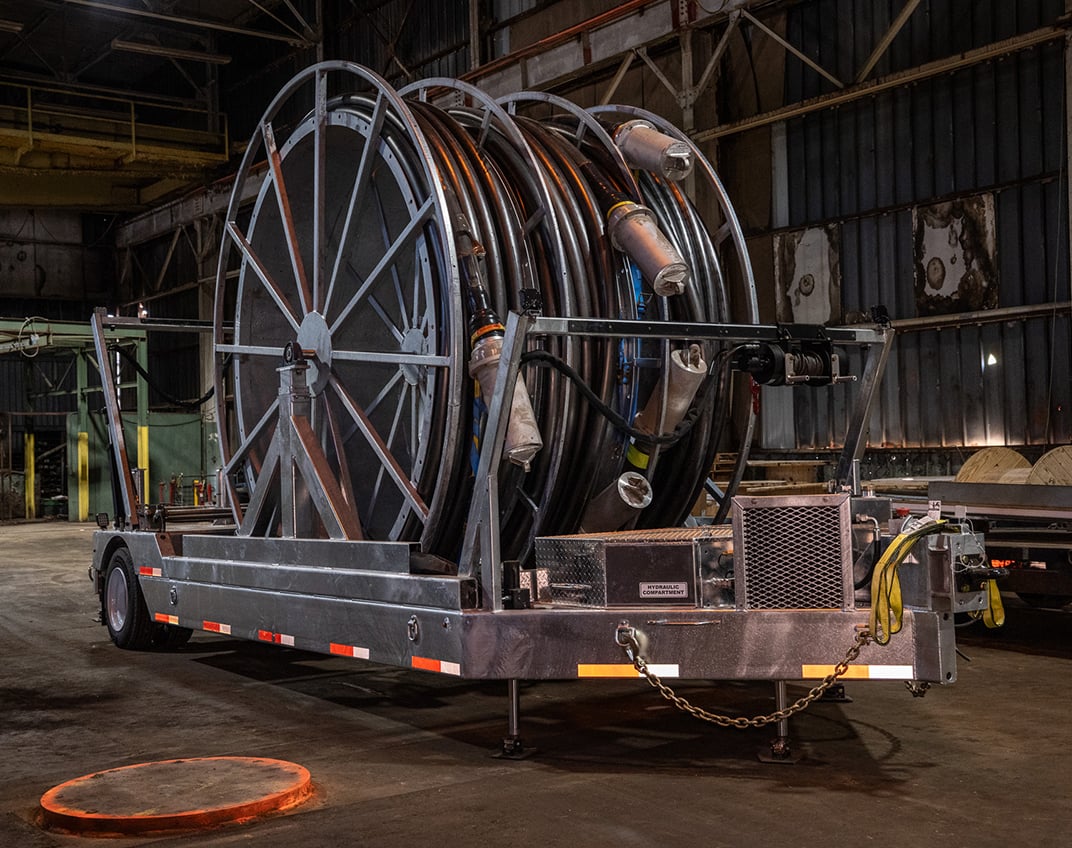

Open Deck High Voltage Trailers

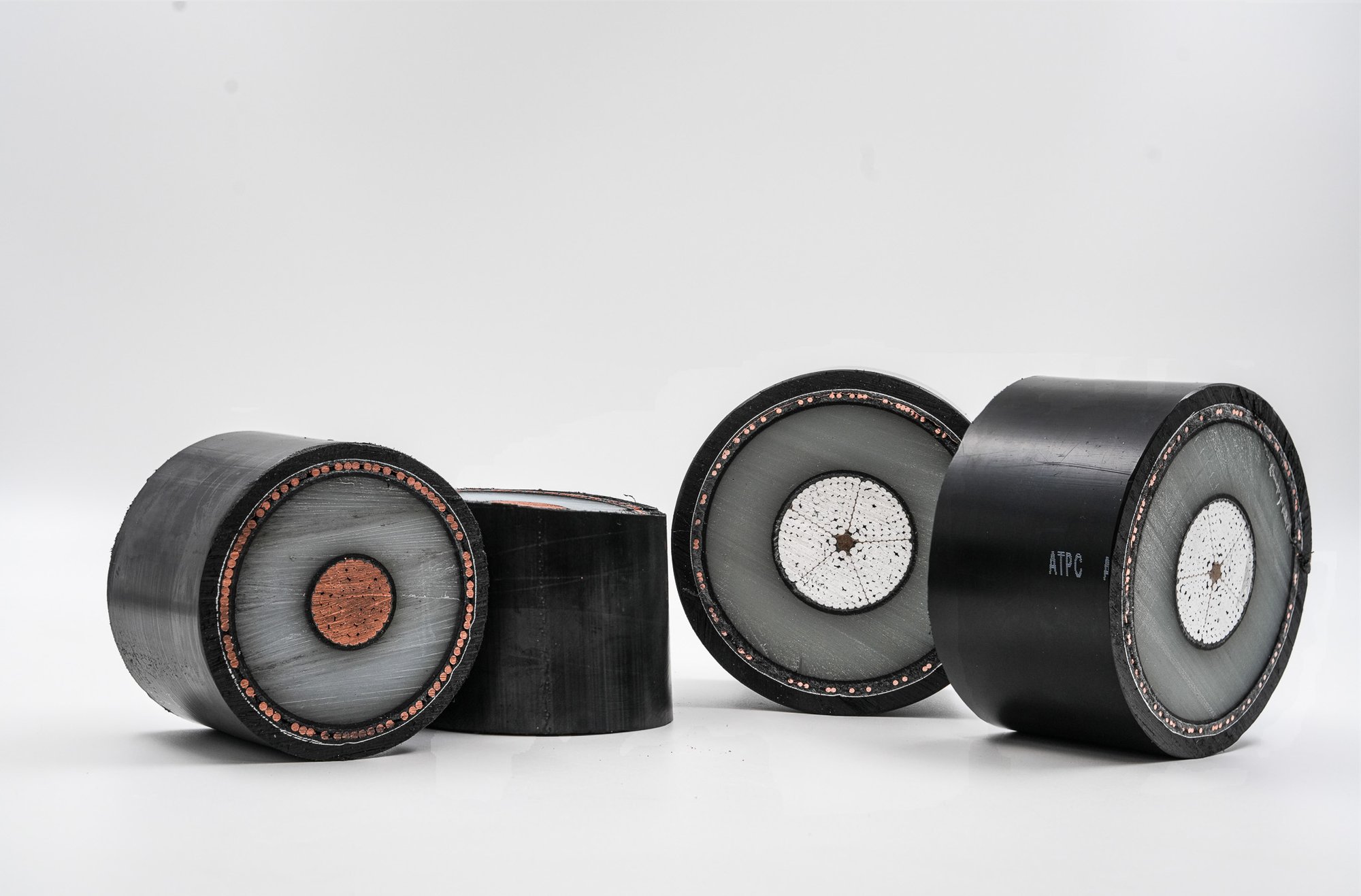

Amphenol TPC Wire & Cable Open Deck High Voltage Trailers are designed to transport, deploy, and rewind high-voltage portable cable. Engineered for efficient cable handling, these trailers help reduce labor requirements, minimize equipment needs, and lower the risk of OSHA recordable incidents. This trailer’s standard design was developed to transport and deploy up to 300 feet of 1,000 kcmil copper 230 kV cable with PFISTERER Size 6 connectors, and each is built to meet your specific application and cable requirements.
Quick Specs
- Number of Reels: 1

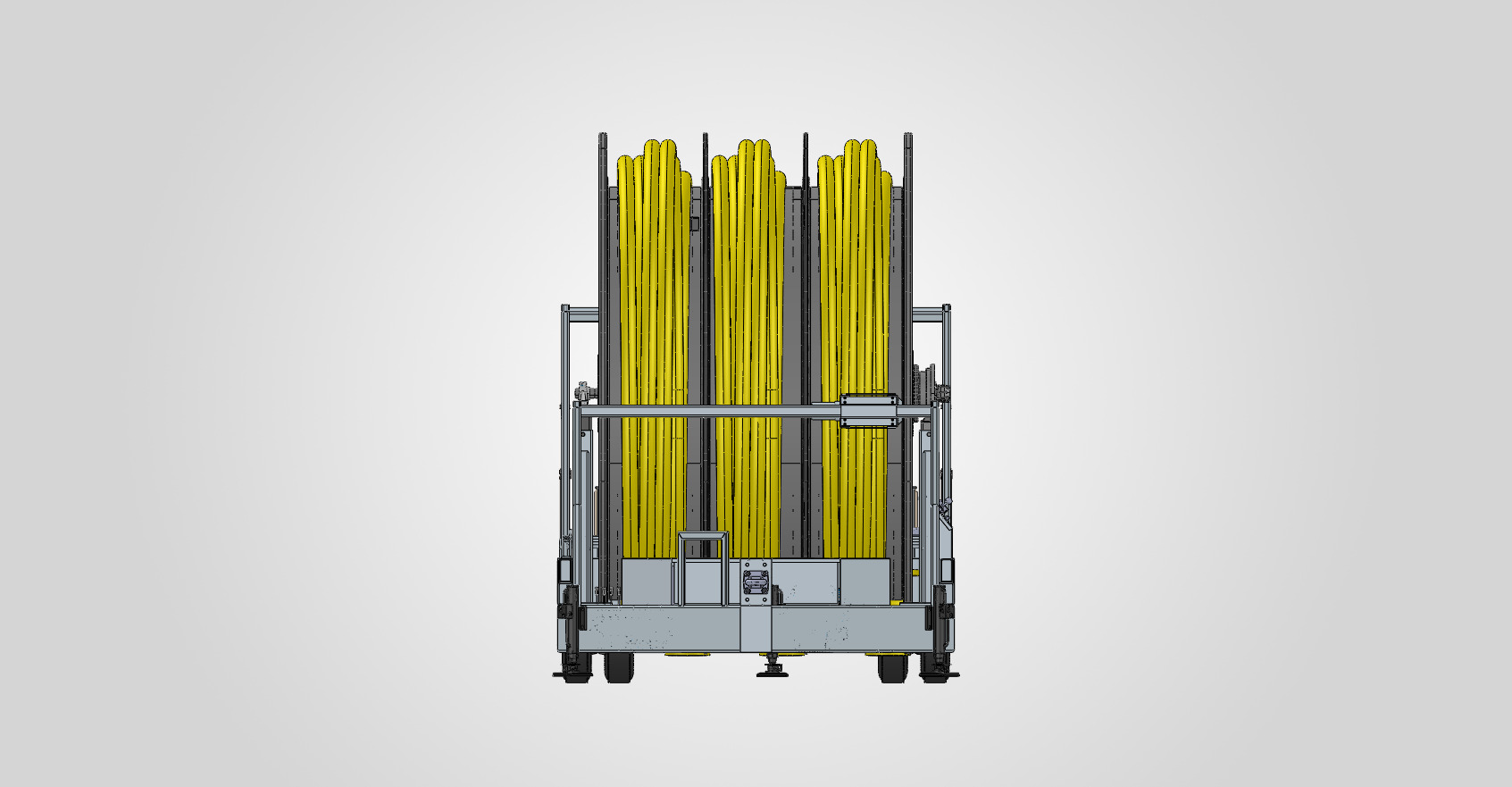

- Cable Capacity: 3 Cables
- Reel Section Size: 134" x 106" x 25.5"
- Dimensions: 303" x 102"
- Empty Weight: 9,950 lbs.
Customization Options
- AWG Size
- Cable Length
- Number of Cables
- Gas/Hydraulic Power System
- Diesel/Hydraulic Power System
