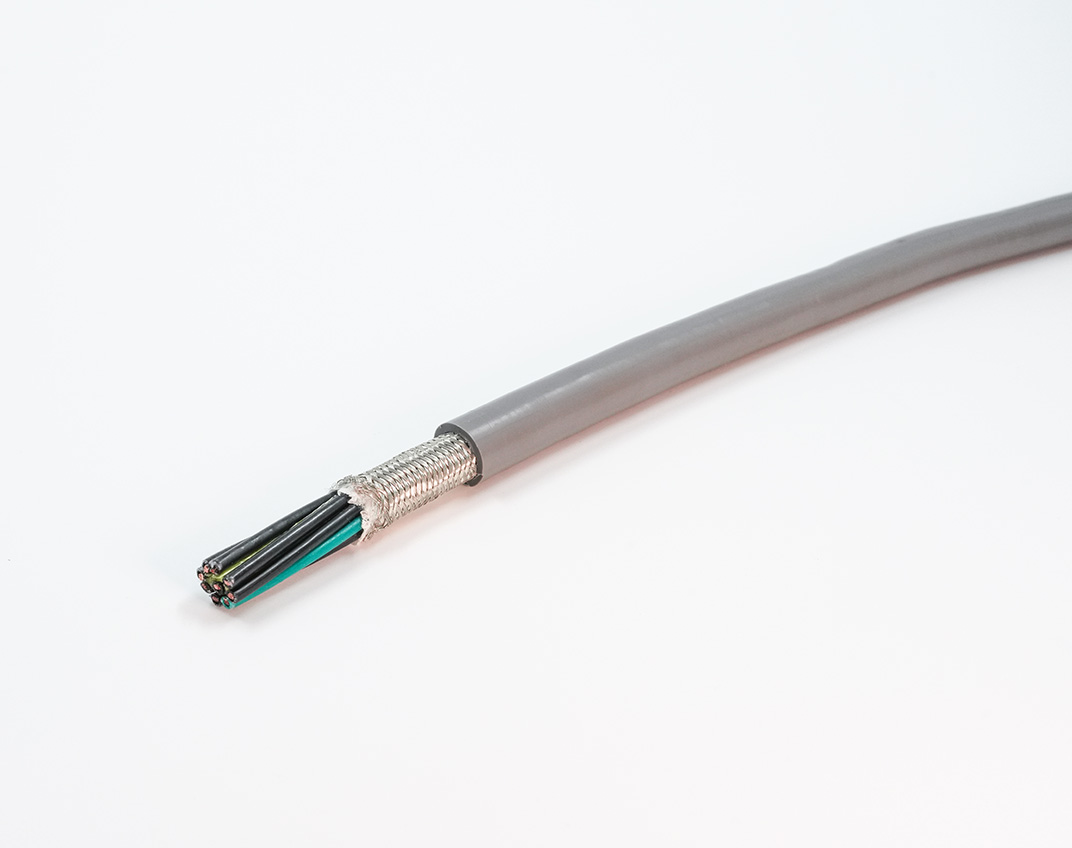

Hy-Trex® Control and Instrumentation Cables 3QV_Web
Hy-Trex® Control and Instrumentation Cables Side_Web

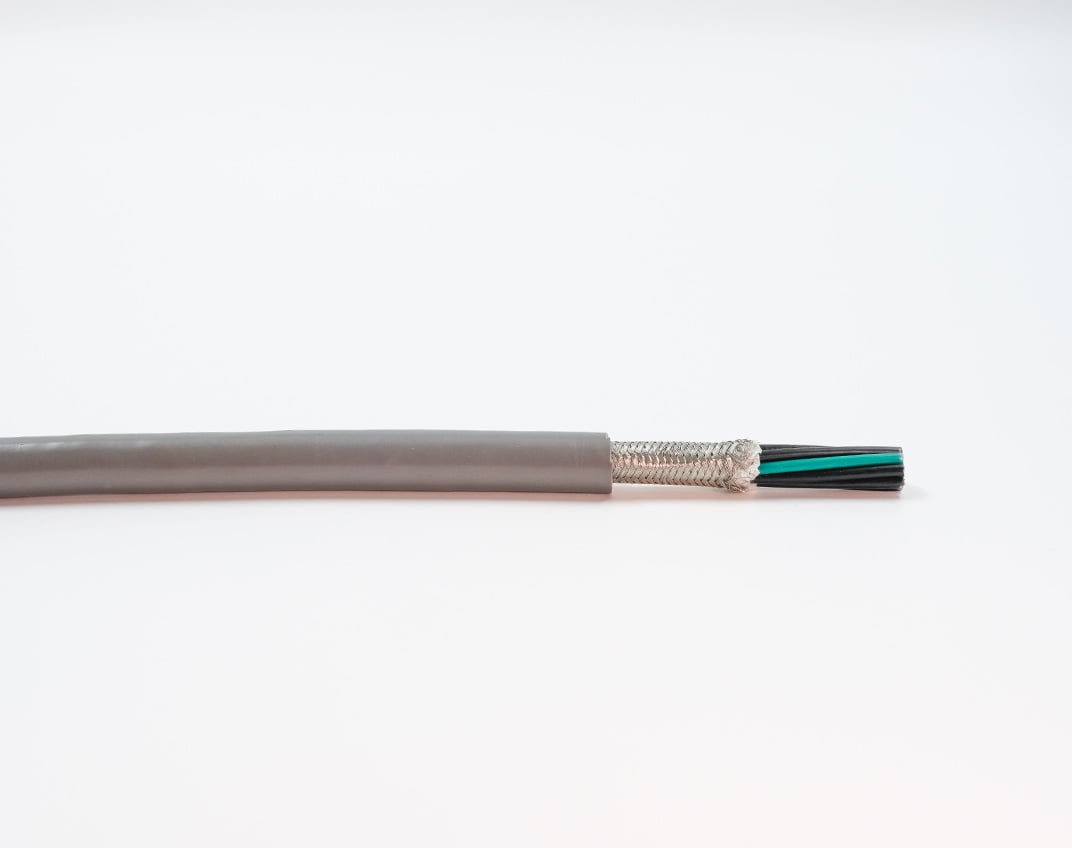

Hy-Trex® Control and Instrumentation Cables Macro_Web

Hy-Trex® CI500 Control & Instrumentation Cables

Hy-Trex® Control and Instrumentation Cables are highly flexible control land instrumentation cables designed to provide long-life performance in static and flexing applications. Ideal for original equipment manufacturers, automation integrators, instrumentation and robotics. Available in shielded and unshielded configurations

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage.

Specially Compounded TPE Insulation

Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.

Fabric Separator

Allows for easy stripping of the cable jacket.

Specially Compounded Gray TPE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Resources

Specsheets

Product Overview

IndustrialAutomation

HY-TREX Catalog

Video

Hy-Trex® Wire and Cables

Resource-Color Code

Hy-Trex® Control/Instrumentation Cables

Ratings / Characteristics

  • 600V

  • 1000V (WTTC)

  • Type TC-ER

  • Type WTTC

  • Type MTW

  • AWM Style 20886

  • cUL CIC-TC per CSA 22.2 No 239

  • FT4 Flame

  • Oil Resistant I

  • Suitable for Class I, II, III, Division 2

  • -25°C Cold Bend

  • -25°C Cold Impact

  • Bend Radius (Dynamic): 8x Cable O.D.

  • Bend Radius (Static): 6x Cable O.D.

Applications

abrasions-icon

Abrasion

flexing-icon

Flexing

cold-icon

Cold Temperature

tension-icon

Tension

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Cond Size Equiv
(MM2)		 Stranding NOM O.D.
(in.)		 WEIGHT
(LBS/1000')		 BEND RADIUS
(in.)		 GLAND P/N Shielding Type
CI500-018-3C-GY-S 18 AWG 3 0.75 19/30 0.327 91 2.7 55002/55003 Overall Braided Shield
CI500-018-4C-GY-S 18 AWG 4 0.75 19/30 0.35 106 2.8 55002/55003 Overall Braided Shield
CI500-018-5C-GY-S 18 AWG 5 0.75 19/30 0.378 121 3.1 55002/55004 Overall Braided Shield
CI500-018-7C-GY-S 18 AWG 7 0.75 19/30 0.406 144 3.3 55002/55004 Overall Braided Shield
CI500-018-9C-GY-S 18 AWG 9 0.75 19/30 0.472 188 3.8 55004 Overall Braided Shield
CI500-018-12C-GY-S 18 AWG 12 0.75 19/30 0.547 245 4.4 55005/55006 Overall Braided Shield
CI500-018-18C-GY-S 18 AWG 18 0.75 19/30 0.626 327 5.1 55006 Overall Braided Shield
CI500-018-25C-GY-S 18 AWG 25 0.75 19/30 0.736 445 5.9 55007/55008 Overall Braided Shield
CI500-016-3C-GY-S 16 AWG 3 1.5 26/30 0.354 107 2.9 55002/55003 Overall Braided Shield
CI500-016-4C-GY-S 16 AWG 4 1.5 26/30 0.382 126 3.1 55002/55004 Overall Braided Shield
CI500-016-5C-GY-S 16 AWG 5 1.5 26/30 0.409 145 3.3 55002/55004 Overall Braided Shield
CI500-016-7C-GY-S 16 AWG 7 1.5 26/30 0.441 174 3.6 55004 Overall Braided Shield
CI500-016-9C-GY-S 16 AWG 9 1.5 26/30 0.547 245 4.4 55005/55006 Overall Braided Shield
CI500-016-12C-GY-S 16 AWG 12 1.5 26/30 0.598 298 4.8 55005/55006 Overall Braided Shield
CI500-016-18C-GY-S 16 AWG 18 1.5 26/30 0.685 403 5.5 55007 Overall Braided Shield
CI500-016-25C-GY-S 16 AWG 25 1.5 26/30 0.811 55 6.5 55008 Overall Braided Shield
CI500-014-3C-GY-S 14 AWG 3 2.5 41/30 0.386 135 3.1 55002/55004 Overall Braided Shield
CI500-014-4C-GY-S 14 AWG 4 2.5 41/30 0.417 159 3.4 55002/55004 Overall Braided Shield
CI500-014-5C-GY-S 14 AWG 5 2.5 41/30 0.453 185 3.7 55004 Overall Braided Shield
CI500-014-7C-GY-S 14 AWG 7 2.5 41/30 0.488 226 3.9 55004 Overall Braided Shield
CI500-014-9C-GY-S 14 AWG 9 2.5 41/30 0.606 318 4.9 55005/55006 Overall Braided Shield
CI500-014-12C-GY-S 14 AWG 12 2.5 41/30 0.661 387 5.3 55006/55007 Overall Braided Shield
CI500-014-18C-GY-S 14 AWG 18 2.5 41/30 0.764 534 6.2 55007/55008 Overall Braided Shield
CI500-014-25C-GY-S 14 AWG 25 2.5 41/30 0.945 770 7.6 55009/55010 Overall Braided Shield
CI500-012-3C-GY-S 12 AWG 3 4 65/30 0.433 177 3.5 55004 Overall Braided Shield
CI500-012-4C-GY-S 12 AWG 4 4 65/30 0.472 211 3.8 55004 Overall Braided Shield
CI500-012-5C-GY-S 12 AWG 5 4 65/30 0.512 247 4.1 55004/55006 Overall Braided Shield
CI500-012-7C-GY-S 12 AWG 7 4 65/30 0.591 328 4.8 55004/55006 Overall Braided Shield
CI500-012-9C-GY-S 12 AWG 9 4 65/30 0.693 436 5.6 55007 Overall Braided Shield
CI500-010-3C-GY-S 10 AWG 3 6 1055/30 0.508 248 4.1 55004/55006 Overall Braided Shield
CI500-010-4C-GY-S 10 AWG 4 6 1055/30 0.583 317 4.7 55004/55006 Overall Braided Shield
CI500-010-5C-GY-S 10 AWG 5 6 1055/30 0.634 375 5.1 55006/55007 Overall Braided Shield
CI500-010-7C-GY-S 10 AWG 7 6 1055/30 0.697 474 5.6 55007 Overall Braided Shield
CI500-010-9C-GY-S 10 AWG 9 6 1055/30 0.866 666 7 55008/55009 Overall Braided Shield
CI500-018-3C-GY-U 18 AWG 3 0.75 19/30 0.311 57 2.5 55001/55003 No Shielding
CI500-018-4C-GY-U 18 AWG 4 0.75 19/30 0.331 68 2.7 55001/55003 No Shielding
CI500-018-5C-GY-U 18 AWG 5 0.75 19/30 0.358 85 2.9 55003/55004 No Shielding
CI500-018-7C-GY-U 18 AWG 7 0.75 19/30 0.386 99 3.1 55002/55003 /55004 No Shielding
CI500-018-9C-GY-U 18 AWG 9 0.75 19/30 0.449 130 3.6 55004 No Shielding
CI500-018-12C-GY-U 18 AWG 12 0.75 19/30 0.5 162 4 55004/55005 No Shielding
CI500-018-18C-GY-U 18 AWG 18 0.75 19/30 0.618 242 5 55005/55006 No Shielding
CI500-018-25C-GY-U 18 AWG 25 0.75 19/30 0.72 314 5.8 55007 No Shielding
CI500-016-3C-GY-U 16 AWG 3 1.5 26/30 0.339 69 2.8 55003 No Shielding
CI500-016-4C-GY-U 16 AWG 4 1.5 26/30 0.365 85 3 55002 No Shielding
CI500-016-5C-GY-U 16 AWG 5 1.5 26/30 0.386 102 3.1 55002 No Shielding
CI500-016-7C-GY-U 16 AWG 7 1.5 26/30 0.425 124 3.4 55004 No Shielding
CI500-016-9C-GY-U 16 AWG 9 1.5 26/30 0.496 164 4 55004/55005 /55006 No Shielding
CI500-016-12C-GY-U 16 AWG 12 1.5 26/30 0.579 207 4.7 55006 No Shielding
CI500-016-18C-GY-U 16 AWG 18 1.5 26/30 0.661 302 5.3 55006/55007 No Shielding
CI500-016-25C-GY-U 16 AWG 25 1.5 26/30 0.791 388 6.4 55008 No Shielding
CI500-014-3C-GY-U 14 AWG 3 2.5 41/30 0.384 88 3.1 55002 No Shielding
CI500-014-4C-GY-U 14 AWG 4 2.5 41/30 0.394 109 3.2 55002 No Shielding
CI500-014-5C-GY-U 14 AWG 5 2.5 41/30 0.437 132 3.5 55004 No Shielding
CI500-014-7C-GY-U 14 AWG 7 2.5 41/30 0.476 172 3.9 55004/55005 No Shielding
CI500-014-9C-GY-U 14 AWG 9 2.5 41/30 0.591 231 4.8 55006 No Shielding
CI500-014-12C-GY-U 14 AWG 12 2.5 41/30 0.646 296 5.2 55006/55007 No Shielding
CI500-014-18C-GY-U 14 AWG 18 2.5 41/30 0.74 416 6 55007 No Shielding
CI500-014-25C-GY-U 12 AWG 25 4 41/30 0.929 574 7.5 55009/55010 No Shielding
CI500-012-3C-GY-U 12 AWG 3 4 65/30 0.417 118 3.4 55004 No Shielding
CI500-012-4C-GY-U 12 AWG 4 4 65/30 0.452 149 3.7 55004 No Shielding
CI500-012-5C-GY-U 12 AWG 5 4 65/30 0.5 182 4 55004/55005 /55006 No Shielding
CI500-012-7C-GY-U 12 AWG 7 4 65/30 0.575 260 4.6 55006 No Shielding
CI500-012-9C-GY-U 12 AWG 9 4 65/30 0.677 354 5.5 55007/55008 No Shielding
CI500-010-3C-GY-U 10 AWG 3 6 105/30 0.492 175 4 55004/55005 /55006 No Shielding
CI500-010-4C-GY-U 10 AWG 4 6 105/30 0.576 243 4.7 55006 No Shielding
CI500-010-5C-GY-U 10 AWG 5 6 105/30 0.619 304 5 55006 No Shielding
CI500-010-7C-GY-U 10 AWG 7 6 105/30 0.681 388 5.5 55007/55008 No Shielding
CI500-010-9C-GY-U 10 AWG 9 6 105/30 0.807 530 6.5 55008/55009 No Shielding

Related Products

nylon-straight-grip-seal_1 (1)

Grip-Seal cord grips
kord-gard-mesh-cord-grip_1

Kord-Gard mesh cord grips
overall-shielded-c-flex-multi-conductor-cable_1-3

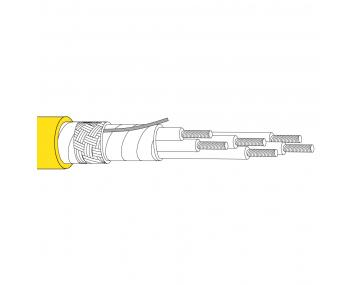

Trex-Onics Overall Shielded Continuous Flex Multi-Conductor Cable
