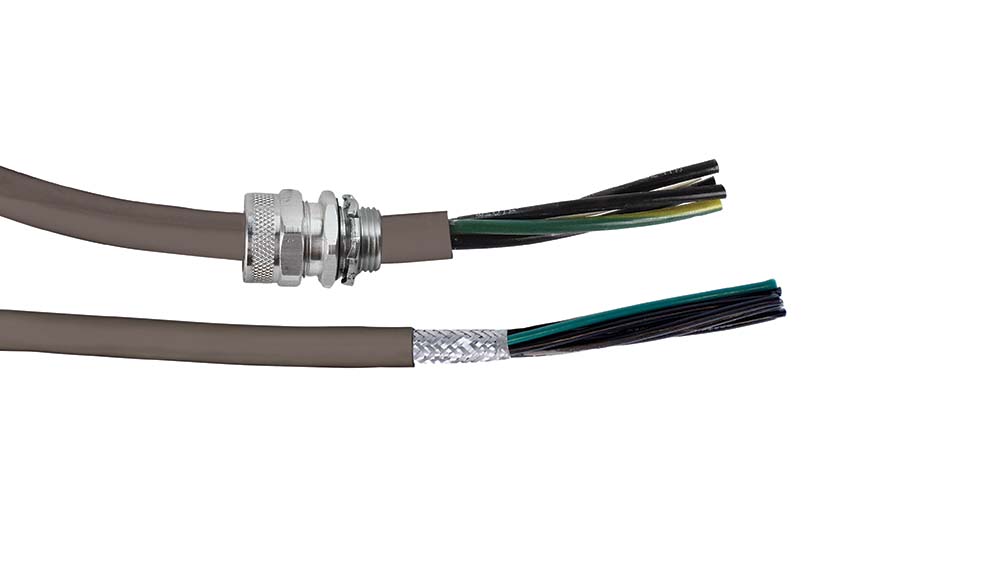

Hy-Trex® Control and Instrumentation Cables are highly flexible control land instrumentation cables designed to provide long-life performance in static and flexing applications. Ideal for original equipment manufacturers, automation integrators, instrumentation and robotics. Available in shielded and unshielded configurations
Fine stranding improves flex-life and reduces conductor fatigue and breakage.
Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals.
Allows for easy stripping of the cable jacket.
Offers superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.
| Part No. | Conductor Size (AWG) | Conductor/Pole Count | Cond Size Equiv (MM2) |
Stranding | NOM O.D. (in.) |
WEIGHT (LBS/1000') |
BEND RADIUS (in.) |
GLAND P/N | Shielding Type |
|---|---|---|---|---|---|---|---|---|---|
| CI500-018-3C-GY-S | 18 AWG | 3 | 0.75 | 19/30 | 0.327 | 91 | 2.7 | 55002/55003 | Overall Braided Shield |
| CI500-018-4C-GY-S | 18 AWG | 4 | 0.75 | 19/30 | 0.35 | 106 | 2.8 | 55002/55003 | Overall Braided Shield |
| CI500-018-5C-GY-S | 18 AWG | 5 | 0.75 | 19/30 | 0.378 | 121 | 3.1 | 55002/55004 | Overall Braided Shield |
| CI500-018-7C-GY-S | 18 AWG | 7 | 0.75 | 19/30 | 0.406 | 144 | 3.3 | 55002/55004 | Overall Braided Shield |
| CI500-018-9C-GY-S | 18 AWG | 9 | 0.75 | 19/30 | 0.472 | 188 | 3.8 | 55004 | Overall Braided Shield |
| CI500-018-12C-GY-S | 18 AWG | 12 | 0.75 | 19/30 | 0.547 | 245 | 4.4 | 55005/55006 | Overall Braided Shield |
| CI500-018-18C-GY-S | 18 AWG | 18 | 0.75 | 19/30 | 0.626 | 327 | 5.1 | 55006 | Overall Braided Shield |
| CI500-018-25C-GY-S | 18 AWG | 25 | 0.75 | 19/30 | 0.736 | 445 | 5.9 | 55007/55008 | Overall Braided Shield |
| CI500-016-3C-GY-S | 16 AWG | 3 | 1.5 | 26/30 | 0.354 | 107 | 2.9 | 55002/55003 | Overall Braided Shield |
| CI500-016-4C-GY-S | 16 AWG | 4 | 1.5 | 26/30 | 0.382 | 126 | 3.1 | 55002/55004 | Overall Braided Shield |
| CI500-016-5C-GY-S | 16 AWG | 5 | 1.5 | 26/30 | 0.409 | 145 | 3.3 | 55002/55004 | Overall Braided Shield |
| CI500-016-7C-GY-S | 16 AWG | 7 | 1.5 | 26/30 | 0.441 | 174 | 3.6 | 55004 | Overall Braided Shield |
| CI500-016-9C-GY-S | 16 AWG | 9 | 1.5 | 26/30 | 0.547 | 245 | 4.4 | 55005/55006 | Overall Braided Shield |
| CI500-016-12C-GY-S | 16 AWG | 12 | 1.5 | 26/30 | 0.598 | 298 | 4.8 | 55005/55006 | Overall Braided Shield |
| CI500-016-18C-GY-S | 16 AWG | 18 | 1.5 | 26/30 | 0.685 | 403 | 5.5 | 55007 | Overall Braided Shield |
| CI500-016-25C-GY-S | 16 AWG | 25 | 1.5 | 26/30 | 0.811 | 55 | 6.5 | 55008 | Overall Braided Shield |
| CI500-014-3C-GY-S | 14 AWG | 3 | 2.5 | 41/30 | 0.386 | 135 | 3.1 | 55002/55004 | Overall Braided Shield |
| CI500-014-4C-GY-S | 14 AWG | 4 | 2.5 | 41/30 | 0.417 | 159 | 3.4 | 55002/55004 | Overall Braided Shield |
| CI500-014-5C-GY-S | 14 AWG | 5 | 2.5 | 41/30 | 0.453 | 185 | 3.7 | 55004 | Overall Braided Shield |
| CI500-014-7C-GY-S | 14 AWG | 7 | 2.5 | 41/30 | 0.488 | 226 | 3.9 | 55004 | Overall Braided Shield |
| CI500-014-9C-GY-S | 14 AWG | 9 | 2.5 | 41/30 | 0.606 | 318 | 4.9 | 55005/55006 | Overall Braided Shield |
| CI500-014-12C-GY-S | 14 AWG | 12 | 2.5 | 41/30 | 0.661 | 387 | 5.3 | 55006/55007 | Overall Braided Shield |
| CI500-014-18C-GY-S | 14 AWG | 18 | 2.5 | 41/30 | 0.764 | 534 | 6.2 | 55007/55008 | Overall Braided Shield |
| CI500-014-25C-GY-S | 14 AWG | 25 | 2.5 | 41/30 | 0.945 | 770 | 7.6 | 55009/55010 | Overall Braided Shield |
| CI500-012-3C-GY-S | 12 AWG | 3 | 4 | 65/30 | 0.433 | 177 | 3.5 | 55004 | Overall Braided Shield |
| CI500-012-4C-GY-S | 12 AWG | 4 | 4 | 65/30 | 0.472 | 211 | 3.8 | 55004 | Overall Braided Shield |
| CI500-012-5C-GY-S | 12 AWG | 5 | 4 | 65/30 | 0.512 | 247 | 4.1 | 55004/55006 | Overall Braided Shield |
| CI500-012-7C-GY-S | 12 AWG | 7 | 4 | 65/30 | 0.591 | 328 | 4.8 | 55004/55006 | Overall Braided Shield |
| CI500-012-9C-GY-S | 12 AWG | 9 | 4 | 65/30 | 0.693 | 436 | 5.6 | 55007 | Overall Braided Shield |
| CI500-010-3C-GY-S | 10 AWG | 3 | 6 | 1055/30 | 0.508 | 248 | 4.1 | 55004/55006 | Overall Braided Shield |
| CI500-010-4C-GY-S | 10 AWG | 4 | 6 | 1055/30 | 0.583 | 317 | 4.7 | 55004/55006 | Overall Braided Shield |
| CI500-010-5C-GY-S | 10 AWG | 5 | 6 | 1055/30 | 0.634 | 375 | 5.1 | 55006/55007 | Overall Braided Shield |
| CI500-010-7C-GY-S | 10 AWG | 7 | 6 | 1055/30 | 0.697 | 474 | 5.6 | 55007 | Overall Braided Shield |
| CI500-010-9C-GY-S | 10 AWG | 9 | 6 | 1055/30 | 0.866 | 666 | 7 | 55008/55009 | Overall Braided Shield |
| CI500-018-3C-GY-U | 18 AWG | 3 | 0.75 | 19/30 | 0.311 | 57 | 2.5 | 55001/55003 | No Shielding |
| CI500-018-4C-GY-U | 18 AWG | 4 | 0.75 | 19/30 | 0.331 | 68 | 2.7 | 55001/55003 | No Shielding |
| CI500-018-5C-GY-U | 18 AWG | 5 | 0.75 | 19/30 | 0.358 | 85 | 2.9 | 55003/55004 | No Shielding |
| CI500-018-7C-GY-U | 18 AWG | 7 | 0.75 | 19/30 | 0.386 | 99 | 3.1 | 55002/55003 /55004 | No Shielding |
| CI500-018-9C-GY-U | 18 AWG | 9 | 0.75 | 19/30 | 0.449 | 130 | 3.6 | 55004 | No Shielding |
| CI500-018-12C-GY-U | 18 AWG | 12 | 0.75 | 19/30 | 0.5 | 162 | 4 | 55004/55005 | No Shielding |
| CI500-018-18C-GY-U | 18 AWG | 18 | 0.75 | 19/30 | 0.618 | 242 | 5 | 55005/55006 | No Shielding |
| CI500-018-25C-GY-U | 18 AWG | 25 | 0.75 | 19/30 | 0.72 | 314 | 5.8 | 55007 | No Shielding |
| CI500-016-3C-GY-U | 16 AWG | 3 | 1.5 | 26/30 | 0.339 | 69 | 2.8 | 55003 | No Shielding |
| CI500-016-4C-GY-U | 16 AWG | 4 | 1.5 | 26/30 | 0.365 | 85 | 3 | 55002 | No Shielding |
| CI500-016-5C-GY-U | 16 AWG | 5 | 1.5 | 26/30 | 0.386 | 102 | 3.1 | 55002 | No Shielding |
| CI500-016-7C-GY-U | 16 AWG | 7 | 1.5 | 26/30 | 0.425 | 124 | 3.4 | 55004 | No Shielding |
| CI500-016-9C-GY-U | 16 AWG | 9 | 1.5 | 26/30 | 0.496 | 164 | 4 | 55004/55005 /55006 | No Shielding |
| CI500-016-12C-GY-U | 16 AWG | 12 | 1.5 | 26/30 | 0.579 | 207 | 4.7 | 55006 | No Shielding |
| CI500-016-18C-GY-U | 16 AWG | 18 | 1.5 | 26/30 | 0.661 | 302 | 5.3 | 55006/55007 | No Shielding |
| CI500-016-25C-GY-U | 16 AWG | 25 | 1.5 | 26/30 | 0.791 | 388 | 6.4 | 55008 | No Shielding |
| CI500-014-3C-GY-U | 14 AWG | 3 | 2.5 | 41/30 | 0.384 | 88 | 3.1 | 55002 | No Shielding |
| CI500-014-4C-GY-U | 14 AWG | 4 | 2.5 | 41/30 | 0.394 | 109 | 3.2 | 55002 | No Shielding |
| CI500-014-5C-GY-U | 14 AWG | 5 | 2.5 | 41/30 | 0.437 | 132 | 3.5 | 55004 | No Shielding |
| CI500-014-7C-GY-U | 14 AWG | 7 | 2.5 | 41/30 | 0.476 | 172 | 3.9 | 55004/55005 | No Shielding |
| CI500-014-9C-GY-U | 14 AWG | 9 | 2.5 | 41/30 | 0.591 | 231 | 4.8 | 55006 | No Shielding |
| CI500-014-12C-GY-U | 14 AWG | 12 | 2.5 | 41/30 | 0.646 | 296 | 5.2 | 55006/55007 | No Shielding |
| CI500-014-18C-GY-U | 14 AWG | 18 | 2.5 | 41/30 | 0.74 | 416 | 6 | 55007 | No Shielding |
| CI500-014-25C-GY-U | 12 AWG | 25 | 4 | 41/30 | 0.929 | 574 | 7.5 | 55009/55010 | No Shielding |
| CI500-012-3C-GY-U | 12 AWG | 3 | 4 | 65/30 | 0.417 | 118 | 3.4 | 55004 | No Shielding |
| CI500-012-4C-GY-U | 12 AWG | 4 | 4 | 65/30 | 0.452 | 149 | 3.7 | 55004 | No Shielding |
| CI500-012-5C-GY-U | 12 AWG | 5 | 4 | 65/30 | 0.5 | 182 | 4 | 55004/55005 /55006 | No Shielding |
| CI500-012-7C-GY-U | 12 AWG | 7 | 4 | 65/30 | 0.575 | 260 | 4.6 | 55006 | No Shielding |
| CI500-012-9C-GY-U | 12 AWG | 9 | 4 | 65/30 | 0.677 | 354 | 5.5 | 55007/55008 | No Shielding |
| CI500-010-3C-GY-U | 10 AWG | 3 | 6 | 105/30 | 0.492 | 175 | 4 | 55004/55005 /55006 | No Shielding |
| CI500-010-4C-GY-U | 10 AWG | 4 | 6 | 105/30 | 0.576 | 243 | 4.7 | 55006 | No Shielding |
| CI500-010-5C-GY-U | 10 AWG | 5 | 6 | 105/30 | 0.619 | 304 | 5 | 55006 | No Shielding |
| CI500-010-7C-GY-U | 10 AWG | 7 | 6 | 105/30 | 0.681 | 388 | 5.5 | 55007/55008 | No Shielding |
| CI500-010-9C-GY-U | 10 AWG | 9 | 6 | 105/30 | 0.807 | 530 | 6.5 | 55008/55009 | No Shielding |
