Thermo-Trex® High Temp VFD Cable

Thermo-Trex® High Temp VFD Cable is designed specifically for the harsh electrical environment of typical variable frequency drive systems that require higher heat exposure and can withstand a maximum conductor temperature of 200°C / 392°F.

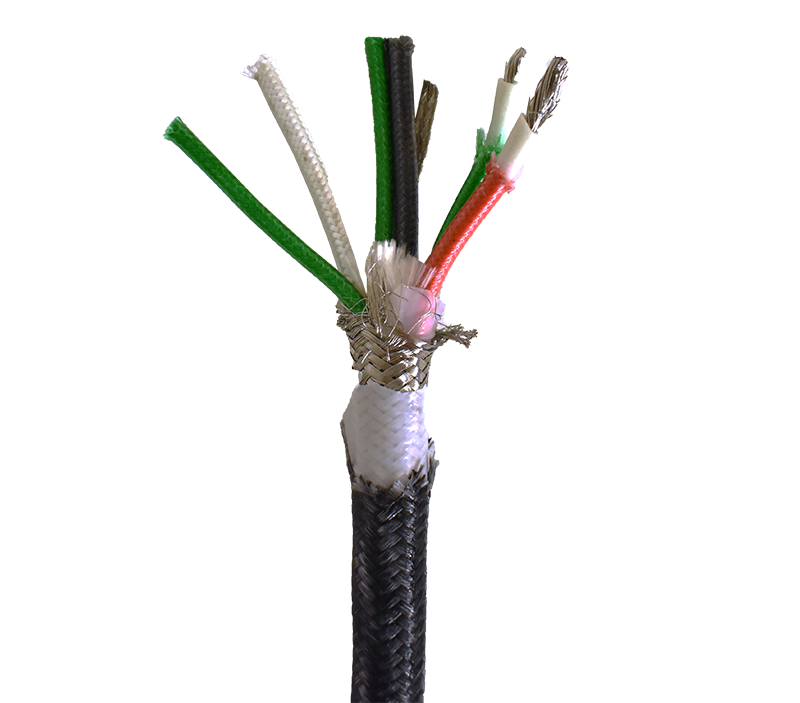

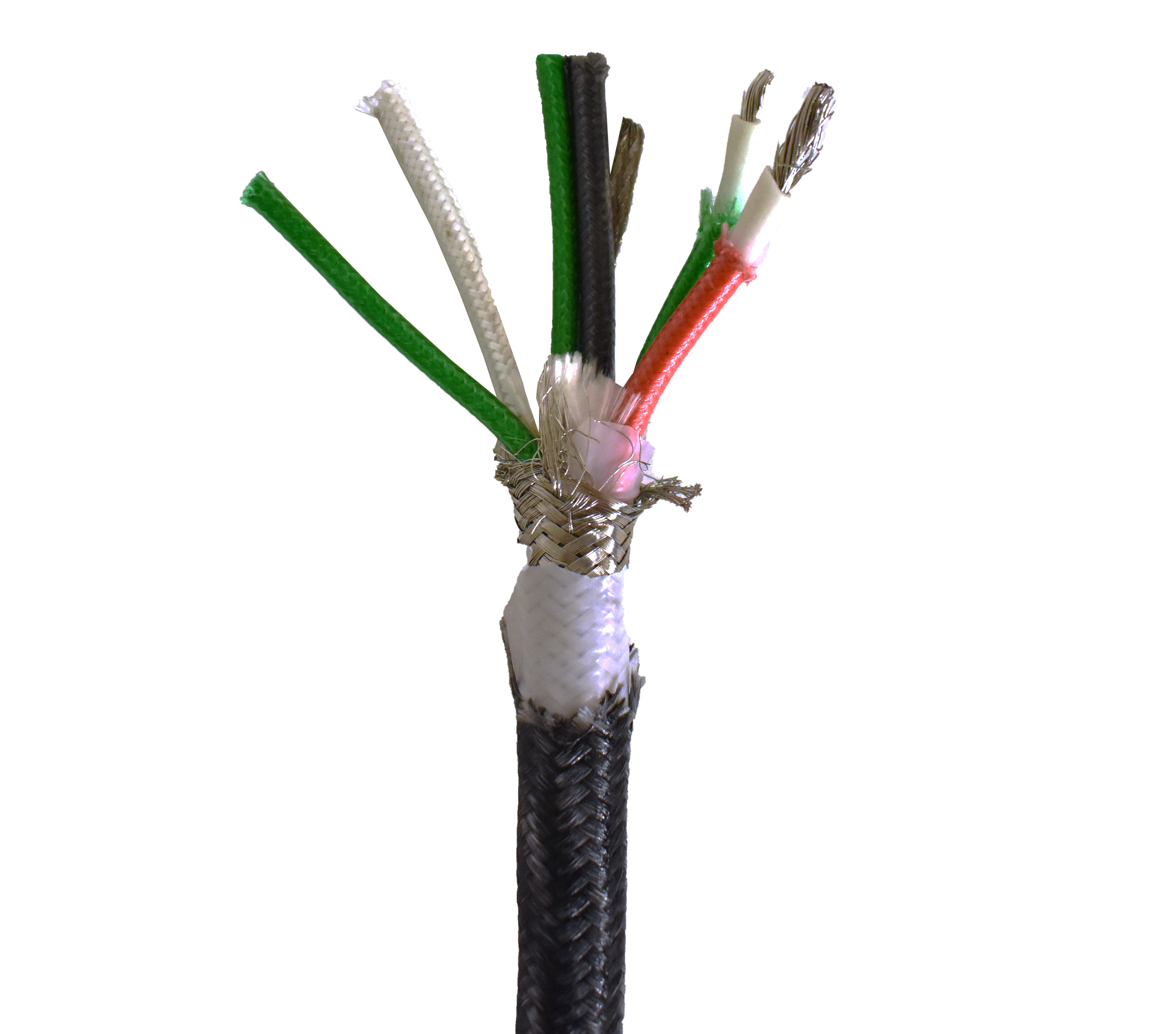

This power cable features three conductors with three symmetrical grounds, a braided shield, a temperature-resistant jacket that provides excellent protection against heat and mechanical abuse. The cable is constructed to withstand corona voltages up to 2,000 volts.

Features

Finely Stranded Nickel-Plated Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Nickel-plated conductors allow for high heat resistance.

Silicone Rubber & Fiberglass Yarn Insulation

Silicone rubber insulation covered by color-coded braided fiberglass yarn impregnated with a saturant to minimize fraying.

Symmetrical Grounding System

Three ground conductors placed symmetrically in the interstices of the power conductors with a spiral-wrapped skived PTFE tape to create a smooth round bundle and balance the cable electrically.

Heavy-Duty 90% Coverage Nickel-Plated Copper Braid Shield

Nickel-plated copper braid shield with flat drain wire and spiral-wrapped skived PTFE tape. Provides protection against EM and RF interference and a low impedance path to ground. Protects equipment and motor damage from electrical noise and “stray voltage.”

Specially Designed Fiberglass Braid Jacket

Braided fiberglass jacket impregnated with high-temp finishing compounds to prevent fraying. Provides first line defense against abrasion and high heat.

Resources

WhitePaper

VFD: Installing Cable that Powers and Protects

Resource-Color Code

Thermo-Trex® High Temp VFD Cable

Ratings / Characteristics

  • UL Recognized

  • CSA

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 200C

  • AWM 758 Style 5587

  • CSA Std C22.2 No. 210 AWM Class I Group A/B 200C

  • FT2 Flame Rating

  • Corona Resistant to 2000V

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

heat-icon

High Temperature

Part Numbers

Part No. CONDUCTOR SIZE (AWG) Conductor Pole Count POWER CONDUCTOR STRANDING GROUND CONDUCTOR SIZE (AWG) GROUND CONDUCTOR STRANDING DRAIN WIRE & STRANDING AMPACITY NOMINAL O.D.
inches
WT. Per 1000’
lbs
Shielding Type
41280 14 AWG 3 41/30 3x18 AWG 19/30 18AWG x 19/30 40 0.495 178 Overall Shield
41281 12 AWG 3 65/30 3x16 AWG 26/30 16AWG x 26/30 55 0.54 225 Overall Shield
41282 10 AWG 3 105/30 3x14 AWG 41/30 14AWG x 41/30 74 0.63 316 Overall Shield
41283 8 AWG 3 133/29 3x12 AWG 65/30 12AWG x 65/30 1 102 0.805 506 Overall Shield
