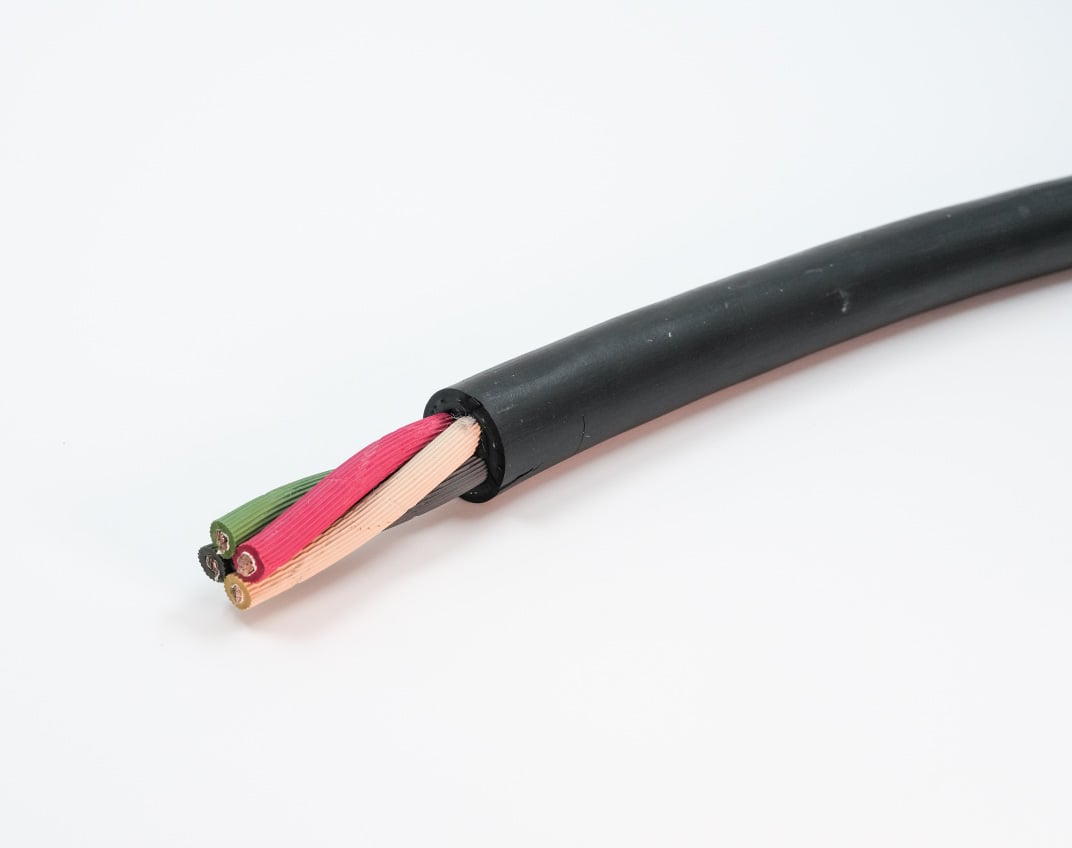

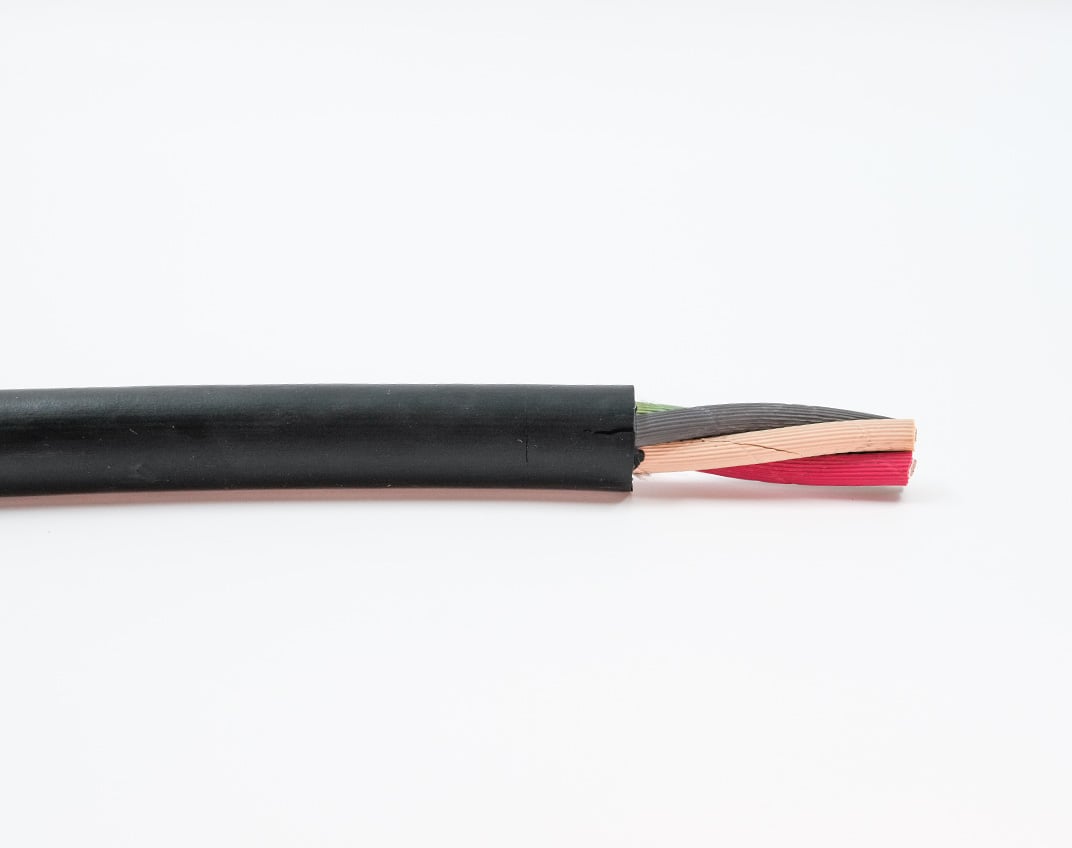

Super-Trex® Type W Black Portable Power and Automation Cable

Super-Trex® Type W Black Portable Power and Automation Cable is a highly flexible cable rated for extra-hard usage in industrial applications where impact, cutting, abrasion, oils, and chemicals are common.

This Type W portable power and automation cable features an integral fill, dual-layered fiber-reinforced jacket and live-flex ribbed insulation for added strength. The black TSE jacket provides excellent protection against pulling and twisting and allows for extreme all-weather flexibility.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

No-wick Rayon-Reinforced Synthetic Center

Adds tensile strength. Improves flexibility. Won't wick up liquids. Acts like a shock absorber to reduce damage from impact.

Flexible Concentric Rope Lay Bunch Stranded Copper

Provides longer life in reeling, flexing, and twisting applications.

Tinned Conductors

Resists corrosion. Easier to solder.

Live-flex EPR Conductor Insulation Rated 90°C

Resists dry rot. High dielectric, tensile, and mechanical properties.

Polyester Tire Cord Reinforcing Braid Embedded In Jacket

Provides added strength. Improves cable resistance to impact, abrasion, twisting, and pulling.

Specially Compounded TSE Super-Trex® Double Pass

Superior first line of defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame- and heat-resistant. Excellent all-weather flexibility.

Resources

Specsheets

Product Review

Ratings / Characteristics

  • UL Listed

  • MSHA-Approved

  • cUL Listed

  • Type W – 2,000 V

  • FT-5 FlameRating

  • IEEE 1202 Flame Rating

  • Suitable forClass I, II, III, Division 1 & 2

  • UV Resistant

  • ICEA S-75-381

  • Max Conductor Temperature 90°C

  • Cold Temperature Rating -40°C

  • Extra Hard Usage

  • All-Weather Usage

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

cold-icon

Extreme Temperature

flexing-icon

Flexing

impact-icon

Impact

tension-icon

Tension

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Cond. Stranding Ampacity JACKET THICKNESS
inches		 NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 MSHA Shielding Type
87404 8 AWG 2 133 (7 x 19) 74 0.141 0.902 409 • No Shielding
87304 8 AWG 4 133 (7 x 19) 65 0.141 1.027 643 • No Shielding
87406 6 AWG 2 259 (7 x 37) 99 0.141 0.96 505 • No Shielding
87306 6 AWG 4 259 (7 x 37) 87 0.141 1.1 818 • No Shielding
87407 4 AWG 2 259 (7 x 37) 130 0.141 1.096 702 • No Shielding
85108 4 AWG 4 259 (7 x 37) 114 0.141 1.27 1152 • No Shielding
87408 2 AWG 2 259 (7 x 37) 174 0.141 1.22 1033 • No Shielding
85110 2 AWG 4 259 (7 x 37) 152 0.141 1.38 1549 • No Shielding
87411 1/0 AWG 2 266 (19 x 14) 234 0.156 1.52 1616 • No Shielding
85224 2/0 AWG 4 323 (19 x 17) 237 0.156 1.88 2872 No Shielding

Related Products

Super-Trex-Type-W-Yellow-Portable-Power-Automation-Cable-Cut End-1

Super-Trex Type W Portable Power & Automation Cable - Yellow
nylon-straight-grip-seal_1 (1)

Cable Glands

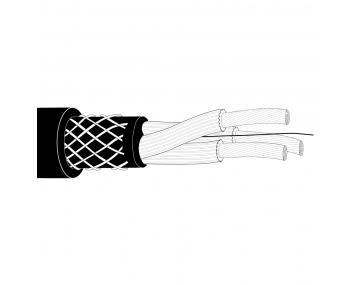

super-trex-black-triple-gard-portable-cord_1
