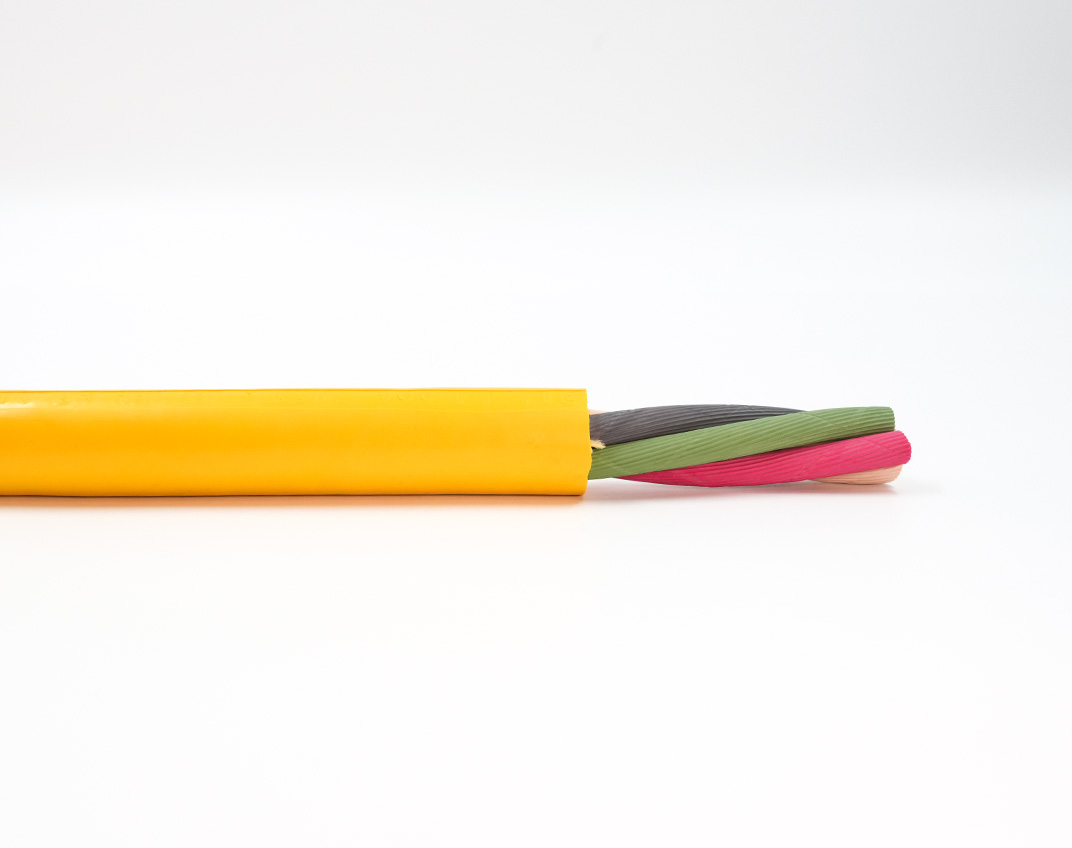

Super-Trex® Type W Yellow Portable Power and Automation Cable Side_Web

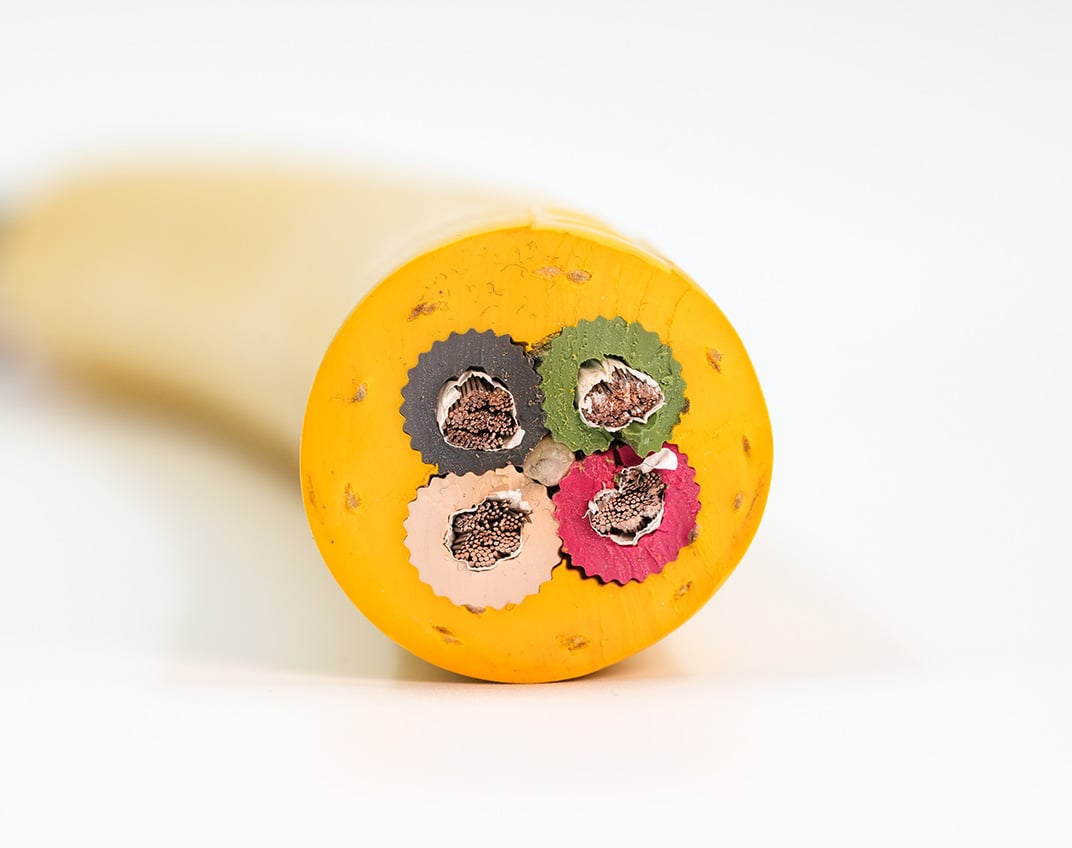

Super-Trex® Type W Yellow Portable Power and Automation Cable Macro_Web

Super-Trex® Type W Yellow Portable Power and Automation Cable

Super-Trex® Type W/Type TC-ER Yellow Portable Power and Automation Cable is a highly flexible cable rated for extra-hard usage in industrial applications where impact, cutting, abrasion, oils, and chemicals are common.

This Type W portable power and automation cable features an integral fill, dual-layered fiber-reinforced jacket and live-flex ribbed insulation for added strength. The security yellow TSE jacket provides excellent protection against pulling and twisting and allows for extreme all-weather flexibility.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Finely Stranded Tinned Copper Conductors

Fine stranding improves flex-life and reduces conductor fatigue and breakage. Tinned conductors resist corrosion and are easier to solder.

Live-Flex & Fluid Resistant Ribbed EPR Insulation

Ribbed to help prevent kinking and breakage due to twisting and flexing. Resists effects of lubricating oils, coolants, cutting oils, acids, and most chemicals. Enhances tensile strength.

No-Wick RayonReinforced Synthetic Center

Adds tensile strength. Improves flexibility and won’t wick up liquids. Act like a shock absorber to reduce damage from impact.

Polyester Tire Cord Braid Embedded in Jacket with Integral Fill Design

Provides added strength. Improves cable resistance to tearing, abrasion, twisting and pulling. Locks the conductors into the jacket. Helps prevent cork screwing and premature conductor failure.

Specially Compounded Security Yellow Double Pass TSE Jacket

Offers superior first-line defense against tearing, abrasion, impact, oil, ozone, and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Resources

Specsheets

Product Overview

WPP

Case Study: Pond Aeration Cable at a Paper Mill

FoodBev

Case Study: Power Cable Lasts 8 Years Before Failure in Concession Area

Metals

Case Study: Weld Spatter & Reel Tension Create Tough Environment for Cable

Resource-Color Code

Super-Trex® Type W Yellow Portable Power and Automation Cable

Ratings / Characteristics

  • UL Listed

  • MSHA Approved

  • 2000V

  • Max Conductor Temperature 90°C

  • Cold Temp Rating -40°C

  • Type W

  • Type TC-ER

  • ICEA S-75-381

  • FT-4 Flame Rating

  • FT-5 Flame Rating

  • Suitable forClass I, II, III, Division 1 & 2

  • UV Resistant

  • Extra Hard Usage

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

impact-icon

Impact

Part Numbers

PART NO. CORD SIZE AWG/COND Conductor/Pole Count CONDUCTOR STRANDING AMPACITY JACKET THICK
inches		 NOMINAL O.D.
inches		 WT. PER 1000'
lbs		 MIN. BEND RADIUS
inches		 FLAME RATING Shielding Type
85404 8 AWG 2 133 (7 x 19) 74 0.141 0.95 512 7.6 FT-1 No Shielding
85406 6 AWG 2 259 (7 x 37) 99 0.141 1.05 626 8.4 FT-4 No Shielding
85407 4 AWG 2 259 (7 x 37) 130 0.141 1.15 823 9.2 FT-4 No Shielding
85408 2 AWG 2 259 (7 x 37) 174 0.141 1.265 1094 10.12 FT-4 No Shielding
85411 1/0 AWG 2 1064 (19 x 56) 234 0.156 1.625 1766 13 FT-4 No Shielding
85203 8 AWG 3 133 (7 x 19) 65 0.141 1 598 8 FT-1 No Shielding
85205 6 AWG 3 259 (7 x 37) 87 0.141 1.08 742 8.64 FT-4 No Shielding
85257 4 AWG 3 259/28 114 0.141 1.225 997 9.8 FT-4 No Shielding
85259 2 AWG 3 259/26 152 0.141 1.34 1353 10.72 FT-4 No Shielding
85255 1/0 AWG 3 133 (7 x 19) 205 0.156 1.7 2328 13.6 FT-4 No Shielding
85204 8 AWG 4 259 (7 x 37) 65 0.141 1.07 706 8.56 FT-1 No Shielding
85206 6 AWG 4 259 (7 x 37) 87 0.141 1.18 914 9.44 FT-4 No Shielding
85215 6 AWG 5 259 (7 x 37) 69 0.141 1.28 1077 10.24 FT-4 No Shielding
85606 6 AWG 6 259 (7 x 37) 69 0.141 1.39 1262 11.04 FT-4 No Shielding
85208 4 AWG 4 259 (7 x 37) 114 0.141 1.38 1229 11.12 FT-4 No Shielding
85210 2 AWG 4 259 (7 x 37) 152 0.141 1.46 1684 11.68 FT-4 No Shielding
