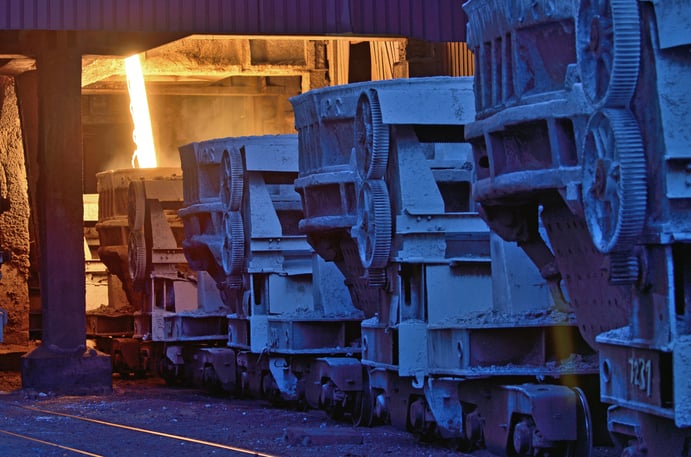

One critical application for high-temp reeling cables is in steel mill ladle cars and molten metal transport systems. These cars transport molten steel from the pre-heater to the production line as part of the electric arc furnace (EAF) process.
Due to the extreme heat and harsh conditions, reliable power and control cables are essential to ensure seamless operation. The constant movement of ladle cars requires cables that are not only heat-resistant but also highly flexible and durable to withstand mechanical stress and heavy usage. High-temp reeling cables provide the necessary power, allowing for efficient and safe ladle car operations while reducing downtime and maintenance costs.
Why Ladle Cars Demand Specialized High-Temperature Reeling Cables
Ladle cars are essential for safely transporting molten steel, either on the ground via track-mounted cars or overhead with crane systems. Both methods operate in one of the harshest environments in industrial manufacturing, exposed to extreme heat, slag, mechanical stress, and continuous movement. This makes them highly dependent on specialized high-temperature reeling cables designed to withstand these challenging conditions:
Extreme Temperatures: Molten steel can exceed 1,600°C, creating a high-heat environment that would quickly degrade standard cables. Whether the metal is transported on the ground by ladle cars or overhead by cranes, cables must be able to handle these extreme temperatures without degradation.
Continuous Movement: Ladle cars move back and forth on tracks, while overhead cranes carry ladles along their travel path. Both systems require cables that can reel and unreel continuously without breaking down, ensuring smooth, uninterrupted movement.
Mechanical Stress: Both track-mounted ladle cars and overhead cranes face frequent bending, pulling, and abrasion. The cables need to be flexible and durable enough to withstand constant mechanical stress from the frequent movements of these transport systems.
These conditions are not unique to ladle cars alone—they apply to many processes within steel mills, from electric arc furnace (EAF) operations to basic oxygen furnaces (BOFs). High-temperature reeling cables are critical for maintaining continuous, efficient operation in steel mills where heat, slag, and mechanical stress are ever-present. Without these specialized cables, both track-mounted ladle cars and overhead cranes would be prone to failure, leading to costly downtime and delays in steel production.
Key Features of High-Temperature Reeling Cables for Ladle Cars
1. Heat-Resistant Insulation and Jacketing
Ladle cars operate just feet away from electric arc furnaces (EAFs) and basic oxygen furnaces (BOFs), making heat resistance absolutely critical. These cables are engineered with specialized insulation materials such as silicone rubber, cross-linked polyethylene (XLPE), or ethylene propylene rubber (EPR). These materials ensure the cable can withstand continuous exposure to temperatures ranging from 150°C to over 200°C without degradation. Additionally, the outer jackets are often made from thermoset compounds with excellent heat stability to prevent cracking or melting, making them ideal for direct exposure to heat sources during steelmaking processes.
Why it matters: Prevents heat-related cable jacket failure during the high-temperature transfer of molten metal.
2. Flexibility and Mechanical Strength for Reeling Systems
Ladle cars rely on cable reels or carriers that demand constant winding and unwinding as the car moves. That repetitive motion puts intense stress on the cable. High-temp reeling cables are designed to endure frequent winding and unwinding around reeling drums. They incorporate finely stranded copper conductors to enhance flexibility, reducing stress on the cable during movement. Reinforced aramid or textile braiding may be included within the cable construction to improve tensile strength and resistance to mechanical wear during repetitive cable flexing and bending motions, making them well-suited for cable reels and cable carriers on machinery handling scrap steel and raw materials in steel production facilities.
Why it matters: Enables smooth, uninterrupted operation of the ladle car’s mobile systems and reduces the risk of mechanical cable fatigue due to repetitive cable flexing.
3. Built for Overhead Ladle Cranes and Festoon Systems
In addition to the ladle car itself, overhead cranes handling ladles often use festoon systems with reeling cables that move continuously along the runway. These applications require an ideal balance of flexibility and heat resistance. Aramid fibers and finely stranded copper conductors allow the cable to bend and stretch repeatedly as the festoon expands and retracts—without performance loss.
Why it matters: Supports safe, consistent movement of overhead ladle crane handling trolley and runways across high-heat zones.
4. Resistance to Slag, Oil, and Harsh Chemicals
Cables on ladle cars—and associated equipment like cranes and conveyors—are frequently exposed to molten slag, oil, hydraulic fluids, and chemical vapors that can deteriorate standard insulation materials. High-temp reeling cables feature specialized outer sheaths made from chlorinated polyethylene (CPE) or thermoplastic polyurethane (TPU), providing superior resistance to hydrocarbons, chemicals, and molten metal splashes. This ensures long-term reliability, even on ladle and scrap handling cranes processing direct reduced iron (DRI) and scrap metal.
Why it matters: Ensures cable longevity and operational safety around splash-prone molten metal zones.
6. Abrasion and Impact Resistance
As ladle cars move across tracks, the trailing cable is constantly exposed to physical stress—from dragging across the ground to contact with sharp slag or structural surfaces. High-temp reeling cables include heavy-duty outer jackets and impact-resistant layers that protect against cuts, gouges, and crushing forces.
Why it matters: Extends cable lifespan despite the rugged and abrasive mechanical abuse typical in steel mill floor conditions.
How the Right Cable Enhances Ladle Car Operations
Extended Cable Lifespan, Minimized Downtime, Lean Maintenance Strategies
Engineered to endure extreme conditions, these cables resist premature failure, reducing the need for frequent replacements and lowering maintenance costs across ladle cars, cranes, cable reels, and festoon systems.
Improved Safety
Enhanced insulation and fire-resistant properties prevent electrical hazards, ensuring worker safety in harsh steelmaking processes.
Optimized Performance
Consistent power and control signals help ladle cars operate smoothly, keeping steel production on schedule.
Reduced Maintenance Costs
Durable construction minimizes wear and tear, lowering the need for frequent repairs or replacements, benefiting the largest steel producers and integrated steel operations.
Choosing the Right High-Temperature Reeling Cable for Ladle Cars
When choosing the right cable for ladle cars, it's crucial to consider factors like temperature rating, flexibility, resistance to mechanical stress, and durability in extreme heat and harsh environments. High-quality, specialized cables ensure the reliable transport of molten steel, minimize downtime, and enhance the lifespan of ladle cars, cranes, cable reels, and festoon systems. Investing in the right cables guarantees long-term performance, reducing maintenance costs and ensuring seamless steel production operations.
Conclusion
High-temp reeling cables are vital to the reliable operation of ladle cars, whether they are track-mounted or overhead. These cables offer the durability, flexibility, and heat resistance necessary to handle the extreme conditions of molten steel transport. By selecting the right high-temperature reeling cables, steel mills can enhance safety, reduce downtime, extend the lifespan of ladle cars and related equipment, and ensure smooth, uninterrupted productivity in demanding environments.
Would you like more insights on reeling cable or cable solutions for the metals industry? Reach out to explore tailored solutions for your steel mill!
